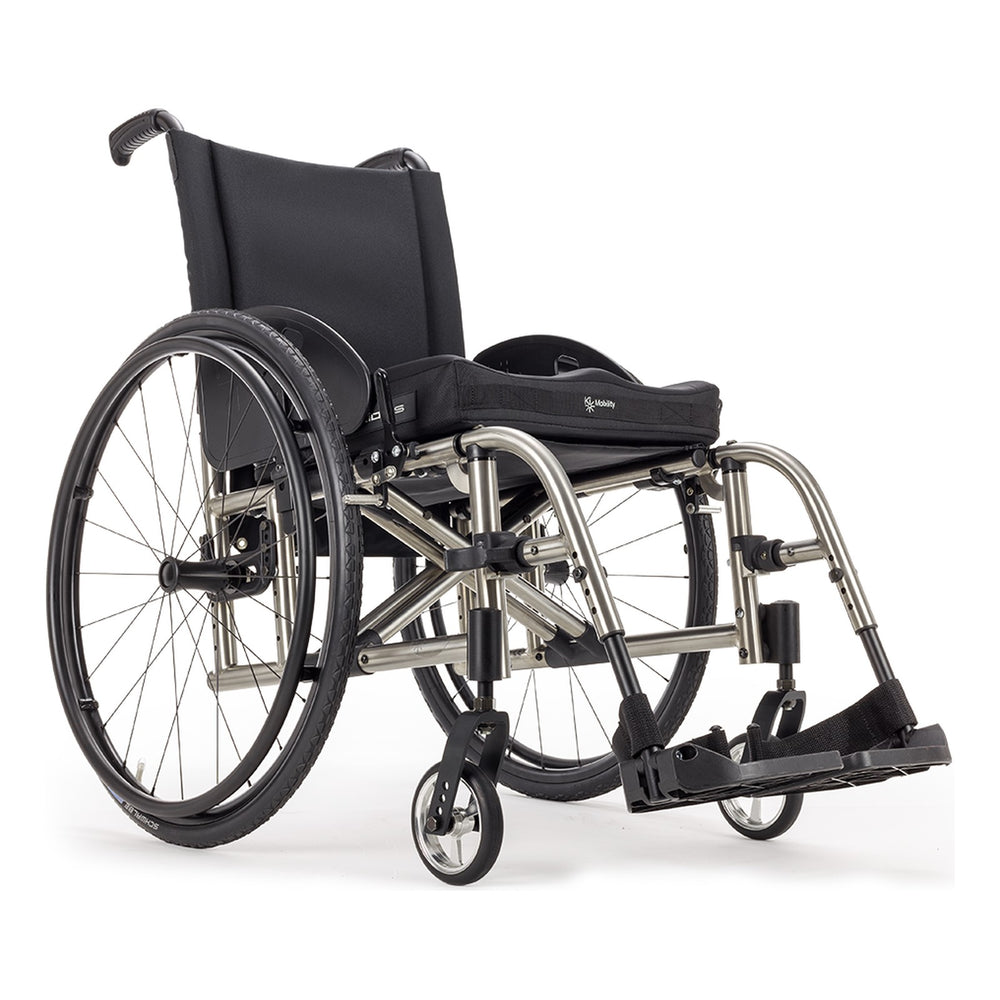

Ki Mobility Catalyst 5Ti
The Catalyst 5Ti is a folding ultralight titanium wheelchair. You choose every part, and we check it against Ki Mobility's rules.
A folding chair in titanium, built to your measurements
The Catalyst 5Ti is Ki Mobility's folding wheelchair with a Ti3Al/2.5V titanium frame. Ki Mobility gives a 10.8 lb. transport weight at 16" x 16". The universal axle plate sets the seat heights in 1/2" steps and moves the center of gravity over a 3" range.
Choose the frame, seat size, rear wheels, casters and seat heights, footrest, back, wheel locks, armrests, accessories and color. Each choice is checked against the Catalyst 5Ti order form as you build.
What stands out
Titanium frame
Ki Mobility builds the frame from Ti3Al/2.5V titanium alloy and says it has twice the strength to weight ratio of 6061 aluminum and resists scratches and corrosion.
Titanium cross braces
An option that takes about 1/2 lb. more off the frame, for the 14" to 20" seat widths.
Universal axle plate
Sets the rear seat height in 1/2" steps and moves the center of gravity over a 3" range.
Heavy duty frame
The heavy duty frame raises the user weight capacity from 300 lbs. to 350 lbs.
One arm drive
One arm drive puts both handrims on one side, with its own spoke wheels on quick release axles.
Color accents
The titanium frame is left bare. Color comes from the accent package on the forks and axle plates and from colored mag wheels.
The Hieline Insight
The Catalyst 5Ti suits a full time manual wheelchair user who lifts a folding chair into a car often and wants titanium, up to 300 lbs., or 350 lbs. with the heavy duty frame. Choose it over the aluminum Catalyst 5 if the lighter frame and a titanium ride are worth the higher price, and choose the Catalyst 5 if you need the depth adjustable or reclining back or a painted frame. Take your hip width, seat depth, lower leg length and back height before you start, since Ki Mobility fixes every size when it builds the chair. Choose your rear wheels and casters before the seat heights, because they set the heights the page offers. Ki Mobility builds the chair to order, so it cannot be returned once it is made.
Is it right for you?
A good fit if you
- a full time manual wheelchair user who needs a folding chair
- a user who lifts the chair often and wants titanium
- a user up to 300 lbs., or 350 lbs. with the heavy duty frame
- a seat width from 14" to 22"
Look elsewhere if you
- a user over 350 lbs.
- a user who wants a rigid frame
- a user who wants a painted frame color
- a user who needs a depth adjustable or reclining back, which is on the Catalyst 5
How you get yours
Build it
Work through the guided build one step at a time. Your progress saves as you go.
Rules checked
Every choice is checked against Ki Mobility's own rules as you build, so you cannot order a combination that cannot be made.
Add to cart
Your finished build goes in the cart at the price shown, with every part number on the order.
Made and shipped
Ki Mobility makes it to your build and it ships to you, with free shipping nationwide.
Specifications
Because the Catalyst 5Ti is built to order, some figures depend on the options you choose. The figures for your own build are on the build summary as you go.
Every figure here comes from Ki Mobility's own documents.
How your Catalyst 5Ti reaches you
Your build goes to Ki Mobility exactly as you ordered it, with every part number on the order, and ships to you when it is made. Shipping is free nationwide.
Warranty and support
The Catalyst 5Ti carries Ki Mobility's manufacturer warranty. Hieline supports it after the sale, and parts and repairs are handled directly through us, right here on hieline.com.
Returns
Resources
Here are the manuals, brochures, and videos for the Catalyst 5Ti, all from Ki Mobility.
Owner's manuals
Brochures
Order forms
Videos
Ki Catalyst - How to Operate the Swing Away Hanger
Ki Catalyst - How to adjust the Footrest
Ki Catalyst How to resquare the Standard Caster Housing
Ki Catalyst - How to Resquare the Performance Caster Housing
Common questions
Measure seated on a firm surface. Hip width sets the seat width, the back of the hip to the back of the knee sets the seat depth, the back of the knee to the floor in shoes sets the seat to footrest length, and the seat to the shoulder blades sets the back height. The measuring guide on this page shows each one.
300 lbs. With the heavy duty frame it carries 350 lbs. The heavy duty frame needs 5" or larger casters and is not sold with the transit system, the performance caster housing, Frog Legs forks, camber, swing-in anti-tips or fold down push handles.
Ki Mobility gives a transport weight of 10.8 lbs. at 16" x 16", with 5" x 1" poly casters and swing away arm receivers, without the footrest and rear wheels, and a standard weight of 18.8 lbs.
The frame is titanium instead of 7000 series aluminum, about 2 lbs. lighter in transport weight, and it is not painted. The Catalyst 5Ti does not offer the depth adjustable or reclining backs, front mount hangers, the super low front frame or swing away armrests with side guards, and its front seat height starts at 15".
No. Ki Mobility does not paint the titanium frame. The color accent package colors the forks and axle plates, and the colored mag wheels come in 21 colors.
No. The photographs show a cushion, which is sold separately.
Ki Mobility sells the Twist power assist from Klaxon as an add-on on its order form. We do not offer it on this page yet. The e-motion ready option, which installs the adaption kit for an Alber e-motion, is offered here.
Ki Mobility warrants the frame, cross braces, hangers and quick release axles of its Catalyst chairs against defects for the life of the original purchaser, with an expected frame life of five years. All other parts are covered for one year from the first purchase. Upholstery, tires, tubes, armrest pads, armrests and push handle grips are wear items and are not covered.
No. The Catalyst 5Ti is built to order to one user's sizes, so it cannot be returned. Ki Mobility's warranty covers defects.
No. You can order a Catalyst 5Ti from Hieline without a prescription.
No. Hieline does not bill or accept insurance, so the Catalyst 5Ti is a direct purchase. Any reimbursement is strictly between you and your insurer.
Yes. Your progress saves automatically in your browser as you go, so you can step away and pick up where you left off on the same device.
Every combination is checked against Ki Mobility's own compatibility rules as you build. An option that does not fit your other choices is greyed out with the reason printed on it, and the build cannot be added to the cart while a conflict is open.
Build your Catalyst 5Ti
You build the Catalyst 5Ti one step at a time with our guided assistant. It checks every choice against Ki Mobility's own rules, and your progress saves as you go.
Answer for the person who will use the Catalyst 5Ti, whether that is you, a family member or a resident in your care. You can change any answer until the build is in your cart.
The user's measurements
Every size in the build is set from these numbers.
You need the user's measurements before the build can start. Download the measuring form, fill it out with the user, and return to this page when it is done. Your progress is saved on this device, so you can pick up right here and enter the numbers.
Download the measuring formThe user's weight and height
The weight sets the weight capacity of the build. Height is optional.
Two ways to build your Catalyst 5Ti
You have given us the measurements. Now choose how much you want to decide. You can go deeper later without losing anything, so start wherever feels right.
The essentials, chosen for you.
Move through the choices that shape how the Catalyst 5Ti fits and works. We start each one from your answers, and you adjust anything you like. Every choice is checked live against the manufacturer rules as you go, so the build stays valid the whole way.
- What you decideThe essential choices
- Roughly14 decisions
- Every choiceChecked live against the rules
Best if you want a well-fitted build without weighing every option.
Every option from the order form.
Work through the complete Ki Mobility build, every choice on the order form, with the same guided steps and the same live rule checking. Nothing is hidden. This is the full depth of the Catalyst 5Ti, laid out so you can set each detail exactly the way you want.
- What you decideThe complete build
- Roughly68 decisions
- Every choiceChecked live against the rules
Best if you want control over every detail.
Here is the full build with its part numbers and the price you pay. Add it to your cart and check out, and it reaches our order desk as one record.
