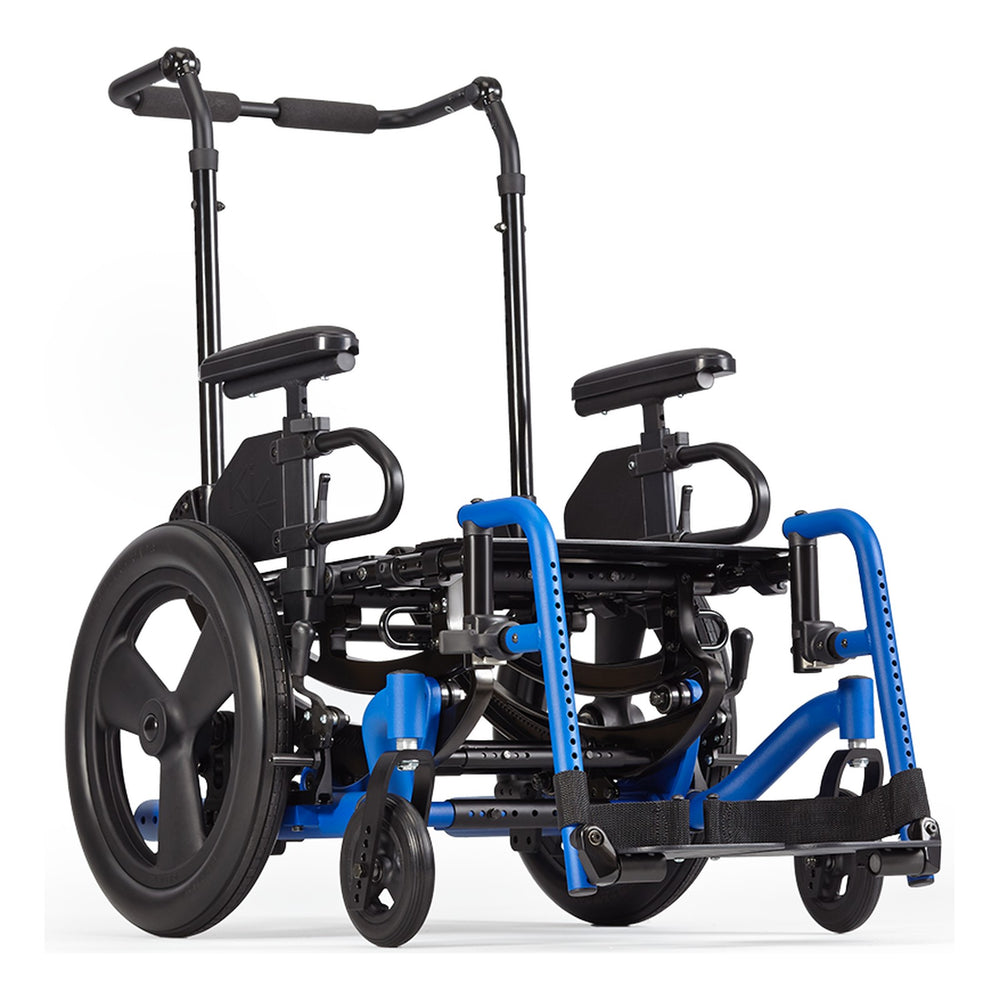

Ki Mobility Focus CR
The Focus CR is a manual tilt in space wheelchair with hand, foot or power tilt. You choose every part, and we check it against Ki Mobility's rules.
A tilt in space chair built to the user, with hand, foot or power tilt
The Focus CR is Ki Mobility's manual tilt in space wheelchair. Its complex rotation tilts the seat from 5 degrees forward to 50 degrees back on two paths, so the seat stays balanced through the tilt. It is rated to 300 lbs., or 400 lbs. on the heavy duty frame, and its width and depth adjust within a range as needs change.
Choose the frame size and seating setup, the tilt, the back, the rear wheels and wheel locks, the casters and seat height, the footrest, the armrests, accessories and color. Each choice is checked against the Focus CR order form as you build.
What stands out
Complex rotation
Two control paths with two centers of rotation keep the seat balanced, so it settles to the middle of its travel instead of moving forward or back on its own.
Hand, foot or power tilt
Hand tilt on the right, left or both push handles, foot tilt on either side, or power tilt with a toggle, pendant or adaptive switch interface.
Adjusts as needs change
The frame width and depth adjust within the range you choose, and the center of gravity moves with two bolts.
Footrest choices
Extension tube, front mount and contracture footrests, elevating leg rests and residual limb supports, with seat to footrest lengths in half inch steps.
Flip up anti-tips
Optional spring loaded rear anti-tips flip up and down with a foot.
Color choices
The frame comes in 21 colors at no charge.
The Hieline Insight
The Focus CR suits a user who needs to change position through the day and is pushed by a caregiver or pushes a little themselves, up to 300 lbs. or 400 lbs. on the heavy duty frame. Choose hand tilt if a caregiver tilts the chair, foot tilt to keep both hands free, and power tilt if the user tilts on their own. Pick a width and depth range that holds today's size with room to adjust, since the frame stays within its range. Take hip width, seat depth, lower leg length and back height before you start. Choose the rear wheels, tire and wheel locks before the casters, and the casters before the seat height, because they set the heights the page offers. Ki Mobility builds the chair to order, so it cannot be returned once it is made.
Is it right for you?
A good fit if you
- a user who needs tilt in space for pressure relief or positioning
- a user up to 300 lbs., or 400 lbs. on the heavy duty frame
- a seat width from 14" to 24"
- a caregiver who pushes and tilts the chair
- a user who needs elevating leg rests, a contracture footrest or a limb support
- a user who rides in a vehicle in the chair, with the transit option
Look elsewhere if you
- a user who pushes long distances on their own
- a user who needs a folding chair to lift into a car
- a user over 400 lbs.
- a seat narrower than 14"
How you get yours
Build it
Work through the guided build one step at a time. Your progress saves as you go.
Rules checked
Every choice is checked against Ki Mobility's own rules as you build, so you cannot order a combination that cannot be made.
Add to cart
Your finished build goes in the cart at the price shown, with every part number on the order.
Made and shipped
Ki Mobility makes it to your build and it ships to you, with free shipping nationwide.
Specifications
Because the Focus CR is built to order, some figures depend on the options you choose. The figures for your own build are on the build summary as you go.
Every figure here comes from Ki Mobility's own documents.
How your Focus CR reaches you
Your build goes to Ki Mobility exactly as you ordered it, with every part number on the order, and ships to you when it is made. Shipping is free nationwide.
Warranty and support
The Focus CR carries Ki Mobility's manufacturer warranty. Hieline supports it after the sale, and parts and repairs are handled directly through us, right here on hieline.com.
Returns
Resources
Here are the manuals, brochures, and videos for the Focus CR, all from Ki Mobility.
Owner's manuals
Brochures
Order forms
Common questions
Measure seated on a firm surface. Hip width sets the frame width, the back of the hip to the back of the knee sets the seat depth, the back of the knee to the floor in shoes sets the seat to footrest length, and the seat to the shoulders sets the back height. The measuring guide on the Resources tab shows each one.
From 5 degrees forward to 50 degrees back. Offset hangers add tilt stops, and with them the chair does not tilt forward.
Hand tilt is worked by a caregiver at the push handle, on the right, left or both sides. Foot tilt is worked with the foot. Power tilt lets the user tilt with a toggle, a pendant or an adaptive switch.
300 lbs. on the standard frame and 400 lbs. on the heavy duty frame, which needs the long depth range and 6" x 2" or 8" x 2" casters.
Ki Mobility gives a transport weight of 33 lbs. at 16" x 16" with stroller handle back posts and 6" x 1" casters, without the armrests, footrests and rear wheels.
With option 1 you choose a seat depth and a backrest offset, and Ki Mobility sets the frame to match. With option 2 you choose the frame depth. Both cost nothing, and the depth can be adjusted later within the range.
Ki Mobility's chart sets the seat heights by rear wheel size, tire, wheel lock and caster. The page offers only the heights on that chart for the parts you chose. The transit option needs at least a 16" seat height.
No. The chair comes with the seat pan if you choose it, and the back posts. A cushion and back support are sold separately.
Ki Mobility warrants the frame, hangers, tilt assembly with its bearings and the quick release axles against defects for the life of the original purchaser, with an expected frame life of five years. Power tilt parts other than batteries are covered for two years, and all other Ki Mobility parts for one year from the first purchase. Upholstery, tires, tubes, armrest pads, armrests and push handle grips are wear items and are not covered.
No. The Focus CR is built to order to one user's sizes, so it cannot be returned. Ki Mobility's warranty covers defects.
No. You can order a Focus CR from Hieline without a prescription.
No. Hieline does not bill or accept insurance, so the Focus CR is a direct purchase. Any reimbursement is strictly between you and your insurer.
Yes. Your progress saves automatically in your browser as you go, so you can step away and pick up where you left off on the same device.
Every combination is checked against Ki Mobility's own compatibility rules as you build. An option that does not fit your other choices is greyed out with the reason printed on it, and the build cannot be added to the cart while a conflict is open.
Build your Focus CR
You build the Focus CR one step at a time with our guided assistant. It checks every choice against Ki Mobility's own rules, and your progress saves as you go.
Answer for the person who will use the Focus CR, whether that is you, a family member or a resident in your care. You can change any answer until the build is in your cart.
The user's measurements
Every size in the build is set from these numbers.
You need the user's measurements before the build can start. Download the measuring form, fill it out with the user, and return to this page when it is done. Your progress is saved on this device, so you can pick up right here and enter the numbers.
Download the measuring formThe user's weight and height
The weight sets the weight capacity of the build. Height is optional.
Two ways to build your Focus CR
You have given us the measurements. Now choose how much you want to decide. You can go deeper later without losing anything, so start wherever feels right.
The essentials, chosen for you.
Move through the choices that shape how the Focus CR fits and works. We start each one from your answers, and you adjust anything you like. Every choice is checked live against the manufacturer rules as you go, so the build stays valid the whole way.
- What you decideThe essential choices
- Roughly14 decisions
- Every choiceChecked live against the rules
Best if you want a well-fitted build without weighing every option.
Every option from the order form.
Work through the complete Ki Mobility build, every choice on the order form, with the same guided steps and the same live rule checking. Nothing is hidden. This is the full depth of the Focus CR, laid out so you can set each detail exactly the way you want.
- What you decideThe complete build
- Roughly68 decisions
- Every choiceChecked live against the rules
Best if you want control over every detail.
Here is the full build with its part numbers and the price you pay. Add it to your cart and check out, and it reaches our order desk as one record.
