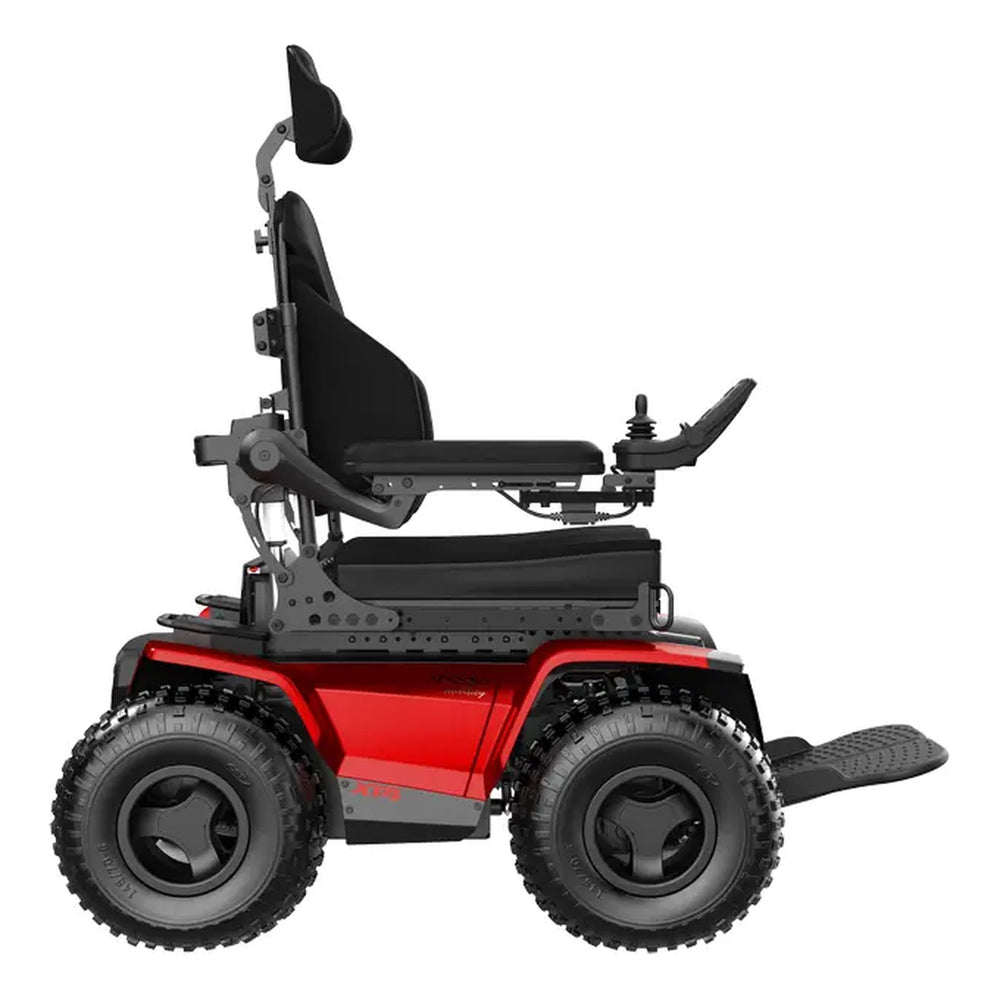

Magic Mobility XT4
The XT4 is an all-terrain four wheel drive power chair with suspension at every wheel. You choose every part, and we check it against Sunrise's rules.
Four wheel drive with suspension at every wheel and powered steering
The XT4 has four 700 watt motors, front and rear suspension on independent pivoting arms, and servo powered steering, so the front wheels follow the joystick. LED lights and crash tested transit brackets come on every chair, and it is built to order by Magic Mobility, part of Sunrise Medical.
You choose the seat type and size, the power seat functions, the back, arms, legrests, drive controls, batteries and color, and every choice is checked against Sunrise's order form as you build.
What stands out
Four 700 watt motors
One high torque motor at each wheel for mud, sand, snow, and curbs.
Independent suspension
Each wheel sits on its own pivoting arm that follows the ground, keeping all four tires in contact for traction and a smoother ride.
Servo powered steering
The front wheels steer where you point the joystick, which makes reversing, three point turns and slippery ground easier.
Group 31 batteries
Large Group 31 batteries give up to 19 miles of range.
LED lights
Six LED lights front and rear plus an indicator on each side, standard on every chair.
Power seating
Add 50 degree tilt, 150 degree recline, a 12" seat elevator and power elevating legrests, run from the joystick or a Ctrl+5 switch box with voice activation.
The Hieline Insight
The XT4 suits someone up to 400 lbs. who wants to spend long days off-road, and who has room for a 27.5" wide chair that weighs 408 lbs. or more. It is the step up from the Extreme X8: bigger batteries, suspension at all four wheels, and steering that turns the front wheels, with up to 19 miles of range against the X8's 12. Start with the seat type: the REHAB seat pan takes a JAY back and cushion and goes from 13" to 23" wide, while the MPS captain seat is a padded seat and back in six sizes. Then choose the power seating, since tilt, recline and the seat elevator each lower the weight capacity and set the controls the chair needs; the build adds the right thru-drive control for you. Add the batteries unless you are supplying your own.
Is it right for you?
A good fit if you
- a user up to 400 lbs. who wants to go far off paved paths
- hunting, fishing, beach, trail and farm use
- a user who needs power tilt, recline or a seat elevator outdoors
- a user who wants easier steering on rough ground
Look elsewhere if you
- a user over 400 lbs.
- a home with tight hallways or narrow doorways
- a user who needs a chair that folds or lifts into a car
- a user who wants to drive through water
How you get yours
Build it
Work through the guided build one step at a time. Your progress saves as you go.
Rules checked
Every choice is checked against Sunrise Medical's own rules as you build, so you cannot order a combination that cannot be made.
Add to cart
Your finished build goes in the cart at the price shown, with every part number on the order.
Made and shipped
Sunrise Medical makes it to your build and it ships to you, with free shipping nationwide.
Specifications
Because the XT4 is built to order, some figures depend on the options you choose. The figures for your own build are on the build summary as you go.
Every figure here comes from Sunrise Medical's own documents.
How your XT4 reaches you
Your build goes to Sunrise Medical exactly as you ordered it, with every part number on the order, and ships to you when it is made. Shipping is free nationwide.
Warranty and support
The XT4 carries Sunrise Medical's manufacturer warranty. Hieline supports it after the sale, and parts and repairs are handled directly through us, right here on hieline.com.
Returns
Resources
Here are the manuals, brochures, and videos for the XT4, all from Sunrise Medical.
Owner's manuals
Order form and measuring
Common questions
400 lbs. with no power seat functions, 350 lbs. with power tilt or the seat elevator, and 300 lbs. with power recline.
The XT4 has 700 watt motors, suspension at all four wheels, servo powered steering, Group 31 batteries for up to 19 miles, and LED lights and transit brackets as standard. It is 27.5" wide against the X8's 28", and heavier.
Sunrise's order form gives 408 lbs. with no power options and 485 lbs. with the seat elevator, tilt and recline. Sunrise's product page says it starts at 320 lbs. with batteries. We publish the order form's figures because they are specific to the XT4.
Sunrise's product page gives 4" and the order form gives 5". Plan on 4".
The REHAB seat is a flat pan that adjusts in width and depth, from 13" to 23" wide and 13" to 24" deep, with back canes for a JAY J3 back. The MPS is a captain style seat and back in six sizes from 16" x 18" to 22" x 20", with manual recline. You can also pair the MPS back with the REHAB seat pan.
Sunrise sets it by the number of power seat actuators: one actuator takes the single control, two or more take the multi control. The build picks the right one from your seat function, recline, seat elevator and legrests.
No. The XT4 runs on two Group 31 batteries, and the pair is an option in the build. Leave it off only if you are supplying your own.
Up to 6.2 mph, or 3.1 mph with the seat fully raised, and up to 19 miles on a charge. Range depends on the setup, tire pressure and terrain.
No. The motors sit low, and Sunrise says the chair must never be driven through puddles, streams, rivers or the sea.
Yes. The XT4 is crash tested to ISO 7176-19 and the transit brackets come standard.
No. The XT4 is built to order to your choices, so it cannot be returned. The Magic Mobility warranty covers defects.
No. You can order a XT4 from Hieline without a prescription.
No. Hieline does not bill or accept insurance, so the XT4 is a direct purchase. Any reimbursement is strictly between you and your insurer.
Yes. Your progress saves automatically in your browser as you go, so you can step away and pick up where you left off on the same device.
Every combination is checked against Sunrise Medical's own compatibility rules as you build. An option that does not fit your other choices is greyed out with the reason printed on it, and the build cannot be added to the cart while a conflict is open.
Build your XT4
You build the XT4 one step at a time with our guided assistant. It checks every choice against Sunrise Medical's own rules, and your progress saves as you go.
Answer for the person who will use the XT4, whether that is you, a family member or a resident in your care. You can change any answer until the build is in your cart.
The user's measurements
Every size in the build is set from these numbers.
You need the user's measurements before the build can start. Download the measuring form, fill it out with the user, and return to this page when it is done. Your progress is saved on this device, so you can pick up right here and enter the numbers.
Download the measuring formThe user's weight and height
The weight sets the weight capacity of the build. Height is optional.
Two ways to build your XT4
You have given us the measurements. Now choose how much you want to decide. You can go deeper later without losing anything, so start wherever feels right.
The essentials, chosen for you.
Move through the choices that shape how the XT4 fits and works. We start each one from your answers, and you adjust anything you like. Every choice is checked live against the manufacturer rules as you go, so the build stays valid the whole way.
- What you decideThe essential choices
- Roughly14 decisions
- Every choiceChecked live against the rules
Best if you want a well-fitted build without weighing every option.
Every option from the order form.
Work through the complete Sunrise Medical build, every choice on the order form, with the same guided steps and the same live rule checking. Nothing is hidden. This is the full depth of the XT4, laid out so you can set each detail exactly the way you want.
- What you decideThe complete build
- Roughly68 decisions
- Every choiceChecked live against the rules
Best if you want control over every detail.
Here is the full build with its part numbers and the price you pay. Add it to your cart and check out, and it reaches our order desk as one record.
