Motion Composites Veloce Folding Wheelchair
A carbon fiber folding wheelchair with a fixed front end, from 11.9 lbs. Rated to 265 lbs., or 350 lbs. with the HD package. Seats 14" to 22".
A folding chair that rides like a rigid one, in carbon fiber

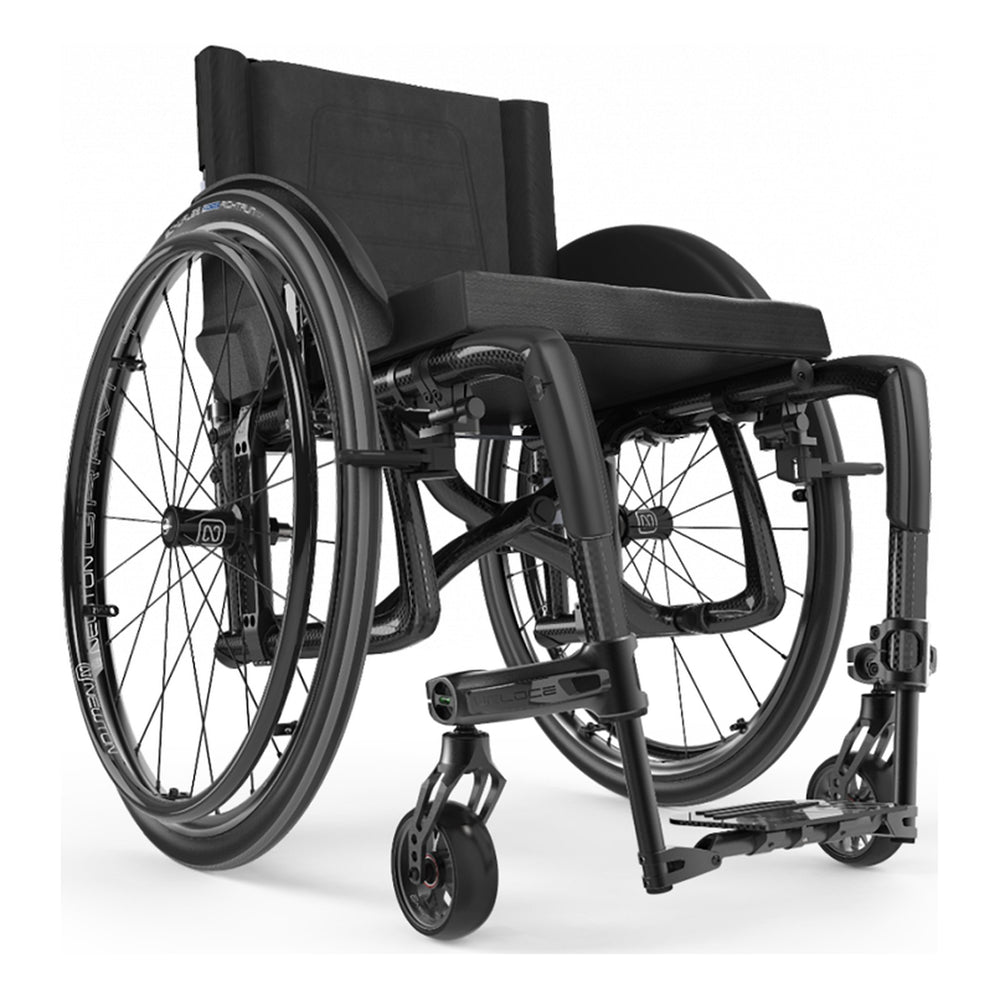

The Veloce is Motion Composites' carbon fiber folding wheelchair. Its Mantis frame pairs a box frame at the back with a cantilever fixed front end, and the auto-folding footrest folds with the chair, so the footplate never has to come off. The transport weight is 11.9 lbs.
Choose the seat size and heights, wheels, casters, footrest, back, armrests, guards and colors, each checked against the Veloce order form as you build.
What stands out
Mantis frame
A box frame at the back for rigidity and a cantilever fixed front end for flex and a clean look, in T700 carbon fiber.
Auto-folding footrest
The optional auto-folding footplate folds with the frame, so it never has to come off to fold the chair.
Symmetrical molded cross brace
A fully symmetrical carbon fiber cross brace that keeps the frame stable when you push.
Light to lift
An 11.9 lb. transport weight at 16" x 16", including the folding footrest.
Wide adjustment range
Center of gravity from 1" to 4" in 1/4" steps, camber of 0, 3 or 6 degrees, back angle from 85 to 110 degrees and five front frame angles.
Nineteen frame finishes
High Gloss Carbon Fiber and 18 colors at no charge, with seven highlight colors for the frame protectors.
The Hieline Insight
The Veloce suits a full time manual wheelchair user who wants a carbon fiber folding chair that rides like a rigid one, up to 265 lbs., or 350 lbs. with the heavy duty package. Choose it over the Helio C2 if you want the fixed front end and the auto-folding footrest, which folds with the chair so nothing comes off for the car. Take hip width, seat depth, lower leg length and back height before you start, since every size is fixed when Motion Composites builds the chair. Choose your rear wheel size and casters first, because they set the seat heights the page offers. Motion Composites builds the chair to order, so it cannot be returned once it is made.
Is it right for you?
A good fit if you
- a full time manual wheelchair user who needs a folding chair
- a user who folds the chair into a car often and wants the footrest to fold with it
- a user up to 265 lbs., or 350 lbs. with the heavy duty package
- a seat width from 14" to 22"
Look elsewhere if you
- a user over 350 lbs.
- a user who needs swing away footrests or elevating legrests
- a user who needs a seat narrower than 14"
- a user who needs a custom size or a custom paint color
How you get yours
Build it
Work through the guided build one step at a time. Your progress saves as you go.
Rules checked
Every choice is checked against Motion Composites' own rules as you build, so you cannot order a combination that cannot be made.
Add to cart
Your finished build goes in the cart at the price shown, with every part number on the order.
Made and shipped
Motion Composites makes it to your build and it ships to you, with free shipping nationwide.
Specifications
Because the Veloce is built to order, some figures depend on the options you choose. The figures for your own build are on the build summary as you go.
Every figure here comes from Motion Composites' own documents.
How your Veloce reaches you
Your build goes to Motion Composites exactly as you ordered it, with every part number on the order, and ships to you when it is made. Shipping is free nationwide.
Warranty and support
The Veloce carries Motion Composites' manufacturer warranty. Hieline supports it after the sale, and parts and repairs are handled directly through us, right here on hieline.com.
Returns
Resources
Here are the manuals, brochures, and videos for the Veloce, all from Motion Composites.
Owner's manuals
Brochures
Order forms
Videos
How To Adjust COG on Folding Wheelchairs
One on One with One Arm Drive
Swing-Away Anti-Tipper Overview
Innovation of the Symmetrical Cross Brace
Safely Execute Wheelies on a Folding Wheelchair
Learning Wheelies on a Folding Wheelchair
NEWTON Grade Aid Wheel Lock
How to Adjust the NEWTON Grade Aid Wheel Locks
Side Guards & Fenders
Rear Wheel Tire Options - Choosing the right one
How Rear Wheel Options Affect Wheelchair Performance
How to Choose the Right Wheelchair Handrims
Front Caster Selection Functional Importance
What is the Center of Gravity of a Wheelchair?
Wheelchair Foot Propelling
Common questions
Both are carbon fiber folding chairs on the same base. The Veloce has a fixed front end instead of swing away footrests, and offers the auto-folding footplate, which folds with the frame. It comes only in carbon fiber.
Measure seated on a firm surface: hip width for the seat width, the back of the hip to the back of the knee for the seat depth, the back of the knee to the floor in shoes for the seat to footrest length, and the seat to the shoulder blade for the back height. The order form on the Resources tab shows each setting.
265 lbs. With the heavy duty package it carries 350 lbs. Motion Composites requires the package for users of 300 to 350 lbs. It comes with seat widths of 18" to 22" and the one piece flip-up footplates, and is not sold with the WC-19 tie-downs. The Veloce brochure lists the heavy duty widths as 18" to 20"; the June 2026 order form adds 21" and 22".
Motion Composites gives a transport weight of 11.9 lbs. at 16" x 16", without the rear wheels, wheel locks, armrests, cushion and anti-tippers, and with the folding footrest. The brochure's headline and the user manual round it to 12 lbs. With wheels and wheel locks it starts at 19.4 lbs. in the brochure and 19.5 lbs. in the manual.
The front seat height depends on the caster size and fork, and the rear seat height on the rear wheel size. The page offers only the heights on Motion Composites' charts for the parts you chose. The seat to footrest length must be at least 1 3/4" shorter than the front seat height.
A one piece adjustable angle footplate that folds when the frame folds, so it stays on the chair. It is not sold with a straight footrest or the heavy duty package, which take the one piece flip-up footplates.
The June 2026 order form lists the carbon versions of the angle and height adjustable back canes for fall 2026. You can order them here, and the build date is set when Motion Composites accepts the order. The aluminum angle adjustable canes are available now.
85 to 110 degrees on the order form, with 100 to 110 degrees on the angle adjustable canes and 85 degrees not with the 8 degree bend canes. The brochure gives 80 to 110 degrees.
They come in the 18 colors plus black. Motion Composites notes the finish on the handrims may differ slightly from the frame, and colors on screen are for reference only. The color photographs show matching Air Grip handrims, which are an option you choose.
No. This page offers every size and color on the order form. Custom paint and Motion Composites' EVO Custom requests need a written spec, so they are not offered here.
Motion Composites warrants the carbon fiber frame, cross brace, back canes, side guards and footplates for life to the first user. Components are covered for one year. Tires, tubes, seat slings, standard back upholstery, armrests and push handle grips are covered for 30 days.
No. The Veloce is built to order to one user's sizes, so it cannot be returned. Motion Composites' warranty covers defects.
No. You can order a Veloce from Hieline without a prescription.
No. Hieline does not bill or accept insurance, so the Veloce is a direct purchase. Any reimbursement is strictly between you and your insurer.
Yes. Your progress saves automatically in your browser as you go, so you can step away and pick up where you left off on the same device.
Every combination is checked against Motion Composites' own compatibility rules as you build. An option that does not fit your other choices is greyed out with the reason printed on it, and the build cannot be added to the cart while a conflict is open.
Build your Veloce
You build the Veloce one step at a time with our guided assistant. It checks every choice against Motion Composites' own rules, and your progress saves as you go.
Answer for the person who will use the Veloce, whether that is you, a family member or a resident in your care. You can change any answer until the build is in your cart.
The user's measurements
Every size in the build is set from these numbers.
You need the user's measurements before the build can start. Download the measuring form, fill it out with the user, and return to this page when it is done. Your progress is saved on this device, so you can pick up right here and enter the numbers.
Download the measuring formThe user's weight and height
The weight sets the weight capacity of the build. Height is optional.
Two ways to build your Veloce
You have given us the measurements. Now choose how much you want to decide. You can go deeper later without losing anything, so start wherever feels right.
The essentials, chosen for you.
Move through the choices that shape how the Veloce fits and works. We start each one from your answers, and you adjust anything you like. Every choice is checked live against the manufacturer rules as you go, so the build stays valid the whole way.
- What you decideThe essential choices
- Roughly14 decisions
- Every choiceChecked live against the rules
Best if you want a well-fitted build without weighing every option.
Every option from the order form.
Work through the complete Motion Composites build, every choice on the order form, with the same guided steps and the same live rule checking. Nothing is hidden. This is the full depth of the Veloce, laid out so you can set each detail exactly the way you want.
- What you decideThe complete build
- Roughly68 decisions
- Every choiceChecked live against the rules
Best if you want control over every detail.
Here is the full build with its part numbers and the price you pay. Add it to your cart and check out, and it reaches our order desk as one record.
