Quickie 5R
The Quickie 5R is an open frame rigid ultralight with an optional suspension frame. You choose every part, and we check it against Sunrise's rules.
An open frame rigid chair that adjusts as you do

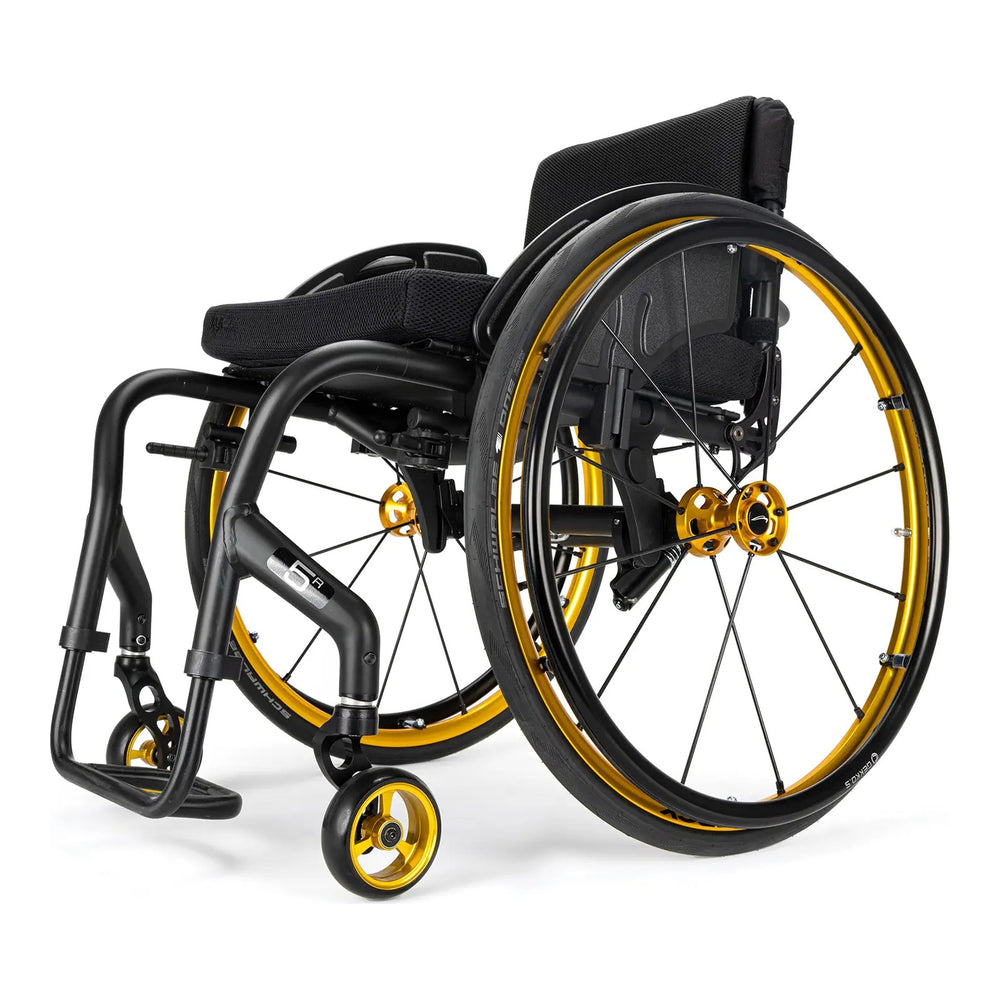

The Quickie 5R is Sunrise Medical's open frame rigid wheelchair, 21.5 lbs. in its standard build. Choose the Classic frame for stability, the shorter Performance frame for a quicker ride, or the XTR suspension frame for curbs and rough ground.
You choose the frame, angle and inset, sizes, casters and fork, seat heights, wheels, axle plate, footrest, back, arms and colors, and every choice is checked against Sunrise's rules and the charts printed on its order form as you build.
What stands out
Open frame design
The 5R's open rigid frame and swept back hydroformed caster housings give a smooth, stiff ride at 21.5 lbs.
Classic or Performance length
The Classic frame keeps the traditional length for stability. The Performance frame is 1.5" shorter from seat to front bend for a quicker, more responsive chair.
XTR suspension frame
A rear shock in a Performance frame takes the hit out of curbs and rough ground. Add Frog Legs forks, mountain wheels and knobby tires for trails.
Quick adjusting axle plate
The swept back axle plate comes short or long and adjusts quickly, with center of gravity from -1.5" to 4".
Seat heights from Sunrise's charts
Front and rear seat heights, footrests and handrims are checked against the charts on Sunrise's order form for your caster, fork, axle plate, wheel and tire.
Xtender ready
Add Quickie's Xtender power assist wheels in 22" or 24", with nickel or lithium batteries.
The Hieline Insight
The Quickie 5R suits an active user up to 265 lbs. who pushes all day and wants a light rigid chair that can be tuned as their skills change. The first choice is the frame. Take the Classic for the most stability, the Performance for a quicker chair that turns tighter, and the XTR suspension frame if the user rides over curbs, gravel or grass every day. Then pick the frame angle and caster, since Sunrise's footrest chart decides which footrests fit them, and choose the front seat height before the rear wheels and axle plate, because the rear seat height has to sit within Sunrise's drop from the front. Take the user's measurements with Sunrise's measuring guide on the Resources tab before you build.
Is it right for you?
A good fit if you
- an active user who pushes the chair all day
- a user who wants a light, stiff rigid frame
- a user up to 265 lbs.
- a user who rides rough ground and wants suspension
- a user who wants power assist wheels
Look elsewhere if you
- a user over 265 lbs.
- a user who needs a folding frame
- a user who needs swing away or elevating legrests
- a user who needs tilt or recline
How you get yours
Build it
Work through the guided build one step at a time. Your progress saves as you go.
Rules checked
Every choice is checked against Sunrise Medical's own rules as you build, so you cannot order a combination that cannot be made.
Add to cart
Your finished build goes in the cart at the price shown, with every part number on the order.
Made and shipped
Sunrise Medical makes it to your build and it ships to you, with free shipping nationwide.
Specifications
Because the Quickie 5R is built to order, some figures depend on the options you choose. The figures for your own build are on the build summary as you go.
Every figure here comes from Sunrise Medical's own documents.
Shipping
How your Quickie 5R reaches you
Your build goes to Sunrise Medical exactly as you ordered it, with every part number on the order, and ships to you when it is made. Shipping is free nationwide.
Warranty and support
The Quickie 5R carries Sunrise Medical's manufacturer warranty. Hieline supports it after the sale, and parts and repairs are handled directly through us, right here on hieline.com.
Returns
Resources
Here are the manuals, brochures, and videos for the Quickie 5R, all from Sunrise Medical.
Owner's manuals
Brochures
Order form and measuring
Common questions
Measure the user seated on a firm surface. Hip width is the widest point across the hips. Seat depth is from the back of the hips to the back of the knee. Lower leg length is from the back of the knee to the bottom of the heel. Sunrise's measuring guide is on the Resources tab.
The Classic frame has the traditional distance from the seat to the front frame bend. The Performance frame is 1.5" shorter there, which makes the chair quicker to turn. The XTR is a Performance frame with a rear suspension shock; it is not made in 12" or 13" seats and is not offered with the Xtender or transit.
Sunrise's charts print the front seat heights each caster and fork reach, and the rear seat heights each axle plate and wheel reach. The front of the seat must also sit level with the rear or higher, within a limit set by the seat depth. The build only opens the heights the charts allow.
They do not work with a choice you have already made. The reason is printed on the option, and every rule comes from Sunrise's order form and its charts.
Yes, with the optional transit system, which meets WC-19. It is not offered on the XTR frame or with the Xtender.
No. The 5R is built to order to one user's measurements, so it cannot be returned. The Sunrise warranty covers defects.
No. You can order a Quickie 5R from Hieline without a prescription.
No. Hieline does not bill or accept insurance, so the Quickie 5R is a direct purchase. Any reimbursement is strictly between you and your insurer.
Yes. Your progress saves automatically in your browser as you go, so you can step away and pick up where you left off on the same device.
Every combination is checked against Sunrise Medical's own compatibility rules as you build. An option that does not fit your other choices is greyed out with the reason printed on it, and the build cannot be added to the cart while a conflict is open.
Build your Quickie 5R
You build the Quickie 5R one step at a time with our guided assistant. It checks every choice against Sunrise Medical's own rules, and your progress saves as you go.
Answer for the person who will use the Quickie 5R, whether that is you, a family member or a resident in your care. You can change any answer until the build is in your cart.
The user's measurements
Every size in the build is set from these numbers.
You need the user's measurements before the build can start. Download the measuring form, fill it out with the user, and return to this page when it is done. Your progress is saved on this device, so you can pick up right here and enter the numbers.
Download the measuring formThe user's weight and height
The weight sets the weight capacity of the build. Height is optional.
Two ways to build your Quickie 5R
You have given us the measurements. Now choose how much you want to decide. You can go deeper later without losing anything, so start wherever feels right.
The essentials, chosen for you.
Move through the choices that shape how the Quickie 5R fits and works. We start each one from your answers, and you adjust anything you like. Every choice is checked live against the manufacturer rules as you go, so the build stays valid the whole way.
- What you decideThe essential choices
- Roughly14 decisions
- Every choiceChecked live against the rules
Best if you want a well-fitted build without weighing every option.
Every option from the order form.
Work through the complete Sunrise Medical build, every choice on the order form, with the same guided steps and the same live rule checking. Nothing is hidden. This is the full depth of the Quickie 5R, laid out so you can set each detail exactly the way you want.
- What you decideThe complete build
- Roughly68 decisions
- Every choiceChecked live against the rules
Best if you want control over every detail.
Here is the full build with its part numbers and the price you pay. Add it to your cart and check out, and it reaches our order desk as one record.
