Quickie IRIS
The Quickie IRIS is a tilt in space wheelchair for adults. You choose every part, and we check it against Sunrise's rules.
Tilt that turns around the rider

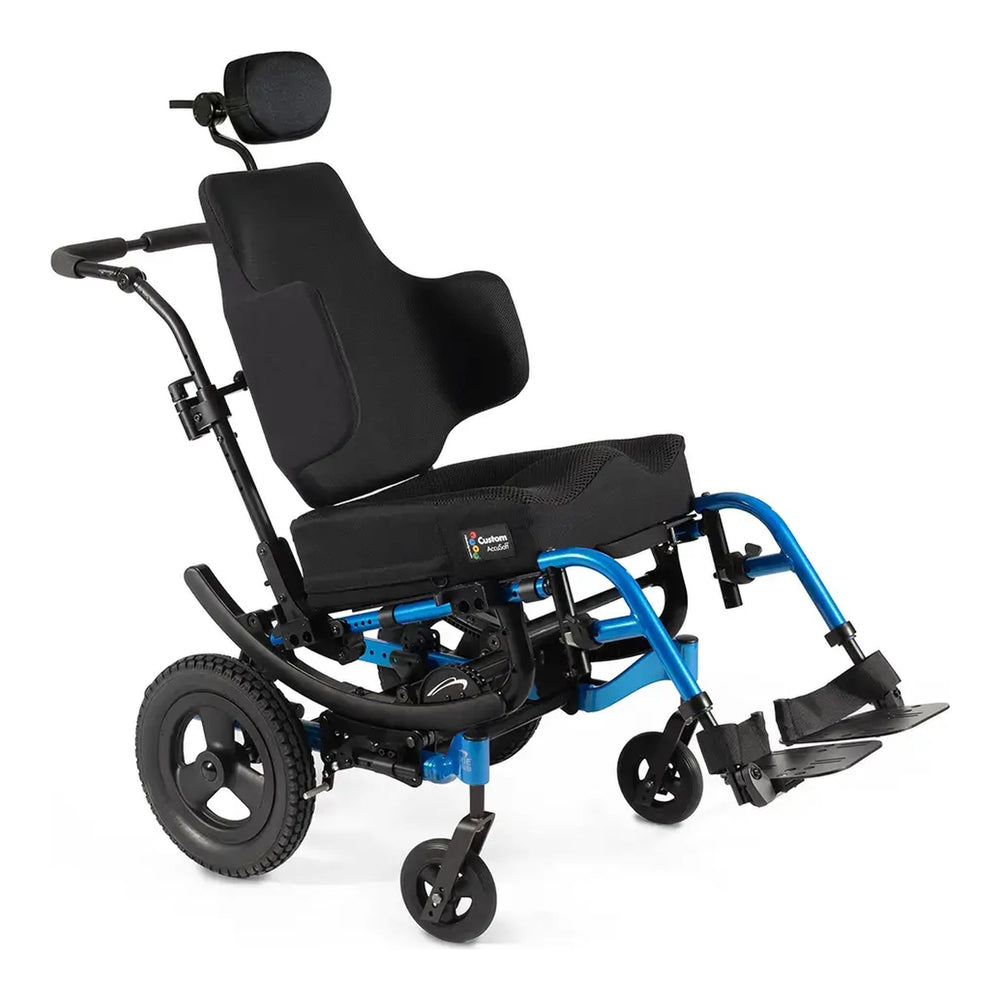

The Quickie IRIS is Sunrise Medical's adult tilt in space wheelchair. Its seat rotates around the rider's center of gravity through 40 or 55 degrees, on one of the shortest wheelbases in its class.
You choose the frame, base, tilt range, sizes, wheels, casters, seat height, footrests, back, arms and color, and every choice is checked against Sunrise's rules, its seat height chart and its lower leg chart as you build.
What stands out
Rotation around the rider
The seat frame rolls on a curved rocker arm so the rider's center of gravity stays over the center of rotation. The tilt takes little effort and the rider does not slide forward or back.
40 or 55 degrees of tilt
Choose a 40 or a 55 degree range, and Sunrise sets it to start at -5, 0 or +5 degrees, for up to 60 degrees of tilt.
Power tilt
An optional battery powered tilt with an attendant control and a toggle switch on the armrest, so the rider can shift position alone.
300 or 400 lbs.
The standard frame carries 300 lbs. The Heavy Duty package carries 400 lbs.
Seat heights from Sunrise's charts
Every rear wheel, tire, caster and front seat height is checked against Sunrise's seat height chart, and every hanger and extension against its lower leg chart.
The widest choice of legrests
Front mount and extension mount swing in and out hangers, lift-off, elevating and articulating hangers, Z-Finity, a contracture footrest and JAY foot boxes.
Four backs
Fixed stroller handle posts, height adjustable back canes, a reclining back or the mono backrest system with a JAY J3 back, laterals and a headrest.
The Hieline Insight
The Quickie IRIS suits an adult who needs to be tilted through the day for comfort, pressure relief or breathing, with a caregiver who wants the tilt to take little effort. The first choices are the frame and the base. The IRIS frames add Sunrise's True Fit Growth program and the IRIS SE frames cost less without it, and a transit included frame is the one to take if the user rides in a vehicle seated in the chair. Take the Heavy Duty package above 300 lbs., and power tilt if the user should be able to shift position without help. Pick the rear wheels, tire and casters before the seat height, since Sunrise's chart decides which heights each pairing reaches, then pick the hangers against the user's lower leg length. Take the user's measurements with Sunrise's measuring guide on the Resources tab before you build.
Is it right for you?
A good fit if you
- a user who needs tilt in space positioning
- a caregiver who tilts the chair through the day
- a user up to 400 lbs. with the Heavy Duty package
- a user who rides in a vehicle seated in the chair
Look elsewhere if you
- a user who needs a folding frame
- a user over 400 lbs.
- a seat wider than 22"
- a user who pushes the chair alone most of the day
How you get yours
Build it
Work through the guided build one step at a time. Your progress saves as you go.
Rules checked
Every choice is checked against Sunrise Medical's own rules as you build, so you cannot order a combination that cannot be made.
Add to cart
Your finished build goes in the cart at the price shown, with every part number on the order.
Made and shipped
Sunrise Medical makes it to your build and it ships to you, with free shipping nationwide.
Specifications
Because the Quickie IRIS is built to order, some figures depend on the options you choose. The figures for your own build are on the build summary as you go.
Every figure here comes from Sunrise Medical's own documents.
Shipping
How your Quickie IRIS reaches you
Your build goes to Sunrise Medical exactly as you ordered it, with every part number on the order, and ships to you when it is made. Shipping is free nationwide.
Warranty and support
The Quickie IRIS carries Sunrise Medical's manufacturer warranty. Hieline supports it after the sale, and parts and repairs are handled directly through us, right here on hieline.com.
Returns
Resources
Here are the manuals, brochures, and videos for the Quickie IRIS, all from Sunrise Medical.
Owner's manuals
Brochures
Common questions
Measure the user seated on a firm surface. Hip width is the widest point across the hips. Seat depth is from the back of the hips to the back of the knee. Lower leg length is from the back of the knee to the bottom of the heel. Sunrise's measuring guide is on the Resources tab.
They are the same chair. The IRIS frames include Sunrise's True Fit Growth program and the IRIS SE frames do not. Every option is the same on both.
The 55 degree range tilts further. The reclining back needs the 40 degree range, and the Heavy Duty package takes the 0 to 40 or 0 to 55 degree setting.
Sunrise's seat height chart prints the front seat heights each rear wheel, tire and caster can reach. The build only opens the heights on the chart.
They do not work with a choice you have already made. The reason is printed on the option, and every rule comes from Sunrise's order forms.
Yes. Choose a transit included frame, or add the WC-19 transit system to a transit optional frame.
No. The IRIS is built to order to one user's measurements, so it cannot be returned. The Sunrise warranty covers defects.
No. You can order a Quickie IRIS from Hieline without a prescription.
No. Hieline does not bill or accept insurance, so the Quickie IRIS is a direct purchase. Any reimbursement is strictly between you and your insurer.
Yes. Your progress saves automatically in your browser as you go, so you can step away and pick up where you left off on the same device.
Every combination is checked against Sunrise Medical's own compatibility rules as you build. An option that does not fit your other choices is greyed out with the reason printed on it, and the build cannot be added to the cart while a conflict is open.
Build your Quickie IRIS
You build the Quickie IRIS one step at a time with our guided assistant. It checks every choice against Sunrise Medical's own rules, and your progress saves as you go.
Answer for the person who will use the Quickie IRIS, whether that is you, a family member or a resident in your care. You can change any answer until the build is in your cart.
The user's measurements
Every size in the build is set from these numbers.
You need the user's measurements before the build can start. Download the measuring form, fill it out with the user, and return to this page when it is done. Your progress is saved on this device, so you can pick up right here and enter the numbers.
Download the measuring formThe user's weight and height
The weight sets the weight capacity of the build. Height is optional.
Two ways to build your Quickie IRIS
You have given us the measurements. Now choose how much you want to decide. You can go deeper later without losing anything, so start wherever feels right.
The essentials, chosen for you.
Move through the choices that shape how the Quickie IRIS fits and works. We start each one from your answers, and you adjust anything you like. Every choice is checked live against the manufacturer rules as you go, so the build stays valid the whole way.
- What you decideThe essential choices
- Roughly14 decisions
- Every choiceChecked live against the rules
Best if you want a well-fitted build without weighing every option.
Every option from the order form.
Work through the complete Sunrise Medical build, every choice on the order form, with the same guided steps and the same live rule checking. Nothing is hidden. This is the full depth of the Quickie IRIS, laid out so you can set each detail exactly the way you want.
- What you decideThe complete build
- Roughly68 decisions
- Every choiceChecked live against the rules
Best if you want control over every detail.
Here is the full build with its part numbers and the price you pay. Add it to your cart and check out, and it reaches our order desk as one record.
