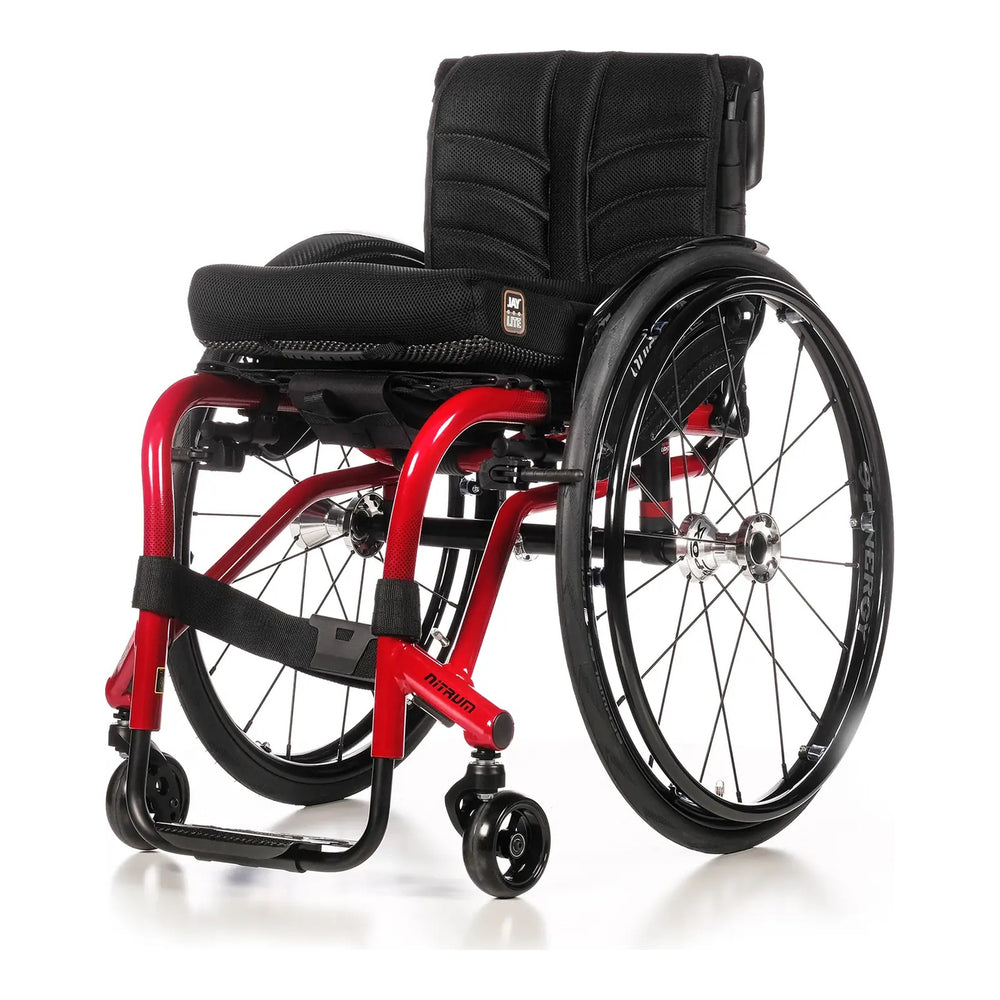

Quickie Nitrum
The Quickie Nitrum is a rigid ultralight wheelchair with three frame styles. You choose every part, and we check it against Sunrise's rules.
Built to turn every push into motion
The Quickie Nitrum is a rigid chair made from ovalized 7020 aluminum, 18.3 lbs. with the Open frame. Choose the Open frame, the stiffer Hybrid dual tube frame, or the welded Active Rigid back.
You choose the frame, back type, sizes, wheels, seat heights, casters, footrest, back, arms and colors, and every choice is checked against Sunrise's rules, its tire and handrim charts and its front to rear seat height limits as you build.
What stands out
Ovalized aluminum frame
Shapeloc 7020 oval aluminum tubing takes weight out of the frame without giving up stiffness, so more of each push moves the chair.
Open, Hybrid or Active Rigid
The Open frame is the lightest. The Hybrid's dual tube adds stiffness and carries 300 lbs. Active Rigid welds the back to the frame for the most direct ride.
Adjustable where it counts
Casters, back and center of gravity adjust, and the hollow forged caster links set the caster position.
Fold down back
The back folds with one hand using the push bar, or the optional twist-lock release.
Freestyle back
The Freestyle folding back takes a JAY J3 LT shell in aluminum or carbon, painted to match the frame.
Built to be seen
Twin LED lights on the caster arms, 25 paint colors, frame graphics, painted handrims and anodized parts.
The Hieline Insight
The Quickie Nitrum suits an active user who pushes all day and wants a light rigid chair. The first choice is the frame. Take the Open frame for the least weight, the Hybrid for a stiffer chair or a user up to 300 lbs., and Active Rigid if the back will be set once and never moved. Then pick the rear wheel and tire together, since Sunrise's charts decide which tires and handrims each wheel takes, and set the rear seat height before the front, because the front has to sit within Sunrise's drop for the seat depth. Take the user's measurements with Sunrise's measuring guide on the Resources tab before you build.
Is it right for you?
A good fit if you
- an active user who pushes the chair all day
- a user who wants a light rigid frame
- a user up to 300 lbs. with the Hybrid frame
- a user who wants power assist wheels
Look elsewhere if you
- a user over 300 lbs.
- a user who needs a folding frame
- a user who needs swing away or elevating legrests
- a user who needs tilt or recline
How you get yours
Build it
Work through the guided build one step at a time. Your progress saves as you go.
Rules checked
Every choice is checked against Sunrise Medical's own rules as you build, so you cannot order a combination that cannot be made.
Add to cart
Your finished build goes in the cart at the price shown, with every part number on the order.
Made and shipped
Sunrise Medical makes it to your build and it ships to you, with free shipping nationwide.
Specifications
Because the Quickie Nitrum is built to order, some figures depend on the options you choose. The figures for your own build are on the build summary as you go.
Every figure here comes from Sunrise Medical's own documents.
Shipping
How your Quickie Nitrum reaches you
Your build goes to Sunrise Medical exactly as you ordered it, with every part number on the order, and ships to you when it is made. Shipping is free nationwide.
Warranty and support
The Quickie Nitrum carries Sunrise Medical's manufacturer warranty. Hieline supports it after the sale, and parts and repairs are handled directly through us, right here on hieline.com.
Returns
Resources
Here are the manuals, brochures, and videos for the Quickie Nitrum, all from Sunrise Medical.
Owner's manuals
Brochures
Order form and measuring
Videos
Common questions
Measure the user seated on a firm surface. Hip width is the widest point across the hips. Seat depth is from the back of the hips to the back of the knee. Lower leg length is from the back of the knee to the bottom of the heel. Sunrise's measuring guide is on the Resources tab.
The Open frame is a single tube frame, 18.3 lbs. and rated to 275 lbs. The Hybrid adds a second tube for a stiffer frame, 20.3 lbs. and rated to 300 lbs. The Hybrid is not offered with the 4-link rear suspension.
The back is welded to the frame instead of bolted on, for a stiffer, lighter chair. It takes its own axle plate and a fixed back set at one angle, and is not offered with transit, the depth adjustable back or the Xtender.
They do not work with a choice you have already made. The reason is printed on the option, and every rule comes from Sunrise's order form and its charts.
Yes, with the optional transit system, which meets WC-19. It is not offered with Active Rigid or the Xtender.
No. The Nitrum is built to order to one user's measurements, so it cannot be returned. The Sunrise warranty covers defects.
No. You can order a Quickie Nitrum from Hieline without a prescription.
No. Hieline does not bill or accept insurance, so the Quickie Nitrum is a direct purchase. Any reimbursement is strictly between you and your insurer.
Yes. Your progress saves automatically in your browser as you go, so you can step away and pick up where you left off on the same device.
Every combination is checked against Sunrise Medical's own compatibility rules as you build. An option that does not fit your other choices is greyed out with the reason printed on it, and the build cannot be added to the cart while a conflict is open.
Build your Quickie Nitrum
You build the Quickie Nitrum one step at a time with our guided assistant. It checks every choice against Sunrise Medical's own rules, and your progress saves as you go.
Answer for the person who will use the Quickie Nitrum, whether that is you, a family member or a resident in your care. You can change any answer until the build is in your cart.
The user's measurements
Every size in the build is set from these numbers.
You need the user's measurements before the build can start. Download the measuring form, fill it out with the user, and return to this page when it is done. Your progress is saved on this device, so you can pick up right here and enter the numbers.
Download the measuring formThe user's weight and height
The weight sets the weight capacity of the build. Height is optional.
Two ways to build your Quickie Nitrum
You have given us the measurements. Now choose how much you want to decide. You can go deeper later without losing anything, so start wherever feels right.
The essentials, chosen for you.
Move through the choices that shape how the Quickie Nitrum fits and works. We start each one from your answers, and you adjust anything you like. Every choice is checked live against the manufacturer rules as you go, so the build stays valid the whole way.
- What you decideThe essential choices
- Roughly14 decisions
- Every choiceChecked live against the rules
Best if you want a well-fitted build without weighing every option.
Every option from the order form.
Work through the complete Sunrise Medical build, every choice on the order form, with the same guided steps and the same live rule checking. Nothing is hidden. This is the full depth of the Quickie Nitrum, laid out so you can set each detail exactly the way you want.
- What you decideThe complete build
- Roughly68 decisions
- Every choiceChecked live against the rules
Best if you want control over every detail.
Here is the full build with its part numbers and the price you pay. Add it to your cart and check out, and it reaches our order desk as one record.
