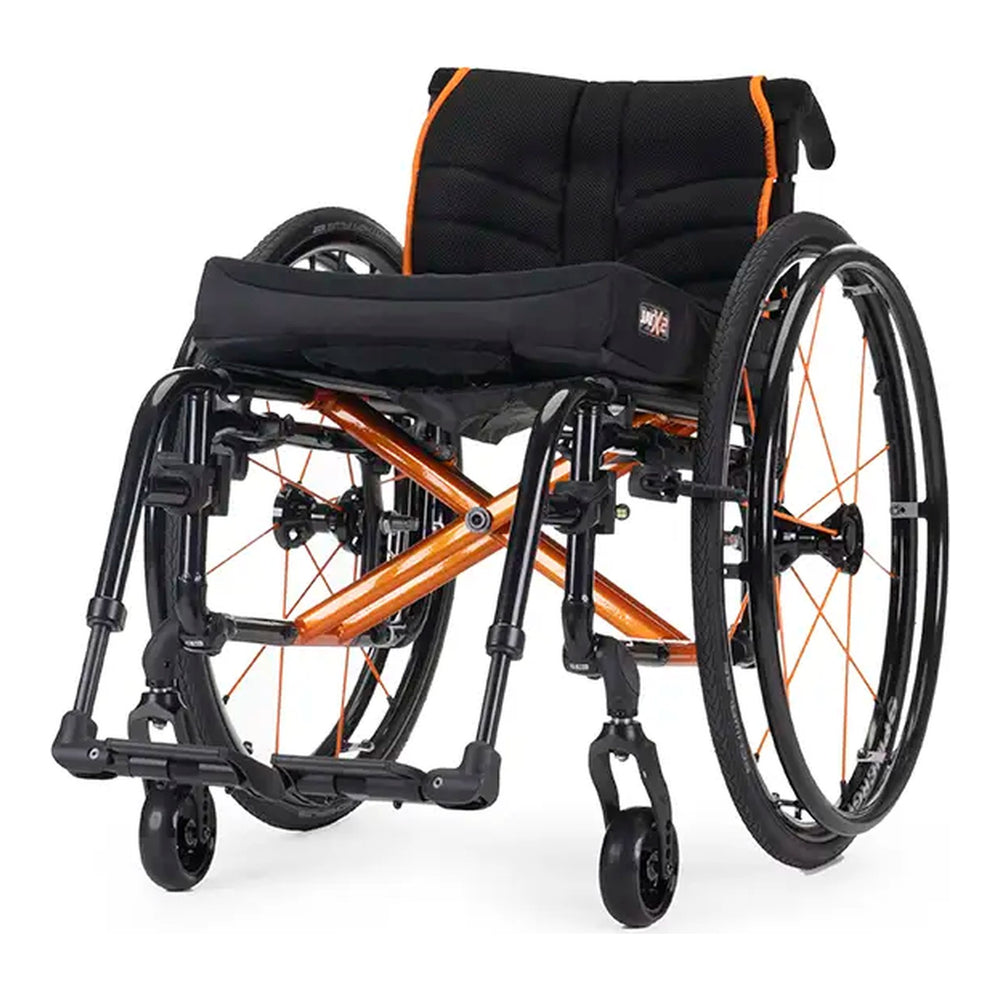

Quickie QS5 X
The Quickie QS5 X is a folding ultralight with a swing away or fixed front frame. You choose every part, and we check it against Sunrise's rules.
A folding chair that rides like a rigid one
The Quickie QS5 X is Sunrise Medical's folding ultralight, from 21.8 lbs., rated to 300 lbs. Choose the swing away frame for transfers and elevating legrests, or a fixed front at 75 or 85 degrees for a stiffer, lighter front end.
You choose the frame, sizes, wheels, seat heights, casters, hangers or footrest, back, arms and colors, and every choice is checked against Sunrise's rules and the charts printed on its order form as you build: tires and handrims by wheel, front seat height by caster and fork, lower leg length by hanger and tube, and push handles by back type and height.
What stands out
Swing away or fixed front
The swing away frame takes 60, 70 or 80 degree hangers, or elevating and articulating legrests. The fixed front frame at 75 or 85 degrees is lighter and stiffer.
Folds small
The crossbrace folds the chair side to side for the car, and the optional Fold-N-Lock holds it folded.
Rated to 300 lbs.
An aluminum frame that stays under 23 lbs. and carries users up to 300 lbs.
Seat heights from Sunrise's charts
Front seat heights, footrests, tires and handrims are checked against the charts on Sunrise's order form for your caster, fork, hanger and wheel.
Backs that fit the user
Standard, angle adjustable, half fold down or lumbar curve backs from 10" to 20", with tension adjustable EXO upholstery.
Make it yours
25 frame colors, a colored crossbrace, painted handrims, anodized parts and twin LED lights.
The Hieline Insight
The Quickie QS5 X suits a user up to 300 lbs. who needs a chair that folds for the car but wants the feel of an ultralight. The first choice is the front end. Take the swing away frame if the user transfers standing, needs elevating legrests or wants the footrests out of the way, and a fixed front if the lightest, stiffest chair matters most. Then set the rear seat height and the caster before the front seat height, because Sunrise's chart decides which front heights each caster and fork reach, and pick the hanger and tube last, since the lower leg chart may call for a higher front seat. Take the user's measurements with Sunrise's measuring guide on the Resources tab before you build.
Is it right for you?
A good fit if you
- a user who needs a folding chair for the car
- a user up to 300 lbs.
- a user who needs swing away or elevating legrests
- a user who rides in a vehicle seated in the chair
Look elsewhere if you
- a user over 300 lbs.
- a user who wants the lightest rigid frame
- a user who needs tilt or recline
- a user who needs power assist from the order form (sold separately)
How you get yours
Build it
Work through the guided build one step at a time. Your progress saves as you go.
Rules checked
Every choice is checked against Sunrise Medical's own rules as you build, so you cannot order a combination that cannot be made.
Add to cart
Your finished build goes in the cart at the price shown, with every part number on the order.
Made and shipped
Sunrise Medical makes it to your build and it ships to you, with free shipping nationwide.
Specifications
Because the Quickie QS5 X is built to order, some figures depend on the options you choose. The figures for your own build are on the build summary as you go.
Every figure here comes from Sunrise Medical's own documents.
Shipping
How your Quickie QS5 X reaches you
Your build goes to Sunrise Medical exactly as you ordered it, with every part number on the order, and ships to you when it is made. Shipping is free nationwide.
Warranty and support
The Quickie QS5 X carries Sunrise Medical's manufacturer warranty. Hieline supports it after the sale, and parts and repairs are handled directly through us, right here on hieline.com.
Returns
Resources
Here are the manuals, brochures, and videos for the Quickie QS5 X, all from Sunrise Medical.
Owner's manuals
Brochures
Order form and measuring
Common questions
Measure the user seated on a firm surface. Hip width is the widest point across the hips. Seat depth is from the back of the hips to the back of the knee. Lower leg length is from the back of the knee to the bottom of the heel. Sunrise's measuring guide is on the Resources tab.
The swing away frame takes hangers that swing aside or come off, including elevating and articulating legrests. The fixed front has the footrest built into the frame at 75 or 85 degrees, which is lighter and stiffer but does not swing away.
Sunrise's charts print the front seat heights each caster size and fork reach. The build only opens those heights, and the front must sit level with the rear or higher, within Sunrise's limit for the seat depth.
They do not work with a choice you have already made. The reason is printed on the option, and every rule comes from Sunrise's order form and its charts.
Yes, with the optional transit system, approved to ISO 7176-19.
No. The QS5 X is built to order to one user's measurements, so it cannot be returned. The Sunrise warranty covers defects.
No. You can order a Quickie QS5 X from Hieline without a prescription.
No. Hieline does not bill or accept insurance, so the Quickie QS5 X is a direct purchase. Any reimbursement is strictly between you and your insurer.
Yes. Your progress saves automatically in your browser as you go, so you can step away and pick up where you left off on the same device.
Every combination is checked against Sunrise Medical's own compatibility rules as you build. An option that does not fit your other choices is greyed out with the reason printed on it, and the build cannot be added to the cart while a conflict is open.
Build your Quickie QS5 X
You build the Quickie QS5 X one step at a time with our guided assistant. It checks every choice against Sunrise Medical's own rules, and your progress saves as you go.
Answer for the person who will use the Quickie QS5 X, whether that is you, a family member or a resident in your care. You can change any answer until the build is in your cart.
The user's measurements
Every size in the build is set from these numbers.
You need the user's measurements before the build can start. Download the measuring form, fill it out with the user, and return to this page when it is done. Your progress is saved on this device, so you can pick up right here and enter the numbers.
Download the measuring formThe user's weight and height
The weight sets the weight capacity of the build. Height is optional.
Two ways to build your Quickie QS5 X
You have given us the measurements. Now choose how much you want to decide. You can go deeper later without losing anything, so start wherever feels right.
The essentials, chosen for you.
Move through the choices that shape how the Quickie QS5 X fits and works. We start each one from your answers, and you adjust anything you like. Every choice is checked live against the manufacturer rules as you go, so the build stays valid the whole way.
- What you decideThe essential choices
- Roughly14 decisions
- Every choiceChecked live against the rules
Best if you want a well-fitted build without weighing every option.
Every option from the order form.
Work through the complete Sunrise Medical build, every choice on the order form, with the same guided steps and the same live rule checking. Nothing is hidden. This is the full depth of the Quickie QS5 X, laid out so you can set each detail exactly the way you want.
- What you decideThe complete build
- Roughly68 decisions
- Every choiceChecked live against the rules
Best if you want control over every detail.
Here is the full build with its part numbers and the price you pay. Add it to your cart and check out, and it reaches our order desk as one record.
