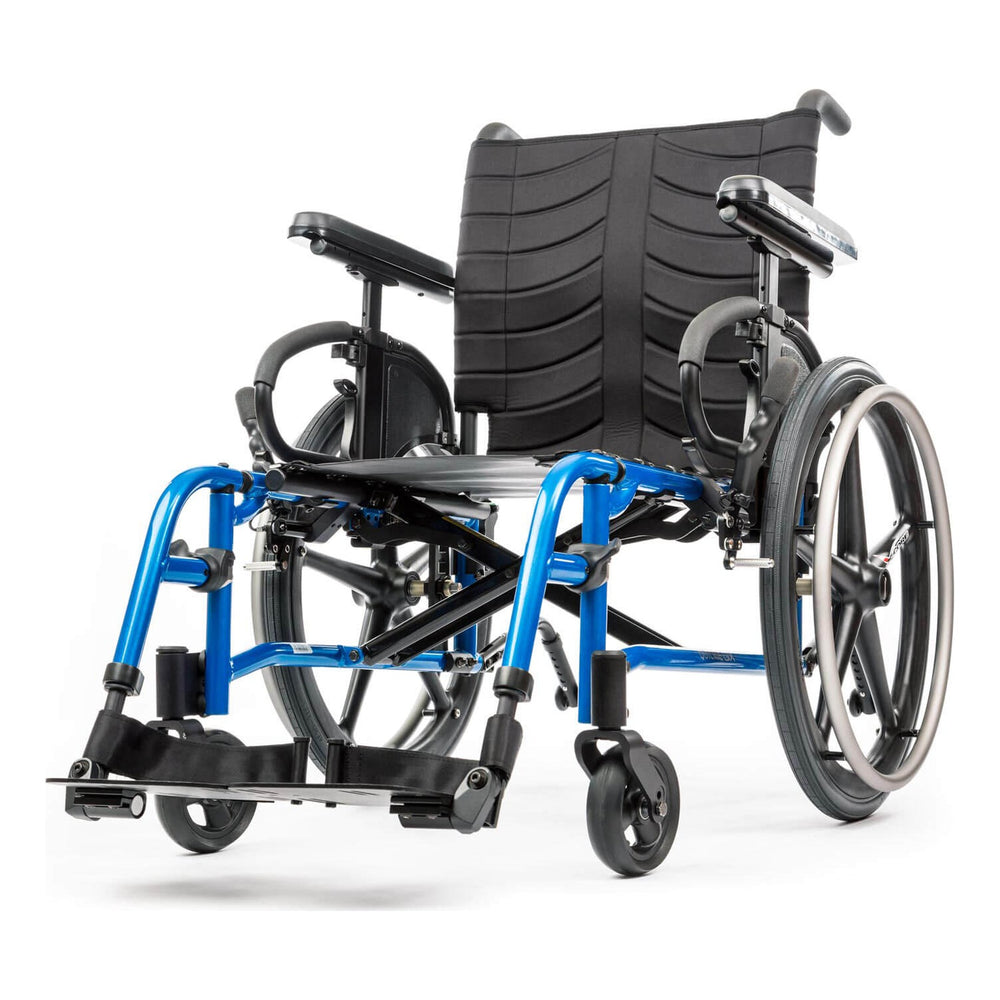

Quickie QXi
The Quickie QXi is a folding ultralight wheelchair with a standard or hemi frame. You choose every part, and we check it against Sunrise's rules.
A simple, durable folding chair
The Quickie QXi is Sunrise Medical's low-maintenance folding ultralight wheelchair, 28.8 lbs. and rated to 300 lbs. Its axle plate adjusts both up and down and fore and aft, and the hemi frame reaches front seat heights as low as 12.5".
You choose the frame, sizes, wheels, seat heights, casters, hangers, footplate, back, arms and color, and every choice is checked against Sunrise's rules, its front and rear seat height charts, its tire and handrim charts and its leg length charts as you build.
What stands out
Built to last
One-piece side frames and a three-arm crossbrace that locks inside them. In Sunrise's durability testing the frame matched 20 years of use.
Simple to service
Center of gravity, seat height, camber and back height adjust in under a minute with one tool.
Low seat heights
The hemi frame reaches a 12.5" front seat, low enough for a user who pushes with the feet.
Adjustable axle plate
The QXi's axle plate moves up and down and fore and aft, with a 1" to 3" center of gravity.
Hangers for every need
Swing in and out hangers at 60, 70 or 80 degrees, articulating legrests, or elevating legrests in two mounts.
EXO upholstery
EXO back upholstery comes standard or tension adjustable, alongside ballistic nylon and 3DX vented.
The Hieline Insight
The Quickie QXi suits a user who wants a folding Quickie that is simple to keep running, with the choice of swing in and out hangers, articulating legrests or elevating legrests. Start with the frame: the hemi frame sits lower for a user who pushes with the feet. Choose the rear wheel and rear seat height first, since Sunrise's chart sets the heights each wheel reaches, then pick the caster, fork and stem bolt together, because those three decide which front seat heights are left. The hanger and footplate come last and have to clear the ground at your front seat height. Take the user's measurements with Sunrise's measuring guide on the Resources tab before you build.
Is it right for you?
A good fit if you
- a user who wants a durable folding frame
- a user up to 300 lbs.
- a user who pushes with the feet, on the hemi frame
- a user who needs elevating or articulating legrests
Look elsewhere if you
- a user over 300 lbs.
- a user who wants a rigid frame
- a user who needs tilt or recline
- a user who wants the lightest folding chair
How you get yours
Build it
Work through the guided build one step at a time. Your progress saves as you go.
Rules checked
Every choice is checked against Sunrise Medical's own rules as you build, so you cannot order a combination that cannot be made.
Add to cart
Your finished build goes in the cart at the price shown, with every part number on the order.
Made and shipped
Sunrise Medical makes it to your build and it ships to you, with free shipping nationwide.
Specifications
Because the Quickie QXi is built to order, some figures depend on the options you choose. The figures for your own build are on the build summary as you go.
Every figure here comes from Sunrise Medical's own documents.
Shipping
How your Quickie QXi reaches you
Your build goes to Sunrise Medical exactly as you ordered it, with every part number on the order, and ships to you when it is made. Shipping is free nationwide.
Warranty and support
The Quickie QXi carries Sunrise Medical's manufacturer warranty. Hieline supports it after the sale, and parts and repairs are handled directly through us, right here on hieline.com.
Returns
Resources
Here are the manuals, brochures, and videos for the Quickie QXi, all from Sunrise Medical.
Owner's manuals
Brochures
Order form and measuring
Videos
Common questions
Measure the user seated on a firm surface. Hip width is the widest point across the hips. Seat depth is from the back of the hips to the back of the knee. Lower leg length is from the back of the knee to the bottom of the heel. Sunrise's measuring guide is on the Resources tab.
A lower frame that brings the seat closer to the floor, for a user who propels with the feet. On Sunrise's charts it reaches front seat heights from 12.5" and rear seat heights from 12".
The QXi's axle plate adjusts both vertically and horizontally, which sets the center of gravity, and it carries HCPCS code K0005. The QX adjusts vertically only and is K0004.
They do not work with a choice you have already made. The reason is printed on the option, and every rule comes from Sunrise's order form and its charts.
Yes, with the optional WC-19 transit system.
No. The QXi is built to order to one user's measurements, so it cannot be returned. The Sunrise warranty covers defects.
No. You can order a Quickie QXi from Hieline without a prescription.
No. Hieline does not bill or accept insurance, so the Quickie QXi is a direct purchase. Any reimbursement is strictly between you and your insurer.
Yes. Your progress saves automatically in your browser as you go, so you can step away and pick up where you left off on the same device.
Every combination is checked against Sunrise Medical's own compatibility rules as you build. An option that does not fit your other choices is greyed out with the reason printed on it, and the build cannot be added to the cart while a conflict is open.
Build your Quickie QXi
You build the Quickie QXi one step at a time with our guided assistant. It checks every choice against Sunrise Medical's own rules, and your progress saves as you go.
Answer for the person who will use the Quickie QXi, whether that is you, a family member or a resident in your care. You can change any answer until the build is in your cart.
The user's measurements
Every size in the build is set from these numbers.
You need the user's measurements before the build can start. Download the measuring form, fill it out with the user, and return to this page when it is done. Your progress is saved on this device, so you can pick up right here and enter the numbers.
Download the measuring formThe user's weight and height
The weight sets the weight capacity of the build. Height is optional.
Two ways to build your Quickie QXi
You have given us the measurements. Now choose how much you want to decide. You can go deeper later without losing anything, so start wherever feels right.
The essentials, chosen for you.
Move through the choices that shape how the Quickie QXi fits and works. We start each one from your answers, and you adjust anything you like. Every choice is checked live against the manufacturer rules as you go, so the build stays valid the whole way.
- What you decideThe essential choices
- Roughly14 decisions
- Every choiceChecked live against the rules
Best if you want a well-fitted build without weighing every option.
Every option from the order form.
Work through the complete Sunrise Medical build, every choice on the order form, with the same guided steps and the same live rule checking. Nothing is hidden. This is the full depth of the Quickie QXi, laid out so you can set each detail exactly the way you want.
- What you decideThe complete build
- Roughly68 decisions
- Every choiceChecked live against the rules
Best if you want control over every detail.
Here is the full build with its part numbers and the price you pay. Add it to your cart and check out, and it reaches our order desk as one record.
