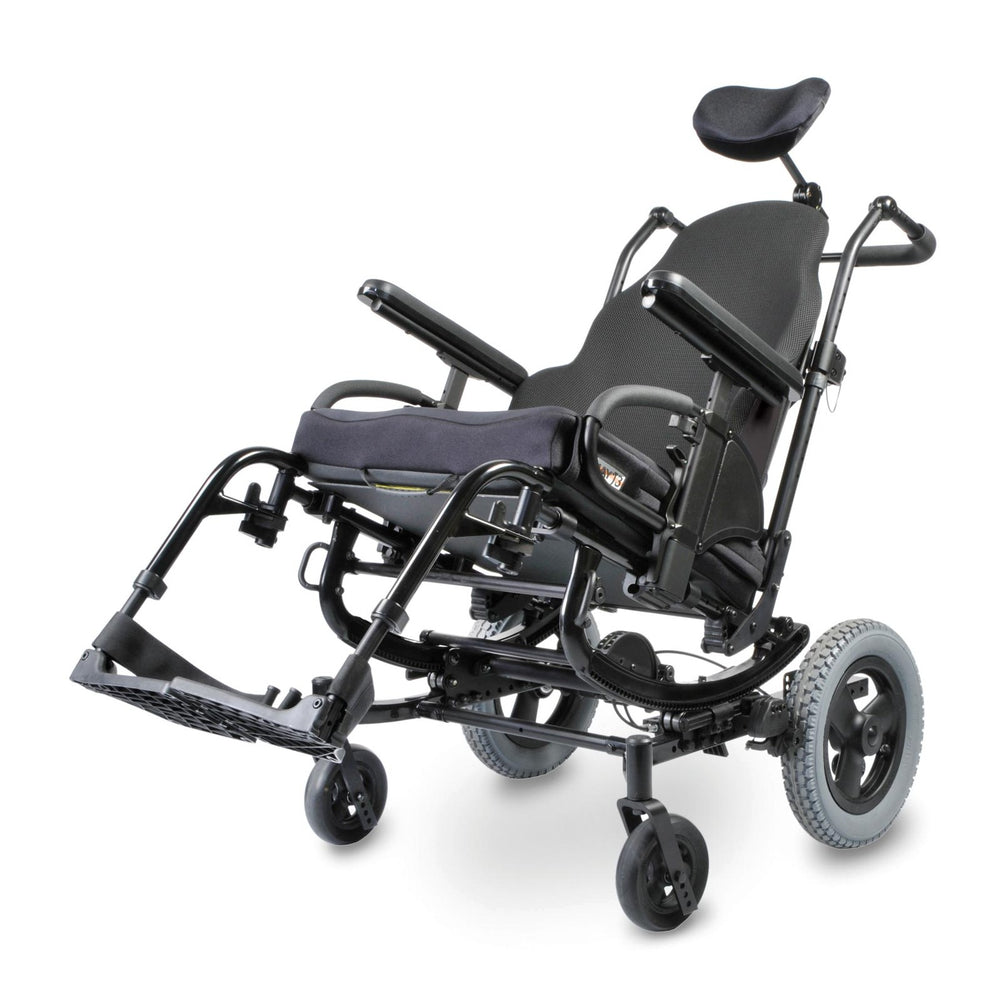

Quickie SR45
The Quickie SR45 is a tilt in space wheelchair with 45 degrees of tilt. You choose every part, and we check it against Sunrise's rules.
45 degrees of tilt, kept simple
The Quickie SR45 is Sunrise Medical's straightforward tilt in space wheelchair. Its seat rotates around the rider's center of gravity through 45 degrees on a durable frame rated to 265 lbs.
You choose the tilt control, sizes, wheels, casters, seat height, legrests, back, arms and color, and every choice is checked against Sunrise's rules, its seat height chart and its lower leg charts as you build.
What stands out
Rotation around the rider
Like the IRIS, the SR45 rotates the seat around the rider's center of gravity, so the tilt takes little effort and the wheelbase stays short.
45 degrees of tilt
The seat tilts from 0 to 45 degrees, released by a dual trigger on the back or a foot release on the frame.
Power tilt
An optional battery powered tilt with an attendant control and a toggle switch on the armrest, so the rider can shift position alone.
Built for heavy use
The frame was durability tested at its full 265 lb. weight capacity.
Seat heights from Sunrise's charts
Every rear wheel, tire, caster and front seat height is checked against Sunrise's seat height chart, and every hanger against its lower leg charts.
Legrests and backs
Front mount and extension mount swing in and out hangers, articulating and elevating legrests, and fixed, height adjustable or reclining backs.
The Hieline Insight
The Quickie SR45 suits an adult up to 265 lbs. who needs regular tilt for comfort or pressure relief and does not need the IRIS's wider range of frames, seating systems and tilt settings. The first choice is manual or power tilt. Take power tilt if the user should be able to shift position without a caregiver, and the foot release if the caregiver's hands are often busy. Pick the rear wheels, tire and casters before the seat height, since Sunrise's chart decides which heights each pairing reaches, then pick the hangers against the user's lower leg length. Take the user's measurements with Sunrise's measuring guide on the Resources tab before you build.
Is it right for you?
A good fit if you
- a user who needs tilt in space positioning
- a caregiver who tilts the chair through the day
- a user up to 265 lbs.
- a user who rides in a vehicle seated in the chair
Look elsewhere if you
- a user over 265 lbs.
- a seat wider than 20"
- a user who needs more than 45 degrees of tilt
- a user who needs a folding frame
How you get yours
Build it
Work through the guided build one step at a time. Your progress saves as you go.
Rules checked
Every choice is checked against Sunrise Medical's own rules as you build, so you cannot order a combination that cannot be made.
Add to cart
Your finished build goes in the cart at the price shown, with every part number on the order.
Made and shipped
Sunrise Medical makes it to your build and it ships to you, with free shipping nationwide.
Specifications
Because the Quickie SR45 is built to order, some figures depend on the options you choose. The figures for your own build are on the build summary as you go.
Every figure here comes from Sunrise Medical's own documents.
Shipping
How your Quickie SR45 reaches you
Your build goes to Sunrise Medical exactly as you ordered it, with every part number on the order, and ships to you when it is made. Shipping is free nationwide.
Warranty and support
The Quickie SR45 carries Sunrise Medical's manufacturer warranty. Hieline supports it after the sale, and parts and repairs are handled directly through us, right here on hieline.com.
Returns
Resources
Here are the manuals, brochures, and videos for the Quickie SR45, all from Sunrise Medical.
Brochures
Order form and measuring
Common questions
Measure the user seated on a firm surface. Hip width is the widest point across the hips. Seat depth is from the back of the hips to the back of the knee. Lower leg length is from the back of the knee to the bottom of the heel. Sunrise's measuring guide is on the Resources tab.
Both rotate the seat around the rider. The SR45 tilts 45 degrees and carries 265 lbs. The IRIS offers 40 or 55 degree ranges, a 400 lb. Heavy Duty package, the mono back and more legrest and frame options.
Sunrise's seat height chart prints the front seat heights each rear wheel, tire and caster can reach. The build only opens the heights on the chart.
They do not work with a choice you have already made. The reason is printed on the option, and every rule comes from Sunrise's order form.
Yes. Add the WC-19 transit option.
No. The SR45 is built to order to one user's measurements, so it cannot be returned. The Sunrise warranty covers defects.
No. You can order a Quickie SR45 from Hieline without a prescription.
No. Hieline does not bill or accept insurance, so the Quickie SR45 is a direct purchase. Any reimbursement is strictly between you and your insurer.
Yes. Your progress saves automatically in your browser as you go, so you can step away and pick up where you left off on the same device.
Every combination is checked against Sunrise Medical's own compatibility rules as you build. An option that does not fit your other choices is greyed out with the reason printed on it, and the build cannot be added to the cart while a conflict is open.
Build your Quickie SR45
You build the Quickie SR45 one step at a time with our guided assistant. It checks every choice against Sunrise Medical's own rules, and your progress saves as you go.
Answer for the person who will use the Quickie SR45, whether that is you, a family member or a resident in your care. You can change any answer until the build is in your cart.
The user's measurements
Every size in the build is set from these numbers.
You need the user's measurements before the build can start. Download the measuring form, fill it out with the user, and return to this page when it is done. Your progress is saved on this device, so you can pick up right here and enter the numbers.
Download the measuring formThe user's weight and height
The weight sets the weight capacity of the build. Height is optional.
Two ways to build your Quickie SR45
You have given us the measurements. Now choose how much you want to decide. You can go deeper later without losing anything, so start wherever feels right.
The essentials, chosen for you.
Move through the choices that shape how the Quickie SR45 fits and works. We start each one from your answers, and you adjust anything you like. Every choice is checked live against the manufacturer rules as you go, so the build stays valid the whole way.
- What you decideThe essential choices
- Roughly14 decisions
- Every choiceChecked live against the rules
Best if you want a well-fitted build without weighing every option.
Every option from the order form.
Work through the complete Sunrise Medical build, every choice on the order form, with the same guided steps and the same live rule checking. Nothing is hidden. This is the full depth of the Quickie SR45, laid out so you can set each detail exactly the way you want.
- What you decideThe complete build
- Roughly68 decisions
- Every choiceChecked live against the rules
Best if you want control over every detail.
Here is the full build with its part numbers and the price you pay. Add it to your cart and check out, and it reaches our order desk as one record.
