TiLite 2GX
The TiLite 2GX is a titanium wheelchair that folds side to side. You choose every part, and we check it against Permobil's rules.
A titanium folding chair built to your measurements
The TiLite 2GX is Permobil's titanium folding wheelchair, a modular box frame with full adjustability, built to order from 12" to 22" wide. It is rated to 265 lbs., or 350 lbs. on the heavy duty frame.
Choose the front frame, frame build, seat size and heights, footrest, back, wheels, front wheels, side guards, seating and finish, each checked against Permobil's order form as you build.
What stands out
Folding titanium frame
The 2GX folds side to side to 10.75" wide, in titanium, which damps vibration and carries a five year frame warranty.
Modular design
The frame can be changed in the field: the front end swaps between fixed and swing away, and the chair can be grown in width or depth as the user's needs change.
Built to your measurements
Full adjustability sets the seat width, seat depth, seat heights, front angle, back height and footrest to the user, from a 12" x 12" seat up to 22" x 20".
Five frame builds at no charge
Standard, hemi height for a 13.5" front seat height, heavy duty to 350 lbs., power adaptable, or reinforced. Permobil charges nothing for any of them.
Three back types
A fixed angle height adjustable back, the same back with an 8 degree bend, or a folding back that adjusts in both angle and height from 80 to 101 degrees.
Frame finishes
Satin titanium or 21 powder coated colors at no charge, and four front tube tattoos on a satin frame.
The Hieline Insight
The TiLite 2GX suits a titanium chair user who needs the frame to fold for a car or a closet and still wants the fit built in, at up to 265 lbs., or 350 lbs. on the heavy duty frame, which costs nothing extra. Start with the front frame, because the swing away front and the fixed front lead to different front angles and the fixed front is 2.4 lbs. lighter. Pick the frame build next, since the heavy duty frame narrows the seat range to 18" to 22" by 16" to 20", forces 0 degrees of camber and LiteSpeed billet aluminum front wheels, and rules out the folding back, fold-down and bolt-on push handles, the Carbon Blade and Mag wheels and the Glide fork. Set the front seat height against the front wheel size, because Permobil's chart ties the two together and the Glide fork narrows every range. Keep the seat to footrest length at least 2" under the front seat height. Choose the rear wheel size to match the rear seat height, and remember that 25" and 26" wheels need a 15" or deeper seat. If you plan to add a SmartDrive, keep the rear seat height at 13.5" or more. Take the measurements with Permobil's TiFit reference diagrams on the last page of the order form before you build.
Is it right for you?
A good fit if you
- a manual wheelchair user who needs a folding frame that still fits like a custom chair
- a user up to 265 lbs., or 350 lbs. on the heavy duty frame
- a user who needs a 12" to 22" seat width
- a user whose seat width or depth may need to grow later
Look elsewhere if you
- a user who needs to ride in a vehicle seated in the chair
- a user who wants the lightest possible chair, where a rigid frame is lighter
- a user over 350 lbs.
- a user who needs a seat narrower than 12"
How you get yours
Build it
Work through the guided build one step at a time. Your progress saves as you go.
Rules checked
Every choice is checked against Permobil's own rules as you build, so you cannot order a combination that cannot be made.
Add to cart
Your finished build goes in the cart at the price shown, with every part number on the order.
Made and shipped
Permobil makes it to your build and it ships to you, with free shipping nationwide.
Specifications
Because the TiLite 2GX is built to order, some figures depend on the options you choose. The figures for your own build are on the build summary as you go.
Every figure here comes from Permobil's own documents.
How your TiLite 2GX reaches you
Your build goes to Permobil exactly as you ordered it, with every part number on the order, and ships to you when it is made. Shipping is free nationwide.
Warranty and support
The TiLite 2GX carries Permobil's manufacturer warranty. Hieline supports it after the sale, and parts and repairs are handled directly through us, right here on hieline.com.
Returns
Resources
Here are the manuals, brochures, and videos for the TiLite 2GX, all from Permobil.
Brochures
Warranty
Order form and measuring
Common questions
Measure seated on a firm surface. Permobil's TiFit reference diagrams on page 9 of the order form, on the Resources tab, show where each letter on the build is taken: seat width A, seat depth B, front seat height C, rear seat height D, back height and seat to footrest E, front angle H and camber K.
265 lbs. on the standard frame and 350 lbs. on the heavy duty frame. The heavy duty frame is no charge, comes in 18" to 22" seat widths and 16" to 20" seat depths, and includes tension adjustable by straps back upholstery. The SmartDrive MX2+ is rated for users up to 331 lbs.
Permobil's brochure gives a 10.75" total width folded for a 16" x 16" chair with 0 degrees of camber, minimum rear wheel spacing and standard features. It folds side to side.
Permobil's brochure gives a 13.1 lbs. transport weight with a fixed front end and 15.5 lbs. with a swing away front end, for a 16" x 16" chair without rear wheels. A pair of standard 24" rear wheels adds 7.2 lbs.
No. The order form states that the 2GX is not available with the frame transit tie-down option, and its only transit choice is the transport bracket, four tie-downs for securing the empty chair. Transfer to the vehicle seat.
Permobil's order form ties choices together. The front seat height chart sets which front wheels reach your seat height, each rear wheel size covers its own range of rear seat heights, the heavy duty frame needs 0 degrees of camber and billet aluminum front wheels, the folding stabilizer bar and the folding back cannot be ordered together, and the back height chart depends on your back type and push handles.
The March 2026 order form offers 12" to 22", with 21" and 22" on the heavy duty frame only. Permobil's brochure and website both print 12" to 20". This page follows the order form, which is what the chair is ordered against.
The order form names them Liquid, Bloom, Rebel and Vector, codes XFF65 to XFF68, and this page uses those names. Permobil's 2GX brochure shows an older set named Mosaic, Flower Garden, Need For Speed and Neon Dreams.
Permobil notes that on-screen colors are for reference only. The powder coat swatches use the colors Permobil publishes on its own site, and the satin swatch is sampled from Permobil's own titanium chair photographs.

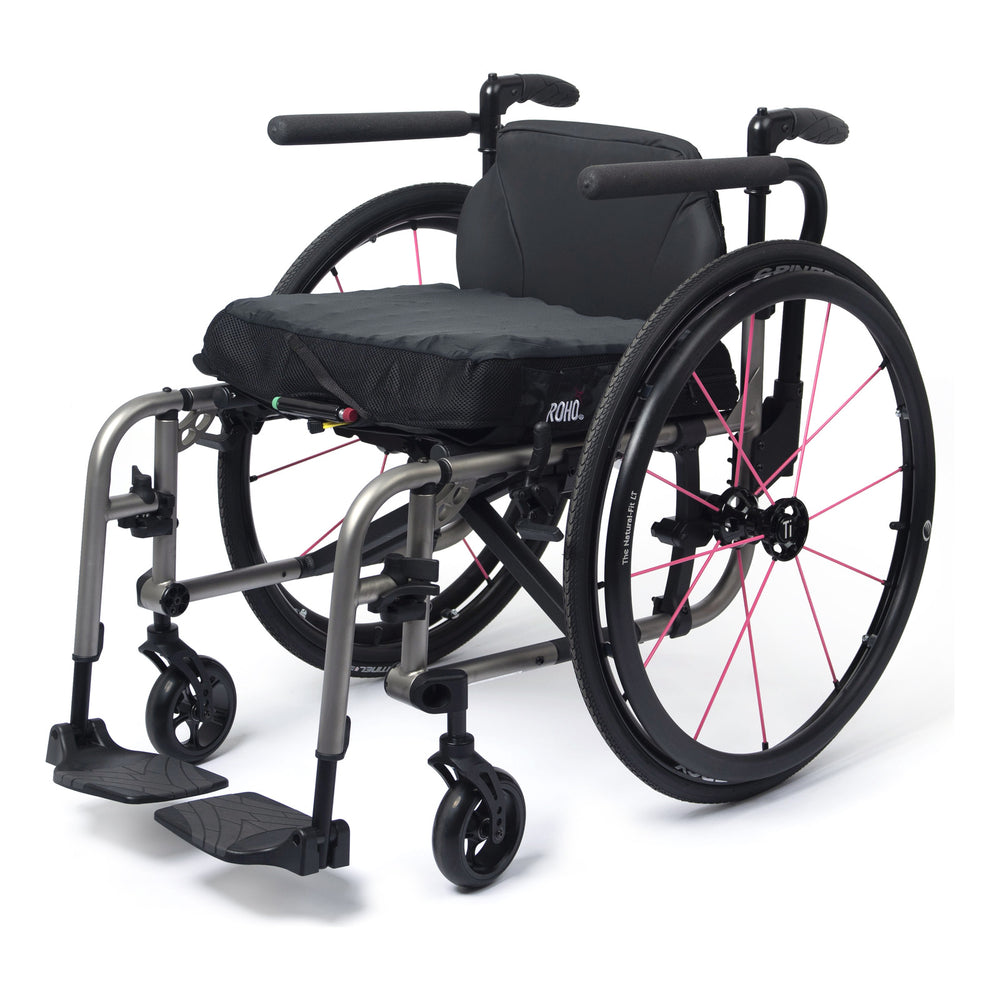

Permobil's studio chair is a satin titanium 2GX with a swing away front end, integrated push handles, pink Spinergy spokes, Natural-Fit LT handrims and a Comfort Acta-Embrace back support, which Permobil now sells as the Comfort Embrace back. It is one build, not the standard chair.
Permobil publishes the TiLite Folding Wheelchair instructions for use, document PD15030 Rev. 9, through its own ShareFile document portal rather than as a direct link, so it is not on the Resources tab. Ask us and we will send it with the chair.
No. The 2GX is built to order to one user's measurements, so it cannot be returned. Permobil's warranty covers defects.
No. You can order a TiLite 2GX from Hieline without a prescription.
No. Hieline does not bill or accept insurance, so the TiLite 2GX is a direct purchase. Any reimbursement is strictly between you and your insurer.
Yes. Your progress saves automatically in your browser as you go, so you can step away and pick up where you left off on the same device.
Every combination is checked against Permobil's own compatibility rules as you build. An option that does not fit your other choices is greyed out with the reason printed on it, and the build cannot be added to the cart while a conflict is open.
Build your TiLite 2GX
You build the TiLite 2GX one step at a time with our guided assistant. It checks every choice against Permobil's own rules, and your progress saves as you go.
Answer for the person who will use the TiLite 2GX, whether that is you, a family member or a resident in your care. You can change any answer until the build is in your cart.
The user's measurements
Every size in the build is set from these numbers.
You need the user's measurements before the build can start. Download the measuring form, fill it out with the user, and return to this page when it is done. Your progress is saved on this device, so you can pick up right here and enter the numbers.
Download the measuring formThe user's weight and height
The weight sets the weight capacity of the build. Height is optional.
Two ways to build your TiLite 2GX
You have given us the measurements. Now choose how much you want to decide. You can go deeper later without losing anything, so start wherever feels right.
The essentials, chosen for you.
Move through the choices that shape how the TiLite 2GX fits and works. We start each one from your answers, and you adjust anything you like. Every choice is checked live against the manufacturer rules as you go, so the build stays valid the whole way.
- What you decideThe essential choices
- Roughly14 decisions
- Every choiceChecked live against the rules
Best if you want a well-fitted build without weighing every option.
Every option from the order form.
Work through the complete Permobil build, every choice on the order form, with the same guided steps and the same live rule checking. Nothing is hidden. This is the full depth of the TiLite 2GX, laid out so you can set each detail exactly the way you want.
- What you decideThe complete build
- Roughly68 decisions
- Every choiceChecked live against the rules
Best if you want control over every detail.
Here is the full build with its part numbers and the price you pay. Add it to your cart and check out, and it reaches our order desk as one record.
