TiLite Pilot
The TiLite Pilot is a rigid wheelchair for children with carbon fiber side panels. You choose every part, and we check it against Permobil's rules.
A pediatric chair with rear wheel access from day one

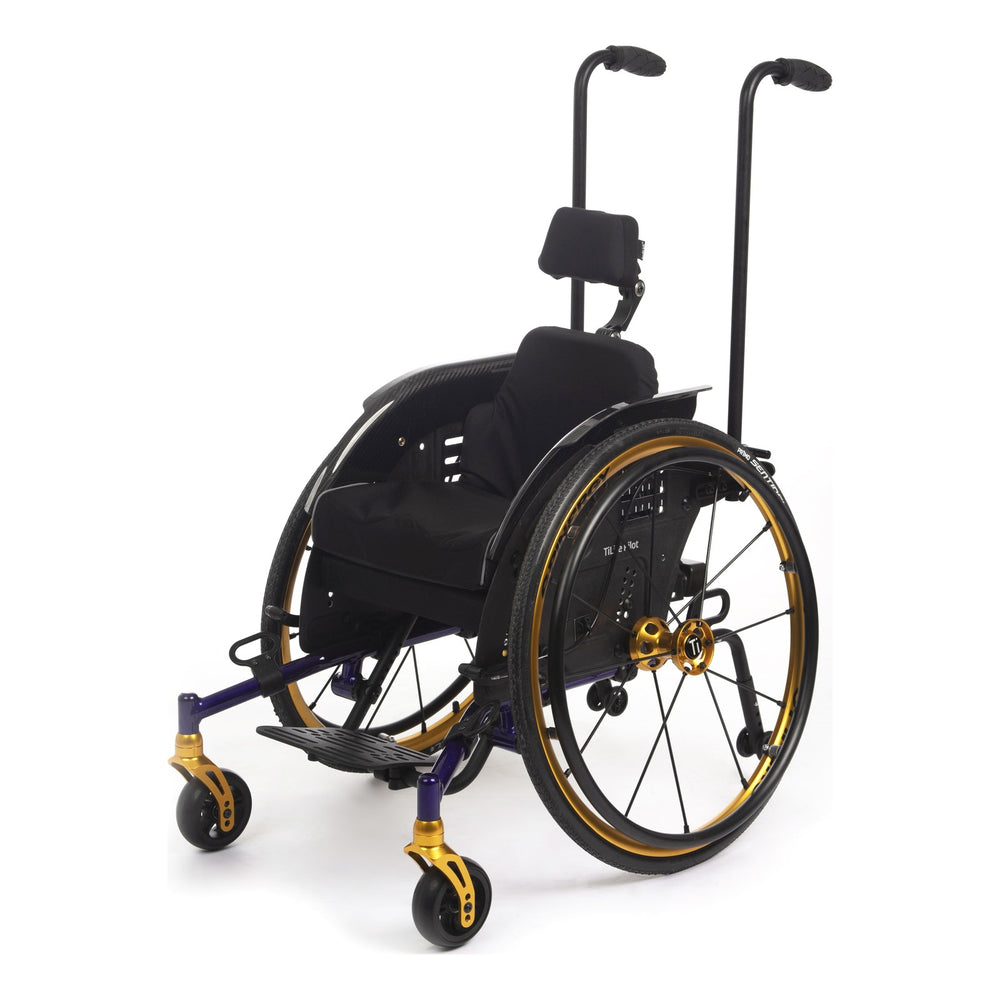

The TiLite Pilot is Permobil's pediatric rigid wheelchair with carbon fiber side panels, sized from 8" x 9" to 14" x 15". Its forward growth keeps the rear wheels within reach as the child grows, and it carries up to 120 lbs.
Choose the frame, seat size, seat heights, footrest, back, rear and front wheels, seating, positioning, power assist and colors, each checked against Permobil's order form as you build.
What stands out
Forward growth built in
As the seat depth grows the rear wheels stay where the child can reach them, so there is no need to relearn how to push after each adjustment.
Carbon fiber side panels
The frame uses carbon fiber panels, and Permobil puts the transport weight at 11 lbs. without the rear wheels.
Tool-free adjustments
The seat pan and side panels give easy access, so the seat depth, heights and center of gravity can be changed with little or no tools.
Low footrest
The footrest adjusts down to a 3" seat to footrest length without extra parts, for a small child.
Transit ready
Choose free transport brackets, or WC-19 transit tie-downs crash tested for a child from 51 to 95 lbs., which come with the growth kit frame.
SmartDrive ready
Permobil's SmartDrive MX2+ power assist can be added on 22" or 24" wheels with a rear seat height of 13.5" or more.
The Hieline Insight
The TiLite Pilot suits a young child who is learning to push and will grow through several sizes. Its forward growth keeps the rear wheels within reach at every depth, which matters more for a small child than a lighter frame does. Pick the seat width that fits the hips today and the depth range that starts at the thigh length today. The 9" to 12" range takes 20" rear wheels and the 11" to 15" range takes 22" or 24", and that pair sets the seat heights Permobil's chart allows. Choose the growth kit frame if you expect to use the growth, since it also brings the transit tie-downs. If the child will ride in a vehicle seated in the chair, those tie-downs need the TiLite rigid back and the head support, and they are rated from 51 to 95 lbs. Add the SmartDrive only on 22" or 24" wheels.
Is it right for you?
A good fit if you
- a young child learning to push their own chair
- a child up to 120 lbs., or 51 to 95 lbs. for transit
- a hip width from about 8" to 14" and a seat depth from about 9" to 15"
- a family who wants rear wheel access to stay right as the child grows
Look elsewhere if you
- a child over 120 lbs., where the TiLite Twist carries 165 lbs.
- a child who needs tilt in space or a power base
- a child who needs a seat above 16.5" from the floor at the front
- a child under 51 lbs. or over 95 lbs. who must ride in a vehicle seated in the chair
How you get yours
Build it
Work through the guided build one step at a time. Your progress saves as you go.
Rules checked
Every choice is checked against Permobil's own rules as you build, so you cannot order a combination that cannot be made.
Add to cart
Your finished build goes in the cart at the price shown, with every part number on the order.
Made and shipped
Permobil makes it to your build and it ships to you, with free shipping nationwide.
Specifications
Because the TiLite Pilot is built to order, some figures depend on the options you choose. The figures for your own build are on the build summary as you go.
Every figure here comes from Permobil's own documents.
How your TiLite Pilot reaches you
Your build goes to Permobil exactly as you ordered it, with every part number on the order, and ships to you when it is made. Shipping is free nationwide.
Warranty and support
The TiLite Pilot carries Permobil's manufacturer warranty. Hieline supports it after the sale, and parts and repairs are handled directly through us, right here on hieline.com.
Returns
Resources
Here are the manuals, brochures, and videos for the TiLite Pilot, all from Permobil.
Owner's manuals
Brochures
Warranty
Order form and measuring
Common questions
Permobil's TPFS1 frame includes a one-time growth kit and the WC-19 transit tie-downs, for $208.00 more than the frame without the kit. More growth kits are sold separately by Permobil.
Pick the range that starts at the child's thigh length today. The 9" to 12" range takes 20" rear wheels only, and the 11" to 15" range takes 22" or 24" wheels only.
Permobil's measurements chart sets the front and rear seat height ranges by the seat depth and the rear wheel size. The page greys out the heights the chart does not reach, and the rear seat never sits higher than the front.
Only with the WC-19 transit tie-downs. Permobil crash tested the Pilot with them on a 14" x 15" seat for a child up to 95 lbs., and they need the TiLite rigid back and the head support. Permobil does not offer them for a child under 51 lbs. The transport brackets are for securing the empty chair.
120 lbs., the user and anything the user carries, and 95 lbs. with the transit tie-downs.
Permobil's order form marks the solid seat pan as required and prices it, so every Pilot includes it at $130.40. The lowest price for a complete chair is $2,834.40.
Yes, on 22" or 24" rear wheels with a rear seat height of 13.5" or more. Permobil does not make it for 20" wheels.
Permobil's order form lists 16.5", but its measurements chart tops out at 16" on every seat depth and wheel size. The page follows the chart.
Permobil publishes them only through a ShareFile link, so they are not on this page. The owner's manual on the Resources tab is Permobil's OM0010 Rev A edition.
Yes. The Pilot order form prints a part number for the frame and for every option, and the order line carries them. The seat to footrest length and the camber carry Permobil's own wording.
Permobil notes that on-screen colors are for reference only. The anodize package covers the caster mount, caster fork and caster caps, at no charge.
No. The Pilot is built to order to one child's measurements, so it cannot be returned. Permobil's warranty covers defects.
No. You can order a TiLite Pilot from Hieline without a prescription.
No. Hieline does not bill or accept insurance, so the TiLite Pilot is a direct purchase. Any reimbursement is strictly between you and your insurer.
Yes. Your progress saves automatically in your browser as you go, so you can step away and pick up where you left off on the same device.
Every combination is checked against Permobil's own compatibility rules as you build. An option that does not fit your other choices is greyed out with the reason printed on it, and the build cannot be added to the cart while a conflict is open.
Build your TiLite Pilot
You build the TiLite Pilot one step at a time with our guided assistant. It checks every choice against Permobil's own rules, and your progress saves as you go.
Answer for the person who will use the TiLite Pilot, whether that is you, a family member or a resident in your care. You can change any answer until the build is in your cart.
The user's measurements
Every size in the build is set from these numbers.
You need the user's measurements before the build can start. Download the measuring form, fill it out with the user, and return to this page when it is done. Your progress is saved on this device, so you can pick up right here and enter the numbers.
Download the measuring formThe user's weight and height
The weight sets the weight capacity of the build. Height is optional.
Two ways to build your TiLite Pilot
You have given us the measurements. Now choose how much you want to decide. You can go deeper later without losing anything, so start wherever feels right.
The essentials, chosen for you.
Move through the choices that shape how the TiLite Pilot fits and works. We start each one from your answers, and you adjust anything you like. Every choice is checked live against the manufacturer rules as you go, so the build stays valid the whole way.
- What you decideThe essential choices
- Roughly14 decisions
- Every choiceChecked live against the rules
Best if you want a well-fitted build without weighing every option.
Every option from the order form.
Work through the complete Permobil build, every choice on the order form, with the same guided steps and the same live rule checking. Nothing is hidden. This is the full depth of the TiLite Pilot, laid out so you can set each detail exactly the way you want.
- What you decideThe complete build
- Roughly68 decisions
- Every choiceChecked live against the rules
Best if you want control over every detail.
Here is the full build with its part numbers and the price you pay. Add it to your cart and check out, and it reaches our order desk as one record.
