TiLite TRA
The TiLite TRA is a titanium dual-tube rigid wheelchair. You choose every part, and we check it against Permobil's rules.
A titanium dual-tube rigid chair built to your measurements

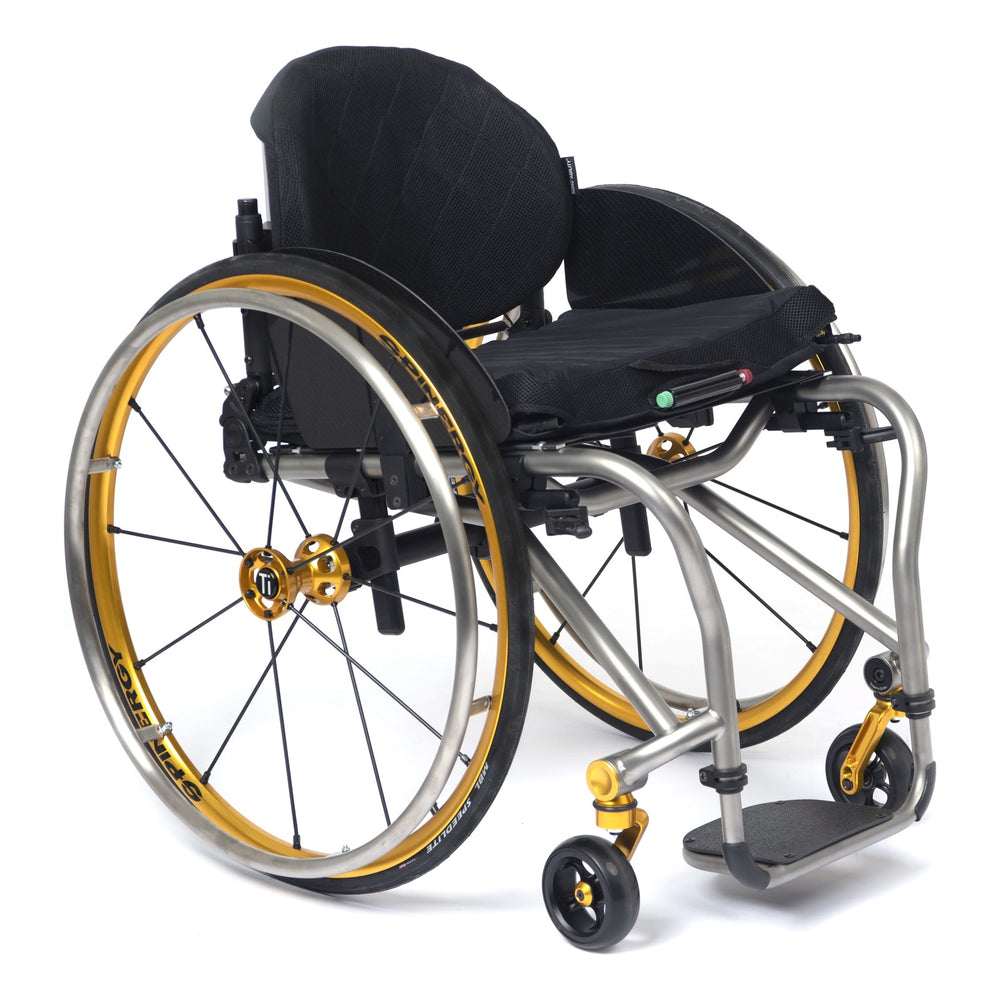

The TiLite TRA is Permobil's titanium dual-tube rigid wheelchair, built to order from 12" to 20" wide with full adjustability. It is rated to 265 lbs., or 350 lbs. on the heavy duty frame.
You choose the frame build, seat size and heights, footrest, back, rear wheels, casters, side guards, seating and finish, and every choice is checked against Permobil's order form and its charts as you build.
What stands out
Dual-tube frame
The TRA frame runs two titanium tubes on each side, which spreads the load and cuts frame flex so more of each push moves the chair.
Built to your measurements
TiFit sets the rear seat width, seat depth, seat heights, frame angle, back height and footrest to the user, in 0.5" steps on the heights.
Adjustable center of gravity
The rear axle position is set from 1" to 5" in front of the back post in 0.25" steps, and the Precision Lock parts let it be moved later.
Ergonomic seat option
The 6", 7" or 8" ergonomic seat bends the seat tube upward that far in front of the back post, and tension adjustable by straps upholstery is included with it.
Heavy duty frame at no charge
The heavy duty frame raises the rating from 265 lbs. to 350 lbs. and needs tension adjustable back upholstery and billet aluminum casters.
Frame finishes
Satin titanium or 21 powder coated colors at no charge, four front tube tattoos on a satin frame, and a color anodize package for the caster mounts, forks and caps.
The Hieline Insight
The TiLite TRA suits a full-time rigid chair user up to 265 lbs. who wants a chair set to their own measurements, or up to 350 lbs. on the heavy duty frame at no extra cost. Start with the rear seat width and depth, then the seat taper, because a taper needs the V-front end and the footrest width chart only offers standard front end widths without one. Set the front and rear seat heights next and pick the rear wheel size to match, since each wheel size covers its own range of rear seat heights and 25" and 26" wheels need a 15" or deeper seat. Keep the seat to footrest length at least 2" under the front seat height. If you plan to add a SmartDrive, keep the rear seat height at 13.5" or more and skip the 20" wheels, and on 0 or 2 degrees of camber pick 1" or 1.25" rear wheel spacing. Take the measurements with Permobil's TiFit reference diagrams on the last page of the order form before you build.
Is it right for you?
A good fit if you
- a full-time manual wheelchair user who wants a rigid frame
- a user up to 265 lbs., or 350 lbs. on the heavy duty frame
- a user who needs a 12" to 20" seat
- a user who wants to add a SmartDrive power assist
Look elsewhere if you
- a user who needs to ride in a vehicle seated in the chair
- a user who needs a folding frame
- a user over 350 lbs.
- a user who needs tilt or recline
How you get yours
Build it
Work through the guided build one step at a time. Your progress saves as you go.
Rules checked
Every choice is checked against Permobil's own rules as you build, so you cannot order a combination that cannot be made.
Add to cart
Your finished build goes in the cart at the price shown, with every part number on the order.
Made and shipped
Permobil makes it to your build and it ships to you, with free shipping nationwide.
Specifications
Because the TiLite TRA is built to order, some figures depend on the options you choose. The figures for your own build are on the build summary as you go.
Every figure here comes from Permobil's own documents.
How your TiLite TRA reaches you
Your build goes to Permobil exactly as you ordered it, with every part number on the order, and ships to you when it is made. Shipping is free nationwide.
Warranty and support
The TiLite TRA carries Permobil's manufacturer warranty. Hieline supports it after the sale, and parts and repairs are handled directly through us, right here on hieline.com.
Returns
Resources
Here are the manuals, brochures, and videos for the TiLite TRA, all from Permobil.
Owner's manuals
Warranty
Order form and measuring
Common questions
Measure seated on a firm surface. Permobil's TiFit reference diagrams on page 10 of the order form, on the Resources tab, show where each letter on the build is taken: rear seat width A, seat depth B, front seat height C, rear seat height D, seat to footrest E and back height F.
265 lbs. on the standard frame and 350 lbs. on the heavy duty or Q'Straint adaptable frame. The SmartDrive MX2+ is rated for users up to 331 lbs.
No. Permobil's instructions for use say the TRA has not been crash tested to ISO 7176-19 or WC19 and must not be occupied during transit. Transfer to the vehicle seat and secure the empty chair.
Permobil's order form ties choices together. The footrest width chart sets the standard front end widths for each rear seat width, a seat taper needs the V-front end, each rear wheel size covers its own range of rear seat heights, and the heavy duty frame needs tension adjustable back upholstery, billet aluminum casters and 0 or 2 degrees of camber.
The TR and TRA brochure lists a 13" to 21" rear seat height, a back to 22", a 3" taper and camber to 12 degrees for the TRA, and Permobil's product page lists frames that are not on the current form. This page follows Permobil's March 2026 order form, which is what the chair is ordered against.
Permobil gives an 11.3 lbs. transport weight for a 16" x 16" chair with standard features and no rear wheels. A pair of standard 24" rear wheels adds 7.2 lbs.
Permobil notes that on-screen colors are for reference only. The powder coat swatches use the colors Permobil publishes on its own site, and the satin swatch is sampled from Permobil's TRA photographs.
No. The TRA is built to order to one user's measurements, so it cannot be returned. Permobil's warranty covers defects.
No. You can order a TiLite TRA from Hieline without a prescription.
No. Hieline does not bill or accept insurance, so the TiLite TRA is a direct purchase. Any reimbursement is strictly between you and your insurer.
Yes. Your progress saves automatically in your browser as you go, so you can step away and pick up where you left off on the same device.
Every combination is checked against Permobil's own compatibility rules as you build. An option that does not fit your other choices is greyed out with the reason printed on it, and the build cannot be added to the cart while a conflict is open.
Build your TiLite TRA
You build the TiLite TRA one step at a time with our guided assistant. It checks every choice against Permobil's own rules, and your progress saves as you go.
Answer for the person who will use the TiLite TRA, whether that is you, a family member or a resident in your care. You can change any answer until the build is in your cart.
The user's measurements
Every size in the build is set from these numbers.
You need the user's measurements before the build can start. Download the measuring form, fill it out with the user, and return to this page when it is done. Your progress is saved on this device, so you can pick up right here and enter the numbers.
Download the measuring formThe user's weight and height
The weight sets the weight capacity of the build. Height is optional.
Two ways to build your TiLite TRA
You have given us the measurements. Now choose how much you want to decide. You can go deeper later without losing anything, so start wherever feels right.
The essentials, chosen for you.
Move through the choices that shape how the TiLite TRA fits and works. We start each one from your answers, and you adjust anything you like. Every choice is checked live against the manufacturer rules as you go, so the build stays valid the whole way.
- What you decideThe essential choices
- Roughly14 decisions
- Every choiceChecked live against the rules
Best if you want a well-fitted build without weighing every option.
Every option from the order form.
Work through the complete Permobil build, every choice on the order form, with the same guided steps and the same live rule checking. Nothing is hidden. This is the full depth of the TiLite TRA, laid out so you can set each detail exactly the way you want.
- What you decideThe complete build
- Roughly68 decisions
- Every choiceChecked live against the rules
Best if you want control over every detail.
Here is the full build with its part numbers and the price you pay. Add it to your cart and check out, and it reaches our order desk as one record.
