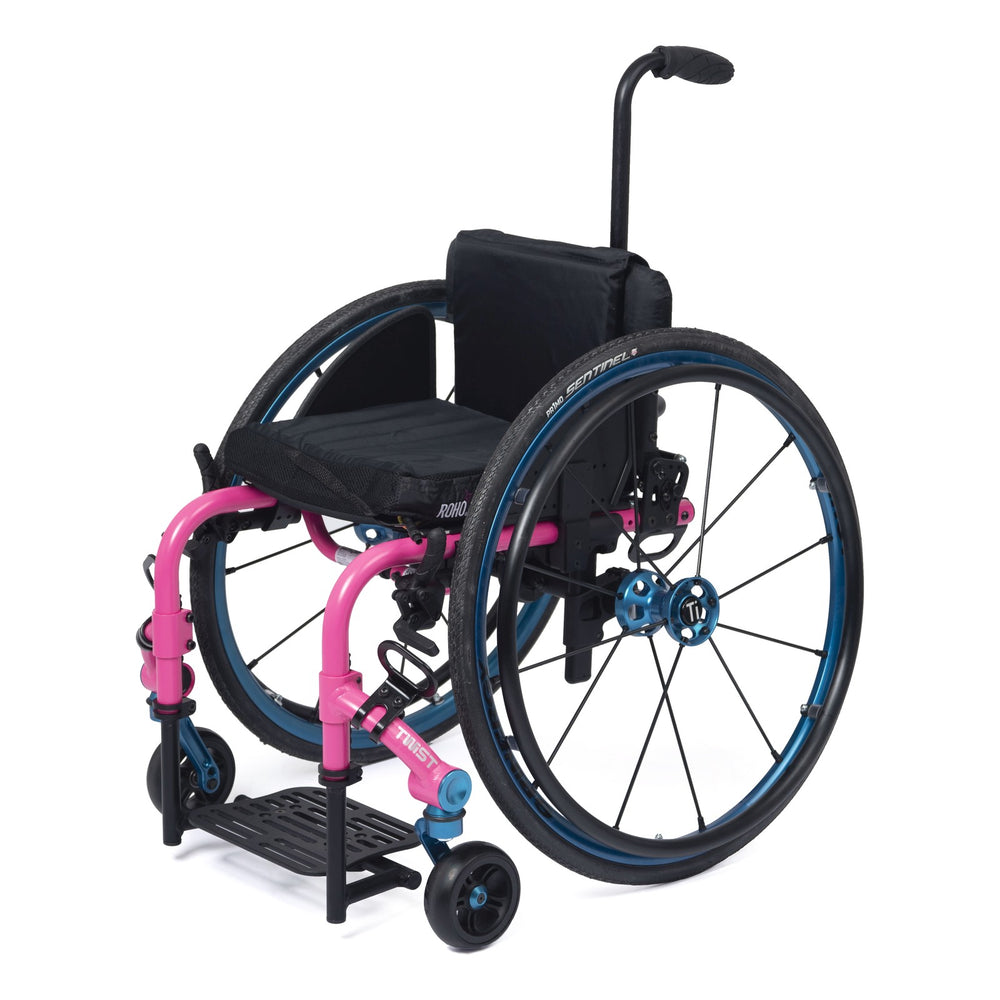

TiLite Twist
The TiLite Twist is an aluminum rigid wheelchair for children that grows with them. You choose every part, and we check it against Permobil's rules.
A pediatric rigid chair that grows with your child
The TiLite Twist is Permobil's aluminum mono-tube pediatric wheelchair, sized from 8" x 8" to 15" x 16". The seat grows 2" in width and 3" in depth with no growth kit to buy, and the chair carries up to 165 lbs.
Choose the seat size ranges, front end, seat heights, footrest, rear wheels, back, seating, positioning and colors, each checked against Permobil's order form as you build.
What stands out
Growth built in
Each seat width range grows 2" and each seat depth range grows 3". The upholstery and parts to grow the chair come with it, so there is no growth kit to buy.
Full adjustability
Permobil's Tru-Fit mechanism adjusts without a fixed row of holes, so the seat heights, center of gravity and back can be set to the exact position the child needs.
High mount footrest
The high mount footrests take the seat to footrest length as short as 5", for a small child, without risers or clamp-on parts.
Center mount push handle
The bolt-on center mount push handle is height adjustable and comes off easily, and it comes in small, standard and tall.
Folding back
The folding aluminum back folds from any angle with the TiShaft release bar and locks when it is folded, so the chair packs down for the car.
Center mount anti-tip
A single swivel or non-swivel caster anti-tip sits in the middle of the frame, so the child can learn wheelies and curbs with the anti-tip behind them.
The Hieline Insight
The TiLite Twist suits a child who pushes the chair on their own and will outgrow any fixed size inside a year or two. It grows 2" in width and 3" in depth with no growth kit, which is where most of its value sits. Measure the child's hip width and seat depth today and pick the ranges that start at those numbers, so the growth is still ahead of them. Then pick the front wheel and fork, because together with the depth range they set which front seat heights Permobil can build. A small child who needs a low seat does best on 3" or 4" front wheels and the high mount footrest, which reaches a 5" seat to footrest length. If you want an upgraded handrim, choose 22" or 24" rear wheels, since most handrim upgrades are not made for 18" and 20" wheels. If the child will ride in a vehicle seated in the chair, add the transit tie-downs, and note that Permobil does not offer them for a child under 51 lbs.
Is it right for you?
A good fit if you
- a child who pushes their own chair and is still growing
- a child up to 165 lbs.
- a hip width from about 8" to 15" and a seat depth from about 8" to 16"
- a family who wants a rigid chair with a folding back for the car
Look elsewhere if you
- a child over 165 lbs.
- a child who needs tilt in space or a power base
- a child who needs a seat under 13" from the floor at the front
- a child under 51 lbs. who must ride in a vehicle seated in the chair
How you get yours
Build it
Work through the guided build one step at a time. Your progress saves as you go.
Rules checked
Every choice is checked against Permobil's own rules as you build, so you cannot order a combination that cannot be made.
Add to cart
Your finished build goes in the cart at the price shown, with every part number on the order.
Made and shipped
Permobil makes it to your build and it ships to you, with free shipping nationwide.
Specifications
Because the TiLite Twist is built to order, some figures depend on the options you choose. The figures for your own build are on the build summary as you go.
Every figure here comes from Permobil's own documents.
How your TiLite Twist reaches you
Your build goes to Permobil exactly as you ordered it, with every part number on the order, and ships to you when it is made. Shipping is free nationwide.
Warranty and support
The TiLite Twist carries Permobil's manufacturer warranty. Hieline supports it after the sale, and parts and repairs are handled directly through us, right here on hieline.com.
Returns
Resources
Here are the manuals, brochures, and videos for the TiLite Twist, all from Permobil.
Owner's manuals
Brochures
Warranty
Order form and measuring
Common questions
Measure the child seated on a firm surface. Pick the width range whose smallest size fits the hips today, and the depth range whose smallest size fits the thigh today. Permobil ships the chair at the smallest size of each range unless you set another, and the width then grows 2" and the depth 3" as the child grows.
Permobil's front seat height chart sets the range by three things: the front wheel size, whether the fork is the Glide suspension fork, and the seat depth range. The page greys out the heights the chart does not reach for your choices. The 2" taper footrest adds 1.5" to the lowest height.
The high mount footrests sit higher on the frame, so the seat to footrest length can be as short as 5". The standard footrests run from 9" and must be at least 2" shorter than the front seat height. Permobil's footrest chart sets the exact range by the seat depth range and the front wheel size.
The wheel size sets the rear seat height range: 12" to 17" on 18" wheels, 13" to 17.5" on 20", 14" to 18.5" on 22" and 15" to 19.5" on 24". The 8" to 11" seat depth range needs 18" or 20" wheels. Most handrim upgrades are not made for 18" or 20" wheels.
Only with the transit tie-downs. Permobil crash tested the Twist with its transit tie-down option to ISO 7176-19, secured facing forward, with vehicle-anchored shoulder and pelvic belts. Permobil does not offer the option for a user under 51 lbs. Without it, the child transfers to a vehicle seat.
165 lbs., the user and anything the user carries. The order form, the brochure and the owner's manual all give the same figure.
No. Permobil's Twist order form prints no SmartDrive rows, so the Twist is sold without one.
Permobil sets the Glide suspension fork by rider weight in three bands. The heaviest band, 180 to 265 lbs., is above the Twist's 165 lbs. weight limit, so it is left off this page.
Permobil publishes the Twist service manual and parts manual only through a ShareFile link, so they are not on this page. The owner's manual on the Resources tab is TiLite's OM0006 Rev B edition.
Yes. The Twist order form prints a part number for the frame and for every option, and the order line carries them. Choices the form asks you to write in, such as the set seat width and depth and the seat to footrest length, carry Permobil's own wording.
Permobil notes that on-screen colors are for reference only. The frame and the caster arm are painted separately, and the anodize package covers the caster mount, caster fork and caster caps.
No. The Twist is built to order to one child's measurements, so it cannot be returned. Permobil's warranty covers defects.
No. You can order a TiLite Twist from Hieline without a prescription.
No. Hieline does not bill or accept insurance, so the TiLite Twist is a direct purchase. Any reimbursement is strictly between you and your insurer.
Yes. Your progress saves automatically in your browser as you go, so you can step away and pick up where you left off on the same device.
Every combination is checked against Permobil's own compatibility rules as you build. An option that does not fit your other choices is greyed out with the reason printed on it, and the build cannot be added to the cart while a conflict is open.
Build your TiLite Twist
You build the TiLite Twist one step at a time with our guided assistant. It checks every choice against Permobil's own rules, and your progress saves as you go.
Answer for the person who will use the TiLite Twist, whether that is you, a family member or a resident in your care. You can change any answer until the build is in your cart.
The user's measurements
Every size in the build is set from these numbers.
You need the user's measurements before the build can start. Download the measuring form, fill it out with the user, and return to this page when it is done. Your progress is saved on this device, so you can pick up right here and enter the numbers.
Download the measuring formThe user's weight and height
The weight sets the weight capacity of the build. Height is optional.
Two ways to build your TiLite Twist
You have given us the measurements. Now choose how much you want to decide. You can go deeper later without losing anything, so start wherever feels right.
The essentials, chosen for you.
Move through the choices that shape how the TiLite Twist fits and works. We start each one from your answers, and you adjust anything you like. Every choice is checked live against the manufacturer rules as you go, so the build stays valid the whole way.
- What you decideThe essential choices
- Roughly14 decisions
- Every choiceChecked live against the rules
Best if you want a well-fitted build without weighing every option.
Every option from the order form.
Work through the complete Permobil build, every choice on the order form, with the same guided steps and the same live rule checking. Nothing is hidden. This is the full depth of the TiLite Twist, laid out so you can set each detail exactly the way you want.
- What you decideThe complete build
- Roughly68 decisions
- Every choiceChecked live against the rules
Best if you want control over every detail.
Here is the full build with its part numbers and the price you pay. Add it to your cart and check out, and it reaches our order desk as one record.
