TiLite Z
The TiLite Z is a fully adjustable aluminum rigid wheelchair. You choose every part, and we check it against Permobil's rules.
An aluminum rigid chair built to your measurements
The TiLite Z is Permobil's aluminum rigid wheelchair, fully adjustable and built to order from 12" to 20" wide. It is rated to 250 lbs., 275 lbs. at no charge, or 350 lbs. on the heavy duty frame, and there is a WC-19 transit frame.
Choose the frame, seat size and heights, front angle, centre of gravity, footrest, back, wheels, front wheels, side guards, seating and finish, each checked against Permobil's order form as you build.
What stands out
Aluminum rigid frame
A rigid frame is built from the fewest parts, which is what makes it light. Permobil gives the Z an 11.3 lbs. transport weight on a 16" x 16" chair.
Built to your measurements
TiFit sets the seat width, seat depth, seat heights, front angle, centre of gravity, back height and footrest to the user when the chair is built, in 0.5" steps on the heights.
Precision Lock caster adjustment
The caster angle is set with Permobil's Precision Lock adjustment rather than by eye, so the casters can be squared after a change to the seat heights.
A WC-19 transit frame
The transit frame is tested to WC-19 and comes with four tie-down brackets and two pelvic belt mounting brackets. It is a frame choice, not an add-on, and it cannot be combined with the heavy duty frame.
Four frames, one chair
250 lbs., 275 lbs. at no charge, the WC-19 transit frame, or the heavy duty frame at 350 lbs. in 18" to 20" widths.
Frame and component colors
Twenty-one powder coated frame colors at no charge, and a seven-color anodize package for the caster mount, fork and caps.
The Hieline Insight
The TiLite Z is the aluminum rigid chair to pick when you want a TiFit fit without the titanium price, and at $1,925.00 it is the cheapest chair in the TiLite range. Decide the frame first, because it is the one choice you cannot change later: the 250 lbs. and 275 lbs. frames cost the same, the WC-19 transit frame is the only one you can ride in seated in a vehicle, and the heavy duty frame takes the chair to 350 lbs. but narrows it to 18" to 20" wide by 16" to 20" deep and rules out the Glide fork and the ROHO AGILITY backs. Set the seat width and depth next, since Permobil's size chart does not build every combination: a 12" or 13" wide chair stops at an 18" depth, and a 20" wide chair starts at a 16" depth. Pick the rear wheel size against the rear seat height, because each size covers its own range. Keep the seat to footrest length at least 2" under the front seat height, and remember the footrest width follows the seat width and the taper from Permobil's own chart. If you plan to add a SmartDrive, keep the rear seat height at 13.5" or more. Take the measurements with Permobil's measurement guide on page 8 of the order form before you build.
Is it right for you?
A good fit if you
- a full-time manual wheelchair user who wants a rigid frame set to their measurements
- a user up to 275 lbs., or 350 lbs. on the heavy duty frame
- a user who needs to ride in a vehicle seated in the chair, on the WC-19 transit frame
- a user who wants a TiFit chair at the lowest price in the TiLite range
Look elsewhere if you
- a user who needs a folding frame
- a user over 350 lbs.
- a user who needs a seat wider than 20"
- a user who wants titanium's ride, where the ZR and the TRA are the chairs
How you get yours
Build it
Work through the guided build one step at a time. Your progress saves as you go.
Rules checked
Every choice is checked against Permobil's own rules as you build, so you cannot order a combination that cannot be made.
Add to cart
Your finished build goes in the cart at the price shown, with every part number on the order.
Made and shipped
Permobil makes it to your build and it ships to you, with free shipping nationwide.
Specifications
Because the TiLite Z is built to order, some figures depend on the options you choose. The figures for your own build are on the build summary as you go.
Every figure here comes from Permobil's own documents.
How your TiLite Z reaches you
Your build goes to Permobil exactly as you ordered it, with every part number on the order, and ships to you when it is made. Shipping is free nationwide.
Warranty and support
The TiLite Z carries Permobil's manufacturer warranty. Hieline supports it after the sale, and parts and repairs are handled directly through us, right here on hieline.com.
Returns
Resources
Here are the manuals, brochures, and videos for the TiLite Z, all from Permobil.
Brochures
Warranty
Order form and measuring
Videos
Common questions
Measure seated on a firm surface. Permobil's measurement guide on page 8 of the order form, on the Resources tab, shows where each letter on the build is taken: seat width A, seat depth B, front seat height C, rear seat height D, front angle E, centre of gravity F, footrest width G, seat to footrest H, back height I, back angle J and camber K.
Permobil's July 2026 order form for the Z prints no part numbers on any row. It is ordered by description, so the order line carries Permobil's own wording for every choice you make and nothing is invented.
250 lbs. on the standard frame, or 275 lbs. at no charge if you choose it. The heavy duty frame carries 350 lbs. and comes in 18" to 20" seat widths and 16" to 20" seat depths. The WC-19 transit frame is 250 lbs. only. Permobil's brochure and website give 275 lbs. as the standard figure; the order form makes 250 lbs. the standard and 275 lbs. a choice, and this page follows the form.
Yes, on the aluminum rigid frame with WC-19 transit tie-downs, which is a frame choice rather than an add-on. It is tested to WC-19 and comes with four tie-down brackets and two pelvic belt mounting brackets. Permobil recommends the Q'Straint WC-19 anchored pelvic belt with it. The separate transport brackets are for securing the empty chair only.
Permobil builds a set list of seat sizes. A 12" or 13" wide chair runs 12" to 18" deep, a 14" to 16" wide chair runs 13" to 20", a 17" to 19" wide chair runs 14" to 20", and a 20" wide chair runs 16" to 20". The chart is on page 2 of the order form.
Permobil's order form ties choices together. Each rear wheel size covers its own range of rear seat heights, 85 degrees of front angle does not take 6" front wheels and 90 degrees takes neither 5" nor 6", the footrest width follows the seat width and taper from Permobil's chart, the back height range depends on your push handles, and the heavy duty frame includes the billet aluminum front wheels at no charge.
Permobil's note on the standard rear wheel reads: order 24" wheels with a treaded pneumatic tire or a treaded tire with airless inserts, and aluminum silver or aluminum black handrims with long tabs, and the chair ships with TiLite standard rear wheels. Any other combination ships with TiLite SHADOW rear wheels.
Permobil's brochure gives an 11.3 lbs. transport weight for a 16" x 16" Z with 0 degrees of camber, 4" poly casters, Comfort Company Compass 4 hardware and standard seat upholstery, without wheel locks, anti-tips, footrests, armrests, rear wheels, side guards or seating.
Permobil notes that on-screen colors are for reference only. The powder coat swatches use the colors Permobil publishes on its own site.

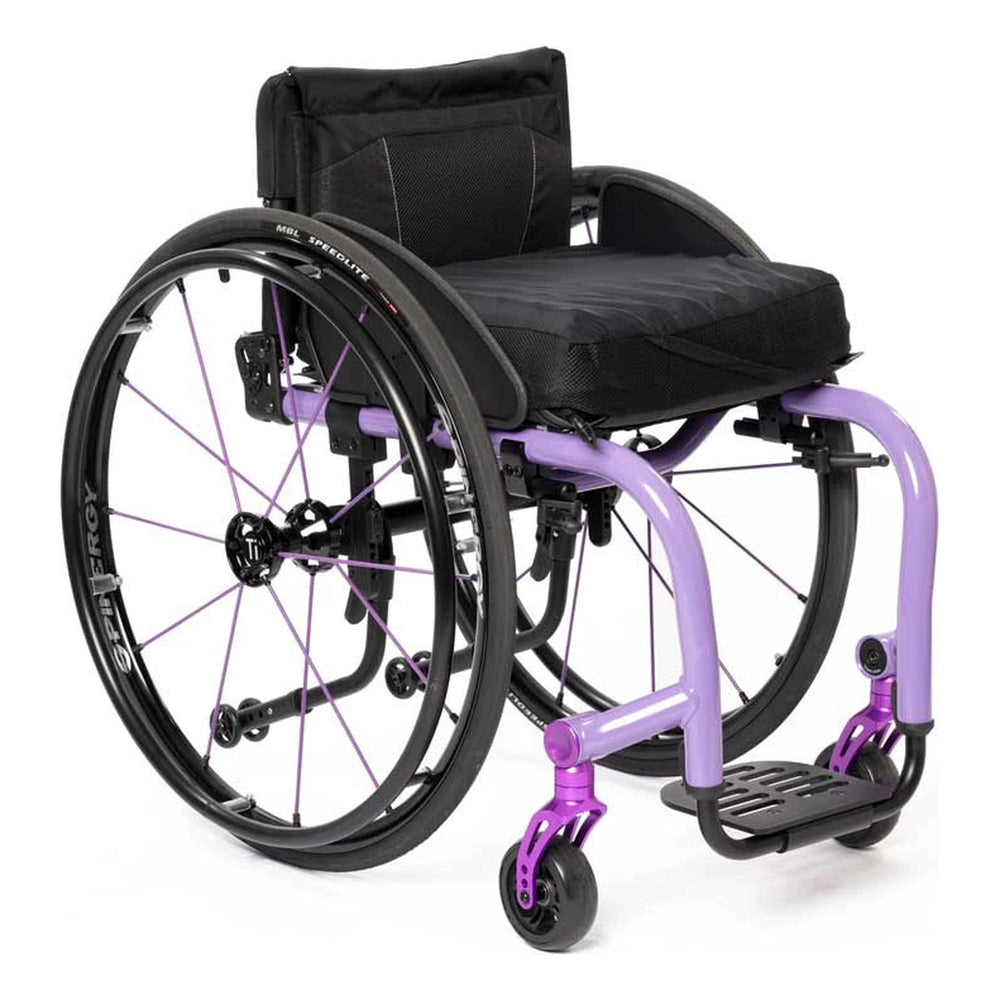

Permobil's studio chair is a Z in a purple anodize with black Spinergy SPOX wheels on purple spokes, MBL SpeedLite tires, an aluminum footplate, aluminum side guards, no push handles and a cushion. It is one build, not the standard chair.
Permobil publishes the TiLite Z owner's manual, service manual and parts manual through its own ShareFile document portal rather than as direct links, so they are not on the Resources tab. Ask us and we will send them with the chair.
No. The Z is built to order to one user's measurements, so it cannot be returned. Permobil's warranty covers defects.
No. You can order a TiLite Z from Hieline without a prescription.
No. Hieline does not bill or accept insurance, so the TiLite Z is a direct purchase. Any reimbursement is strictly between you and your insurer.
Yes. Your progress saves automatically in your browser as you go, so you can step away and pick up where you left off on the same device.
Every combination is checked against Permobil's own compatibility rules as you build. An option that does not fit your other choices is greyed out with the reason printed on it, and the build cannot be added to the cart while a conflict is open.
Build your TiLite Z
You build the TiLite Z one step at a time with our guided assistant. It checks every choice against Permobil's own rules, and your progress saves as you go.
Answer for the person who will use the TiLite Z, whether that is you, a family member or a resident in your care. You can change any answer until the build is in your cart.
The user's measurements
Every size in the build is set from these numbers.
You need the user's measurements before the build can start. Download the measuring form, fill it out with the user, and return to this page when it is done. Your progress is saved on this device, so you can pick up right here and enter the numbers.
Download the measuring formThe user's weight and height
The weight sets the weight capacity of the build. Height is optional.
Two ways to build your TiLite Z
You have given us the measurements. Now choose how much you want to decide. You can go deeper later without losing anything, so start wherever feels right.
The essentials, chosen for you.
Move through the choices that shape how the TiLite Z fits and works. We start each one from your answers, and you adjust anything you like. Every choice is checked live against the manufacturer rules as you go, so the build stays valid the whole way.
- What you decideThe essential choices
- Roughly14 decisions
- Every choiceChecked live against the rules
Best if you want a well-fitted build without weighing every option.
Every option from the order form.
Work through the complete Permobil build, every choice on the order form, with the same guided steps and the same live rule checking. Nothing is hidden. This is the full depth of the TiLite Z, laid out so you can set each detail exactly the way you want.
- What you decideThe complete build
- Roughly68 decisions
- Every choiceChecked live against the rules
Best if you want control over every detail.
Here is the full build with its part numbers and the price you pay. Add it to your cart and check out, and it reaches our order desk as one record.
