TiLite ZRA
The TiLite ZRA is a titanium mono-tube rigid wheelchair with full adjustability. You choose every part, and we check it against Permobil's rules.
A titanium mono-tube rigid chair built to your measurements
The TiLite ZRA is Permobil's titanium mono-tube rigid wheelchair with full adjustability, built to order from 10" to 20" wide. It is rated to 265 lbs., or 300 lbs. on the heavy duty frame.
Choose the frame build, transit option, seat size and heights, footrest, back, wheels, casters, side guards, seating and finish, each checked against Permobil's order form as you build.
What stands out
Mono-tube frame
The ZRA frame is a single titanium tube on each side, 1.25" in diameter, with full adjustability for positioning that can change over time.
Built to your measurements
TiFit sets the rear seat width, seat depth, seat heights, frame angle, back height and footrest to the user, in 0.5" steps on the heights, from a 10" x 10" seat up.
Adjustable center of gravity
The rear axle position is set from 0" to 5" in front of the back post in 0.25" steps, and can be moved later to fine-tune the balance.
Transit tie-down option
The transit tie-downs add four tie-down brackets, two pelvic belt mounting brackets and a reinforced frame, crash tested to WC-19 with the user seated facing forward.
Depth adjustable back frame
On 10" to 18" seat depths the depth adjustable back frame gives 2" of rearward adjustment at no charge.
Frame finishes
Satin titanium or 21 powder coated colors at no charge, four front tube tattoos on a satin frame, and a color anodize package for the caster mount, fork and caps.
The Hieline Insight
The TiLite ZRA suits a full-time rigid chair user up to 265 lbs. who wants a titanium frame that can still be adjusted after delivery, or up to 300 lbs. on the heavy duty frame, which is no charge at 20" x 20". It is also built down to a 10" x 10" seat, rated to 150 lbs. at 12" x 12" and smaller. Start with the rear seat width and depth, then the seat taper, because the 1.5" taper needs the V-front end and the footrest width chart only offers standard front end widths without one. Set the front and rear seat heights next and pick the rear wheel size to match, since each wheel size covers its own range of rear seat heights. Keep the seat to footrest length at least 2" under the front seat height. If the user will ride in a vehicle seated in the chair, add the transit tie-downs and the Q'Straint pelvic belt. If you plan to add a SmartDrive, keep the rear seat height at 13.5" or more and skip the 20" wheels. Take the measurements with Permobil's TiFit reference diagrams on the last page of the order form before you build.
Is it right for you?
A good fit if you
- a full-time manual wheelchair user who wants a rigid frame that can be adjusted later
- a user up to 265 lbs., or 300 lbs. on the heavy duty frame
- a user who needs a 10" to 20" seat
- a user who needs to ride in a vehicle seated in the chair, with the transit tie-downs
Look elsewhere if you
- a user who needs a folding frame
- a user over 300 lbs.
- a user over 150 lbs. who needs a 12" x 12" or smaller seat
- a user who needs tilt or recline
How you get yours
Build it
Work through the guided build one step at a time. Your progress saves as you go.
Rules checked
Every choice is checked against Permobil's own rules as you build, so you cannot order a combination that cannot be made.
Add to cart
Your finished build goes in the cart at the price shown, with every part number on the order.
Made and shipped
Permobil makes it to your build and it ships to you, with free shipping nationwide.
Specifications
Because the TiLite ZRA is built to order, some figures depend on the options you choose. The figures for your own build are on the build summary as you go.
Every figure here comes from Permobil's own documents.
How your TiLite ZRA reaches you
Your build goes to Permobil exactly as you ordered it, with every part number on the order, and ships to you when it is made. Shipping is free nationwide.
Warranty and support
The TiLite ZRA carries Permobil's manufacturer warranty. Hieline supports it after the sale, and parts and repairs are handled directly through us, right here on hieline.com.
Returns
Resources
Here are the manuals, brochures, and videos for the TiLite ZRA, all from Permobil.
Owner's manuals
Brochures
Warranty
Order form and measuring
Common questions
Measure seated on a firm surface. Permobil's TiFit reference diagrams on page 10 of the order form, on the Resources tab, show where each letter on the build is taken: rear seat width A, seat depth B, front seat height C, rear seat height D, seat to footrest E and back height F.
Both are titanium mono-tube rigid frames on the same order form. The ZRA is the fully adjustable frame and takes the WC-19 transit tie-downs. The ZR has minimal adjustability, a titanium fork stem as standard, the fixed height titanium back and the carbon fiber camber tube.
265 lbs. on the standard frame and 300 lbs. on the heavy duty frame. Permobil rates a 10" x 10" to 12" x 12" seat to 150 lbs. The SmartDrive MX2+ is rated for users up to 331 lbs.
Permobil's order form makes the heavy duty frame no charge with a 20" rear seat width and a 20" seat depth. At every other size it is an upcharge. Billet aluminum casters are included with it either way.
Only with the transit tie-down option. Permobil crash tested the ZRA with that option to WC-19 and ISO 7176-19 in one configuration, secured facing forward with a wheelchair-anchored pelvic belt and a vehicle-anchored shoulder belt. The Q'Straint pelvic belt it was tested with is a separate choice on the build. Permobil still recommends transferring to the vehicle seat. Without the option, or with only the transport brackets, the chair must not be occupied in a vehicle.
Permobil's order form ties choices together. The footrest width chart sets the standard front end widths for each rear seat width, a seat taper needs the V-front end, each rear wheel size covers its own range of rear seat heights, and the heavy duty frame needs the folding aluminum back with the 4" rigidizer bar, tension adjustable back upholstery and 0 or 2 degrees of camber.
The ZR and ZRA brochure lists camber to 12 degrees, a folding back to 22" and a 6" center of gravity range for the ZRA. This page follows Permobil's March 2026 order form, which is what the chair is ordered against.
Permobil's brochure gives an 11.2 lbs. transport weight for a 16" x 16" ZRA with standard features and no rear wheels.

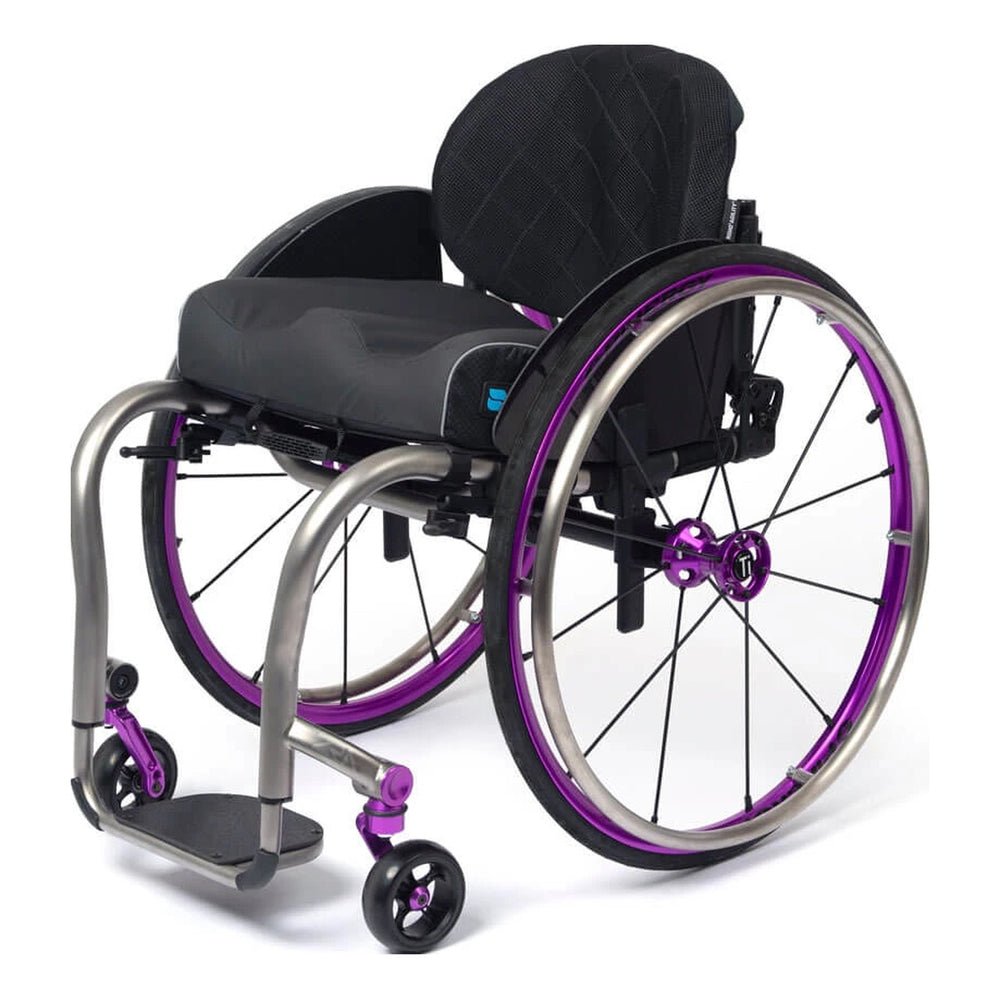

The green chair in two of the photos is a ZRA built through Permobil's Creative Mobility Division with a calf strap and flat footrest. The purple chair is the standard ZRA. Your chair is built to the choices you make here.
Permobil notes that on-screen colors are for reference only. The powder coat swatches use the colors Permobil publishes on its own site, and the satin swatch is sampled from Permobil's TRA photographs.
No. The ZRA is built to order to one user's measurements, so it cannot be returned. Permobil's warranty covers defects.
No. You can order a TiLite ZRA from Hieline without a prescription.
No. Hieline does not bill or accept insurance, so the TiLite ZRA is a direct purchase. Any reimbursement is strictly between you and your insurer.
Yes. Your progress saves automatically in your browser as you go, so you can step away and pick up where you left off on the same device.
Every combination is checked against Permobil's own compatibility rules as you build. An option that does not fit your other choices is greyed out with the reason printed on it, and the build cannot be added to the cart while a conflict is open.
Build your TiLite ZRA
You build the TiLite ZRA one step at a time with our guided assistant. It checks every choice against Permobil's own rules, and your progress saves as you go.
Answer for the person who will use the TiLite ZRA, whether that is you, a family member or a resident in your care. You can change any answer until the build is in your cart.
The user's measurements
Every size in the build is set from these numbers.
You need the user's measurements before the build can start. Download the measuring form, fill it out with the user, and return to this page when it is done. Your progress is saved on this device, so you can pick up right here and enter the numbers.
Download the measuring formThe user's weight and height
The weight sets the weight capacity of the build. Height is optional.
Two ways to build your TiLite ZRA
You have given us the measurements. Now choose how much you want to decide. You can go deeper later without losing anything, so start wherever feels right.
The essentials, chosen for you.
Move through the choices that shape how the TiLite ZRA fits and works. We start each one from your answers, and you adjust anything you like. Every choice is checked live against the manufacturer rules as you go, so the build stays valid the whole way.
- What you decideThe essential choices
- Roughly14 decisions
- Every choiceChecked live against the rules
Best if you want a well-fitted build without weighing every option.
Every option from the order form.
Work through the complete Permobil build, every choice on the order form, with the same guided steps and the same live rule checking. Nothing is hidden. This is the full depth of the TiLite ZRA, laid out so you can set each detail exactly the way you want.
- What you decideThe complete build
- Roughly68 decisions
- Every choiceChecked live against the rules
Best if you want control over every detail.
Here is the full build with its part numbers and the price you pay. Add it to your cart and check out, and it reaches our order desk as one record.
