Zippie IRIS

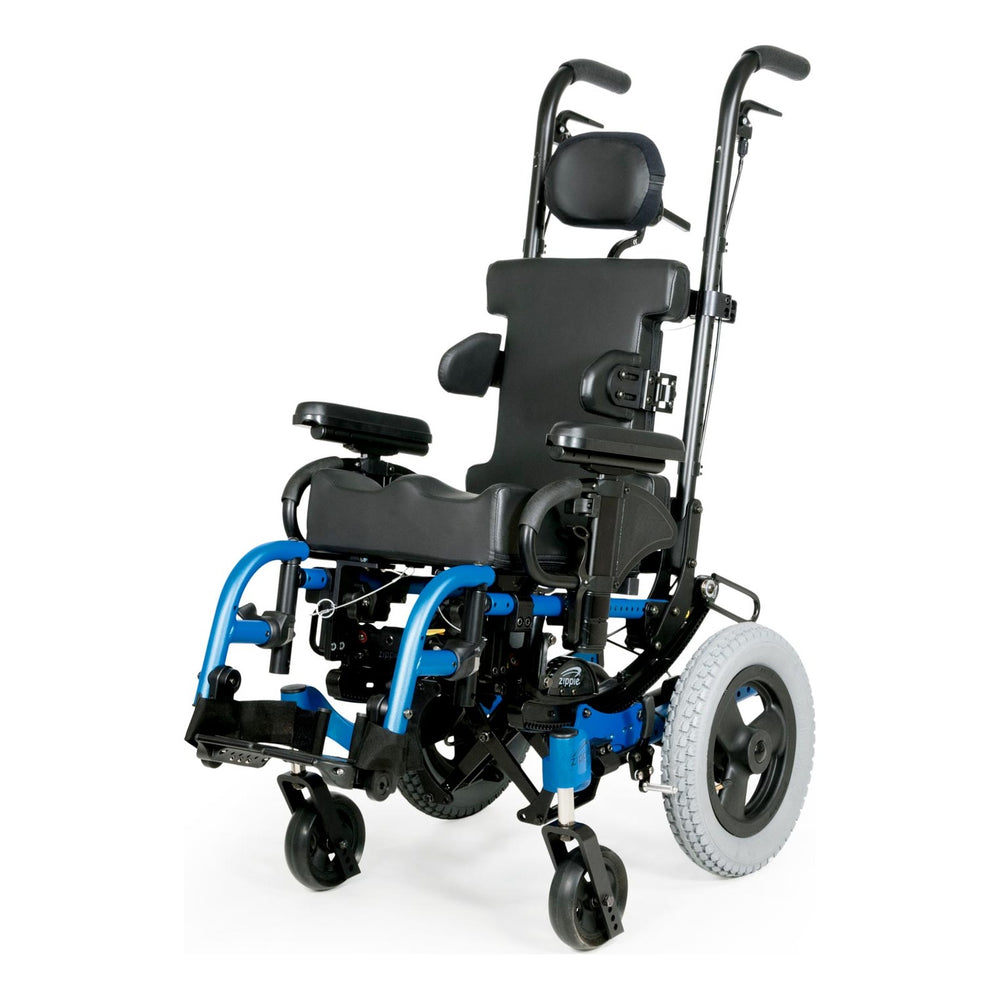

The Zippie IRIS is a pediatric tilt in space wheelchair, rigid or folding. You choose every part, and we check it against Sunrise's rules.
Tilt in space for a child who needs positioning
The Zippie IRIS is Sunrise Medical's pediatric tilt in space wheelchair, rigid or folding, built to order from Sunrise's own order forms.
You choose the frame, tilt range, sizes, wheels, seat height, footrests, back, arms and color, and every choice is checked against Sunrise's rules and charts as you build.
What stands out
Tilt that rotates around the child
Sunrise's Intelligent Rotation in Space seat turns around the child's center of gravity, so the tilt is smooth for the child and light for the caregiver. Choose a 40 degree or 55 degree range.
Rigid or folding
The XLOCK folding crossbrace locks solid when open and folds the chair for the car. The rigid frame takes the width adjusting struts, the mono back and the reclining back.
Grows with the child
The folding frame has up to 4" of depth growth and 2" of width growth built in. The IRIS frames add Sunrise's True Fit Growth program, one free growth kit for the original owner within 5 years.
Seat heights from Sunrise's charts
Every rear wheel, tire, caster and front seat height is checked against Sunrise's seat height chart, and the hangers and footrests against its lower leg and Z-Finity charts.
Seating that fits a JAY back
The mono backrest system mounts a JAY J3 back with a headrest and laterals. Fixed, height adjustable and reclining backs are offered too.
Made for caregivers
A foot tilt release with no exposed cables, push-button hub locks on the back canes and angle adjustable push handles for pushing from a tilted position.
The Hieline Insight
The Zippie IRIS suits a child who needs to change position through the day, because the seat tilts back while the hips and knees keep their angles, and the caregiver does the tilting from behind the chair. The first choices are the frame and the tilt range. Take a folding frame if the chair travels in a car trunk, and a rigid frame if you want the mono back or the reclining back, which also needs the 40 degree range. The IRIS frames carry Sunrise's True Fit Growth kit and the IRIS SE frames cost less without it. Pick the rear wheels, tire and casters before the seat height, since Sunrise's chart decides which heights each pairing can reach, and give the seat to footrest distance if you know it so only the hangers that reach it stay open. Take the child's measurements with Sunrise's measuring guide on the Resources tab before you build.
Is it right for you?
A good fit if you
- a child who needs tilt in space positioning
- a caregiver who pushes and tilts the chair
- a family that wants growth built into the frame
- a child up to 225 lbs., or 165 lbs. with Z-Finity footrests
Look elsewhere if you
- a child who pushes the chair on their own most of the day
- a user over 225 lbs.
- a seat wider than 18"
- a family that needs a chair under 30 lbs. to lift
How you get yours
Build it
Work through the guided build one step at a time. Your progress saves as you go.
Rules checked
Every choice is checked against Sunrise Medical's own rules as you build, so you cannot order a combination that cannot be made.
Add to cart
Your finished build goes in the cart at the price shown, with every part number on the order.
Made and shipped
Sunrise Medical makes it to your build and it ships to you, with free shipping nationwide.
Specifications
Because the Zippie IRIS is built to order, some figures depend on the options you choose. The figures for your own build are on the build summary as you go.
Every figure here comes from Sunrise Medical's own documents.
Shipping
How your Zippie IRIS reaches you
Your build goes to Sunrise Medical exactly as you ordered it, with every part number on the order, and ships to you when it is made. Shipping is free nationwide.
Warranty and support
The Zippie IRIS carries Sunrise Medical's manufacturer warranty. Hieline supports it after the sale, and parts and repairs are handled directly through us, right here on hieline.com.
Returns
Resources
Here are the manuals, brochures, and videos for the Zippie IRIS, all from Sunrise Medical.
Owner's manuals
Brochures
Common questions
Measure the child seated on a firm surface. Hip width is the widest point across the hips. Seat depth is from the back of the hips to the back of the knee. Lower leg length is from the back of the knee to the bottom of the heel. Sunrise's measuring guide is on the Resources tab.
They are the same chair. The IRIS frames include Sunrise's True Fit Growth program, one free growth kit within 5 years for the original owner, and the IRIS SE frames do not. The IRIS SE comes with transit as an option only. Every other option is the same on both.
The 55 degree range tilts further back. The 40 degree range is the one the reclining backrest needs. Each range can start at -5, 0 or +5 degrees.
Sunrise's front seat height chart prints the heights each rear wheel, tire and caster can reach, and a few low heights are for the rigid frame only. The build only opens the heights on the chart.
It is optional. When you give it, only the hangers, extensions and Z-Finity parts that Sunrise's lower leg and Z-Finity charts say will reach it stay open. Each hanger also needs a minimum front seat height, which the build checks.
They do not work with a choice you have already made. The reason is printed on the option, and every rule comes from Sunrise's order forms.
Yes. Choose a transit included frame, or add the WC-19 transit option to a transit optional frame.
No. The IRIS is built to order to one child's measurements, so it cannot be returned. The Sunrise warranty covers defects.
No. You can order a Zippie IRIS from Hieline without a prescription.
No. Hieline does not bill or accept insurance, so the Zippie IRIS is a direct purchase. Any reimbursement is strictly between you and your insurer.
Yes. Your progress saves automatically in your browser as you go, so you can step away and pick up where you left off on the same device.
Every combination is checked against Sunrise Medical's own compatibility rules as you build. An option that does not fit your other choices is greyed out with the reason printed on it, and the build cannot be added to the cart while a conflict is open.
Build your Zippie IRIS
You build the Zippie IRIS one step at a time with our guided assistant. It checks every choice against Sunrise Medical's own rules, and your progress saves as you go.
Answer for the person who will use the Zippie IRIS, whether that is you, a family member or a resident in your care. You can change any answer until the build is in your cart.
The user's measurements
Every size in the build is set from these numbers.
You need the user's measurements before the build can start. Download the measuring form, fill it out with the user, and return to this page when it is done. Your progress is saved on this device, so you can pick up right here and enter the numbers.
Download the measuring formThe user's weight and height
The weight sets the weight capacity of the build. Height is optional.
Two ways to build your Zippie IRIS
You have given us the measurements. Now choose how much you want to decide. You can go deeper later without losing anything, so start wherever feels right.
The essentials, chosen for you.
Move through the choices that shape how the Zippie IRIS fits and works. We start each one from your answers, and you adjust anything you like. Every choice is checked live against the manufacturer rules as you go, so the build stays valid the whole way.
- What you decideThe essential choices
- Roughly14 decisions
- Every choiceChecked live against the rules
Best if you want a well-fitted build without weighing every option.
Every option from the order form.
Work through the complete Sunrise Medical build, every choice on the order form, with the same guided steps and the same live rule checking. Nothing is hidden. This is the full depth of the Zippie IRIS, laid out so you can set each detail exactly the way you want.
- What you decideThe complete build
- Roughly68 decisions
- Every choiceChecked live against the rules
Best if you want control over every detail.
Here is the full build with its part numbers and the price you pay. Add it to your cart and check out, and it reaches our order desk as one record.
