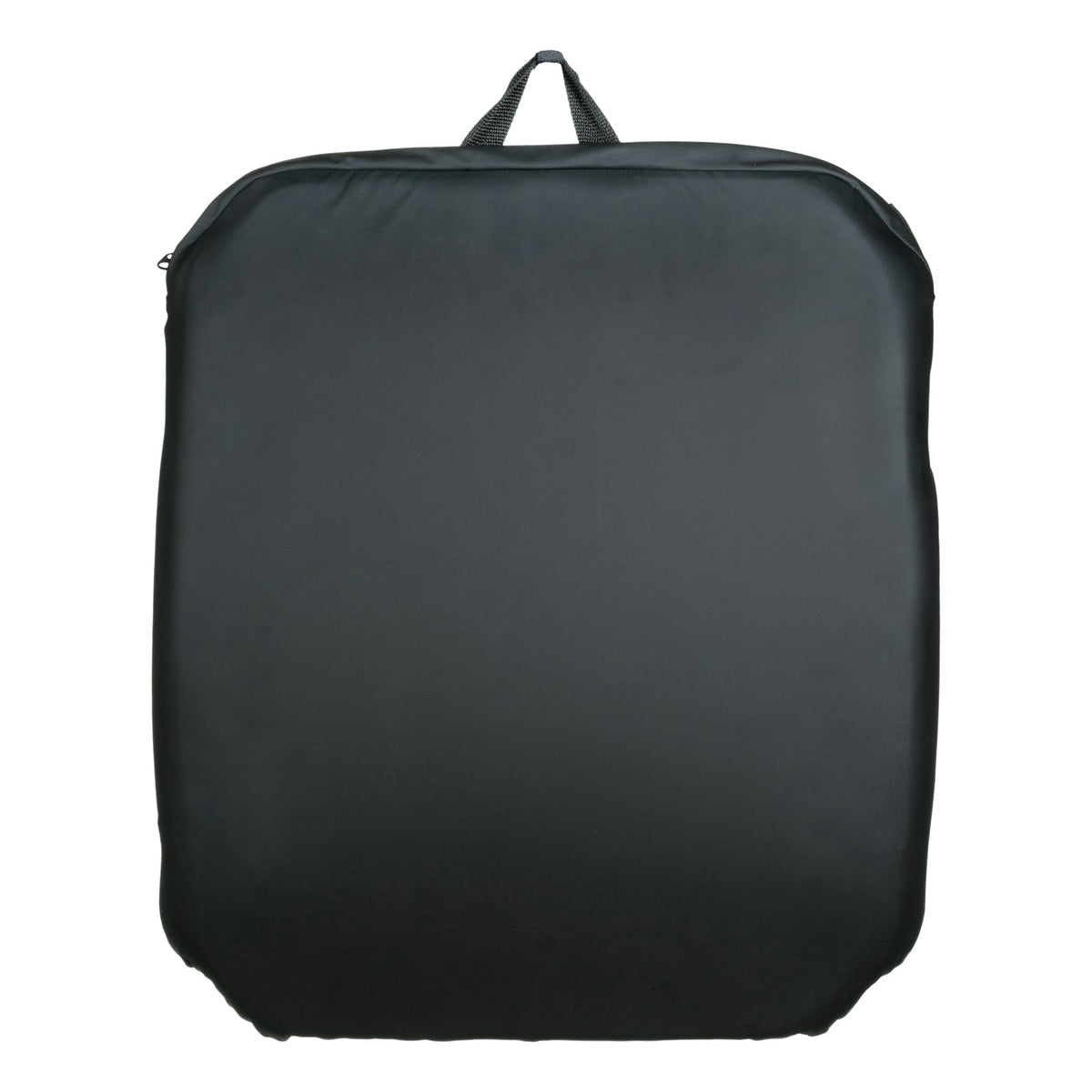

Comfort Relief Back Support
ManufacturerComfort Company
ModelCOMFORT-RELIEF
$692.00MSRP $886.00
Most items ship in 3 to 7 business days.
Comfort's open back lets the spine sink into the shell opening, and three BOA dials set the fit in fine steps. 14" to 20" wide. The Relief LTS adds two moldable lateral trunk supports.
An open aluminum shell with the BOA Fit System, 14" to 20" wide. Add lateral trunk supports with the Relief LTS.
Built for real life
What stands out
●
An open shell
The center of the aluminum shell is open, so a spinal curve or a prominent spine can sink into it and carry less pressure than it would against a solid back.
●
The BOA Fit System
Cables run across the opening, and each is tightened with a dial that clicks in 1 mm steps. You set the pelvic, lumbar and upper cables in turn for an even hold.
●
Lateral pads on the LTS
The Relief LTS adds two moldable lateral trunk supports on fixed hardware, each with up to 4" of width and 1.5" of depth adjustment.
●
Three layer foam
An updated cover over three layers of foam spreads the load, and the Compass hardware adjusts for height, depth and angle on a manual or power chair.
The Hieline Take
The Relief is the Comfort back for a spine that should not press against a solid shell. Its center is open, and the BOA cables across the opening take the load while the curve sinks in, so a scoliosis or a prominent spine carries less pressure. Three dials tune the cables a millimeter at a time, which lets a clinician set it closely and reset it as a posture changes. The Relief LTS adds lateral pads when the trunk also needs holding upright from the sides. It tops out at 20" wide and 300 lbs., so look at the Comfort Unite or Embrace beyond that. Measure your back canes for the width and choose Compass 4 hardware unless your power chair is one of the five the power mount names.
Straight talk
Is it right for you?
A good fit if you
have a spinal curve or a prominent spine that needs less pressure
want a fit you tune with dials as your needs change
have back canes 14" to 20" wide, outside to outside
Look elsewhere if you
weigh more than 300 lbs.
need a back wider than 20" or narrower than 14"
want to try it and send it back, because a back support is not returnable
Specifications
ManufacturerPermobil, Comfort Company brand
Back typeRelief: positioning back, posterior lateral. Relief LTS: positioning back, planar with lateral supports
ShellAluminum, with an open center
Fit systemBOA Fit System: cables across the opening, each tightened by a dial in 1 mm clicks
Lateral trunk supportsRelief LTS: two moldable stainless steel pads in protective foam on fixed hardware, 3" L X 4" D, 4" L X 5" D, 4" L X 6.5" D or 5" L X 6.5" D; up to 4" of width and 1.5" of depth adjustment per pad
InsertThree layer foam
Widths14" to 20" in 2" steps
HeightsRelief 10" to 22"; Relief LTS 12" to 22"; 2" steps
Weight capacity250 lbs. up to 18" wide; 300 lbs. at 20"
CoversComfort-Tek; Diamond Spacer
Mounting hardwareCompass 4 quick release or fixed, 2 or 4 point; Compass power mount
HCPCS codesRelief E2615; Relief LTS E2620
Expected product lifetime5 years
WarrantyBack shell, hardware and foam 5 years; cover 6 months
The Comfort Relief Back Support is covered by Comfort Company's own limited warranty. The coverage we have on record is below.
Back shell, hardware and foam5 years against manufacturing defects
Cover6 months
Not coveredWear from regular use, alterations to the product and damage from irregular use
The owner's manual is the full warranty
The owner's manual for this product has its own warranty section, and that section is the complete statement of what Comfort Company covers, for how long, and what falls outside the coverage. Read it before you file a claim. If anything on this page differs from the manual, go by the manual.
A back support sits against the body, so once it ships it cannot be returned. Measure your wheelchair's back canes before you order and use the build steps above. The warranty is unaffected, so a defect is still covered.
If something goes wrong
Call us first at 1-855-HIELINE. We file the claim with Comfort Company for you and get the covered part sorted out rather than handing you a phone number.
Permobil designed it for people with a spinal curve or deformity that needs less pressure than a solid back gives, because the open shell lets the spine immerse. Your seating clinician can tell you whether it suits you.
Should I choose the Relief or the Relief LTS?
Both are the same open back with the BOA Fit System. The Relief LTS adds two lateral trunk support pads that hold the trunk upright from the sides, and it costs $317 more at the smaller sizes.
How do I choose the width?
Measure your wheelchair from the outside of one back cane to the outside of the other, and choose that width, from 14" to 20".
How do I choose the height?
The height is the length of the shell from its lower edge to its upper edge. Permobil's manual says the lower edge must rest against the back of the pelvis, so measure up from there. The Relief comes 10" to 22" tall and the Relief LTS 12" to 22".
How do I adjust the BOA dials?
Sit in your usual position, pop each dial open to release the cable, and let yourself settle into the back. Then push each dial in and turn it to tighten, lowest cable first, then the middle one, then the top. Check the fit from time to time and reset it if you move the back to another chair or user.
What is the weight limit?
300 lbs. at 20" wide and 250 lbs. at 14" to 18" wide, from Permobil's manual. Permobil's Relief page lists 300 lb.
Which mounting hardware do I need?
Compass 4 hardware clamps to the back canes of most manual and power chairs. Quick release lets you lift the back off in seconds, and fixed stays on. A 10" tall Relief and a 12" tall Relief LTS need 2 point Compass 4 hardware. Choose power mount hardware only if your power chair is one of the five named.
Which cover should I choose?
Comfort-Tek is fluid resistant and wipes clean. Diamond Spacer breathes and carries heat away, and it is not fluid resistant. Both cost the same.
Is this the Acta-Relief back?
Yes. Permobil renamed the ACTA-Relief and ACTA-Relief LTS to Comfort Relief and Comfort Relief LTS, with upgraded components.
What comes in the box?
The back shell with its BOA Fit System, the cover with its foam, the mounting hardware you choose and Permobil's operation manual. The Relief LTS also comes with its two lateral pads on fixed hardware.
How long is the warranty?
Permobil's Comfort Company warranty covers the back shell, hardware and foam for 5 years and the cover for 6 months against manufacturing defects.
Can I return it?
No. A back support sits against the body, so it cannot be returned once it ships. The warranty still covers defects.
Is Hieline an authorized Permobil supplier?
Yes. Hieline is a Permobil Authorized Supplier, and Permobil makes Comfort Company back supports.
