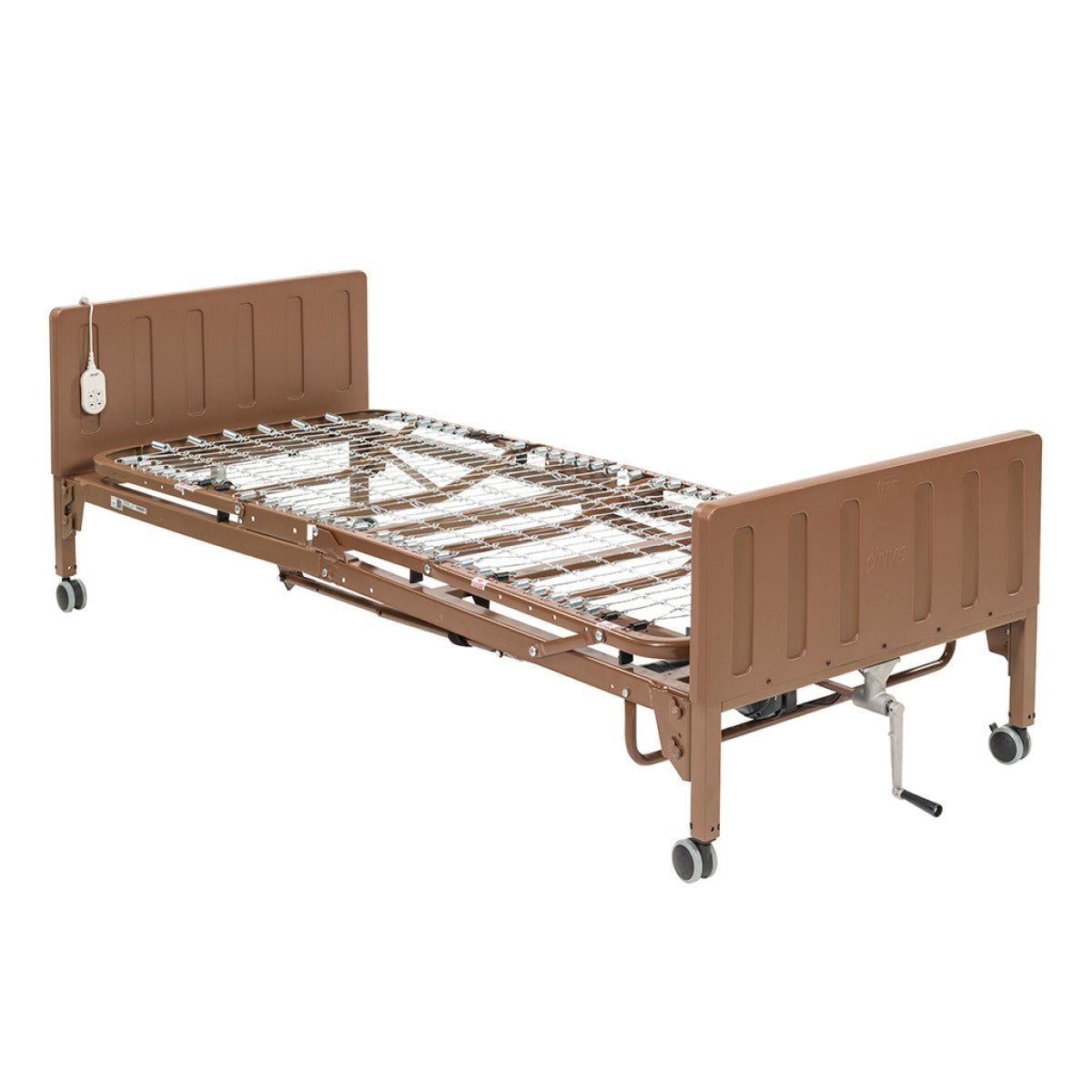

Drive semi-electric single crank bed, deck flat Click to zoom

Drive Semi-Electric Single Crank Bed

ManufacturerDrive Medical
Model 15004P
$897.00
Most items ship in 3 to 7 business days.

A semi-electric homecare bed. The head and foot raise on a motor and one hand crank sets the height from 14.96" to 22.83". It holds 450 lbs. and leaves 5.9" of clearance underneath.

Weight capacity
450 lbs.
Bed height range
14.96" to 22.83"
Mattress deck
34.65" W X 79.53" L
Under bed clearance
5.9"
Free shipping Low Price Guarantee 30-day returns, 20% restocking fee Expert support
Overview
One crank for the height and 5.9" of clearance underneath

A semi-electric homecare bed. The head and foot sections raise on a motor from the hand control, and the height is set with a single hand crank from 14.96" to 22.83". It holds 450 lbs. in total and leaves 5.9" of clearance under the frame for a floor lift.

Built for real life

What stands out

●
One crank, not two
The height runs off a single hand crank at the foot end. The head and foot sections are on the motor, so the crank is only for setting working height.
●
5.9" of clearance underneath
That is more than twice what the low-height full-electric bed leaves, and it is the figure that decides whether a floor patient lift can get its legs under the bed.
●
Head to 70 degrees, foot to 46"
The head sits the person nearly upright and the foot section raises the legs further than most homecare beds manage.
●
Holds 450 lbs.
That covers the person, the mattress and everything else on the bed. Drive rates the patient alone at 350 lbs.
●
Rails bolt to marked points
Half rails and full rails both fit and can be added later. Full rails take the overall width from 36.22" to 38.58".
●
Runs at 65 dB or quieter
Drive rates the motors at 65 dB(A) or less, which matters in a shared room at night.
The Hieline Take

This bed and the full-electric low height bed are the same frame with different motors, and the trade between them is not the one most people expect. The full-electric version motorises the height and drops to 9.5", which sounds strictly better, but it does that by sitting the frame closer to the floor and leaves only 2.6" underneath. This one starts higher at 14.96", keeps the height on a hand crank, and leaves 5.9" of clearance. If a floor patient lift is part of the daily routine, that clearance is the whole decision and this is the bed, because a lift that cannot get its legs under the frame is a lift you cannot use. If no lift is involved and somebody is adjusting the height several times a day, buy the motorised one instead. The other thing this frame does better than its siblings is the foot section, which raises to 46 degrees where most homecare beds stop around 30, so it is the better choice if the legs need elevating for swelling or circulation.

Straight talk

Is it right for you?

A good fit if you

  • plan to use a floor patient lift at the bedside and need room under the frame
  • want the head and foot on a motor and are content to crank the height
  • want the legs raised further than a standard bed manages, at 46 degrees
  • weigh up to 350 lbs., with a total load on the bed up to 450 lbs.

Look elsewhere if you

  • want the height motorised, where the full-electric low height bed does that
  • need the deck lower than 14.96", where the P503 goes to 7.8"
  • need a deck wider than 34.65" or a load over 450 lbs.
  • want rails included, because they are ordered separately
Ready to Buy
Not included: A mattress or rails. The bed ships as a bare frame.
