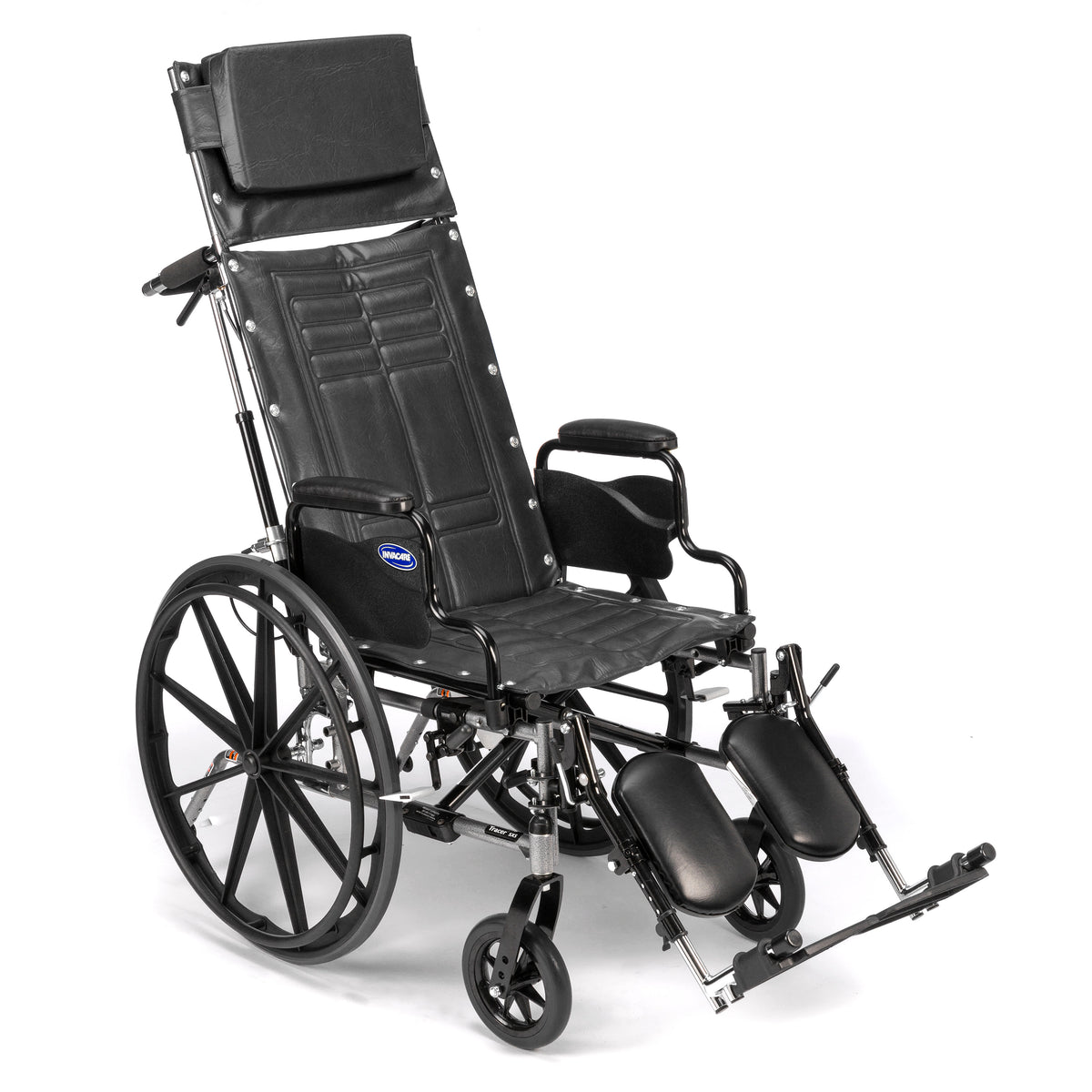

Invacare Tracer SX5 Recliner Custom

Name: Invacare Tracer SX5 Recliner Custom
Brand: Invacare
SKU: TRSX5RC
Price: 699.0 USD
Availability: InStock

ManufacturerInvacare

Model TRSX5RC

$699.00

Most items ship in 3 to 7 business days.

The Invacare Tracer SX5 Recliner Custom is the reclining Tracer SX5 ordered to your choices of seat size, arms, upholstery, front riggings, wheels and casters. The back reclines from 90° to 180° with a headrest, and it carries 250 lbs., or 300 lbs. on a 20" or 22" seat.

Weight capacity

250 or 300 lbs.

Recline

90° to 180°

Seat widths

14" to 22"

Back height with headrest

34"

Free shipping Low Price Guarantee Not returnable Expert support

Overview

Reclines to flat built to your order

This is the reclining Tracer SX5 on a carbon steel frame, built by Invacare to your choices. The back goes from upright at 90° to flat at 180°, and the headrest brings the back height to 34". Seats run 14" to 22" wide and 16" or 18" deep, every arm lifts off, and rear anti-tippers come standard.

Built for real life

What stands out

●

Built to your order

Invacare builds this recliner with the seat size, arms, upholstery, riggings, wheels and casters you pick here.

●

Reclines from 90° to 180°

The back goes from upright to flat, and the headrest brings the back height to 34".

●

Seats from 14" to 22" wide

There are ten seat sizes, each 16" or 18" deep. The 20" and 22" seats carry 300 lbs.

The Hieline Take

The Tracer SX5 Recliner Custom is the reclining Tracer SX5 with Invacare's full option list open, for someone who needs to lie back during the day and does not fit the standard 16" or 18" seat. You can go as narrow as 14" or as wide as 22", pick an 18" deep seat for longer thighs, set the arms to elbow height, and choose softer tires and casters. Elevating legrests make the most sense here, because they lift the legs as the back goes down, and every arm lifts off so a caregiver can transfer the person sideways. It weighs 53 lbs. without footrests, so it suits home and care settings more than a car. Every build is made to order and cannot be returned, so measure before you choose.

Straight talk

Is it right for you?

A good fit if you

need to lie back and rest during the day without leaving the chair
need a seat narrower than 16", wider than 18", or 18" deep
want height adjustable or full length arms
weigh up to 300 lbs. on a 20" or 22" seat

Look elsewhere if you

weigh more than 300 lbs., or more than 250 lbs. on a 14" to 18" seat
want a chair to fold and lift into a car, at 53 lbs.
need arms that flip back
are happy with the standard recliner, which comes ready-made

Build & Buy

Build your chair step by step. Invacare builds it to the choices you make here and it cannot be returned, so check each one before you add it to your cart.

DeliveryFree shipping

Included.What does this mean?

This section is how your order reaches you.

Shipping is free on orders of $500 or more and $45 below that, to any address in the 48 continental states. Most items ship in 3 to 7 business days. No carrier quotes an exact date, so treat that as an estimate rather than a promise.

Free shipping+$0.00

Shipping at no charge to the 48 continental states. Most items ship in 3 to 7 business days.

WarrantyInvacare limited warranty

Included.What does this mean?

This section covers what the manufacturer warrants and for how long.

There is nothing to buy here. The full terms are in the Warranty & Return tab on this page.

Invacare limited warranty+$0.00

Included with this chair at no charge. The full terms are in the Warranty & Return tab on this page.

Your total

$699.00

Secure checkout, SSL encrypted

Getting the size right

Not sure it will fit you?

Five measurements, taken at home with a tape and a firm chair, tell you whether a seat will suit you. The guide opens right here with a printable worksheet.

Five measurements · printable worksheet · no sign-up

How to measure for a wheelchair

Getting the right wheelchair starts with getting the right fit. A chair that is too wide, too narrow, too deep or too short is uncomfortable and hard to use.

You do not need dozens of measurements to get started. For most manual wheelchairs, transport chairs and power wheelchairs, the five below will get you to the right size.

Before you measure

Sit upright in a firm chair. Wear the shoes and the clothing you expect to use with the wheelchair. Have someone help you, because the measurements are far more accurate when somebody else holds the tape.

Measurement A. Hip width

Measure the widest part of your hips or thighs while seated. Keep the tape straight across your body rather than wrapping it around you.
This is the measurement that points you at a seat width.
Leave yourself a little room. If your seated hip width is about 19", look at a seat that gives you a small amount of clearance rather than one measuring exactly 19".
Do not go wider than you need. A wider seat makes the whole wheelchair wider, and that makes doorways and indoor turns harder.
Measurement B. Seat depth, also called upper leg length

Measure from the back of your buttocks to the crease behind your knee while seated.
The front edge of the seat should never press against the back of your knees. Aim for about 1" to 2" of space between the seat edge and the back of the knee.
A seat that is too deep presses behind the knees. A seat that is too shallow leaves your thighs without support.
Measurement C. Lower leg length

Measure from the crease behind your knee down to the bottom of your heel, wearing your normal shoes. Keep your knee bent at about 90 degrees.
This one tells you about seat-to-floor height, footrest height, legrest adjustment and footplate position.
If the wheelchair comes with a cushion, remember the cushion raises your seated height.
Measurement D. Back height

Sitting upright, measure straight up from the seat surface to where you want the top of the backrest to sit.
The right back height depends on how much upper-body support you need. A lower back gives an active manual wheelchair user more freedom to move. A higher back gives more trunk and upper-body support.
If you are unsure how much support you need, call us before you order.
Measurement E. Elbow height, where the armrests adjust

Relax your shoulders, let your arms hang at your sides, and bend your elbow to about 90 degrees. Measure straight up from the seat surface to the bottom of your elbow.
This gives you a comfortable armrest height on any chair with height-adjustable armrests.

Weight capacity

Always compare the rider's weight against the manufacturer's stated weight capacity. Never choose a wheelchair rated below the rider's actual weight.

If the rider is close to a chair's maximum, move up to a higher-capacity model.

Band	Capacity
Standard	Up to 300 lbs.
Heavy duty	Above 300 lbs., up to 400 lbs.
Bariatric	Above 400 lbs.

Make sure the wheelchair fits your home

Seat size is only half of it. Before you order, compare the wheelchair's overall dimensions against the places it has to go. Measure:

The narrowest doorway it has to pass through
Hallways and tight corners
The bathroom entrance
The bedroom entrance
Elevators, if you use one
Your vehicle's cargo space, if the chair travels

Check the manufacturer's listed overall width as well as the seat width. A wheelchair with a 20" seat measures considerably more than 20" from wheel to wheel.

For a power wheelchair, check the listed turning radius too, so you know it can turn where you need it to.

Your measurements

Type your numbers straight into the boxes below, or print this page and write them in by hand. When you are done, copy them and email them to us, or call and read them out.

A. Hip width inches

B. Seat depth, upper leg length inches

C. Lower leg length inches

D. Back height inches

E. Elbow height inches

Rider weight lbs.

Narrowest doorway inches

Need help choosing the right size?

Sizing varies between manufacturers and between models. If you are unsure which size to order, we are happy to help.

Send us your measurements along with the wheelchair you are considering, and a Hieline Medical specialist will compare them against that manufacturer's available seat sizes and specifications.

Call 1-855-HIELINE or email care@hieline.com with your measurements and the model you are considering, and we will tell you which seat size to order.

Important

This guide helps you select standard mobility equipment. It is not a clinical seating assessment. A rider with significant postural needs, pressure-management concerns, asymmetry, contractures or other complex seating requirements should be evaluated by a seating or rehabilitation professional.
