JAY Fusion Cushion
ManufacturerSunrise Medical
ModelJAY-FUSION
$387.00MSRP $515.00
Most items ship in 3 to 7 business days.
A skin protection and positioning cushion: a JAY Flow fluid or air insert set into a contoured foam base. Choose Standard, Reduced Profile or Positioning, then a size from 14" to 24" wide.
Fluid or air on a contoured base for skin protection and stability
The JAY Fusion sets a JAY Flow fluid or air insert into a contoured foam base, in 91 sizes from 14" to 24" wide.
Watch it in action
In Search of the Perfect Pelvic Loading Area
Built for real life
What stands out
●
Fluid or air under your seat bones
The pelvic loading area takes a JAY Flow fluid insert or an air insert. Fluid needs no pumping. Air can be adjusted at any time with the hand pump that comes with it.
●
A base that holds you steady
The pre-contoured foam base and its posterior pelvic wall give forward and side-to-side stability and keep the fluid under your pelvis.
●
Two covers

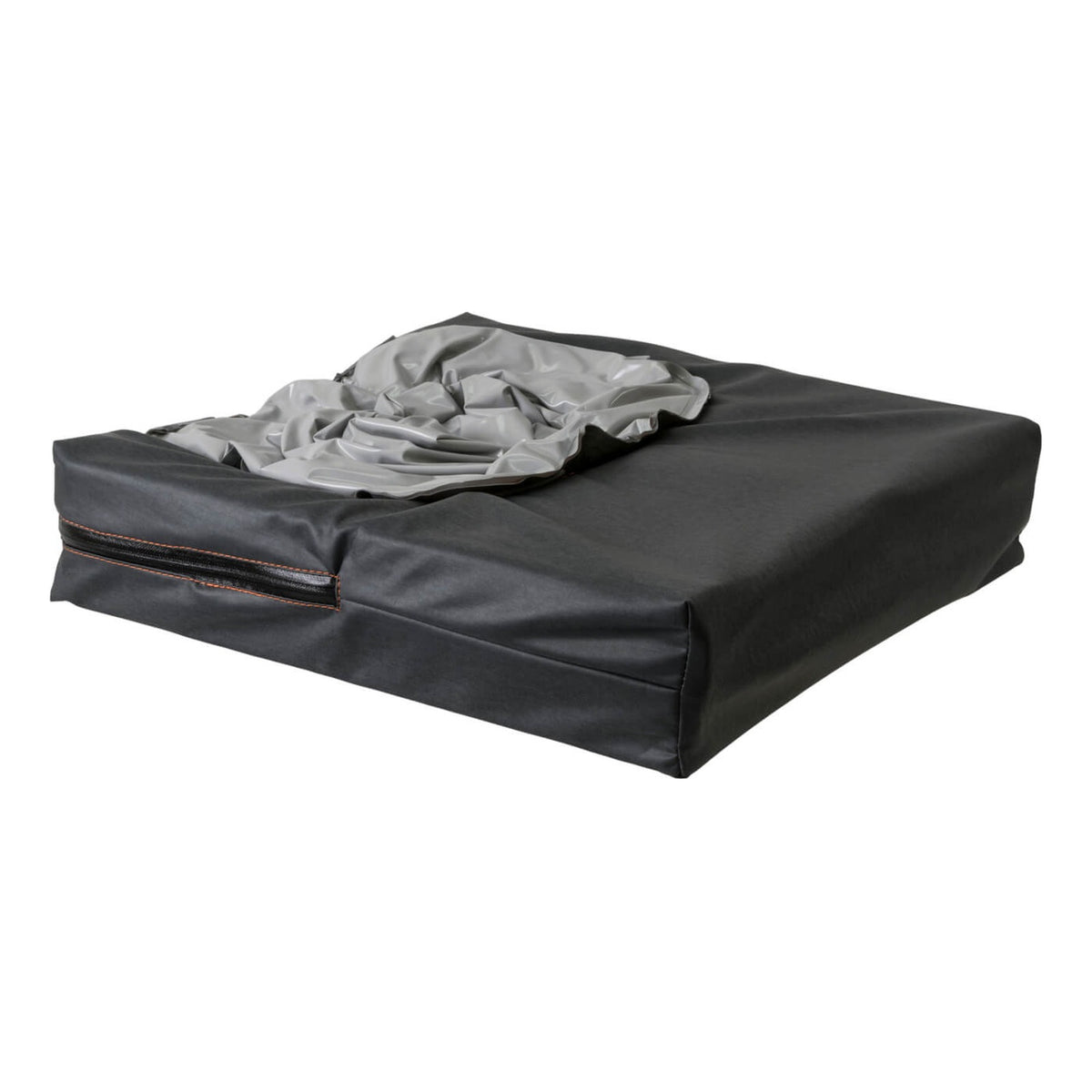

A water resistant inner cover protects the foam. The outer cover is machine washable, has a 3DX spacer layer for airflow, and comes off by its handle.
●
Three styles
Standard is 4" tall. Reduced Profile is 3" tall for a lower seat. Positioning adds 1" hip guides, adductors and an abductor wedge in the inner cover.
The Hieline Take
The Fusion is JAY's adjustable skin protection cushion, and its strength is the choice under your seat bones. A JAY Flow fluid pad sits in a contoured foam base with a rear pelvic wall that holds you steady and keeps the fluid where it belongs. If you would rather adjust it yourself, an air insert with one or two valves drops into the same base. Reduced Profile takes the height from 4" to 3", and the Positioning style adds hip guides, adductors and an abductor wedge. It comes in 91 sizes from 14" to 24" wide. Fluid is checked monthly and air daily, and your clinician should pick the insert. Mind the weight limit: 300 lbs. up to 21" wide and 500 lbs. from 22".
Straight talk
Is it right for you?
A good fit if you
need skin protection and positioning from one cushion
want the choice of fluid or air under your seat bones
need a size from 14" to 24" wide, including odd sizes
want a lower 3" cushion to keep your seat height down
Look elsewhere if you
want a simple comfort cushion with nothing to check
need a size JAY builds only to special order
weigh more than 300 lbs. and need a cushion under 22" wide
want to try it and send it back
Specifications
ManufacturerSunrise Medical, JAY brand
Cushion typeSkin protection and positioning, adjustable
BasePre-contoured closed cell foam base with a high-resiliency foam layer and posterior pelvic wall, under a soft contoured top layer
InsertsJAY Flow fluid; air insert, single valve; air insert, dual valve
HeightStandard and Positioning 4"; Reduced Profile 3"
Positioning piecesPositioning style only: a pair of 1" adductors (lateral thigh supports), a pair of 1" hip guides (lateral pelvic supports) and a 1" abductor wedge (medial thigh support), in pockets in the inner cover
Widths14" to 24"
Depths14" to 18" at 14" wide; 14" to 21" at 15"; 14" to 22" at 16"; 14" to 23" at 17"; 14" to 24" at 18"; 15" to 24" at 19" and 20"; 17" to 24" at 21" and 22"; 19" to 24" at 23" and 24"
Sizes offered91 in each style and insert
Weight5.3 lbs. at 16" X 18"
Weight capacity14" to 21" wide 300 lbs.; 22" to 24" wide 500 lbs.
Inner coverDartex coated Lycra with a water resistant zipper and anti-wicking thread
Outer coverIonic+ silver thread stretch fabric on the fluid cushion; stretch fabric on the air cushion
HCPCS codesE2622 at 14" to 21" wide and E2623 at 22" to 24"; Positioning E2624 and E2625
The JAY Fusion Cushion is covered by Sunrise Medical's own limited warranty. The coverage we have on record is below.
Cushion24 months against defects in materials and workmanship
Removable cover6 months
Not coveredPunctures, tears and burns
The owner's manual is the full warranty
The owner's manual for this product has its own warranty section, and that section is the complete statement of what Sunrise Medical covers, for how long, and what falls outside the coverage. Read it before you file a claim. If anything on this page differs from the manual, go by the manual.
A cushion is a support surface that sits against the body, so once it ships it cannot be returned. Measure before you order and use the size steps above. The warranty is unaffected, so a defect is still covered.
If something goes wrong
Call us first at 1-855-HIELINE. We file the claim with Sunrise Medical for you and get the covered part sorted out rather than handing you a phone number.
Who is the Fusion for?
Sunrise Medical classes the Fusion as an adjustable skin protection and positioning cushion, billed under HCPCS E2622 to E2625. Sunrise recommends that a clinician experienced in seating decide whether it suits you, and that you sit on any new cushion a few hours at a time at first while your skin is checked for redness.
Fluid or air?
JAY Flow fluid needs no pumping. Check it for bottoming out once a month when you clean the cushion. An air insert is set with the hand pump in the box, and its inflation should be checked every day. Sunrise leaves the choice between fluid, single valve air and dual valve air to your clinician.
Single valve or dual valve air?
A single valve insert has one chamber. A dual valve insert has two chambers, each with its own valve and inflation tube, one on each side of the cushion. It costs $3.75 more than the single valve insert.
Standard, Reduced Profile or Positioning?
Standard is 4" tall. Reduced Profile is 3" tall, which keeps your seat lower for reaching under tables and propelling with your feet. Positioning is the 4" cushion with a pair of 1" hip guides, a pair of 1" adductors and a 1" abductor wedge in pockets in the inner cover. JAY does not make a Reduced Profile Positioning cushion.
How do I choose the size?
Width is measured from outside edge to outside edge of the cushion, and should match your hips when you sit. Depth is measured from the front edge of the rear cutout to the front lower edge of the cushion, and the cushion should reach to within 1" to 2" of the back of your knees. We list the 91 standard sizes. Sizes JAY builds only to special order under JAY Your Way are not listed.
What is the weight limit?
300 lbs. on cushions 14" to 21" wide and 500 lbs. on cushions 22" to 24" wide. Those are the figures on the Fusion order form and the 2025 owner's manual. Sunrise's product page gives 330 lbs. for the narrower widths. We publish the lower figure.
Why do 22" to 24" widths cost more?
Those widths carry the 500 lbs. insert and are billed under HCPCS E2623 or E2625. On our page they cost $72.75 more, or $72 to $76.50 more on the Positioning style.
What comes in the box?
The fluid cushion comes with an Ionic+ outer cover, the inner cover, the foam base and the JAY Flow fluid insert. The air cushion comes with a stretch outer cover, the inner cover, the foam base, the air insert and a hand pump. On some air cushions the inflation tubes arrive separately and are cut to length and fitted, as the air insert supplement shows.
Is the black insert in the photographs included?
No. The black insert is JAY Fluid with Cryo Technology, which JAY sells as the Fusion with Cryo Technology, a separate model. This cushion comes with the JAY Flow fluid insert or the air insert you choose.
How do I clean it?
Turn the outer cover inside out and machine wash it in warm water, 140° F, then drip dry or tumble dry on low. Do not bleach, iron or dry clean it. Wipe the fluid insert with warm soapy water and dry it. Wipe the foam base with a damp cloth and no soap. Never submerge the fluid insert or the foam base.
How long is the warranty?
Sunrise Medical warrants the cushion for 24 months and the removable cover for 6 months against defects in materials and workmanship. Punctures, tears and burns are not covered.
Can I return it?
No. A cushion is a support surface, so it cannot be returned once it ships. The warranty still applies to any defect.
