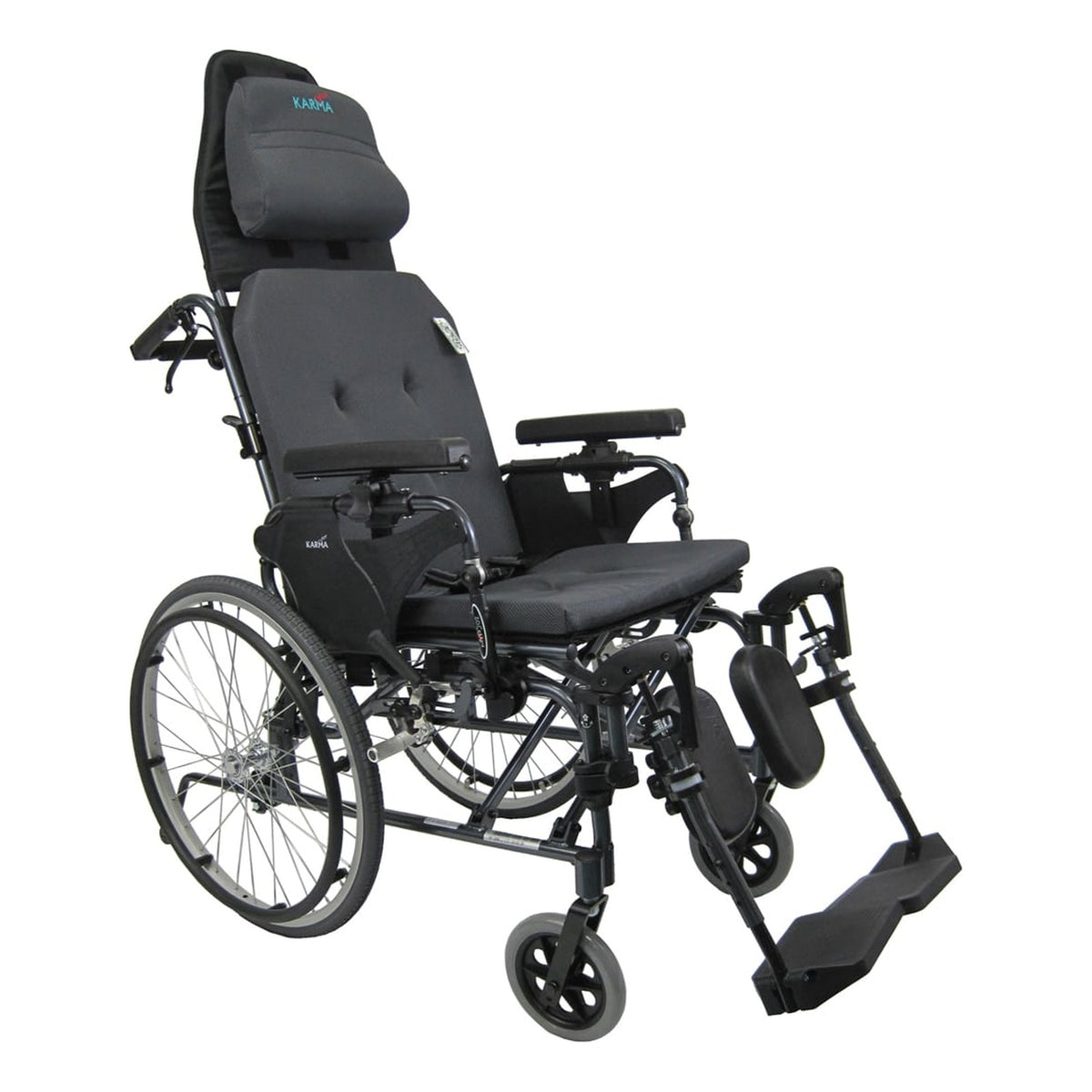

Karman MVP-502 Reclining Wheelchair

Name: Karman MVP-502 Reclining Wheelchair
Brand: Karman Healthcare
SKU: MVP502
Price: 2060.0 USD
Availability: InStock

ManufacturerKarman Healthcare

Model MVP502

$2,060.00MSRP $4,170.00

Most items ship in 3 to 7 business days.

A lightweight reclining wheelchair with Karman's V-shaped anti-thrust seat, tension-adjustable seat and back, and flip-back arms. It weighs 33 lbs. without footrests, carries 250 lbs. and has a 16", 18" or 20" seat.

Type

Reclining

Chair weight

33 lbs. without footrests

Weight capacity

250 lbs.

Seat widths

16", 18" or 20"

Free shipping Low Price Guarantee Not returnable Expert support

Overview

A recliner with a seat that stops you sliding

Karman's V-shaped seat holds the hips in place as the back reclines, on a folding aluminum frame of 33 lbs.

Watch it in action

MVP-502 ergonomic recliner

Built for real life

What stands out

●

A seat that holds you

Karman's V-shaped seat stops the hips sliding forward when the back reclines, which is the usual problem with a recliner.

●

Adjustable tension

The seat and back straps adjust to the rider's shape.

●

Flip-back arms

The armrests adjust for height and flip back for side transfers.

●

33 lbs. without footrests

The aluminum frame folds to 14" to 16" wide for a car.

●

Self-propelled or transport

22" wheels for the rider, or 14" wheels with hand brakes for a companion, at the same price.

●

Flat-free wheels

The tires are solid polyurethane, so there are no flats.

The Hieline Take

The MVP-502 fixes the thing people dislike about recliners. As the back goes down, most riders slide forward on the seat and have to be pulled back up. Karman's V-shaped seat and the tension straps hold the hips where they are. It also has flip-back, height-adjustable arms, which the KM-5000 does not. It costs $720 more than the KM-5000 and tops out at 250 lbs., so a heavier rider or a tight budget points to the KM-5000. The 14" transport wheels cost the same as the 22" ones, so pick by who does the pushing.

Straight talk

Is it right for you?

A good fit if you

recline during the day and tend to slide forward in an ordinary recliner
transfer sideways and need the arms out of the way
weigh up to 250 lbs. and fit a 16" to 20" seat
want a recliner that folds for a car

Look elsewhere if you

weigh more than 250 lbs., where the KM-5000's 20" and 22" seats carry more
need tilt in space; the VIP-515 and VIP2-TR tilt
want the lowest price in a recliner, which is the KM-5000

Build & Buy

Build it the way you will sit in it. Every choice goes on your order, and because Karman builds this chair to your order it cannot be returned, so check each one before you add it to your cart.

DeliveryFree shipping

Included.What does this mean?

This section is how your order reaches you.

Shipping is free on orders of $500 or more and $45 below that, to any address in the 48 continental states. Most items ship in 3 to 7 business days. No carrier quotes an exact date, so treat that as an estimate rather than a promise.

Free shipping+$0.00

Shipping at no charge to the 48 continental states. Most items ship in 3 to 7 business days.

WarrantyKarman Healthcare limited warranty

Included.What does this mean?

This section covers what the manufacturer warrants and for how long.

There is nothing to buy here. The full terms are in the Warranty & Return tab on this page.

Karman Healthcare limited warranty+$0.00

Included with this chair at no charge. The full terms are in the Warranty & Return tab on this page.

Your total

$2,060.00

Secure checkout, SSL encrypted

Getting the size right

Not sure it will fit you?

Five measurements, taken at home with a tape and a firm chair, tell you whether a seat will suit you. The guide opens right here with a printable worksheet.

Five measurements · printable worksheet · no sign-up

How to measure for a wheelchair

Getting the right wheelchair starts with getting the right fit. A chair that is too wide, too narrow, too deep or too short is uncomfortable and hard to use.

You do not need dozens of measurements to get started. For most manual wheelchairs, transport chairs and power wheelchairs, the five below will get you to the right size.

Before you measure

Sit upright in a firm chair. Wear the shoes and the clothing you expect to use with the wheelchair. Have someone help you, because the measurements are far more accurate when somebody else holds the tape.

Measurement A. Hip width

Measure the widest part of your hips or thighs while seated. Keep the tape straight across your body rather than wrapping it around you.
This is the measurement that points you at a seat width.
Leave yourself a little room. If your seated hip width is about 19", look at a seat that gives you a small amount of clearance rather than one measuring exactly 19".
Do not go wider than you need. A wider seat makes the whole wheelchair wider, and that makes doorways and indoor turns harder.
Measurement B. Seat depth, also called upper leg length

Measure from the back of your buttocks to the crease behind your knee while seated.
The front edge of the seat should never press against the back of your knees. Aim for about 1" to 2" of space between the seat edge and the back of the knee.
A seat that is too deep presses behind the knees. A seat that is too shallow leaves your thighs without support.
Measurement C. Lower leg length

Measure from the crease behind your knee down to the bottom of your heel, wearing your normal shoes. Keep your knee bent at about 90 degrees.
This one tells you about seat-to-floor height, footrest height, legrest adjustment and footplate position.
If the wheelchair comes with a cushion, remember the cushion raises your seated height.
Measurement D. Back height

Sitting upright, measure straight up from the seat surface to where you want the top of the backrest to sit.
The right back height depends on how much upper-body support you need. A lower back gives an active manual wheelchair user more freedom to move. A higher back gives more trunk and upper-body support.
If you are unsure how much support you need, call us before you order.
Measurement E. Elbow height, where the armrests adjust

Relax your shoulders, let your arms hang at your sides, and bend your elbow to about 90 degrees. Measure straight up from the seat surface to the bottom of your elbow.
This gives you a comfortable armrest height on any chair with height-adjustable armrests.

Weight capacity

Always compare the rider's weight against the manufacturer's stated weight capacity. Never choose a wheelchair rated below the rider's actual weight.

If the rider is close to a chair's maximum, move up to a higher-capacity model.

Band	Capacity
Standard	Up to 300 lbs.
Heavy duty	Above 300 lbs., up to 400 lbs.
Bariatric	Above 400 lbs.

Make sure the wheelchair fits your home

Seat size is only half of it. Before you order, compare the wheelchair's overall dimensions against the places it has to go. Measure:

The narrowest doorway it has to pass through
Hallways and tight corners
The bathroom entrance
The bedroom entrance
Elevators, if you use one
Your vehicle's cargo space, if the chair travels

Check the manufacturer's listed overall width as well as the seat width. A wheelchair with a 20" seat measures considerably more than 20" from wheel to wheel.

For a power wheelchair, check the listed turning radius too, so you know it can turn where you need it to.

Your measurements

Type your numbers straight into the boxes below, or print this page and write them in by hand. When you are done, copy them and email them to us, or call and read them out.

A. Hip width inches

B. Seat depth, upper leg length inches

C. Lower leg length inches

D. Back height inches

E. Elbow height inches

Rider weight lbs.

Narrowest doorway inches

Need help choosing the right size?

Sizing varies between manufacturers and between models. If you are unsure which size to order, we are happy to help.

Send us your measurements along with the wheelchair you are considering, and a Hieline Medical specialist will compare them against that manufacturer's available seat sizes and specifications.

Call 1-855-HIELINE or email care@hieline.com with your measurements and the model you are considering, and we will tell you which seat size to order.

Important

This guide helps you select standard mobility equipment. It is not a clinical seating assessment. A rider with significant postural needs, pressure-management concerns, asymmetry, contractures or other complex seating requirements should be evaluated by a seating or rehabilitation professional.
