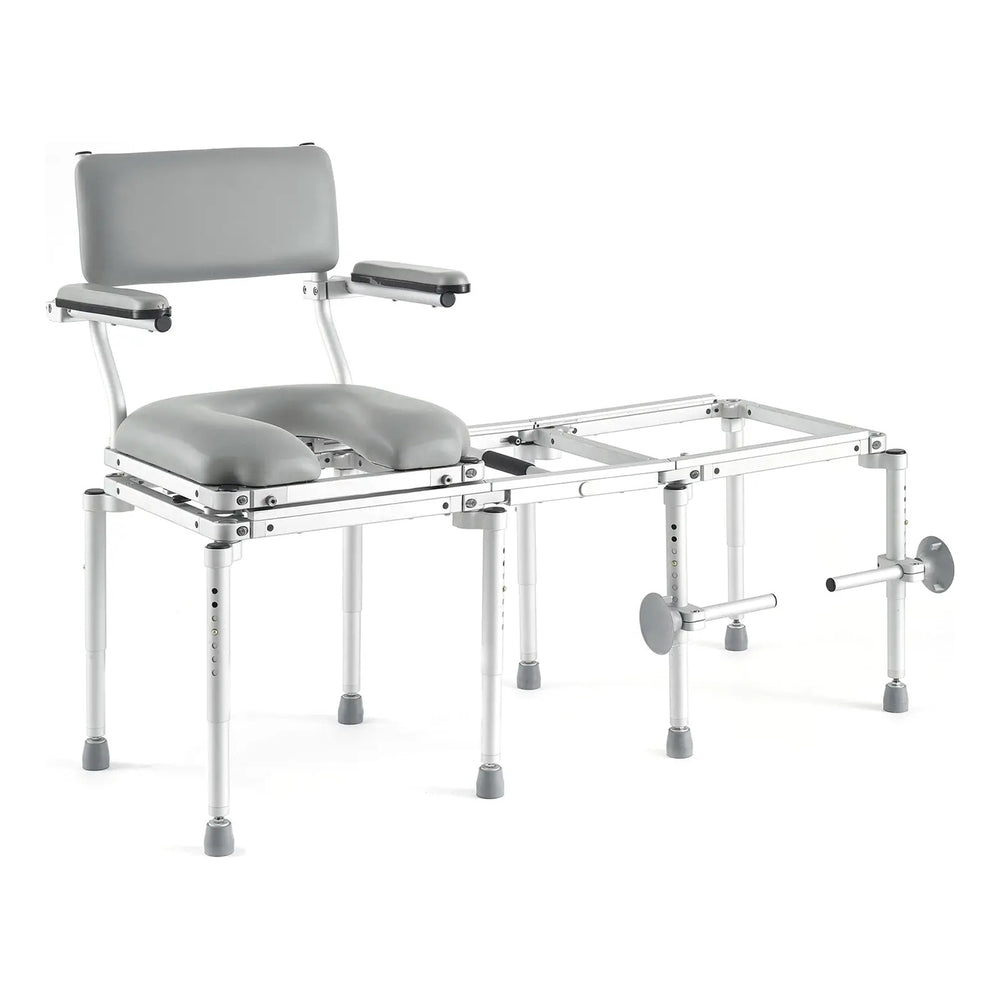

Nuprodx MC5000 Series Stationary Tub and Shower Slider System
The MC5000 is a stationary tub and shower slider system for bathroom transfers. You choose every part, and we check it against Sunrise's rules.
A tub transfer without the step over
A stationary sliding commode, shower and tub system for a bathroom that stays as it is.
What stands out
No step over the tub wall
The seat slides across the wall on a locking bridge, so the user crosses seated. That single movement is where most bathroom falls happen.
The bathroom stays as it is
The tub and shower base stands over the tub wall on legs that adjust to the inside and outside tub heights. Nothing is fixed to the wall or the floor.
Four models, one frame
Two chairs with a bridge and tub base, and two benches that span the wall themselves. The MC5200 carries 400 lbs. and the MC5300 is cut to your tub opening.
The bridge comes out
Once the seat is over the tub, the connector bridge lifts away and the shower curtain closes, so the user bathes in private.
Commode opening as standard
The seat cushion comes in four commode shapes with an optional gel layer, or cut to any of 27 custom shapes.
Aircraft-grade materials
Corrosion-resistant aluminum, brass and stainless steel, built for a wet room and made in the United States.
The Hieline Insight
The MC5000 does one job and does not pretend to do the others. It has no casters, so it does not roll to the bedside and it is not a mobility chair. What it does is remove the single most dangerous movement in a bathroom, which is lifting a leg over a tub wall while wet. The seat sits on a frame beside the tub, the bridge locks the two halves together, and the user slides across seated. Because it stays put, it costs about a thousand dollars less than the mobile MC6000 and it is the right choice when the user can walk or wheel to the bathroom on their own. The MC5100 and MC5300 are the bench versions: they span the tub wall themselves, take no bridge and no tub base, and suit a bathroom where the tub sits against a wall with room to sit at both ends. Choose the MC5200 if the user is over 300 lbs., the MC5300 if the tub opening is an odd width, and the plain MC5000 otherwise.
Is it right for you?
A good fit if you
- A user who can reach the bathroom on their own but cannot step over the tub wall.
- A bathroom with a standard tub that is staying as it is.
- A user up to 300 lbs., or up to 400 lbs. on the MC5200.
- A tub opening at an odd width, where the MC5300 is cut to fit.
- A caregiver who wants to stop lifting during the transfer.
- Someone who does not need the chair to roll, and does not want to pay for casters.
Look elsewhere if you
- A user who cannot get to the bathroom without being wheeled. That is the MC6000 Series.
- A user over 400 lbs.
- Outdoor use, which Nuprodx prohibits and which voids the warranty.
- More than one occupant at a time.
- A bathroom where the toilet and the tub are too far apart for a 23" bridge.
- Anyone who needs a system they can send back. The MC5000 is made to order and is not returnable.
How you get yours
Build it
Work through the guided build one step at a time. Your progress saves as you go.
Rules checked
Every choice is checked against Sunrise Medical's own rules as you build, so you cannot order a combination that cannot be made.
Add to cart
Your finished build goes in the cart at the price shown, with every part number on the order.
Made and shipped
Sunrise Medical makes it to your build and it ships to you, with free shipping nationwide.
Specifications
Because the MC5000 Series is built to order, some figures depend on the options you choose. The figures for your own build are on the build summary as you go.
Every figure here comes from Sunrise Medical's own documents.
How your MC5000 Series reaches you
Your build goes to Sunrise Medical exactly as you ordered it, with every part number on the order, and ships to you when it is made. Shipping is free nationwide.
Warranty and support
The MC5000 Series carries Sunrise Medical's manufacturer warranty. Hieline supports it after the sale, and parts and repairs are handled directly through us, right here on hieline.com.
Returns
The MC5000 is built to order. The bridge is cut to your bathroom and the cushion, back and frame are made to the user, so it cannot be resold and it is not returnable. Nuprodx excludes custom parts and custom cushions from returns outright. Use the Nuprodx user measurement and bathroom fitting guide on the Resources tab before you order, and the ten measurements it asks for will settle the fit.
Resources
Here are the manuals, brochures, and videos for the MC5000 Series, all from Sunrise Medical.
Common questions
Measure from the center of the toilet bowl to the center of the tub drain or spout. That figure is "K" in the Nuprodx user measurement and bathroom fitting guide on the Resources tab. Pick the locking bridge nearest that measurement. Bridges run 9" to 23" in 1" steps. The MC5100 and MC5300 benches take no bridge.
The MC5000 and MC5200 are chairs that sit beside the tub and slide across on a bridge that connects them to a separate tub base. The MC5100 and MC5300 are benches whose own frame spans the tub wall, so they take no bridge and no tub base and cost about half as much.
No. It stands on crutch tips and stays in the bathroom. If you need a system that rolls to the bedside and over the toilet, that is the MC6000 Series.
The MC5300 is a one-piece bench made to your width, from 30" to 47" in 1" steps. The MC5100 is a 30" two-piece bench only.
The chairs clear standard and ADA-compliant toilets. The under-frame height adjusts from 16.5" to 20.5". Measure from the floor to the top of your toilet bowl with the seat and lid raised and compare it with that range.
The HCPCS codes on this system are E1399 and E0240. Whether a payer covers it is between you and that payer, and a code on a form does not by itself mean coverage or payment. Sunrise publishes these codes from PDAC verification or from their reading of Medicare definitions.
Every MC5000 is cut and assembled to the bathroom and the user it was ordered for, so it cannot be resold. Nuprodx also excludes custom parts and custom cushions from returns outright. Check the measurements with the fitting guide before you order.
Nuprodx gives a two-year limited warranty on every part of the chair except the seat and back cushions, which carry one year. Normal wear and tear is excluded, and custom parts and custom cushions are excluded. The warranty period starts on the day you receive the chair, and you activate it by registering the chair with Nuprodx.
No. You can order a MC5000 Series from Hieline without a prescription.
No. Hieline does not bill or accept insurance, so the MC5000 Series is a direct purchase. Any reimbursement is strictly between you and your insurer.
Yes. Your progress saves automatically in your browser as you go, so you can step away and pick up where you left off on the same device.
Every combination is checked against Sunrise Medical's own compatibility rules as you build. An option that does not fit your other choices is greyed out with the reason printed on it, and the build cannot be added to the cart while a conflict is open.
Build your MC5000 Series
You build the MC5000 Series one step at a time with our guided assistant. It checks every choice against Sunrise Medical's own rules, and your progress saves as you go.
Answer for the person who will use the MC5000 Series, whether that is you, a family member or a resident in your care. You can change any answer until the build is in your cart.
The user's measurements
Every size in the build is set from these numbers.
You need the user's measurements before the build can start. Download the measuring form, fill it out with the user, and return to this page when it is done. Your progress is saved on this device, so you can pick up right here and enter the numbers.
Download the measuring formThe user's weight and height
The weight sets the weight capacity of the build. Height is optional.
Two ways to build your MC5000 Series
You have given us the measurements. Now choose how much you want to decide. You can go deeper later without losing anything, so start wherever feels right.
The essentials, chosen for you.
Move through the choices that shape how the MC5000 Series fits and works. We start each one from your answers, and you adjust anything you like. Every choice is checked live against the manufacturer rules as you go, so the build stays valid the whole way.
- What you decideThe essential choices
- Roughly14 decisions
- Every choiceChecked live against the rules
Best if you want a well-fitted build without weighing every option.
Every option from the order form.
Work through the complete Sunrise Medical build, every choice on the order form, with the same guided steps and the same live rule checking. Nothing is hidden. This is the full depth of the MC5000 Series, laid out so you can set each detail exactly the way you want.
- What you decideThe complete build
- Roughly68 decisions
- Every choiceChecked live against the rules
Best if you want control over every detail.
Here is the full build with its part numbers and the price you pay. Add it to your cart and check out, and it reaches our order desk as one record.
