Nuprodx MC6000 Pediatric Series Mobile Tub and Shower Slider System
The MC6000 Pediatric is a mobile tub and shower slider system for children. You choose every part, and we check it against Sunrise's rules.
One transfer, built to a growing child
The MC6000 slider system in pediatric sizes, with a Leckey Advance bath chair option.
What stands out
One bedside transfer
The child transfers once, at the bed. From there the chair rolls over the toilet and slides into the tub, so the two riskiest moves in the bathroom do not happen.
Eight seat depths
10.70" to 17.70", so the seat is set to the child's thigh length rather than to an adult average. Back cushions go down to 9" wide.
A Leckey seat if the child needs one
The MC6000 Leckey carries a Leckey Advance bath chair in five sizes, with a mesh or commode seat and Leckey's own chest and hip belts.
Tilt for pressure and access

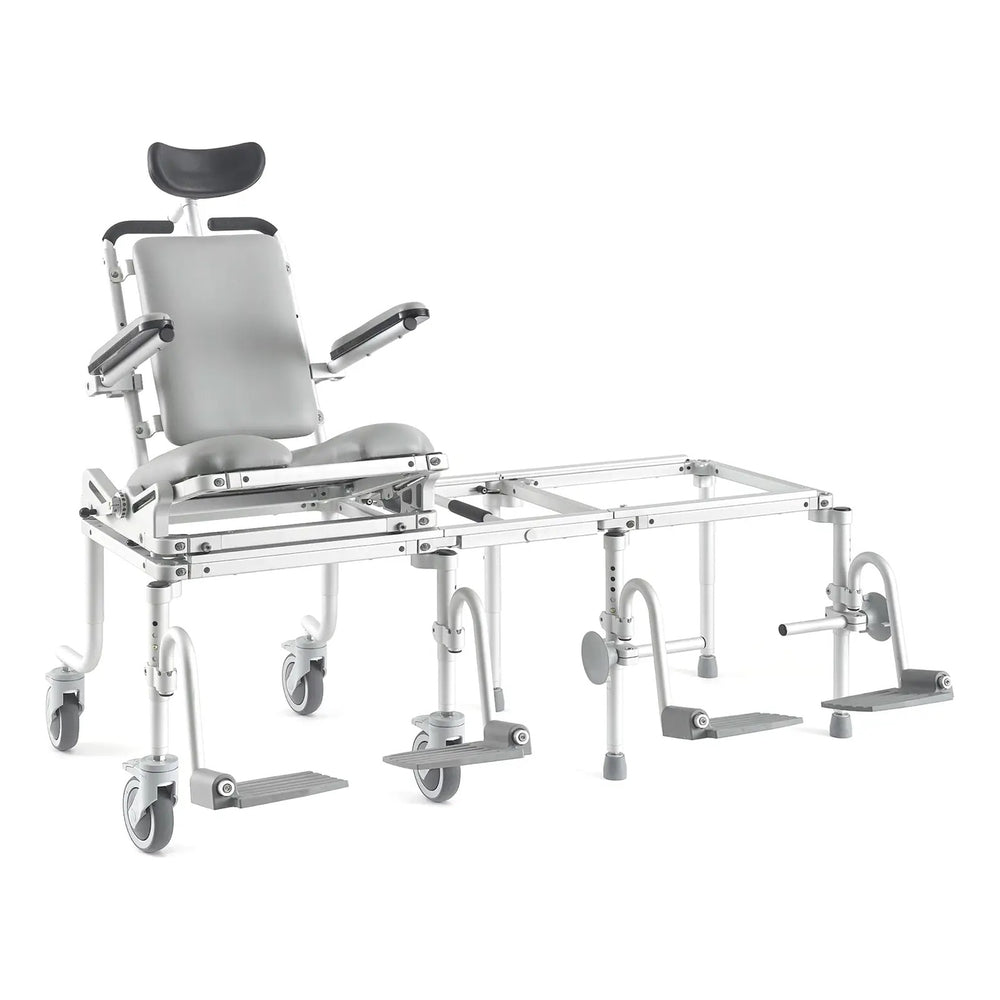

The Tilt Pediatric uses a center-of-mass tilt with the adjustable padded headrest included, which shifts weight back for pressure relief and caregiver access.
The bathroom stays as it is
The tub and shower base stands over the tub wall on legs that adjust to the inside and outside tub heights. Nothing is fixed to the wall or the floor.
Grows with the child
Seat depth, back height, footrest length and bridge length are all set at order and most are adjustable afterwards.
The Hieline Insight
A child who needs help bathing usually needs help three times: onto the toilet, into the tub, and back out again. The pediatric MC6000 removes two of those. The chair rolls over the toilet and slides across the tub wall on a locking bridge, so the only lift is the one at the bed. What makes the pediatric version its own product rather than a smaller adult one is the seat: eight seat depths from 10.70" to 17.70", back cushions down to 9" wide, and its own cushion part numbers. The MC6000 Leckey goes further and replaces the Nuprodx seat entirely with a Leckey Advance bath chair in five sizes, which brings contoured support, a mesh or commode seat and Leckey's own belts. Take the Leckey when the child needs postural support rather than just a safe seat, take the Tilt when pressure relief and caregiver access matter, and take the plain pediatric chair otherwise.
Is it right for you?
A good fit if you
- A child who cannot step over a tub wall and cannot transfer onto a toilet without help.
- A caregiver doing daily bathing and toileting who wants to stop lifting.
- A child who needs postural support, where the Leckey seat and the lateral and harness options apply.
- A bathroom with a standard tub or a roll-in shower that is staying as it is.
- A child who will grow, since seat depth, back height and footrest length all adjust.
- A user needing pressure relief, where the tilt models apply.
Look elsewhere if you
- A child over 158 lbs. on the MC6000 Leckey, or over 300 lbs. on the other two.
- Outdoor use, which Nuprodx prohibits and which voids the warranty.
- More than one occupant at a time.
- A bathroom where the toilet and the tub are too far apart for a 23" bridge.
- An adult, who is served by the MC6000 Series instead.
- Anyone who needs a system they can send back. This one is made to order and is not returnable.
How you get yours
Build it
Work through the guided build one step at a time. Your progress saves as you go.
Rules checked
Every choice is checked against Sunrise Medical's own rules as you build, so you cannot order a combination that cannot be made.
Add to cart
Your finished build goes in the cart at the price shown, with every part number on the order.
Made and shipped
Sunrise Medical makes it to your build and it ships to you, with free shipping nationwide.
Specifications
Because the MC6000 Pediatric Series is built to order, some figures depend on the options you choose. The figures for your own build are on the build summary as you go.
Every figure here comes from Sunrise Medical's own documents.
How your MC6000 Pediatric Series reaches you
Your build goes to Sunrise Medical exactly as you ordered it, with every part number on the order, and ships to you when it is made. Shipping is free nationwide.
Warranty and support
The MC6000 Pediatric Series carries Sunrise Medical's manufacturer warranty. Hieline supports it after the sale, and parts and repairs are handled directly through us, right here on hieline.com.
Returns
The pediatric MC6000 is built to order. The bridge is cut to your bathroom and the seat, back and frame are made to the child, so it cannot be resold and it is not returnable. Nuprodx excludes custom parts and custom cushions from returns outright. Use the Nuprodx user measurement and bathroom fitting guide on the Resources tab before you order, and the ten measurements it asks for will settle the fit.
Resources
Here are the manuals, brochures, and videos for the MC6000 Pediatric Series, all from Sunrise Medical.
Common questions
Measure from the center of the toilet bowl to the center of the tub drain or spout. That figure is "K" in the Nuprodx user measurement and bathroom fitting guide on the Resources tab. Pick the locking bridge nearest that measurement. Bridges run 9" to 23" in 1" steps.
It replaces the Nuprodx seat and back with a Leckey Advance bath chair, in one of five sizes. That means the seat cushion, back cushion, seat depth, backposts, footrests, armrests and headrest all come from Leckey instead, so those steps do not appear. The Leckey head support and abduction belt are in Accessories.
Size 1 suits 30" to 41" tall, size 2 37" to 49", size 3 45" to 57", and sizes 4 and 5 53" to 65". Sizes 1 to 4 are a 16" seat width and size 5 is 19". The full size chart is in the order form on the Resources tab.
158 lbs., which is the 72 kg figure Leckey print in their own size chart. Sunrise's specification page says 159 lbs. for the same chair. We publish the lower of the two, because a weight rating is not something to round up.
The 16.90" and 17.70" settings need the seat depth adapters, which are in Accessories. The 16.20" and 17.70" settings do not work with a tall and narrow back or with laterals.
On the size 5 Leckey chair only, as a commode cushion in place of the mesh seating system. A commode cushion ordered with size 5 ships in gray.
The HCPCS codes on this system are E1399 and E0240. Whether a payer covers it is between you and that payer, and a code on a form does not by itself mean coverage or payment. Sunrise publishes these codes from PDAC verification or from their reading of Medicare definitions.
Every pediatric MC6000 is cut and assembled to the bathroom and the child it was ordered for, so it cannot be resold. Nuprodx also excludes custom parts and custom cushions from returns outright. Check the measurements with the fitting guide before you order.
No. You can order a MC6000 Pediatric Series from Hieline without a prescription.
No. Hieline does not bill or accept insurance, so the MC6000 Pediatric Series is a direct purchase. Any reimbursement is strictly between you and your insurer.
Yes. Your progress saves automatically in your browser as you go, so you can step away and pick up where you left off on the same device.
Every combination is checked against Sunrise Medical's own compatibility rules as you build. An option that does not fit your other choices is greyed out with the reason printed on it, and the build cannot be added to the cart while a conflict is open.
Build your MC6000 Pediatric Series
You build the MC6000 Pediatric Series one step at a time with our guided assistant. It checks every choice against Sunrise Medical's own rules, and your progress saves as you go.
Answer for the person who will use the MC6000 Pediatric Series, whether that is you, a family member or a resident in your care. You can change any answer until the build is in your cart.
The user's measurements
Every size in the build is set from these numbers.
You need the user's measurements before the build can start. Download the measuring form, fill it out with the user, and return to this page when it is done. Your progress is saved on this device, so you can pick up right here and enter the numbers.
Download the measuring formThe user's weight and height
The weight sets the weight capacity of the build. Height is optional.
Two ways to build your MC6000 Pediatric Series
You have given us the measurements. Now choose how much you want to decide. You can go deeper later without losing anything, so start wherever feels right.
The essentials, chosen for you.
Move through the choices that shape how the MC6000 Pediatric Series fits and works. We start each one from your answers, and you adjust anything you like. Every choice is checked live against the manufacturer rules as you go, so the build stays valid the whole way.
- What you decideThe essential choices
- Roughly14 decisions
- Every choiceChecked live against the rules
Best if you want a well-fitted build without weighing every option.
Every option from the order form.
Work through the complete Sunrise Medical build, every choice on the order form, with the same guided steps and the same live rule checking. Nothing is hidden. This is the full depth of the MC6000 Pediatric Series, laid out so you can set each detail exactly the way you want.
- What you decideThe complete build
- Roughly68 decisions
- Every choiceChecked live against the rules
Best if you want control over every detail.
Here is the full build with its part numbers and the price you pay. Add it to your cart and check out, and it reaches our order desk as one record.
