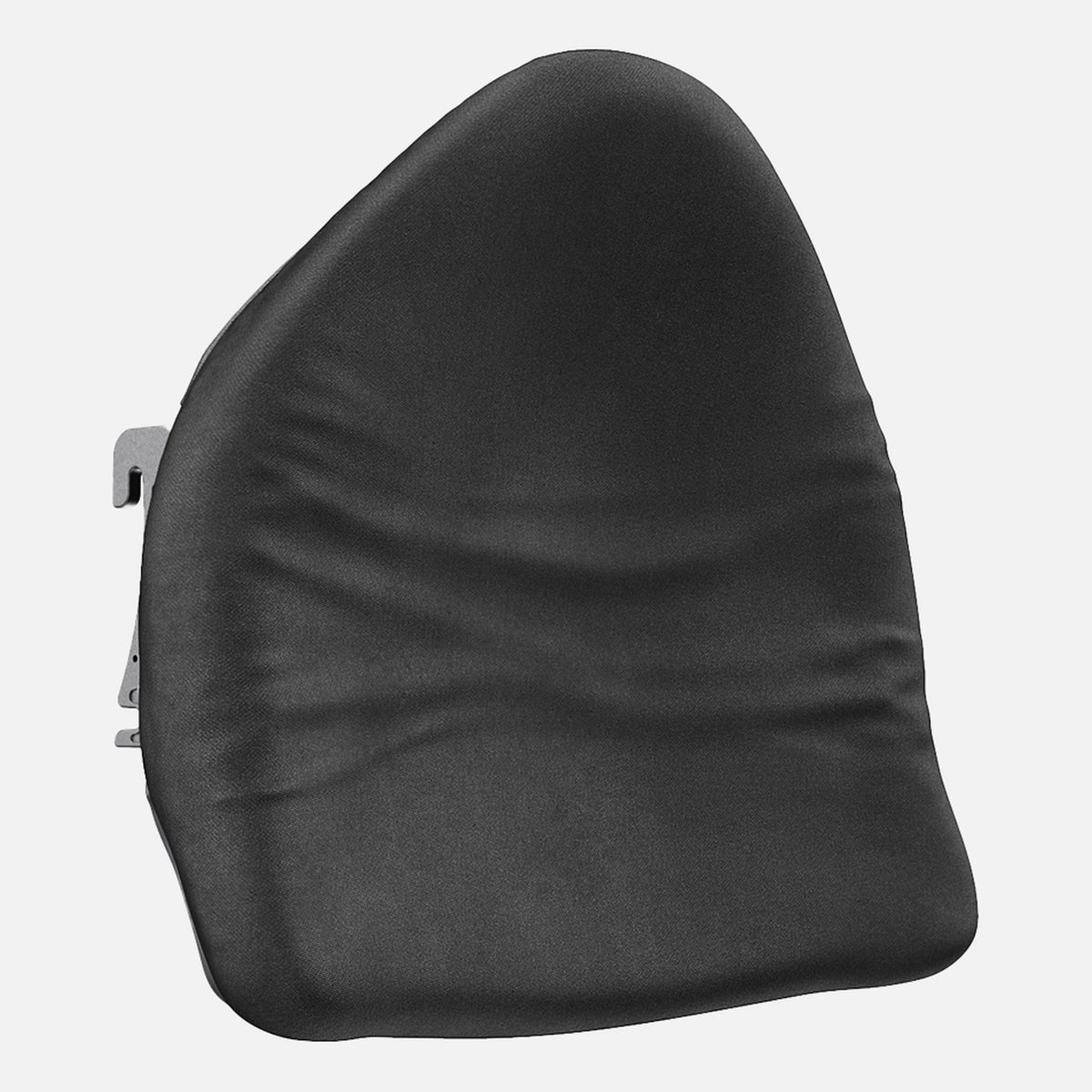

NXT Armadillo back support, front angle Click to zoom

NXT Armadillo Multi-Adjustable Back Support

ManufacturerNXT Seating
Model NMAPSB
$735.20MSRP $919.00
Most items ship in 3 to 7 business days.

The NXT Armadillo is a postural back support for kyphosis and other spinal positioning needs. Its three-section aluminum shell adjusts to the curve of the spine. It comes 14" to 24" wide.

Type
Multi-adjustable back
Shell
Three-section aluminum
Sizes
14" to 24" W, 16" to 20" H
Weight capacity
300 or 400 lbs. by width
Free shipping Low Price Guarantee Not returnable Expert support
Overview
A three-section back support that follows the curve of the spine

NXT's Armadillo has a modular aluminum shell in three sections. Each section sets to its own angle, so the back wraps a kyphotic or uneven spine.

Watch it in action
NXT Armadillo, Multi-adjustable Postural Back Support
Built for real life

What stands out

●
Three sections, each at its own angle
The top section tilts 40 degrees forward and 20 degrees back, and the lower section 30 degrees each way, so the shell wraps around the curve of the spine.
●
A channel for the spine
A recessed middle channel takes pressure off the spinous processes.
●
Pelvic support at the PSIS
The adjustable bottom plate supports the pelvis where each user needs it.
●
Hooks that reach wider chairs
Expandable mounting hooks let the back mount on wheelchairs up to 2" wider than the back.
●
Cool, breathable foam
smartGEL infused visco foam draws heat away from the skin, and the smartx3D cover has an air channel layer that carries heat and moisture away.
●
Its own lateral supports
Four Armadillo lateral and pelvic supports, each with a 3.25" width range, and a 2" lateral contour add-on mount to the shell.
The Hieline Take

The Armadillo is for a spine that a one-piece shell cannot follow. The shell is three aluminum sections on a center spine. The top section tilts up to 40 degrees forward and 20 degrees back, and the lower section tilts 30 degrees each way, so the back can wrap around a kyphosis or be set to an uneven posture and then locked. A recessed channel down the middle takes pressure off the spinous processes, and the bottom plate adjusts to support the pelvis at the PSIS. This is a back that is fitted, and it works well when a therapist or an experienced fitter sets the angles with the user in the chair. Pick the width of your back canes first. The 14" and 16" widths are 16" tall, and the wider ones come 18" or 20" tall. It has its own lateral supports, which mount to the Armadillo shell only. NXT's order form says it does not come with the one-hand release and takes no fixed hardware swap.

Straight talk

Is it right for you?

A good fit if you

  • have kyphosis or a spinal curve a one-piece shell cannot follow
  • need the top and bottom of the back set to different angles
  • want pelvic support that can be set at the PSIS

Look elsewhere if you

  • want a back that lifts off with one hand
  • weigh more than the limit for your back width
  • want to try it and send it back, because a back support is not returnable
