Click to zoomNXT Back Support Mounting Hardware
Replacement and alternative mounting hardware for NXT back supports. QuickFit clamp kits are sold by the side or as a pair. The 2-point, 4-point and micro mounts are fixed hardware for the backs listed under Specs.

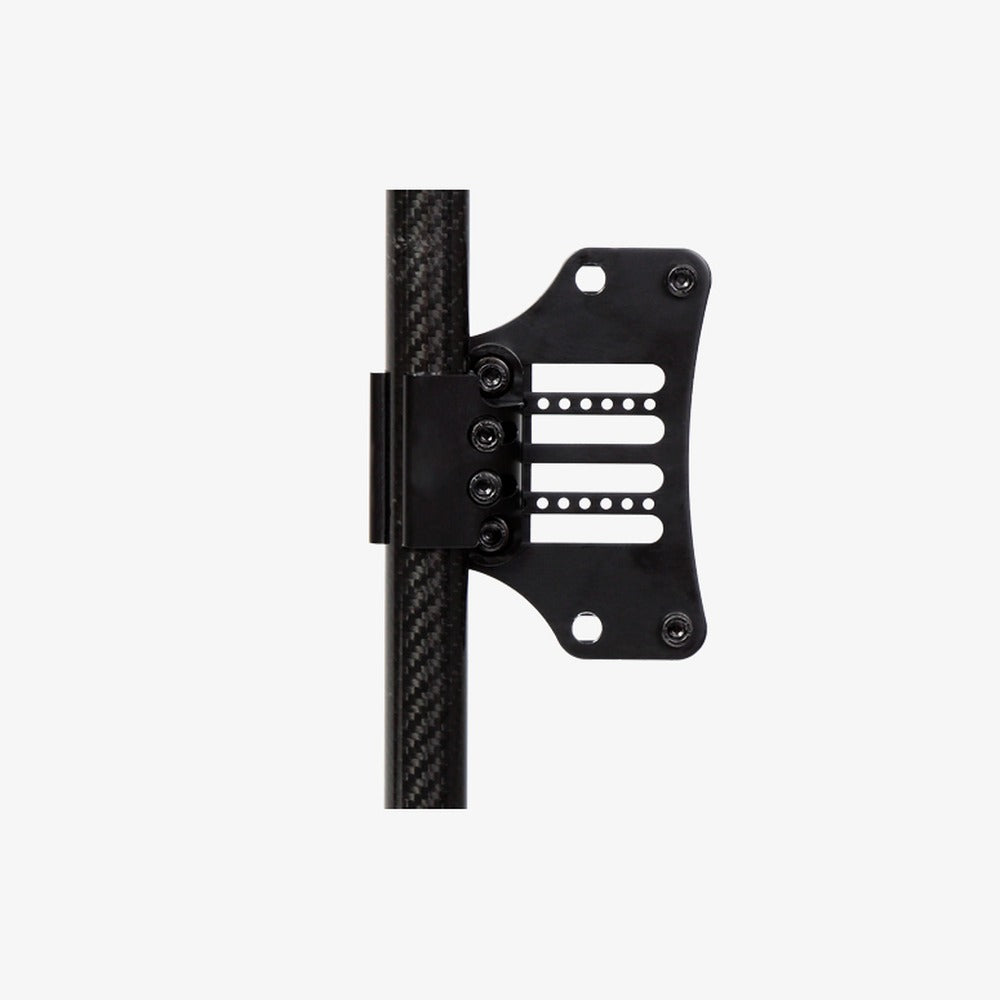

QuickFit is the removable hardware every NXT back ships with. The fixed mounts are smaller and stay on the wheelchair.
What stands out
Every NXT back leaves the factory on QuickFit hardware, so a QuickFit kit is the direct replacement: it clamps onto back canes from 0.75" to 1" without shims, gives 5" of depth adjustment and 50 degrees of angle, and lets the back lift off without tools. The fixed mounts trade that range for a smaller, lighter part that stays bolted to the chair. The 2-point mount keeps 1" of depth adjustment and up to 25 degrees of angle each way, and NXT limits it to backs 16" high or lower. The micro mount takes up the least room on the canes and is for Optima and Optima Carbon backs 13" high or lower. The 4-point mount uses two brackets a side for stability, averages 15 degrees of angle, and rates an Optima 23" or wider at 550 lbs. The micro and 4-point mounts fit one chair width and do not adjust, so measure the distance between the back canes before you order. NXT lists none of the fixed mounts for the Armadillo.
Straight talk
Is it right for you?
A good fit if you
- need to replace the QuickFit hardware on an NXT back
- want a smaller fixed mount on a back that stays on the chair
- are fitting a wide Optima for a 550 lbs. capacity on the 4-point mount
Look elsewhere if you
- have a back support from another brand
- want a fixed mount for an Armadillo back
Every size is listed here for reference. Choose your size in Ready to Buy above.
| Hardware | Model | Price |
|---|---|---|
| QuickFit clamp kit, right | NIB-1004 | $80.00 |
| QuickFit clamp kit, left | NIB-1178 | $80.00 |
| QuickFit clamp kits, pair | NIB-1004 + NIB-1178 | $160.00 |
| 2-point fixed mount | NIB-1207 | $80.00 |
| 4-point fixed mount | NIB-1969 | $80.00 |
| 2-point micro mount, set of 2 | NIB-1642 x 2 | $80.00 |
The NXT Back Support Mounting Hardware is covered by NXT Seating's own limited warranty. The coverage we have on record is below.
The owner's manual is the full warranty
The owner's manual for this product has its own warranty section, and that section is the complete statement of what NXT Seating covers, for how long, and what falls outside the coverage. Read it before you file a claim. If anything on this page differs from the manual, go by the manual.
Owner's manualThis product cannot be returned
Parts and accessories cannot be returned. Check the model and the back support it fits on this page before you order. If it arrives damaged or defective, tell us within 48 hours of delivery and we will get it repaired or replaced at no cost to you.
If something goes wrong
Call us first at 1-855-HIELINE. We file the claim with NXT Seating for you and get the covered part sorted out rather than handing you a phone number.
