NXT Classic Pelvic Back Support
ManufacturerNXT Seating
ModelNACB
$584.00MSRP $730.00
Most items ship in 3 to 7 business days.
The NXT Classic is a pelvic back support for manual and power wheelchairs. It comes 16" to 22" wide and 16", 18" or 20" tall, with a 3" contour or the DEEP 5.5" to 7" contour.
A pelvic back support in 12 sizes, standard or DEEP
NXT's Classic puts a gel-infused foam cushion on a one-piece aluminum shell, with a 3" pelvic contour or a DEEP contour you set from 5.5" to 7".
Watch it in action
Overview of the NXT One-Hand Release
Built for real life
What stands out
●
Room for the pelvis
A cut-out at the bottom of the shell gives the buttocks space to sit back past the back, for a more natural seated position.
●
A low pivot point
The back pivots low, near the pelvis. Changing the recline supports the pelvis instead of pulling it forward or back.
●
Laterals you can shape
The lateral contours bend in or out by hand, so the fit at the trunk can be set on the chair.
●
Free shoulders
The shell supports the spine inside the scapula triangle and is cut away at the shoulder blades, which leaves the shoulders free and helps head control.
●
Cool, breathable foam
smartGEL infused visco foam draws heat away from the skin, and the smartx3D cover has an air channel layer that carries heat and moisture away.
●
One hand off, one hand on

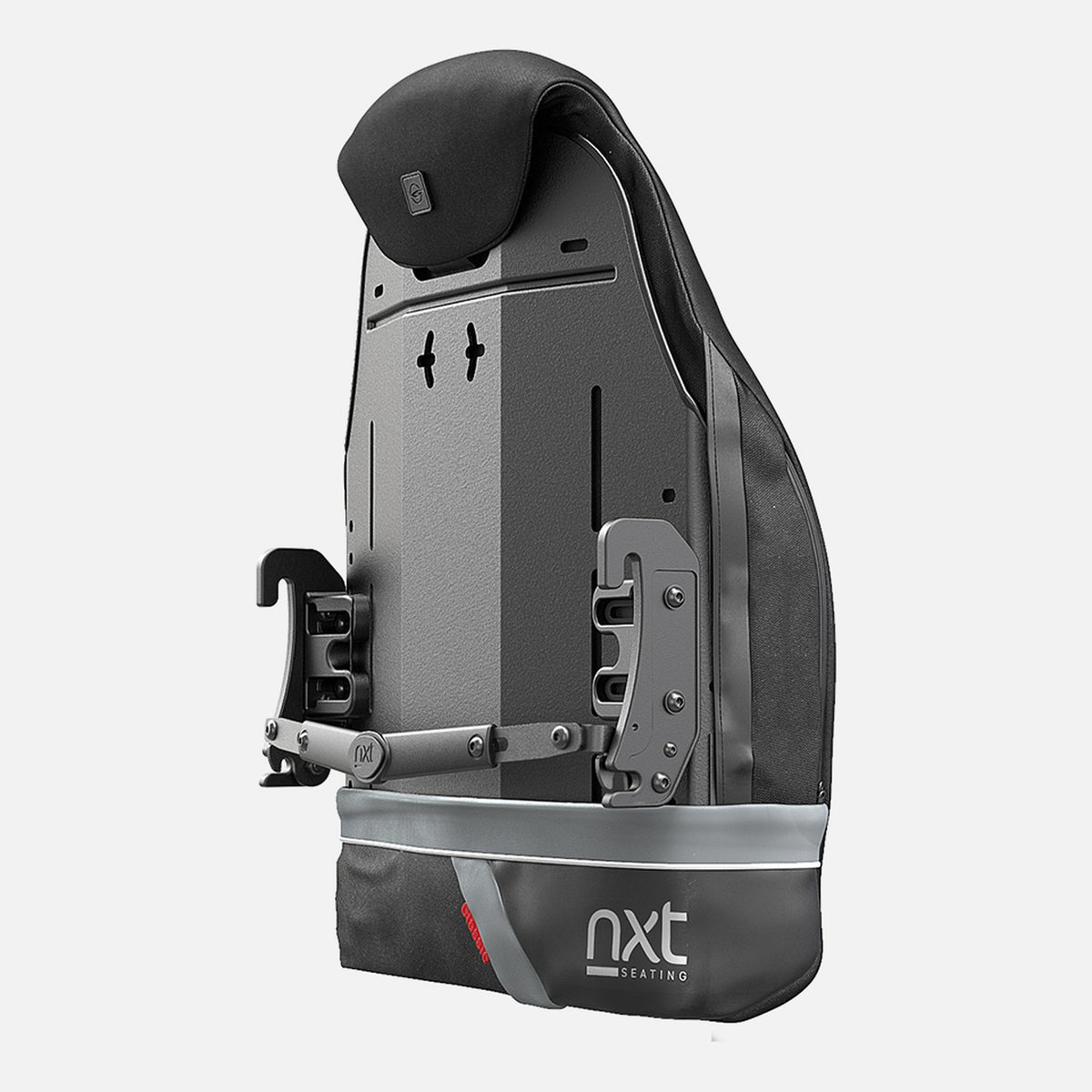

The one-hand quick release lifts the back off the chair for folding or transport, and the QuickFit hardware adjusts height, depth, angle and rotation while the user is seated.
The Hieline Take
The Classic is the simple one-piece back in the NXT range. It is built for users with good trunk control who want a firm base behind the pelvis in place of a sling back that has stretched. The one-piece aluminum shell is light, the cut-out at the bottom leaves room for the pelvis to sit back where it should, and the lateral contours give pelvic stability without wrapping the trunk. The standard Classic has a mild 3" contour. The DEEP version has laterals that set from 5.5" to 7", which adds support for users who lean. It comes in three heights at every width, so the choice is simple: pick the width of your back canes, then a height that supports you without getting in the way of your arms. Check the weight limit for your width before you order, because it rises from 300 lbs. to 400 lbs. at 22" wide.
Straight talk
Is it right for you?
A good fit if you
have good trunk control and want a firm base behind the pelvis
want to replace a stretched sling back with a light shell
want laterals or a head support added to the same back later
Look elsewhere if you
have kyphosis or a spinal shape that needs a modular shell
weigh more than the limit for your back width
want to try it and send it back, because a back support is not returnable
Specifications
ManufacturerMotion Composites, NXT Seating brand
ModelsClassic (NACB) and Classic DEEP (NPCB)
ShellOne-piece lightweight aluminum with a scapula cut-out and a pelvic positioning cut-out
Contour depthClassic 3"; Classic DEEP adjustable from 5.5" to 7"
QuickFit adjustment5" of depth, 25 degrees fore and aft, reversible, for 0.75" to 1" back canes
Fixed hardware swaps2-point fixed (16" tall backs) and 4-point fixed, at no charge
HCPCS codesE2620 up to 20" wide; E2621 at 22"; E2619 for replacement covers
Warranty24 months, first user
The NXT Classic Pelvic Back Support is covered by NXT Seating's own limited warranty. The coverage we have on record is below.
Back support24 months against defects in materials and workmanship, first user
SurfaceRepaired or replaced if it does not stay intact under normal wear within 18 months
Not coveredCosmetic wear, misuse, improper installation or care, unauthorized changes, cigarette burns and tears from sharp objects
The owner's manual is the full warranty
The owner's manual for this product has its own warranty section, and that section is the complete statement of what NXT Seating covers, for how long, and what falls outside the coverage. Read it before you file a claim. If anything on this page differs from the manual, go by the manual.
A back support sits against the body, so once it ships it cannot be returned. Measure your back canes before you order and use the build steps above. The warranty is unaffected, so a defect is still covered.
If something goes wrong
Call us first at 1-855-HIELINE. We file the claim with NXT Seating for you and get the covered part sorted out rather than handing you a phone number.
How do I choose the width?
Measure between the outside of your back canes. Each Classic fits chairs from its own width up to 2" wider, so a 16" back fits 16" to 18" chairs. NXT makes the Classic 16", 18", 20" and 22" wide.
How do I choose the height?
NXT makes the Classic 16", 18" and 20" tall at every width. A taller back gives more trunk support; a shorter one leaves more room for the arms when you push.
Classic or Classic DEEP?
The Classic has a mild 3" pelvic contour for users with good trunk control. The Classic DEEP has deeper laterals that adjust from 5.5" to 7" for more midline support. Both come in the same sizes at the same price.
What is the weight limit?
300 lbs. up to 20" wide and 400 lbs. at 22" wide. When the back is on a wheelchair, the lower of the two limits applies.
Why does a 22" back cost more?
NXT lists backs 22" and wider at a higher price, billed under HCPCS E2621 instead of E2620. They cost $42.40 more here.
Which mounting hardware should I choose?
The standard QuickFit quick release hardware lifts off with one hand and adjusts while you sit. If you never take the back off, NXT swaps in fixed hardware at no charge. The 2-point fixed gives 1" of depth and 25 degrees of angle and fits backs 16" tall or lower. The 4-point fixed has 1" of depth and about 15 degrees of angle and fits one chair width only.
The sizes on NXT's Classic page look different. Which are right?
NXT's web page prints 13" to 29" widths and 7" to 19" heights under the Classic DEEP, which are another model's figures. Its order form and its Classic product sheet both list the Classic DEEP at 16" to 22" wide and 16" to 20" tall, and those are the sizes sold here.
What is the Infection Control cover?
A fluid proof cover that wipes down, made by NXT to the back model you order. NXT lists it at $205 for backs, and it is $164.00 here.
What do I need for a head support?
A pad, the head support hardware and the receiver bracket. NXT requires all three, and the page will not add a pad without the other two. The flip back kit attaches to the NIB-0747 hardware only.
How do the lateral trunk supports work?
Each lateral is one side, with its arm and pad. Choose left and right on their own, so you can fit one or a pair. NXT ships the swing away laterals set up for the right side, and the instructions in the package turn one for the left.
How do I clean it?
Machine wash the cover warm (140°F) on a gentle cycle with regular detergent. Do not bleach, iron or dry clean it. NXT recommends inspecting the back monthly, washing the cover and shell monthly or as needed, and checking the fasteners every 6 months.
What does the warranty cover?
NXT warrants the back support for 24 months from delivery to the first user against defects in materials and workmanship. It is repaired or replaced if the surface does not stay intact under normal wear within 18 months. Cosmetic wear, misuse, improper installation, unauthorized changes, cigarette burns, tears from sharp objects and damage from improper washing are not covered.
Can I return it?
No. A back support sits against the body, so once it ships it cannot be returned. Measure your back canes before you order. The warranty is unaffected.
Is Hieline an authorized NXT supplier?
Yes. Hieline is a Motion Composites dealer and orders NXT seating directly from Motion Composites, which makes it.
