Click to zoomNXT MultiFit Head Support
The NXT MultiFit head support mounts on NXT back supports. Order it complete, with a pad, multi-axis hardware and the receiver bracket, or order a pad or a hardware part on its own.

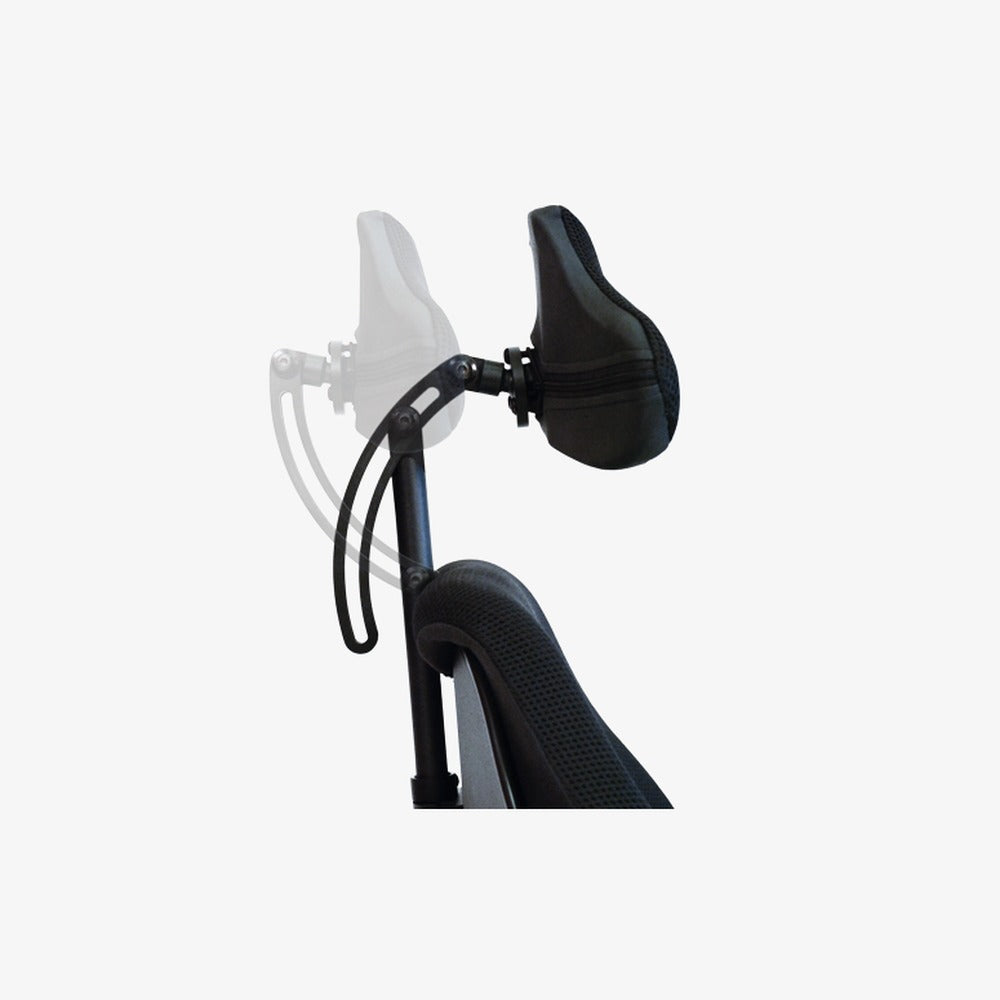

The NXT MultiFit head support pairs a layered foam pad with multi-axis hardware that adjusts in height, depth and angle, with quick-release levers for changes without tools.
What stands out
A head support is three parts on the NXT order form, and NXT requires all three to mount one: a pad, the multi-axis hardware and the receiver bracket that fixes the assembly to the back shell. Choosing Complete puts the three in your cart together. Choose the pad by how much of the head it has to meet: the contoured pad is 9" x 5", the large is 10" x 5" and the extra-large is 14" x 5", and each can be bent to shape for the user. The flip-back hardware costs more and is worth it when the pad has to get out of the way, because the pad lifts, folds back and returns to its original position. The vertical post can sit at the center, the left or the right. If you already own the multi-axis hardware, the flip back kit adds the same function to it. Installation means taking the cover and foam off the back to reach the shell, so plan for that or have your seating provider fit it.
Straight talk
Is it right for you?
A good fit if you
- have an NXT back support and need head support
- want the pad to flip back out of the way
- need a replacement pad or hardware part for a MultiFit head support
Look elsewhere if you
- use a back support from another brand
- have an NXT back 9" high and plan to use the universal adapter
Every size is listed here for reference. Choose your size in Ready to Buy above.
| Kit or part | Model | Price |
|---|---|---|
| Receiver bracket | NIB-0823 | $48.00 |
| Ball and collar kit | NIB-1874 | $48.00 |
| Universal adapter bracket | NIB-1200 | $56.00 |
| Flip back kit | NIB-1210 | $88.00 |
| Multi-axis hardware | NIB-0747 | $120.00 |
| Contoured pad only, 9" x 5" | NIB-0785 | $164.00 |
| Large pad only, 10" x 5" | NIB-0784 | $164.00 |
| Extra-large pad only, 14" x 5" | NIB-0818 | $164.00 |
| Flip-back multi-axis hardware | NIB-1306 | $212.00 |
| Complete, contoured pad | NIB-0785 + NIB-0747 + NIB-0823 | $332.00 |
| Complete, large pad | NIB-0784 + NIB-0747 + NIB-0823 | $332.00 |
| Complete, extra-large pad | NIB-0818 + NIB-0747 + NIB-0823 | $332.00 |
| Complete flip-back, contoured pad | NIB-0785 + NIB-1306 + NIB-0823 | $424.00 |
| Complete flip-back, large pad | NIB-0784 + NIB-1306 + NIB-0823 | $424.00 |
| Complete flip-back, extra-large pad | NIB-0818 + NIB-1306 + NIB-0823 | $424.00 |
The NXT MultiFit Head Support is covered by NXT Seating's own limited warranty. The coverage we have on record is below.
The owner's manual is the full warranty
The owner's manual for this product has its own warranty section, and that section is the complete statement of what NXT Seating covers, for how long, and what falls outside the coverage. Read it before you file a claim. If anything on this page differs from the manual, go by the manual.
Owner's manualThis product cannot be returned
Parts and accessories cannot be returned. Check the model and the back support it fits on this page before you order. If it arrives damaged or defective, tell us within 48 hours of delivery and we will get it repaired or replaced at no cost to you.
If something goes wrong
Call us first at 1-855-HIELINE. We file the claim with NXT Seating for you and get the covered part sorted out rather than handing you a phone number.
