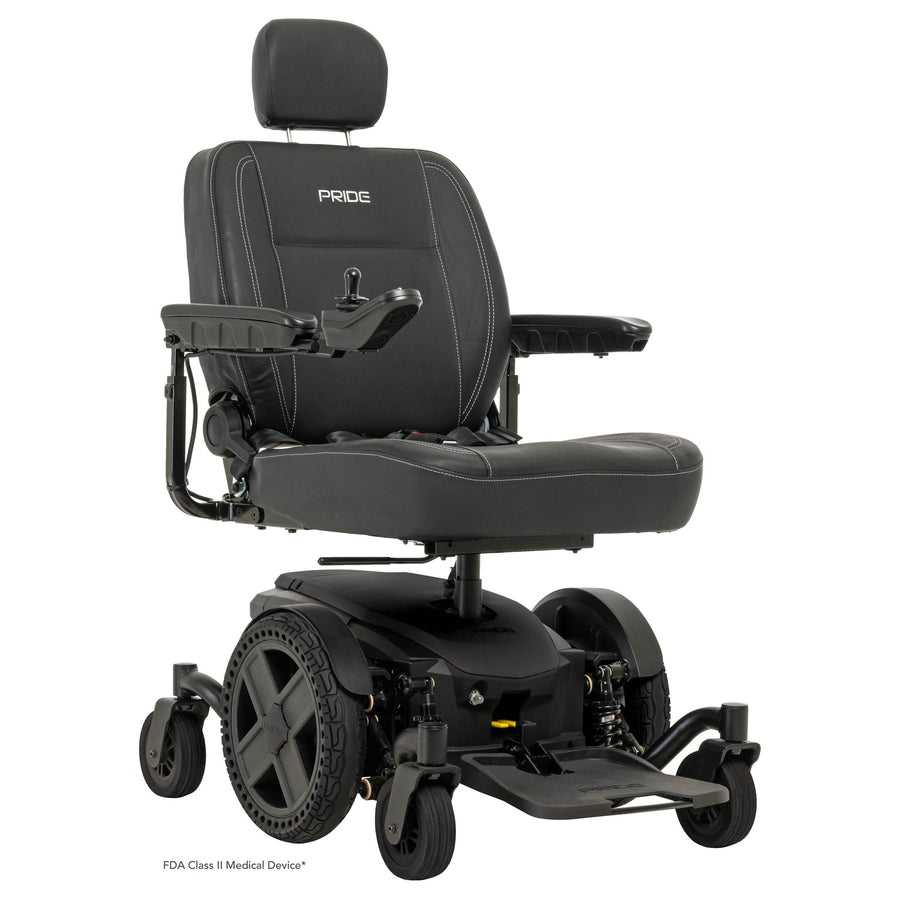

Pride Jazzy EVO 614HD
The Jazzy EVO 614HD carries up to 450 lbs. without giving up what makes the EVO worth having. It keeps the full independent front and rear ATX suspension, three inches of ground clearance and a 22" turning radius, so it still gets around a house and still crosses grass and broken pavement.
450 lbs. of capacity on full independent suspension
The heavy duty EVO, with ATX suspension on all six wheels and a 22" turning radius.
Built for real life
What stands out
450 lbs. weight capacity
Built as a heavy duty chair rather than a standard chair widened, so the frame, motors and seat are all rated for the load.
Full independent suspension, front and rear
Active-Trac ATX on all six wheels, which most heavy duty chairs give up. It is what keeps the ride settled over thresholds and broken ground.
Turns in a 22" radius
Despite the capacity it still turns tightly enough for hallways and doorways, with three inches of clearance at the mid-frame.
Two motor inline heavy duty drivetrain
Geared for torque at weight rather than speed, and still good for up to 4.88 mph.
Most heavy duty chairs are a standard chair with a wider seat bolted on, and they ride like it. The 614HD is built as a heavy duty chair, which is why it keeps full independent suspension on all six wheels at 450 lbs. rather than dropping to a rigid frame. That suspension is the whole argument for it. The honest caveat is size and weight. It is 25.4" wide, the assembly is 183.5 lbs. before batteries, and the range drops to about 13 miles at full rider weight against 19 on the standard 614. This chair does not go in a car. If you are under 300 lbs., the standard EVO 614 costs less, goes further and is narrower. If you need a seat wider than 22", the Jazzy 1450 goes to 26" at 600 lbs.
Straight talk
Is it right for you?
A good fit if you
- You need more than 300 lbs. of capacity and up to 450 lbs.
- You want suspension on all six wheels rather than a rigid heavy duty frame
- You split your time between indoors and rough ground outside
- You want a choice of six colors rather than one
Look elsewhere if you
- You are under 300 lbs. The standard Jazzy EVO 614 is narrower, cheaper and goes further.
- You need to travel with the chair. The assembly is 183.5 lbs. before batteries and does not fold.
- You need a doorway tighter than 25.4". The Jazzy Elite HD is 24.25" at the same 450 lbs.
- You want more than about 13 miles on a charge. The Jazzy Elite HD does 13.9 miles at the same 450 lbs.
Getting the size right
Not sure it will fit you?
Five measurements, taken at home with a tape and a firm chair, tell you whether a seat will suit you. The guide opens right here with a printable worksheet.
Specifications
Figures are Pride's own, from their Jazzy EVO 614 series specification sheet, INFINFB4416 Rev B. Range varies with rider weight, terrain and battery condition.
What to expect after you order
After you place your order, we place it with Pride Mobility and track it to your door. The carrier schedules the delivery window with you in advance, so you are never left guessing when it will arrive.
What happens on delivery day depends on the delivery method you choose. Here is what each one includes.
This option works best if you have help on hand and want the lowest delivery cost.
We schedule with you
The carrier calls ahead to set a delivery appointment that works for you.
Your power wheelchair arrives boxed
It comes on the delivery truck in its protective packaging.
Dropped at your curb
The driver brings it to your curb, driveway, or garage entrance.
You take it from there
Moving it inside and unboxing it is up to you or someone helping you.
This option works best if you can manage the power wheelchair once it is indoors but do not want it left outside.
We schedule with you
The carrier calls ahead to set a delivery appointment that works for you.
Your power wheelchair arrives boxed
It comes on the delivery truck in its protective packaging.
Brought through your door
The driver carries it through your front door into the first dry room.
You finish the setup
Unboxing and final placement are up to you from there.
This option works best if you want the power wheelchair ready to use the moment the team leaves, with nothing for you to lift or assemble.
We schedule with you
The carrier calls ahead to set a delivery appointment that works for you.
Carried to your room
A two-person team brings your power wheelchair to the room you choose, on any floor.
Set up and tested
They unbox it, charge the battery, and confirm it powers on and drives correctly.
Packaging removed
They take all the packaging with them when they leave.
Warranty and returns
The Pride Jazzy EVO 614HD is covered by Pride Mobility's own limited warranty, published by Pride Mobility as follows.
| What is covered | How long |
|---|---|
| Frame | 5 years |
| Drivetrain | 13 months |
| Electronics | 13 months |
| Battery | 13 months |
If something goes wrong
Call us first at 1-855-HIELINE. We file the claim with Pride Mobility for you and get the covered part sorted out rather than handing you a phone number.
Returns
This power wheelchair may be returned within 30 days of delivery if it is unused and in the original packaging. Contact us before starting a return. See our return policy for complete details.
This power wheelchair has a 20% restocking fee.
Return shipping to us is yours to arrange, and the shipping we paid to deliver it to you is deducted from your refund along with that fee.
Common questions
Capacity goes from 300 lbs. to 450 lbs., the chair gets wider at 25.4" against 25, and range drops to about 13 miles at full weight against 19 on the standard chair. Everything else, the suspension, the clearance and the 22" turning radius, carries over.
The chair is 25.4" wide. A standard 32" interior door is comfortable. Measure any doorway you are unsure about, and remember you need clearance to steer through, not just to fit.
No. The assembly is 183.5 lbs. before the batteries and it does not fold or come apart for a car trunk. It needs a vehicle lift or a ramp.
Six: Black, White, Cardinal Red, Robin's Egg Blue, Iceberg Blue and Sugar Plum. Choose above and the price is the same for all of them.
Pride states up to 13 miles at the full 450 lbs. Real range depends on your weight, the terrain, the temperature and battery age, so plan on comfortably less than the headline figure.
Five years on the structural frame, and 13 months on the electronics, the drive motors and the batteries. Full terms are in the Warranty tab.
Resources
Videos
See how this power wheelchair compares
Pick another power wheelchair in the same category and see a clear, side by side look at the specs that matter. Every figure on both sides is published by the manufacturer.
Select one.What does this mean?
The shroud is the painted body around the base of the chair. Every color costs the same and none of them changes how the chair drives, so choose the one you prefer.
The seat is black on every color.
Select one.What does this mean?
This is two measurements, and it is the choice worth taking time over.
Width is how wide the seat is across. Sit upright, have someone measure the widest part of your hips, then add about two inches so you are not pressed against the armrests. Round up to the nearest size below.
Depth is how far the seat runs from your back to its front edge. Measure from your back to the back of your knee, take off an inch or two, and aim for a gap of three or four fingers behind your knee. A seat that is too deep presses behind the knee and pushes you into a slouch.
Both sizes cost the same. This is a 450 lbs. chair, so the seats start at 20" wide rather than 16. If your hip measurement plus two inches comes out above 22", call us before you order, because the wider seat on this chair is the widest one it takes.
The seat folds flat, the arms adjust for height and a lap belt is fitted.
If a therapist has measured you, their numbers win over anything here. If nobody has, use the measuring guide on this page.
Select one.What does this mean?
This section sets which armrest the controller sits on.
Put it on the hand you already use. For most people that is the hand they write with. Choose the other side if that hand is out of commission.
The included mount on this chair is a fixed in-line bracket. A swing-away mount swings the controller out to the side, so you can pull all the way up to a dining table, a desk or a work counter without the control box hitting the edge. Raising the armrest does not do the same job, because the chair is harder to control with the armrest up.
The swing-away also moves the controller out of the way when you get in and out. The joystick is a delicate part, and people grab it to push themselves up, which is how it gets broken.
Pick the side after you have picked the hand.
Select one.What does this mean?
This is the armrest the joystick sits on. Most people choose the side of their stronger hand. Both sides cost the same.
Select one.What does this mean?
This section is what your feet rest on.
The standard footrest is an angle adjustable platform that flips up out of your way when you get in and out. It suits you if you transfer sideways or stay seated once you are in the chair.
Swing-away legrests move to the side and lift off. Choose them if you need to get close to a bed to transfer across, or to stand up out of the front of the chair. The two footplate sizes are about shoe size, so take the larger one if you wear a big boot.
Elevating legrests do everything the swing-away pair does and also raise each leg on its own, on a padded calf support. Choose them if you have swelling in your lower legs, or if you have been told to keep a leg raised.
Optional. Tap any add-on to include it in your order.What does this mean?
These are extras that fit onto the power wheelchair, and every one of them is optional. Adding them here means they arrive with it rather than as a separate order later.
Read each card before you add two of them. Some accessories mount in the same place, so only one of those can be fitted at a time.
Select one.What does this mean?
This section is how your order reaches you and how far into your home it comes.
Curbside is the free option. The power wheelchair ships from the manufacturer straight to your address. Allow about two to three days for the order to be processed and shipped, then about five more in transit depending on where you live. No carrier in this trade quotes an exact date, so treat both figures as estimates rather than promises. It is left boxed at the curb, and everything after that is yours.
Read this before you take the free option. A full-size power wheelchair is a two person job. It usually arrives in more than one box, and those boxes usually will not fit through a standard 32 inch doorway, so they have to be opened in the garage or outside and the power wheelchair driven in once it is built. The setup is the hard part. It is not beyond anyone, and it is far easier the second time than the first.
If you have not done one before, take an upgrade.
Inside delivery means we bring it just inside your front door or into the garage, still in its packaging. It saves you the carry and leaves you the setup.
White glove takes a different route. It does not come to your address first. It ships to the delivery technician nearest you, and once it arrives there the technician calls you and books a time that suits you, then brings it into your home, sets it up in the room you choose, checks it for shipping damage and takes all the packaging away. That extra leg adds a few days, and the date is settled between you and the technician, so we cannot give you one up front.
Most people buying a full-size power wheelchair take white glove, and on this one we think that is the right call.
Included.What does this mean?
This section covers what the manufacturer warrants and for how long.
There is nothing to buy here. The full terms are in the Warranty tab further up this page.
