Spinergy CLX Carbon Rear Wheels
ManufacturerSpinergy
ModelCLX
$1,471.50MSRP $1,635.00
Starting price
Most items ship in 3 to 7 business days.

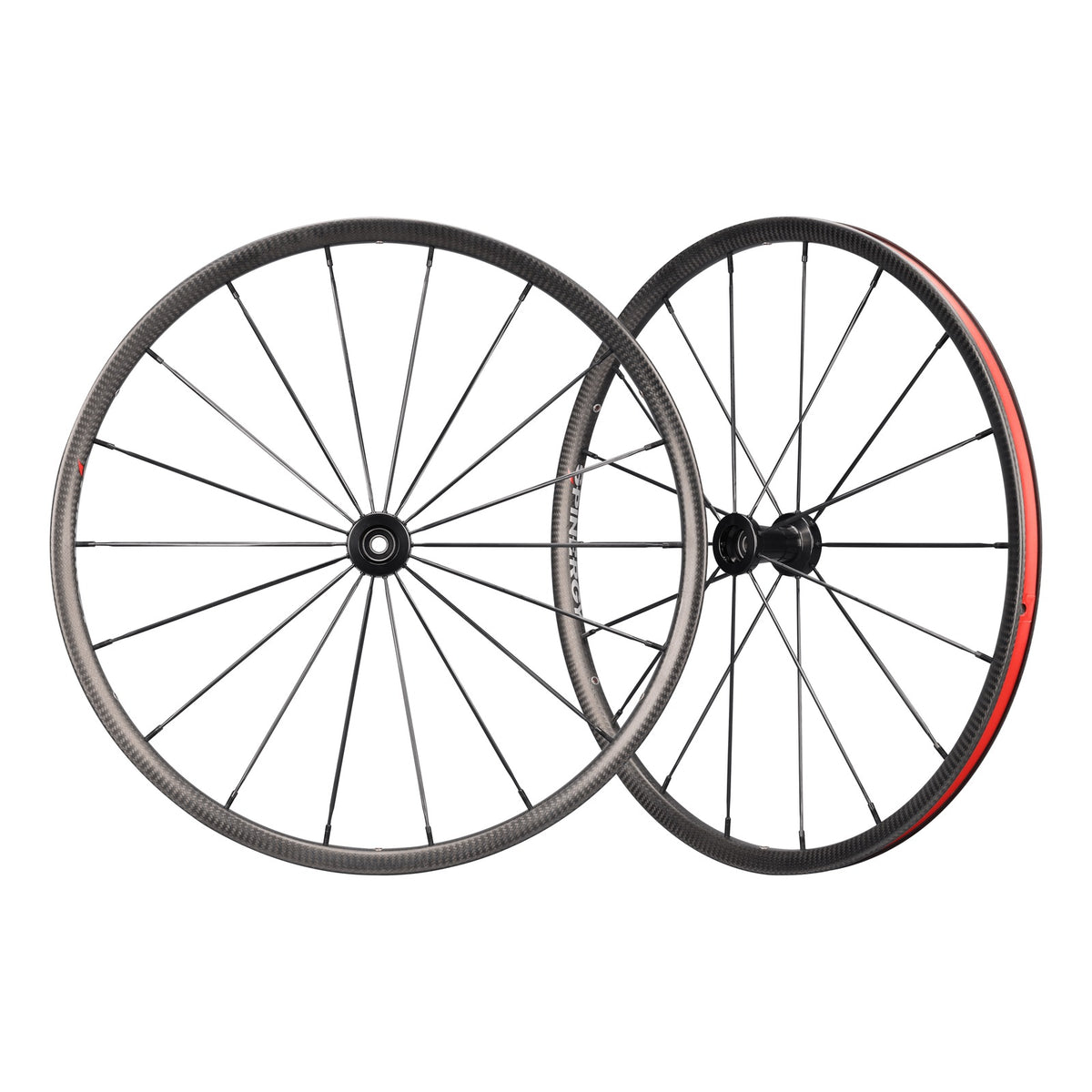

The Spinergy CLX is a carbon fiber wheelchair wheel with 18 bladed PBO fiber spokes. It is sold as a pair of bare wheels in 24" and 25", with a choice of spoke color.
The CLX is Spinergy's carbon fiber wheel, 530 g for a 24" wheel, with 18 bladed PBO fiber spokes. It is sold as a pair in 24" and 25" and nine spoke colors.
Built for real life
What stands out
●
Carbon fiber rim
The rim is carbon fiber over a foam core, in place of aluminum.
●
530 g per wheel
Spinergy gives one 24" CLX wheel as 530 g.
●
Bladed spokes
The 18 PBO fiber spokes are flat in place of round.
●
Rivnut handrim mounts
Handrims bolt to threaded inserts set in the rim.
●
Nine spoke colors
Black, blue, red, yellow, white, orange, green, pink or purple, each with a black hub.
●
Two sizes
24" and 25".
The Hieline Take
The CLX is the Spinergy with a carbon fiber rim, and the rim is where both the weight and the price come from. Spinergy gives a 24" wheel as 530 g, under the 568 g of the Blade LXL, and like that wheel it has flat bladed spokes and a small black hub. It costs about half as much again as the Blade LXL for that difference, so it is a wheel for someone who lifts the chair or the wheels often enough to feel 40 g a side. The limits are plain on the list: two sizes, one hub, 1/2" bearings. Handrims bolt to rivnuts set in the carbon rim. Spinergy does not publish the bearing spacing of this hub, so measure the hub you have now and ask us before you order, because wheels cannot be returned. The wheels arrive bare, so handrims, tires, tubes and axles are separate.
Straight talk
Is it right for you?
A good fit if you
lift your chair or your wheels often
want a carbon fiber rim
use a 24" or 25" wheel on a 1/2" axle
Look elsewhere if you
need a 22" or 26" wheel
need an X2 hub or 12mm bearings
have not measured the hub on your chair
Specifications
ManufacturerSpinergy
ModelCLX
TypeEveryday rear wheel, sold as a pair
Sizes24" (540) and 25" (559)
RimCarbon fiber with a foam core. Handrims mount on rivnuts.
Spokes18 per wheel, PBO fiber, 3mm bladed, radial laced
Part numbersCLX.24.18 and CLX.25.18, followed by the spoke color code
Warranty1 year
Selected option
Manufacturer modelCLX
Size and fit
Every size is listed here for reference. Choose your size in Build & Buy above.
Size
Spoke color
Model
Price
24" (540)
Black
CLX.24.18.111
$1,471.50
24" (540)
Blue
CLX.24.18.122
$1,471.50
24" (540)
Red
CLX.24.18.133
$1,471.50
24" (540)
Yellow
CLX.24.18.144
$1,471.50
24" (540)
White
CLX.24.18.155
$1,471.50
24" (540)
Orange
CLX.24.18.166
$1,471.50
24" (540)
Green
CLX.24.18.177
$1,471.50
24" (540)
Pink
CLX.24.18.188
$1,471.50
24" (540)
Purple
CLX.24.18.211
$1,471.50
25" (559)
Black
CLX.25.18.111
$1,471.50
25" (559)
Blue
CLX.25.18.122
$1,471.50
25" (559)
Red
CLX.25.18.133
$1,471.50
25" (559)
Yellow
CLX.25.18.144
$1,471.50
25" (559)
White
CLX.25.18.155
$1,471.50
25" (559)
Orange
CLX.25.18.166
$1,471.50
25" (559)
Green
CLX.25.18.177
$1,471.50
25" (559)
Pink
CLX.25.18.188
$1,471.50
25" (559)
Purple
CLX.25.18.211
$1,471.50
The Spinergy CLX Carbon Rear Wheels is covered by Spinergy's own limited warranty. The coverage we have on record is below.
Wheels1 year from the date of purchase against defects in materials and workmanship, for the original owner, with proof of purchase
What Spinergy doesRepairs or replaces the defective part. The owner pays labor and shipping.
Not coveredNormal wear such as bearings, crashes, misuse, improper assembly, and sports such as basketball, quad rugby and tennis
Age limitNo warranty on a wheel bought 4 or more years after it was made
This product cannot be returned
Wheels cannot be returned. Check the size, the hub and the spoke color on this page before you order. If they arrive damaged or defective, tell us within 48 hours of delivery and we will get them repaired or replaced at no cost to you.
If something goes wrong
Call us first at 1-855-HIELINE. We file the claim with Spinergy for you and get the covered part sorted out rather than handing you a phone number.
Is the price for one wheel or for a pair?
For a pair. One unit in the cart is two wheels.
What comes in the box?
Two wheels with their hubs and bearings. Handrims, tires, tubes and axles are not included.
Which hub does the CLX have?
One hub with 1/2" bearings, in black. Spinergy does not publish its bearing spacing and its hub chart does not list the CLX. Measure the hub on the wheel you have now, from the outside of one bearing to the outside of the other, and ask us before you order.
Which size do I need?
The size on your chair now. Read the number on the tire sidewall: 540 is a 24" wheel and 559 is a 25" wheel.
Which axle length do I need?
Axles are not included, and you can add a pair under "Add axles" on this page. The length depends on your chair. Spinergy's axle chart gives these lengths for the CLX. 4.00": Aria, Colours, GTM, Hands On Concepts, Ki Mobility, Kuschall, Lasher, Melrose, Panthera, Reckless, TiLite, Vesco, newer P4X chairs and the RGK Octane Sub 4 and Tiga. 4.25": Kinesis, Levo, Lifestand, Miki, Mogo, Motion Composites, Quickie, Roma and older P4X chairs. 4.50": Box, Brand New Wheelchair, Invacare and Top End. 4.75": the other RGK chairs. A Ki chair with height adjustable armrests takes 0.25" more, except the Ethos, which takes 3.75". A Quickie more than 10 years old takes 0.25" less. If your chair is not on the chart, the length depends on two things: the length of the axle receiver in your camber tube, and the distance from the outside of one hub bearing to the outside of the other. Measure both and you have the axle length.
Which tires fit?
A wheelchair tire in the matching size. Read the size on the sidewall of the tire you have now and order the same one.
Why fiber spokes and not steel?
Spinergy rates its PBO fiber at three times the strength of steel and half the weight, and the fiber absorbs 25% more shock and vibration than a steel spoke.
How do handrims mount on a carbon rim?
On rivnuts. They are threaded inserts set in the rim, and the handrim bolts to them. Handrims are not included.
What maintenance do the wheels need?
Keep them clean. Now and then take the wheels off the chair, pull the axle and wipe the bearings, the hub and the axle with a dry rag. The bearings are sealed and need no grease. Check that the spokes are tight, the rim is undamaged and the tires hold their pressure.
What is the warranty?
Spinergy warrants the wheels for 1 year from the date of purchase against defects in materials and workmanship, for the original owner. Keep your receipt. Bearing wear, crash damage and sports such as basketball, quad rugby and tennis are not covered.
Can I return them?
No. Wheels cannot be returned, so check the size, the hub and the spoke color before you order. If they arrive damaged or defective, tell us within 48 hours of delivery.
Is Hieline an authorized Spinergy dealer?
Yes. Hieline is a Spinergy dealer and orders these wheels directly from Spinergy, which makes them.
