Spinergy XSLX Rear Wheels
$1,062.00
Starting price
Most items ship in 3 to 7 business days.

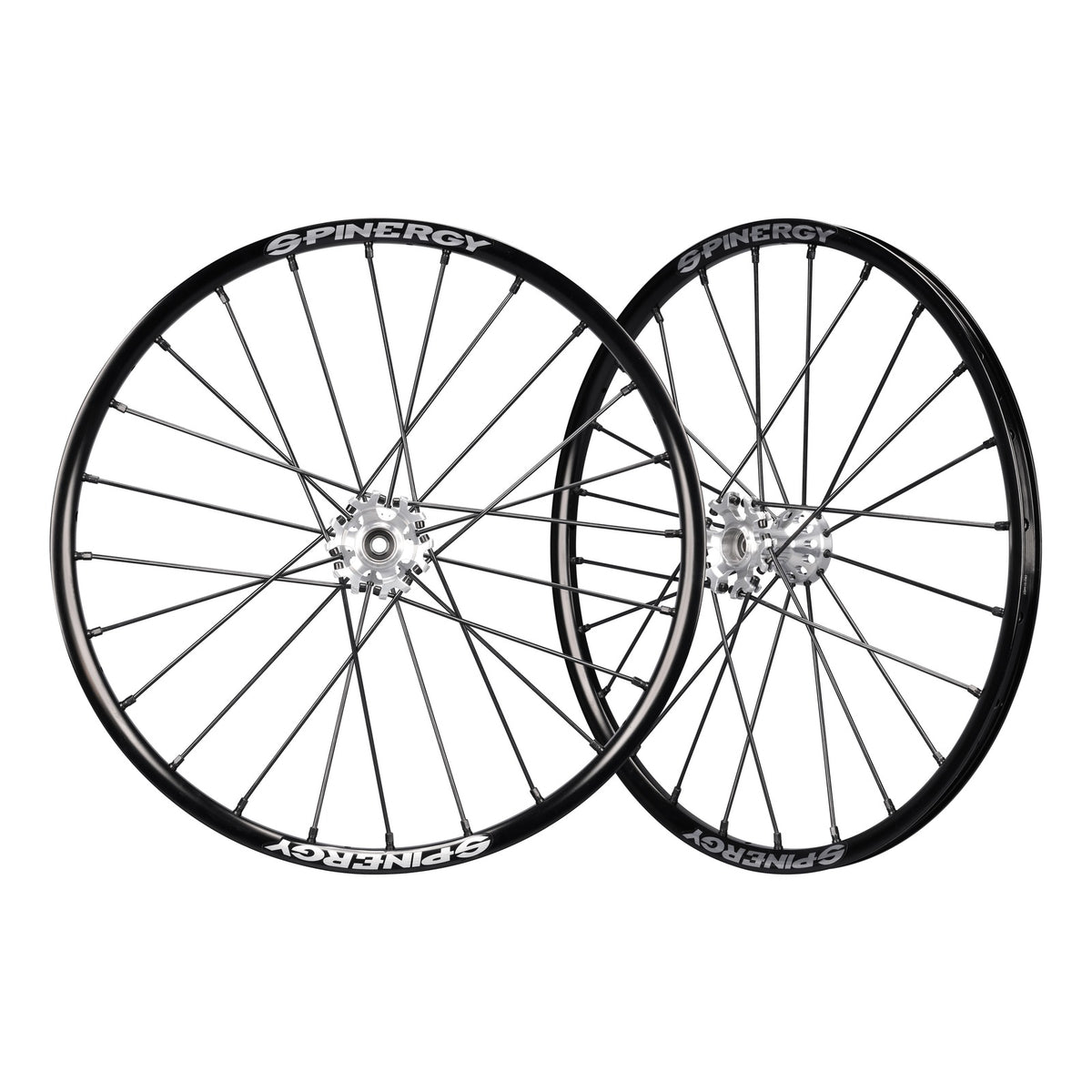

The Spinergy XSLX is a sport wheelchair wheel with 24 cross-laced PBO fiber spokes of 4mm. It is sold as a pair of bare wheels in 24", 25", 26" and 700c, with a choice of spoke color.
Fits
1/2" axle sport chairs
Size
24", 25", 26" or 700c
Spokes
24 PBO spokes, crossed
Sold
Pair, wheels only
Overview
Twenty-four 4mm spokes, cross laced for impact
The XSLX is the cross-laced SLX 24, with 24 PBO fiber spokes of 4mm. The outside spokes cross at the hub. It is sold as a pair in 24", 25", 26" and 700c and nine spoke colors.
Built for real life
What stands out
●
Cross-laced spokes
The outside spokes cross at the hub, which adds torsional strength and stiffness. The inside spokes are radial.
●
24 spokes of 4mm
Each wheel has 24 spokes of PBO fiber in Spinergy's thick 4mm size.
●
For impact sport
Spinergy names WCMX and other high-intensity sports for this wheel.
●
Sport hub
The hub measures 2.3" between the bearings and takes a 1/2" axle.
●
Four sizes
24", 25", 26" and 700c.
●
Nine spoke colors
Black, blue, red, yellow, white, orange, green, pink or purple. Black spokes come with a silver hub or a black one.
The Hieline Take
The XSLX takes the SLX 24 and crosses its outside spokes at the hub. It has 24 spokes at 4mm, which Spinergy gives as its maximum fiber spoke count and size, and the crossing adds torsional strength and stiffness on top. Spinergy points it at WCMX and other sports with hard landings and chair to chair hits. It takes a 1/2" axle, and the same wheel for a 5/8" axle is the XSLX R10. Black spokes come with a silver hub or a black one. One thing to know before you buy a wheel for sport: Spinergy's written warranty names basketball, quad rugby, tennis and similar sports as misuse and does not cover damage from them, and it makes no exception for its sport wheels. Read that against what you plan to do with the wheels. They arrive bare, so handrims, tires, tubes and axles are separate. Measure the axle on your chair before you order, because wheels cannot be returned.
Straight talk
Is it right for you?
A good fit if you
- ride WCMX or play a sport with hard impacts
- want Spinergy's 24 spoke, 4mm, cross-laced wheel
- have a sport chair with a 1/2" axle
Look elsewhere if you
- have a 5/8" axle
- need 12mm bearings
- expect the warranty to cover damage from sport
Specifications
ManufacturerSpinergy
ModelXSLX
TypeSport rear wheel, sold as a pair
Sizes24" (540), 25" (559), 26" (590) and 700c (622)
Spokes24 per wheel, PBO fiber, 4mm round. The outside spokes are cross laced and the inside spokes are radial.
Wheel weight757 g per wheel
HubSport hub, 2.3" bearing spacing
BearingsStainless steel, sealed, 1/2"
Hub colorSilver or black with black spokes, black with every other spoke color
Spoke colorsBlack, blue, red, yellow, white, orange, green, pink and purple
TiresWheelchair tires in the matching size
IncludedTwo wheels with hubs and bearings
Not includedHandrims, tires, tubes and axles
Sport chairs with 1/2" axlesSpinergy lists Alphamix, Bromakin, DaVinci, Matsunaga, Miki, Panthera, Wolturnus, Colours, Jumper Equipment, Quickie, Meyra, Off Carr, Draft, Eagle, Invacare, Top End, Melrose, Roma Medical, Box, Per4Max, RGK and Otto Bock
Part numbersXSLX.24.24, XSLX.25.24, XSLX.26.24 and XSLX.700.24, followed by the spoke color code
Warranty1 year
Selected option
Manufacturer modelXSLX
Size and fit
Every size is listed here for reference. Choose your size in Build & Buy above.
| Size | Spoke color | Model | Price |
|---|---|---|---|
| 24" (540) | Black with silver hub | XSLX.24.24.111 | $1,062.00 |
| 24" (540) | Blue | XSLX.24.24.122 | $1,062.00 |
| 24" (540) | Red | XSLX.24.24.133 | $1,062.00 |
| 24" (540) | Yellow | XSLX.24.24.144 | $1,062.00 |
| 24" (540) | White | XSLX.24.24.155 | $1,062.00 |
| 24" (540) | Orange | XSLX.24.24.166 | $1,062.00 |
| 24" (540) | Green | XSLX.24.24.177 | $1,062.00 |
| 24" (540) | Pink | XSLX.24.24.188 | $1,062.00 |
| 24" (540) | Purple | XSLX.24.24.211 | $1,062.00 |
| 24" (540) | Black with black hub | XSLX.24.24.111B | $1,062.00 |
| 25" (559) | Black with silver hub | XSLX.25.24.111 | $1,062.00 |
| 25" (559) | Blue | XSLX.25.24.122 | $1,062.00 |
| 25" (559) | Red | XSLX.25.24.133 | $1,062.00 |
| 25" (559) | Yellow | XSLX.25.24.144 | $1,062.00 |
| 25" (559) | White | XSLX.25.24.155 | $1,062.00 |
| 25" (559) | Orange | XSLX.25.24.166 | $1,062.00 |
| 25" (559) | Green | XSLX.25.24.177 | $1,062.00 |
| 25" (559) | Pink | XSLX.25.24.188 | $1,062.00 |
| 25" (559) | Purple | XSLX.25.24.211 | $1,062.00 |
| 25" (559) | Black with black hub | XSLX.25.24.111B | $1,062.00 |
| 26" (590) | Black with silver hub | XSLX.26.24.111 | $1,062.00 |
| 26" (590) | Blue | XSLX.26.24.122 | $1,062.00 |
| 26" (590) | Red | XSLX.26.24.133 | $1,062.00 |
| 26" (590) | Yellow | XSLX.26.24.144 | $1,062.00 |
| 26" (590) | White | XSLX.26.24.155 | $1,062.00 |
| 26" (590) | Orange | XSLX.26.24.166 | $1,062.00 |
| 26" (590) | Green | XSLX.26.24.177 | $1,062.00 |
| 26" (590) | Pink | XSLX.26.24.188 | $1,062.00 |
| 26" (590) | Purple | XSLX.26.24.211 | $1,062.00 |
| 26" (590) | Black with black hub | XSLX.26.24.111B | $1,062.00 |
| 700c (622) | Black with silver hub | XSLX.700.24.111 | $1,062.00 |
| 700c (622) | Blue | XSLX.700.24.122 | $1,062.00 |
| 700c (622) | Red | XSLX.700.24.133 | $1,062.00 |
| 700c (622) | Yellow | XSLX.700.24.144 | $1,062.00 |
| 700c (622) | White | XSLX.700.24.155 | $1,062.00 |
| 700c (622) | Orange | XSLX.700.24.166 | $1,062.00 |
| 700c (622) | Green | XSLX.700.24.177 | $1,062.00 |
| 700c (622) | Pink | XSLX.700.24.188 | $1,062.00 |
| 700c (622) | Purple | XSLX.700.24.211 | $1,062.00 |
| 700c (622) | Black with black hub | XSLX.700.24.111B | $1,062.00 |
The Spinergy XSLX Rear Wheels is covered by Spinergy's own limited warranty. The coverage we have on record is below.
Wheels1 year from the date of purchase against defects in materials and workmanship, for the original owner, with proof of purchase
What Spinergy doesRepairs or replaces the defective part. The owner pays labor and shipping.
Not coveredNormal wear such as bearings, crashes, misuse and improper assembly. Spinergy's written warranty also lists basketball, quad rugby, tennis and similar sports as misuse, and it makes no exception for a sport wheel.
Age limitNo warranty on a wheel bought 4 or more years after it was made
This product cannot be returned
Wheels cannot be returned. Check the size, the hub and the spoke color on this page before you order. If they arrive damaged or defective, tell us within 48 hours of delivery and we will get them repaired or replaced at no cost to you.
If something goes wrong
Call us first at 1-855-HIELINE. We file the claim with Spinergy for you and get the covered part sorted out rather than handing you a phone number.
Is the price for one wheel or for a pair?
For a pair. One unit in the cart is two wheels.
What comes in the box?
Two wheels with their hubs and bearings. Handrims, tires, tubes and axles are not included.
Which hub does it have, and will it fit my sport chair?
Every Spinergy sport hub measures 2.3" from the outside of one bearing to the outside of the other. What differs is the axle. This wheel takes the axle size shown on this page, and Spinergy's list of sport chair makes for that axle is in the specifications. Measure the axle on your chair before you order, because wheels cannot be returned.
Which size do I need?
The size on your chair now. Read the number on the tire sidewall: 540 is a 24" wheel, 559 is a 25" wheel, 590 is a 26" wheel and 622 is a 700c wheel.
Which axle length do I need?
Axles are not included, and you can add a pair under "Add axles" on this page. The length depends on your chair. Spinergy's axle chart gives these lengths for the XSLX. 4.25": Aria, Colours, GTM, Hands On Concepts, Ki Mobility, Kuschall, Melrose, Panthera, Reckless, TiLite, Vesco, P4X and the RGK Octane Sub 4 and Tiga. 4.50": Levo, Lifestand, Miki, Mogo, Motion Composites, Quickie and Roma. 4.75": Box, Brand New Wheelchair, Invacare, Top End and Lasher. 5.00": Kinesis. For the other RGK chairs the chart gives 4.75" or 5.12", so ask us before you order. Spinergy's price list has no 1/2" axle in 5.00", so that length is not offered on this page. A Ki chair with height adjustable armrests takes 0.25" more, except the Ethos, which takes 3.75". A Quickie more than 10 years old takes 0.25" less. If your chair is not on the chart, the length depends on two things: the length of the axle receiver in your camber tube, and the distance from the outside of one hub bearing to the outside of the other. Measure both and you have the axle length.
Which tires fit?
A wheelchair tire in the matching size. Read the size on the sidewall of the tire you have now and order the same one.
Does the warranty cover use in sports?
Spinergy's written warranty covers defects in materials and workmanship for 1 year. It names basketball, quad rugby, tennis and similar sports as misuse and does not cover damage from them, and it makes no exception for a sport wheel. Crash and impact damage is not covered on any wheel.
Why fiber spokes and not steel?
Spinergy rates its PBO fiber at three times the strength of steel and half the weight, and the fiber absorbs 25% more shock and vibration than a steel spoke.
How is it different from the SLX 24?
The lacing. On the XSLX the outside spokes cross at the hub, which adds torsional stiffness. The SLX 24 is radial, and it also comes with 12mm bearings.
Why do the photographs of black spokes show a silver hub?
Spinergy photographs the XSLX with black spokes on its silver hub only. The black hub you get with "Black with black hub" is the hub shown in the photographs of the colored spokes.
What maintenance do the wheels need?
Keep them clean. Now and then take the wheels off the chair, pull the axle and wipe the bearings, the hub and the axle with a dry rag. The bearings are sealed and need no grease. Check that the spokes are tight, the rim is undamaged and the tires hold their pressure.
What is the warranty?
Spinergy warrants the wheels for 1 year from the date of purchase against defects in materials and workmanship, for the original owner. Keep your receipt. Bearing wear, crash damage and damage from sports are not covered.
Can I return them?
No. Wheels cannot be returned, so check the size, the hub and the spoke color before you order. If they arrive damaged or defective, tell us within 48 hours of delivery.
Is Hieline an authorized Spinergy dealer?
Yes. Hieline is a Spinergy dealer and orders these wheels directly from Spinergy, which makes them.
