EZ-ACCESS SUITCASE Singlefold Ramp
ManufacturerEZ-ACCESS
ModelSUITCASE SF02
$155.00
Starting price
Most items ship in 3 to 7 business days.

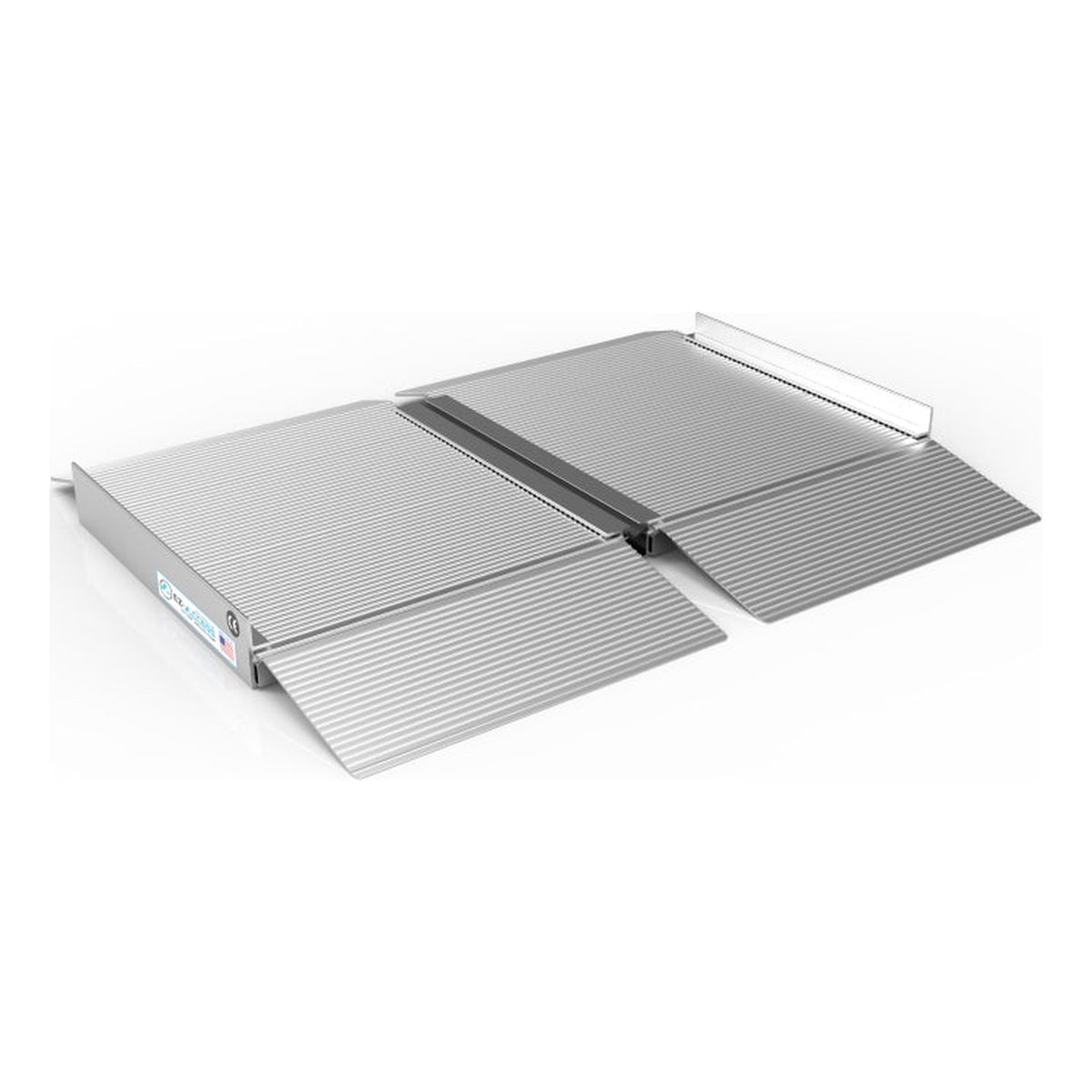

A portable aluminum ramp from EZ-ACCESS that folds in half along its length and carries by a handle. It takes 800 lbs. and gives 30" of usable width, in 2' and 3' lengths.
Aluminum ramp that folds in half along a full-length hinge and carries by its handle. 800 lbs. capacity, 30" usable width, 2' or 3' long.
Built for real life
What stands out
●
Folds once along its length
A continuous hinge runs the full length of the ramp, so it folds to 15" wide and stays in one piece.
●
Carries by a handle
Flexible handles sit on the folded ramp. The 2' weighs 11 lbs. and the 3' weighs 17 lbs.
●
Tread built into the aluminum
The slip-resistant tread is extruded into the deck, so there is no surface to wear off.
●
Self-adjusting bottom plates
Two bottom transition plates settle to the ground on their own for a smooth roll on and off.
The Hieline Take
People pick this ramp when the problem is one curb or one step and the ramp has to come along for the trip. It folds along a single hinge into a flat case with a handle, so the 2' version at 11 lbs. lives in a trunk and comes out at a friend's front step. The tread is part of the aluminum itself, which is why EZ-ACCESS backs it for life. If the step is taller than a curb, look at the length first, because a short ramp over a tall rise is too steep to use.
Straight talk
Is it right for you?
A good fit if you
have a curb or a single step up to about 3" for the 3' ramp
want a ramp that travels in the car and sets up in seconds
use a wheelchair or scooter up to 800 lbs. with its rider
Look elsewhere if you
need to climb two or more steps, which needs a longer ramp
want handrails
need a ramp that separates into two halves (see the SUITCASE Singlefold AS)
Specifications
ManufacturerEZ-ACCESS
RangeSUITCASE
TypePortable singlefold ramp
FoldSinglefold
Model numbersSUITCASE SF02 (2'), SUITCASE SF03 (3')
Lengths2' to 3'
Usable size2' x 30" and 3' x 30"
Folded size24" x 15" x 4" (2'), 36" x 15" x 4" (3')
Ramp weight11 lbs. (2'), 17 lbs. (3')
Weight capacity800 lbs.
EZ-ACCESS usage guideCurbs and 1 step
MaterialAluminum with an extruded slip-resistant tread
WarrantyLifetime limited
Selected option
Manufacturer modelSUITCASE SF02
Size and fit
Every size is listed here for reference. Choose your size in Ready to Buy above.
Length
Model
Price
2'
SUITCASE SF02
$155.00
3'
SUITCASE SF03
$192.40
The EZ-ACCESS SUITCASE Singlefold Ramp is covered by EZ-ACCESS's own limited warranty. The coverage we have on record is below.
WarrantyEZ-ACCESS lifetime limited warranty against defects in material and workmanship, for the original purchaser
What EZ-ACCESS doesRepairs or replaces the defective part at its option, with no charge for parts or labor
Not coveredOrdinary wear and tear, misuse, improper loads, weather damage, and finishes such as powder coat or applied non-skid surface
ReportingA defect must be reported within 30 days of finding it, with proof of purchase
Damaged or defective on arrivalTell us within 48 hours of delivery and we will get it repaired or replaced at no cost to you
The owner's manual is the full warranty
The owner's manual for this product has its own warranty section, and that section is the complete statement of what EZ-ACCESS covers, for how long, and what falls outside the coverage. Read it before you file a claim. If anything on this page differs from the manual, go by the manual.
Ramps cannot be returned. Measure the rise and check the length or height on this page against it before you order. If it arrives damaged or defective, tell us within 48 hours of delivery and we will get it repaired or replaced at no cost to you.
If something goes wrong
Call us first at 1-855-HIELINE. We file the claim with EZ-ACCESS for you and get the covered part sorted out rather than handing you a phone number.
Which length do I need?
Plan on about 1' of ramp for every 1" of rise, which is the ADA's 1:12 slope. EZ-ACCESS notes that a steeper slope can work at home when a helper pushes or the ramp is used unoccupied, and your chair or scooter manual gives the steepest slope it is rated for. Never go steeper than that. EZ-ACCESS rates both the 2' and 3' for curbs and a single step.
How is it held in place?
The fixed top plate has holes for the clevis pins or screws that come with the ramp, so it can be secured to the surface it rests on.
Can two ramps be joined for more length?
No. EZ-ACCESS does not make SUITCASE ramps to connect together.
What is the difference between this and the Singlefold AS?
This ramp has its tread extruded into the aluminum and stays in one piece. The AS has a black applied grit surface and splits into two halves by removing the hinge pins.
Does it work with the Top Lip Extension?
Yes. The SUITCASE Top Lip Extension fits every aluminum SUITCASE ramp and lowers the ramp's capacity to 500 lbs. while it is fitted.
