What comes in the box
This updates as you add options to your order.
- Harmar AL225
- Universal base adapter
- Wired 4-button pendant remote

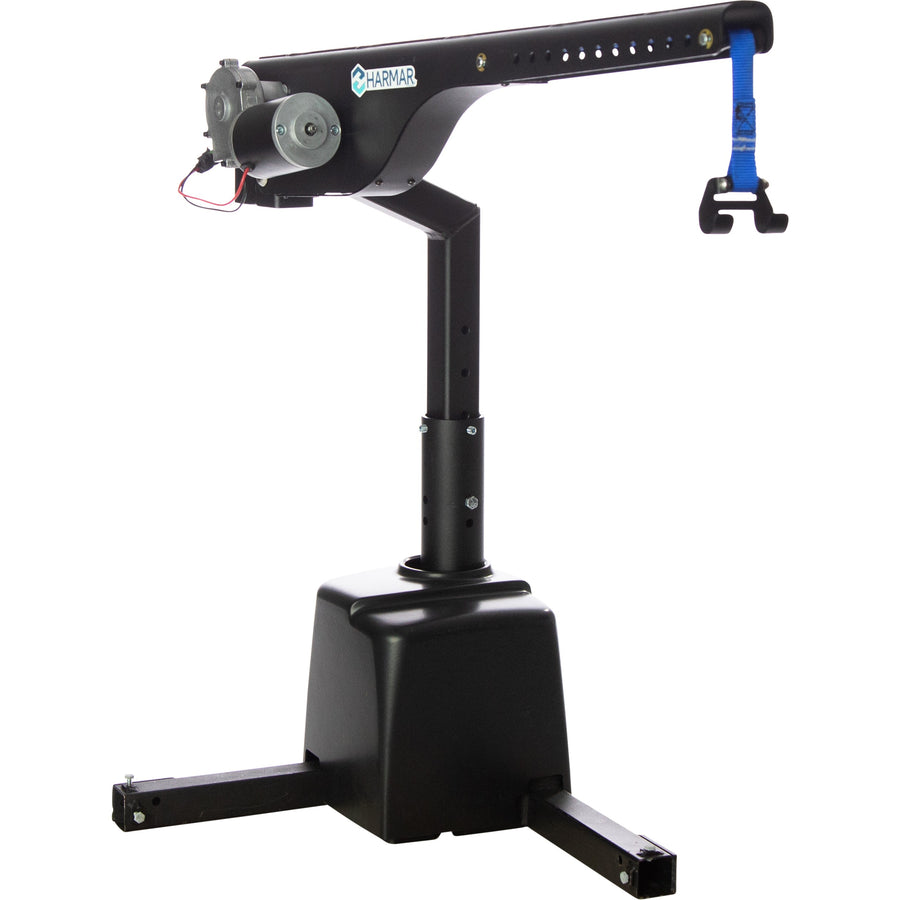

Harmar AL225
The AL225 is a two axis inside hoist lift built for lighter equipment. It lifts and rotates under power from a wired four button pendant remote that comes in the box, it takes a manual wheelchair, a power wheelchair or a scooter up to 250 lbs., and it weighs 55 lbs. installed.
A two axis hoist for lighter chairs and scooters
The AL225 raises a manual wheelchair, a power wheelchair or a scooter weighing up to 250 lbs. into your vehicle. The boom lifts and rotates under power from a wired pendant remote, it weighs 55 lbs. installed, and Harmar puts a universal base adapter in the box.
Built for real life
What stands out
Power lifting and power rotation
The boom raises and swings under power from a wired four button pendant remote, which Harmar includes in the box.
Takes up to 250 lbs. inside the vehicle
It suits a folding manual chair, a travel scooter or a lighter power chair. Heavier equipment needs the AL425 at 400 lbs. or the AL425HD at 450 lbs.
55 lbs. installed, and that weight stays in the vehicle
It puts less weight permanently into the vehicle than the larger hoists, which matters in a smaller car. The AL215 is lighter still at 42 lbs., and it rotates by hand instead of under power.
A universal base adapter comes in the box
The lift bolts to the vehicle floor on a base adapter and Harmar includes the universal one. If your vehicle takes one of the named adapters instead, you can choose it in the step headed Base adapter and it is charged at list price.
A docking device holds your equipment, and it is sold separately
Harmar does not include one, because the right part depends on your chair or scooter. Choose the one that matches your equipment in the step headed Your docking device, or tell us what you have and we match it for you before your order ships.
The AL225 is the inside hoist for lighter equipment, and the 250 lbs. capacity is the number that decides whether it suits you. A folding manual chair, a travel scooter or a lighter power chair are all inside it. Most full size power wheelchairs are not, and that is the honest limit of this lift. What you get for staying inside it is a two axis lift that raises and rotates under power, at 55 lbs. installed, with a wired pendant remote in the box.
Two other things worth knowing before you buy. Harmar does not offer its wireless remote on this model, so the control stays corded. And the docking device that actually grips your chair is not in the box, which is a real second cost, priced on this page so you can see the whole figure before you order.
Look at the AL215 if you are happy to swing the boom across by hand, because it costs a good deal less and weighs 42 lbs. installed. Look at the AL425 if your equipment is heavier than 250 lbs., or the AL435 if you want the boom to extend as well as lift and turn. Look at the AL300 Fusion or the AL500 if you would rather the device rode outside on a platform and kept the cabin free.
Straight talk
Is it right for you?
A good fit if you
- Your wheelchair or scooter weighs 250 lbs. or less
- You want the equipment to travel inside the vehicle rather than outside on a platform
- You want the boom to lift and rotate under power, and 55 lbs. of lift in the vehicle is acceptable
- You drive a van, an SUV or a truck
Look elsewhere if you
- Your equipment weighs more than 250 lbs., which covers most full size power wheelchairs
- You want the device carried outside on a platform behind the vehicle
- You have no room inside the vehicle for the chair or scooter once it is loaded
Specifications
Specifications are the manufacturer's own published figures for this model.
Fitting it to your vehicle
A hoist lift is installed on the vehicle rather than unpacked and used. This is what that involves.
The lift mounts to the floor of the vehicle on a base adapter, and Harmar puts a universal base adapter in the box along with the wired pendant remote. The arm sits between 30" and 40" high and its length adjusts from 21" to 32". The docking device that holds your equipment is not included, because the right part depends on the chair or scooter it has to lift.
Before you order
Work through the steps beside this panel. They settle how the lift mounts, which hitch adapter your vehicle takes and whether your state requires a plate riser, so the parts that arrive are the parts your vehicle takes.
Getting it here
Every order ships from the manufacturer to the address you give us. The carrier arranges a delivery window with you in advance. Installation is arranged separately, and we will point you at what your vehicle needs before you order rather than after.
Warranty and returns
The Harmar AL225 is covered by Harmar's own limited warranty, published by Harmar as follows.
| What is covered | How long |
|---|---|
| Vehicle lift | 3 years |
What is not covered
The three year term runs from the date of installation and from the date of retail purchase. Harmar states that the warranty is transferable only where the application is approved by Harmar's Compatibility Calculator, so a lift fitted to a vehicle that was never checked may not carry a transferable warranty.
If something goes wrong
Call us first at 1-855-HIELINE. We file the claim with Harmar for you and get the covered part sorted out rather than handing you a phone number. The base warranty covers parts, so ask us about service and labor options when you call.
Returns
A hoist lift cannot be returned. It is fitted to your vehicle, wired into it and in many installations drilled into it, so once that work is done the unit is matched to one car and it has no second life on the shelf. This is exactly why the steps beside this panel exist. They settle the mounting, the adapter and the plate riser before you order.
A unit that arrives damaged or faulty is a different matter and is covered above. Contact us before anyone begins the installation.
See our return policy for complete details.
Coverage at a glance
Common questions
The lift, a universal base adapter and a wired four button pendant remote. The docking device that holds your wheelchair or scooter is not in the box, because the right part depends on the equipment it has to lift. You choose that in the step headed Your docking device.
Only if the chair weighs 250 lbs. or less. That covers folding manual chairs, travel scooters and lighter power chairs, and it rules out most full size power wheelchairs. The AL425 takes 400 lbs. and the AL425HD takes 450 lbs., so check the weight of your own equipment first.
Because the lift cannot hold your equipment without one, and Harmar does not put one in the box. If you are replacing an older lift and keeping the device you already have, choose I already have a docking device and nothing is added to your order. If you do not know which one you need, choose I am not sure which one I need, tell us your wheelchair or scooter in the step headed Your vehicle and your equipment, and we match the part for you before your order ships.
The base adapter is the plate the lift bolts to inside the vehicle. Harmar includes the universal one and it suits most vehicles. Seven named adapters are offered for this model, including a seat saver, truck beds, Stow-N-Go seating and particular Ford, Toyota, GMC and Chevrolet vehicles, and they are listed in the step headed Base adapter.
Not if you add the battery pack in the step headed Accessories. It runs the lift from its own battery with its own charger, and use it where a hybrid or electric vehicle has no 12 volt battery able to power a mobility lift.
Not one Harmar will ship with this model. The AL225 comes with a wired four button pendant remote in the box, and Harmar's wireless remote is offered on the larger inside lifts rather than this one. Call us on 1-855-HIELINE if a wireless control matters to you and we will tell you which lift takes it.
55 lbs. installed, and that weight stays in the vehicle permanently, so it matters in a smaller car.
No. A vehicle lift is bolted into your vehicle and wired into it, so it is fitted rather than unpacked and it cannot be sent back. That is why we check the vehicle and the equipment you give us against Harmar's published capacities before anything ships.
Resources
The base adapter is the plate the lift bolts to inside your vehicle. A universal one comes in the box at no charge and it suits most vehicles. Some vehicles need the adapter built for them instead, and where yours does, the part below replaces the universal one rather than adding to it. If you are not sure, leave it on the included part and we confirm it against the vehicle you give us before your order ships.
1 · Base adapter
The docking device is the fitting that grips your wheelchair or scooter so the lift can raise it. The manufacturer does not put one in the box, because the right one depends on your equipment, and the lift cannot carry anything without it. Most chairs and scooters lift either by the centre seat post or by the four post seat frame. Choose the one that matches yours and we confirm the exact part with you before your order ships.
2 · Your docking device
This answer decides how much you have to work out yourself. A hoist lift is wired into the vehicle and bolted to a base inside it, so it is fitted rather than unpacked.
These fit this model. Choose any you want and they are added to your order with the lift.
4 · Accessories
Last thing, and it is the one we act on rather than you. Tell us the vehicle and the scooter or power chair, and we check what you tell us against Harmar's published capacities before your order ships. All of it is optional.
5 · Your vehicle and your equipment
One step could not be settled from your measurements.
Send those three figures to a specialist and they will confirm the part for your vehicle. Call 1-855-HIELINE if you would rather talk it through.
