What comes in the box
This updates as you add options to your order.
- Harmar AL425
- Universal base adapter

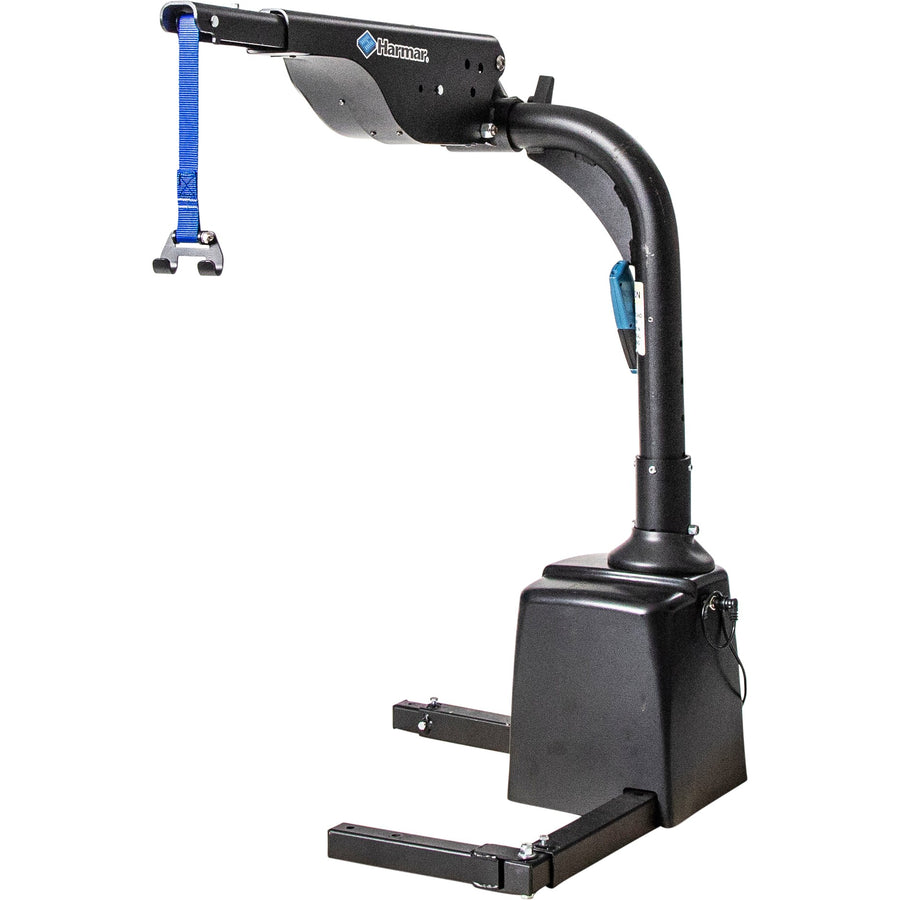

Harmar AL425
The AL425 is a two axis inside hoist lift. It raises a manual wheelchair, a power wheelchair or a scooter weighing up to 400 lbs. and swings it into the vehicle, both under power from a hand control. It weighs 66 lbs. installed, it can be fitted on either the driver side or the passenger side, and Harmar puts a universal base adapter in the box.
A hoist that loads your chair or scooter inside the vehicle
The AL425 raises a manual wheelchair, a power wheelchair or a scooter weighing up to 400 lbs. into your vehicle under power. It lifts and it rotates from a hand control, the offset post lets you unload at the side of the vehicle, and it needs only 30" of headroom to work.
Built for real life
What stands out
Power lifting and power rotation
The boom raises and swings under power from a weather-resistant hand control, so neither the lift nor the turn is done by hand. A wireless key fob is available and it is listed in the step headed Accessories.
Takes up to 400 lbs. inside the vehicle
It lifts a manual wheelchair, a power wheelchair or a scooter and places it inside, so your equipment travels in the vehicle rather than on a platform behind it.
The offset post unloads at the side
Harmar sets the post off to one side, so the mobility device can be unloaded at the side of the vehicle rather than directly behind it. The lift can be fitted on either the driver side or the passenger side.
A universal base adapter comes in the box
The lift bolts to the vehicle floor on a base adapter and Harmar includes the universal one. If your vehicle takes one of the named adapters instead, you can choose it in the step headed Base adapter and it is charged at list price.
A docking device holds your equipment, and it is sold separately
Harmar does not include one, because the right part depends on your chair or scooter. Choose the one that matches your equipment in the step headed Your docking device, or tell us what you have and we match it for you before your order ships.
The AL425 is the lift to look at when you want the wheelchair or scooter to travel inside the vehicle and you do not want to do any of the lifting yourself. Both movements are powered, the raise and the swing, which is what separates it from the smaller hoists where you turn the boom by hand. It takes 400 lbs., which covers most power wheelchairs rather than just a folding chair or a travel scooter, and the offset post means the equipment comes off at the side of the vehicle instead of directly behind it. Harmar puts a universal base adapter in the box, so most vehicles need nothing extra to mount it.
There are three honest caveats. It needs 30" of headroom at the point where the equipment goes in, so measure that before anything else. The docking device that actually grips your chair is not in the box and it is a real second cost, priced on this page so you can see the whole figure before you order. And the equipment takes up room inside the vehicle once it is loaded, which is the trade you are making for keeping the back of the car clear.
Look at the AL300 Fusion or the AL500 instead if you would rather the device rode outside on a platform, because those keep the cabin free. Look elsewhere entirely if your equipment weighs more than 400 lbs.
Straight talk
Is it right for you?
A good fit if you
- You want the wheelchair or scooter to travel inside the vehicle rather than outside on a platform
- Your equipment weighs 400 lbs. or less
- You have at least 30" of headroom in the vehicle at the loading point
- You want the lift to do the lifting and the turning, rather than swinging a boom by hand
- You drive a van, an SUV or a truck
Look elsewhere if you
- Your equipment weighs more than 400 lbs.
- You want the device carried outside on a platform behind the vehicle
- You have less than 30" of headroom at the point where the equipment is loaded
- You have no room inside the vehicle for the chair or scooter once it is loaded
Specifications
Specifications are the manufacturer's own published figures for this model.
Fitting it to your vehicle
A hoist lift is installed on the vehicle rather than unpacked and used. This is what that involves.
The lift mounts to the floor of the vehicle on a base adapter, and Harmar puts a universal base adapter in the box. It can be installed on either the driver side or the passenger side, and it needs 30" of headroom at the loading point to work. The docking device that holds your equipment is not included, because the right part depends on the chair or scooter it has to lift.
Before you order
Work through the steps beside this panel. They settle how the lift mounts, which hitch adapter your vehicle takes and whether your state requires a plate riser, so the parts that arrive are the parts your vehicle takes.
Getting it here
Every order ships from the manufacturer to the address you give us. The carrier arranges a delivery window with you in advance. Installation is arranged separately, and we will point you at what your vehicle needs before you order rather than after.
Warranty and returns
The Harmar AL425 is covered by Harmar's own limited warranty, published by Harmar as follows.
| What is covered | How long |
|---|---|
| Vehicle lift | 3 years |
What is not covered
The three year term runs from the date of installation and from the date of retail purchase. Harmar states that the warranty is transferable only where the application is approved by Harmar's Compatibility Calculator, so a lift fitted to a vehicle that was never checked may not carry a transferable warranty.
If something goes wrong
Call us first at 1-855-HIELINE. We file the claim with Harmar for you and get the covered part sorted out rather than handing you a phone number. The base warranty covers parts, so ask us about service and labor options when you call.
Returns
A hoist lift cannot be returned. It is fitted to your vehicle, wired into it and in many installations drilled into it, so once that work is done the unit is matched to one car and it has no second life on the shelf. This is exactly why the steps beside this panel exist. They settle the mounting, the adapter and the plate riser before you order.
A unit that arrives damaged or faulty is a different matter and is covered above. Contact us before anyone begins the installation.
See our return policy for complete details.
Coverage at a glance
Common questions
The lift and a universal base adapter, which is the plate it bolts to inside your vehicle. The docking device that holds your wheelchair or scooter is not in the box, because the right part depends on the equipment it has to lift. You choose that in the step headed Your docking device.
Because the lift cannot hold your equipment without one, and Harmar does not put one in the box. If you are replacing an older lift and keeping the device you already have, choose I already have a docking device and nothing is added to your order. If you do not know which one you need, choose I am not sure which one I need, tell us your wheelchair or scooter in the last step, and we match the part for you before your order ships.
The base adapter is the plate the lift bolts to inside the vehicle. Harmar includes the universal one and it suits most vehicles. Some vehicles take a named adapter instead, and those are listed in the step headed Base adapter. A named adapter replaces the universal one and is charged at list price.
You need 30" of headroom at the point where the equipment is loaded. The lift itself is 66 lbs. installed and its length adjusts from 23.5" to 33.5", with the arm between 30" and 41" high.
Either. Harmar builds it to be installed on both sides, and the post is offset so the wheelchair or scooter can be unloaded at the side of the vehicle rather than directly behind it.
Not if you add the battery pack in the step headed Accessories. It runs the lift from its own battery with its own charger, and use it where a hybrid or electric vehicle has no 12 volt battery able to power a mobility lift.
The boom lifts and rotates under power from a weather-resistant hand control. If you would rather not be tethered to the vehicle by a cord, the wireless remote is in the step headed Accessories.
No. A vehicle lift is bolted into your vehicle and wired into it, so it is fitted rather than unpacked and it cannot be sent back. That is why we check the vehicle and the equipment you give us against Harmar's published capacities before anything ships.
Resources
The base adapter is the plate the lift bolts to inside your vehicle. A universal one comes in the box at no charge and it suits most vehicles. Some vehicles need the adapter built for them instead, and where yours does, the part below replaces the universal one rather than adding to it. If you are not sure, leave it on the included part and we confirm it against the vehicle you give us before your order ships.
1 · Base adapter
The docking device is the fitting that grips your wheelchair or scooter so the lift can raise it. The manufacturer does not put one in the box, because the right one depends on your equipment, and the lift cannot carry anything without it. Most chairs and scooters lift either by the centre seat post or by the four post seat frame. Choose the one that matches yours and we confirm the exact part with you before your order ships.
2 · Your docking device
This answer decides how much you have to work out yourself. A hoist lift is wired into the vehicle and bolted to a base inside it, so it is fitted rather than unpacked.
These fit this model. Choose any you want and they are added to your order with the lift.
4 · Accessories
Last thing, and it is the one we act on rather than you. Tell us the vehicle and the scooter or power chair, and we check what you tell us against Harmar's published capacities before your order ships. All of it is optional.
5 · Your vehicle and your equipment
One step could not be settled from your measurements.
Send those three figures to a specialist and they will confirm the part for your vehicle. Call 1-855-HIELINE if you would rather talk it through.
