What comes in the box
This updates as you add options to your order.
- Harmar AL435T Tailgater
- Folding arm
- Universal base adapter

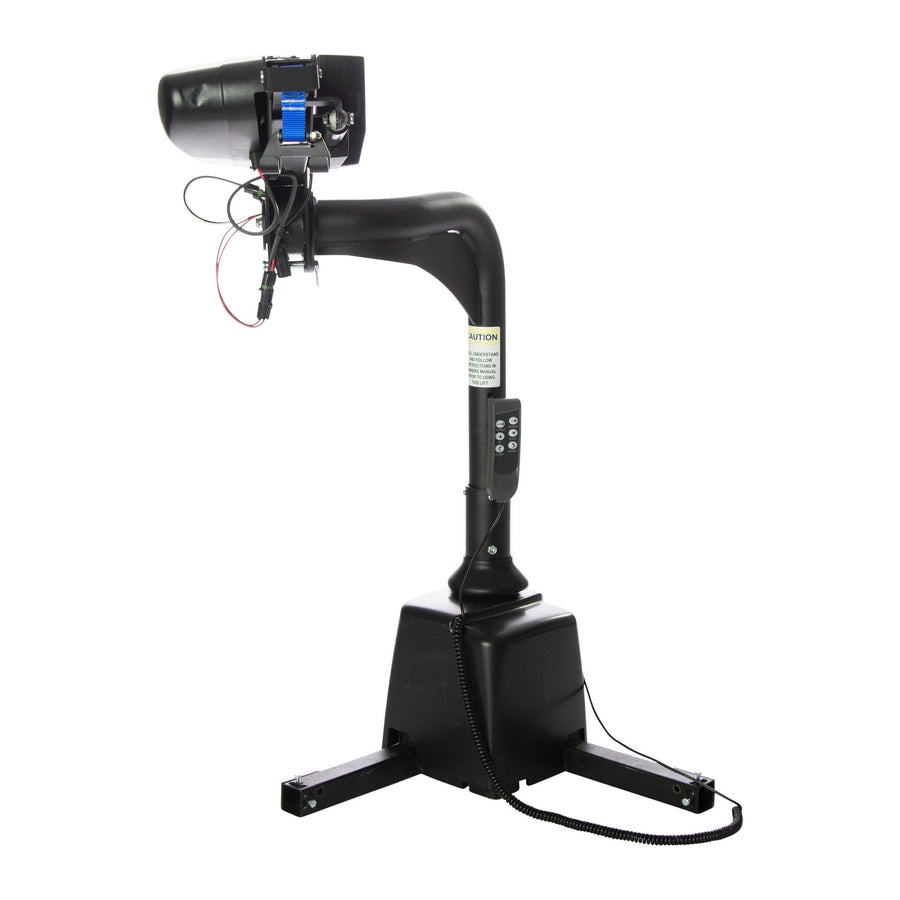

Harmar AL435T Tailgater
The AL435T Tailgater is a three axis truck lift. It lifts, it extends and it rotates, all under power from a hand control, which is what lets it reach down to the curb or across a tailgate. It takes a manual wheelchair, a power wheelchair or a scooter up to 400 lbs., it weighs 81 lbs. installed, and Harmar puts a folding arm and a universal base adapter in the box.
A three axis truck lift that reaches over the tailgate
The AL435T raises a manual wheelchair, a power wheelchair or a scooter weighing up to 400 lbs. into a pickup bed. It is Harmar's three axis lift, so the boom extends under power as well as lifting and turning, and it reaches 43" to the curb or over a 24" tailgate. A folding arm and a universal base adapter come in the box.
Built for real life
What stands out
Three powered movements
The boom lifts, extends and rotates from a weather-resistant hand control. The powered extension is what lets the arm reach 43" down to the curb or across a 24" tailgate, then draw back in to stow.
Takes up to 400 lbs. into the truck bed
It lifts a manual wheelchair, a power wheelchair or a scooter and places it in the bed, so your equipment travels with the truck rather than on a platform behind it.
A folding arm comes in the box
Harmar includes the folding arm, so the boom folds down out of the way when the lift is not carrying anything.
A universal base adapter comes in the box
The lift bolts into the truck bed on a base adapter and Harmar includes the universal one. If your vehicle takes one of the named adapters instead, you can choose it in the step headed Base adapter and it is charged at list price.
A docking device holds your equipment, and it is sold separately
Harmar does not include one, because the right part depends on your chair or scooter. Choose the one that matches your equipment in the step headed Your docking device, or tell us what you have and we match it for you before your order ships.
The AL435T is the lift to look at when you drive a pickup and you want the wheelchair or scooter travelling in the bed. Harmar designed it around the tailgate problem. The boom lifts, turns and extends under power, so it reaches 43" down to the curb to collect the device and then across a 24" tailgate to set it down, and it folds out of the way when the bed is doing its ordinary job.
Three honest caveats. Harmar builds it for passenger side installation, so a driver side fit is a conversation to have before you order rather than after, and a vehicle lift cannot be sent back. It carries 400 lbs., which covers most scooters and a great many power wheelchairs and stops short of the heaviest ones. And the docking device that grips your chair is a real second cost that Harmar does not include, priced on this page so you can see the whole figure before you order.
Look at the AL435 instead if you drive a van or an SUV, because it is the same three axis lift built to load inside a vehicle rather than over a tailgate. Look at the AL425HD if your power wheelchair weighs more than 400 lbs., because it takes 450 lbs.
Straight talk
Is it right for you?
A good fit if you
- You drive a pickup and want the wheelchair or scooter to travel in the bed
- Your equipment weighs 400 lbs. or less
- You need the boom to reach down to the curb or across the tailgate
- You want the arm to fold down out of the way when the lift is not carrying anything
Look elsewhere if you
- Your equipment weighs more than 400 lbs.
- You need the lift on the driver side, because Harmar builds this one for passenger side installation
- You want the device carried outside on a platform behind the vehicle
- You drive a van or an SUV rather than a pickup
Specifications
Specifications are the manufacturer's own published figures for this model.
Fitting it to your vehicle
A truck lift is installed on the vehicle rather than unpacked and used. This is what that involves.
The lift mounts in the truck bed on a base adapter, and Harmar puts a universal base adapter in the box along with a folding arm. The arm height adjusts from 32" to 43" and the length adjusts from 31" to 42". Harmar builds this lift for passenger side installation. The docking device that holds your equipment is not included, because the right part depends on the chair or scooter it has to lift.
Before you order
Work through the steps beside this panel. They settle how the lift mounts, which hitch adapter your vehicle takes and whether your state requires a plate riser, so the parts that arrive are the parts your vehicle takes.
Getting it here
Every order ships from the manufacturer to the address you give us. The carrier arranges a delivery window with you in advance. Installation is arranged separately, and we will point you at what your vehicle needs before you order rather than after.
Warranty and returns
The Harmar AL435T Tailgater is covered by Harmar's own limited warranty, published by Harmar as follows.
| What is covered | How long |
|---|---|
| Vehicle lift | 3 years |
What is not covered
The three year term runs from the date of installation and from the date of retail purchase. Harmar states that the warranty is transferable only where the application is approved by Harmar's Compatibility Calculator, so a lift fitted to a vehicle that was never checked may not carry a transferable warranty.
If something goes wrong
Call us first at 1-855-HIELINE. We file the claim with Harmar for you and get the covered part sorted out rather than handing you a phone number. The base warranty covers parts, so ask us about service and labor options when you call.
Returns
A truck lift cannot be returned. It is fitted to your vehicle, wired into it and in many installations drilled into it, so once that work is done the unit is matched to one car and it has no second life on the shelf. This is exactly why the steps beside this panel exist. They settle the mounting, the adapter and the plate riser before you order.
A unit that arrives damaged or faulty is a different matter and is covered above. Contact us before anyone begins the installation.
See our return policy for complete details.
Coverage at a glance
Common questions
The lift, a folding arm and a universal base adapter, which is the plate it bolts to in the truck bed. The docking device that holds your wheelchair or scooter is not in the box, because the right part depends on the equipment it has to lift. You choose that in the step headed Your docking device.
It reaches 43" to the curb, or over a 24" tailgate. The arm height adjusts from 32" to 43" and the length adjusts from 31" to 42", and the powered extension is what lets the boom reach out to collect the device and draw back in to stow it.
Harmar builds the AL435T for passenger side installation. If you need the lift on the driver side, call 1-855-HIELINE before you order, because a vehicle lift cannot be returned once it is fitted.
The base adapter is the plate the lift bolts to in the bed. Harmar includes the universal one and it suits most vehicles. Five named adapters are offered for this model, for truck beds, Stow-N-Go seating and particular Ford, Toyota, GMC and Chevrolet vehicles, and they are listed in the step headed Base adapter. A named adapter replaces the universal one and is charged at list price.
Because the lift cannot hold your equipment without one, and Harmar does not put one in the box. If you are replacing an older lift and keeping the device you already have, choose I already have a docking device and nothing is added to your order. If you do not know which one you need, choose I am not sure which one I need, tell us your wheelchair or scooter in the step headed Your vehicle and your equipment, and we match the part for you before your order ships.
You can run it from its own battery instead by adding the battery pack in the step headed Accessories. It comes with a charger, and use it where a hybrid or electric vehicle has no 12 volt battery able to power a mobility lift.
81 lbs. installed, and it lifts a manual wheelchair, a power wheelchair or a scooter weighing up to 400 lbs. The installed weight sits in the bed permanently, so it is worth counting against what you already carry back there.
No. A vehicle lift is bolted into your vehicle and wired into it, so it is fitted rather than unpacked and it cannot be sent back. That is why we check the vehicle and the equipment you give us against Harmar's published capacities before anything ships.
Resources
The base adapter is the plate the lift bolts to inside your vehicle. A universal one comes in the box at no charge and it suits most vehicles. Some vehicles need the adapter built for them instead, and where yours does, the part below replaces the universal one rather than adding to it. If you are not sure, leave it on the included part and we confirm it against the vehicle you give us before your order ships.
1 · Base adapter
The docking device is the fitting that grips your wheelchair or scooter so the lift can raise it. The manufacturer does not put one in the box, because the right one depends on your equipment, and the lift cannot carry anything without it. Most chairs and scooters lift either by the centre seat post or by the four post seat frame. Choose the one that matches yours and we confirm the exact part with you before your order ships.
2 · Your docking device
This answer decides how much you have to work out yourself. A truck lift is wired into the vehicle and bolted to a base inside it, so it is fitted rather than unpacked.
These fit this model. Choose any you want and they are added to your order with the lift.
4 · Accessories
Last thing, and it is the one we act on rather than you. Tell us the vehicle and the scooter or power chair, and we check what you tell us against Harmar's published capacities before your order ships. All of it is optional.
5 · Your vehicle and your equipment
One step could not be settled from your measurements.
Send those three figures to a specialist and they will confirm the part for your vehicle. Call 1-855-HIELINE if you would rather talk it through.
