What comes in the box
This updates as you add options to your order.
- Harmar AL580XL
- AL123 class III hitch adapter
- AL107 hitch post
- License plate mount
- Hardwire kitWires the lift to the vehicle's battery.

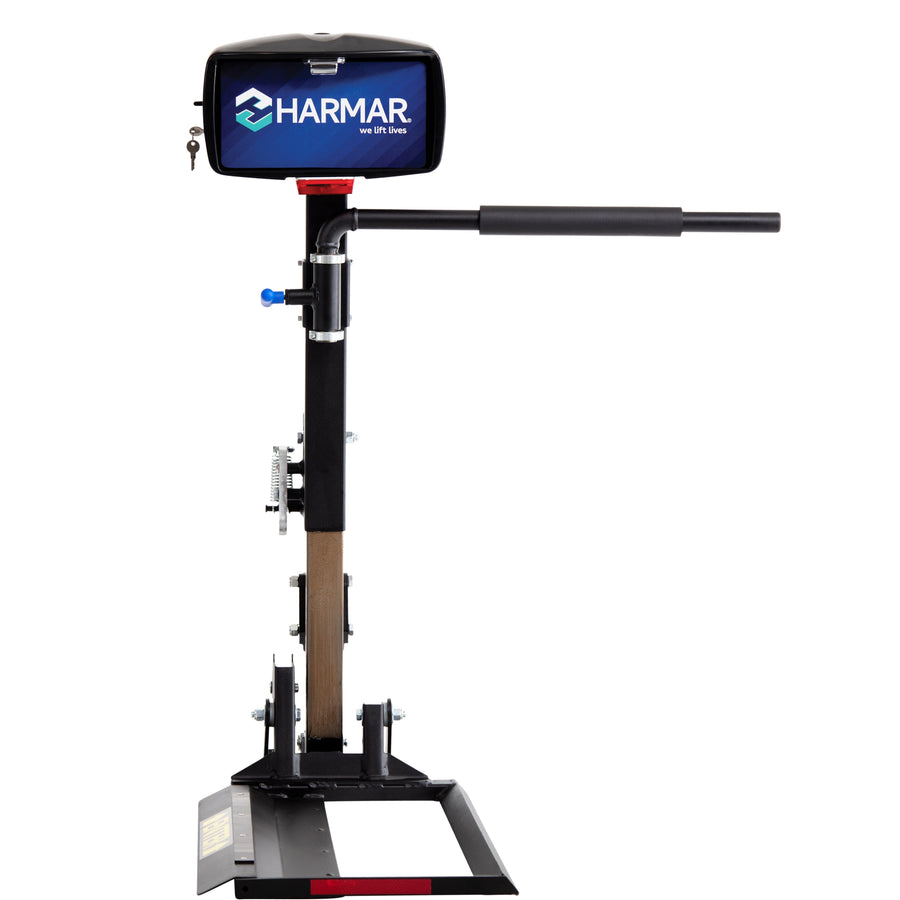

Harmar AL580XL
The AL580XL raises a mid-wheel drive power wheelchair weighing up to 350 lbs. onto a platform behind your vehicle at the press of a button. It mounts in a Class II hitch or greater, and a padded hold-down arm and wheel cradles hold the chair in place. Harmar builds this model for chairs with 14" drive wheels, and the AL580 is the same lift built for chairs with 10" drive wheels.
The light profile lift for a 14" drive wheel chair
The AL580XL is a fully powered hitch-mounted lift that carries a mid-wheel drive power wheelchair on a platform behind your vehicle. Harmar builds it for chairs with 14" drive wheels, it takes chairs up to 350 lbs., it mounts in a Class II hitch or greater, and at 63 lbs. installed it is as light as the standard AL580.
Built for real life
What stands out
Built for 14" drive wheels
Harmar builds this model for mid-wheel drive power wheelchairs with 14" drive wheels, on a platform measuring 17.5" by 27".
Fits a Class II hitch or greater
It mounts in a receiver hitch and carries the chair on a platform behind the vehicle.
One switch operation
The lift is fully powered and raises and lowers the chair at the press of a button.
Padded hold-down arm and wheel cradles
The chair sits in wheel cradles with a padded arm holding it down, and the chair itself is not modified.
License plate mount included
A license plate mount comes in the box along with the hitch post and the class III adapter.
Swing away option
A swing away arm lets you open the tailgate or hatch with the lift fitted.
The AL580XL and the AL580 are the same lift, and the drive wheel size is what separates them. Harmar builds the AL580 for mid-wheel drive chairs with 10" drive wheels and the AL580XL for the same chairs with 14" drive wheels, so check that figure on your own chair before anything else. The XL platform measures 17.5" by 27", one inch wider than the standard model. The chair sits on wheel cradles with a padded arm holding it down rather than on a full deck, which is how the lift comes in at 63 lbs. installed where the AL500 is 75 lbs. Every pound of the lift sits on your hitch alongside the chair, so that difference is worth having. It carries up to 350 lbs., it runs fully powered from one switch, and Harmar includes the AL123 class III hitch adapter, the AL107 hitch post and the license plate mount in the box. The honest caveat is the one that applies to every hitch lift. It lives on a trailer hitch, and a hitch cannot be fitted to every vehicle. Look at the AL500 if your chair is a rear or front wheel drive model, because it carries virtually all powerchairs on a 26" by 39" deck.
Straight talk
Is it right for you?
A good fit if you
- You have a mid-wheel drive power wheelchair with 14" drive wheels
- Your chair weighs up to 350 lbs.
- Your vehicle has a Class II hitch or better, or can have one fitted
- You want one of the lightest outside lifts Harmar builds for a power wheelchair
Look elsewhere if you
- Your chair has 10" drive wheels, where the AL580 is the same lift built for them
- Your power wheelchair is a rear or front wheel drive model, where the AL500 carries virtually all powerchairs
- Your chair weighs more than 350 lbs.
- You cannot fit a trailer hitch to your vehicle, which is not possible on every car
Specifications
Specifications are the manufacturer's own published figures for this model.
Fitting it to your vehicle
A vehicle lift is installed on the vehicle rather than unpacked and used. This is what that involves.
The receiver tube has to be installed parallel to the ground. Treat this as a requirement. A hitch fitted at an angle affects how the lift operates. Some vehicles also need the rear suspension supplemented, and some vehicles with rear parking sensors need those sensors deactivated, because automatic braking while reversing can stop the vehicle backing up.
Before you order
Work through the steps beside this panel. They settle how the lift mounts, which hitch adapter your vehicle takes and whether your state requires a plate riser, so the parts that arrive are the parts your vehicle takes.
Getting it here
Every order ships from the manufacturer to the address you give us. The carrier arranges a delivery window with you in advance. Installation is arranged separately, and we will point you at what your vehicle needs before you order rather than after.
Warranty and returns
The Harmar AL580XL is covered by Harmar's own limited warranty, published by Harmar as follows.
| What is covered | How long |
|---|---|
| Vehicle lift | 3 years |
What is not covered
The three year term runs from the date of installation and from the date of retail purchase. Harmar states that the warranty is transferable only where the application is approved by Harmar's Compatibility Calculator, so a lift fitted to a vehicle that was never checked may not carry a transferable warranty.
If something goes wrong
Call us first at 1-855-HIELINE. We file the claim with Harmar for you and get the covered part sorted out rather than handing you a phone number. The base warranty covers parts, so ask us about service and labor options when you call.
Returns
A vehicle lift cannot be returned. It is fitted to your vehicle, wired into it and in many installations drilled into it, so once that work is done the unit is matched to one car and it has no second life on the shelf. This is exactly why the steps beside this panel exist. They settle the mounting, the adapter and the plate riser before you order.
A unit that arrives damaged or faulty is a different matter and is covered above. Contact us before anyone begins the installation.
See our return policy for complete details.
Coverage at a glance
Common questions
No, and you can order before one is on the vehicle. The lift mounts in a receiver hitch of Class II or greater. A hitch shop fits one as routine work, and hitch installation is not possible on every vehicle, so confirm yours can take one.
Yes. Harmar puts an AL123 in the box and it is listed under what comes in the box above. It is a Class III adapter and it fits a 2" receiver sitting 10" to 18" off the ground, which covers most cars and vans. If your receiver is a different size or sits higher or lower than that, the hitch step tells you which adapter you need once you enter the two measurements, and you can add it there.
The drive wheel size your chair runs on. Harmar builds the AL580 for mid-wheel drive chairs with 10" drive wheels and the AL580XL for the same chairs with 14" drive wheels. The XL platform is 17.5" by 27" against 16.5" by 27". Both carry up to 350 lbs., both weigh 63 lbs. installed, and both take a Class II receiver or greater.
Check the drive wheel size first, because it is the difference between the two models. This one is built for 14" drive wheels. The platform measures 17.5" by 27" and the lift is rated to 350 lbs.
No. The chair sits in wheel cradles with a padded arm holding it down, and nothing is fitted to the chair itself.
Tell us the vehicle and the power wheelchair in the vehicle and equipment step, at the end of the section above. We check what you tell us against Harmar's published capacities before your order ships, and we call you if anything does not line up.
Only if you choose one of the swing away arms in the hitch post step above. The included AL107 hitch post is fixed. A swing away arm also adds weight to your hitch, and the page shows you the hardware total.
It can. Tell us where the vehicle is registered in the license plate riser step and we will tell you what your state requires. The riser is yours to add either way.
Resources
A vehicle lift bolts into a trailer hitch receiver, a square tube under the rear bumper with a pin hole through it. If you do not have one yet that is normal and it does not stop you ordering. Most vehicles take one and a hitch shop fits it as routine work.
Two measurements with a tape and we can tell you now whether the hitch adapter in the box fits your receiver. Measure the square opening across, and from the ground up to its bottom edge, both in inches. Skip them if you would rather we checked it with you before your order ships.
Where to measure
HV is the height you were asked for above. D1 and D2 are only needed when something sits close behind or in front of the receiver, and they let us name the adapter exactly. Harmar’s own rounding rule: round up above a half inch and down below it.
- HV. Ground to the bottom opening of the receiver.
- D1. Centre of the pin hole to the furthest point toward the rear of the vehicle.
- D2. Centre of the pin hole to the nearest point toward the front, going through the receiver. On some vehicles the spare tire is the nearest point.
The adapter is the short bar that slides into your receiver and carries the lift. Harmar puts one in the box at no charge and it fits most vehicles. There is nothing to choose here unless your receiver is an unusual size, or sits unusually high or low.
AL123 hitch adapterIncluded
Fits a 2" receiver sitting 10" to 18" off the ground, which covers most cars and vans.
Whichever you pick replaces the AL123 on your order and is charged at Harmar’s own price. Leave it alone and the AL123 ships.
I need a different adapter
Only Harmar approved hitch adapters may be used with this lift. Hitch expanders and extenders are prohibited, because they can damage the vehicle and the lift and can injure the user.
3 · Hitch post
Your lift comes with the AL107 hitch post, the bracket that bolts it to your receiver, at no charge. You do not have to choose anything here. A swing away is the upgrade: it swings the lift aside so you can open the tailgate or hatch without taking the lift off. Harmar sends the swing away instead of the hitch post, so the price shown is the whole mounting. Tap a swing away again to go back to the included post.
This answer decides how much you have to work out yourself. A vehicle lift is wired into the vehicle and bolted to the hitch, so it is fitted rather than unpacked.
These fit this model. Choose any you want and they are added to your order with the lift.
5 · Accessories
A lift mounted behind the vehicle can cover the rear plate. Tell us where the vehicle is registered and we will say what applies there. The riser is yours to add either way.
6 · License plate riser
Last thing, and it is the one we act on rather than you. Tell us the vehicle and the scooter or power chair, and we check what you tell us against Harmar's published capacities before your order ships. All of it is optional.
7 · Your vehicle and your equipment
One step could not be settled from your measurements.
Send those three figures to a specialist and they will confirm the part for your vehicle. Call 1-855-HIELINE if you would rather talk it through.
