What comes in the box
This updates as you add options to your order.
- Harmar AL600 Classic
- Wired 2-button pendant remote
- 4 cam buckle securement straps

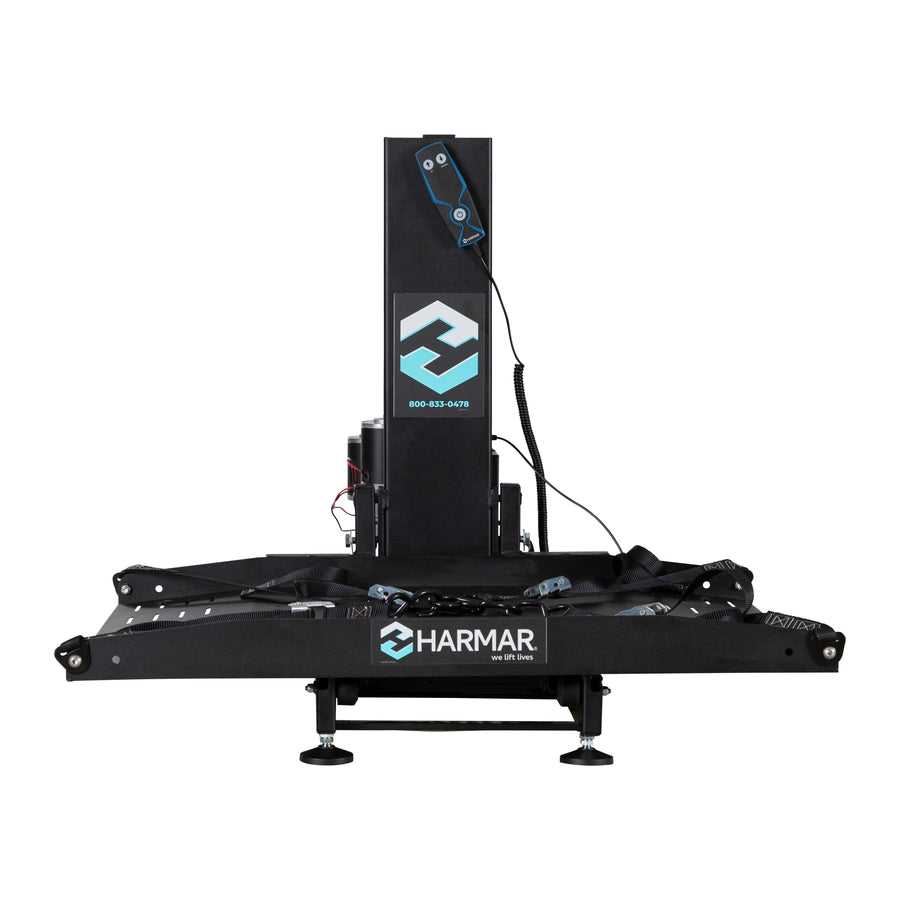

Harmar AL600 Classic
The AL600 Classic is a hybrid platform lift, which means the platform comes all the way down to the ground rather than asking the device to be lifted by a hook. You drive or push the chair on at curb level, press the button, and it rides up and into the cargo area. It carries up to 350 lbs., it weighs 179 lbs. installed, and the platform measures 28.5" x 38", or 28.5" x 45" once the 7" wheel cradle is fitted. Securement is four cam buckle straps, so there is no docking device to buy. It fits crossovers, minivans, SUVs and vans, it leaves the second row seating usable, and it needs no drilling in most vehicles.
A powered platform that carries the chair inside the vehicle
The AL600 Classic carries a power wheelchair, a manual wheelchair or a scooter weighing up to 350 lbs. on a platform that travels 35.5" from the cargo area to the ground. The device is loaded at ground level and rides inside the vehicle rather than out on the back. The platform is 28.5" x 38", or 28.5" x 45" with the 7" wheel cradle, and four cam buckle straps hold the device. The lift weighs 179 lbs. installed.
Built for real life
What stands out
The platform comes down to the ground
It travels 35.5" from the cargo area to ground level, so the chair or scooter is driven or pushed straight on. Nothing is hooked, lifted or swung, which is the difference between a hybrid platform lift and a hoist.
Takes up to 350 lbs. inside the vehicle
It carries a power wheelchair, a manual wheelchair or a scooter, and the device rides inside rather than out in the weather behind the vehicle.
Four cam buckle straps come with it
Securement is included, so unlike a hoist lift there is no docking device to choose or pay for. Self tensioning Q'Straint retractors are offered under Accessories if you want them instead.
The second row seating stays usable
Harmar designed it to leave the second row in service, and they state that most vehicles need no drilling to fit it.
Measure the cargo area before you order
It needs 32" of headroom and 44" of depth. Those two numbers decide whether it fits your vehicle, and a vehicle lift cannot be returned once it is fitted, so take the tape to it first.
The AL600 answers a different question from every other lift we carry. A hitch lift or a hoist asks you to hook the chair and swing it, and it leaves the device outside in the weather or takes up the bed of a truck. This one brings a platform to the ground, you roll the chair on, and it rides inside the vehicle with you. For someone loading a heavy power chair alone, that is a real difference in effort rather than a specification difference.
The number that decides it is not the capacity, it is the cargo area. It needs 32" of headroom and 44" of depth, and the lift itself puts 179 lbs. permanently in that space. Measure both before you buy, because this cannot be sent back once it is fitted. If it fits, the 350 lbs. rating covers most power wheelchairs comfortably.
The quiet advantage over the hoist lifts is that securement is included. Four cam buckle straps come in the box, so there is no docking device to match to your chair and no second cost to find at the end.
Look at the AL690 instead if the lift needs to work at a side door rather than the rear. Look at the hitch mounted lifts if you would rather keep the cargo area completely free.
Straight talk
Is it right for you?
A good fit if you
- You drive a crossover, minivan, SUV or van and want the chair to travel inside
- Your equipment weighs 350 lbs. or less
- You want the platform to come to ground level so the chair is driven or pushed on rather than hooked and swung
- You need the second row seating to stay usable
- You have 32" of headroom and 44" of depth in the cargo area
Look elsewhere if you
- Your equipment weighs more than 350 lbs.
- You drive a pickup, where the truck lifts are the right family
- Your cargo area is shorter than 44" deep or lower than 32" of headroom
- You want the device carried outside on a hitch, which frees the cargo area entirely
- You need the lift at a side door rather than the rear, which is what the AL690 is for
Specifications
Specifications are the manufacturer's own published figures for this model.
Fitting it to your vehicle
A hybrid platform lift is installed on the vehicle rather than unpacked and used. This is what that involves.
The lift bolts to the cargo floor and most vehicles need no drilling. It needs 32" of headroom and 44" of depth in the cargo area, so measure both before you order. The second row seating stays usable. If your vehicle has a folding seat in the way, Stow-n-Go seating, a sloped floor, or is a Honda CR-V, Harmar builds a base adapter for that case and they are listed in the step headed Base adapter. Securement is four cam buckle straps and they come with the lift, so there is no docking device to choose.
Before you order
Work through the steps beside this panel. They settle how the lift mounts, which hitch adapter your vehicle takes and whether your state requires a plate riser, so the parts that arrive are the parts your vehicle takes.
Getting it here
Every order ships from the manufacturer to the address you give us. The carrier arranges a delivery window with you in advance. Installation is arranged separately, and we will point you at what your vehicle needs before you order rather than after.
Warranty and returns
The Harmar AL600 Classic is covered by Harmar's own limited warranty, published by Harmar as follows.
| What is covered | How long |
|---|---|
| Vehicle lift | 3 years |
What is not covered
The three year term runs from the date of installation and from the date of retail purchase. Harmar states that the warranty is transferable only where the application is approved by Harmar's Compatibility Calculator, so a lift fitted to a vehicle that was never checked may not carry a transferable warranty.
If something goes wrong
Call us first at 1-855-HIELINE. We file the claim with Harmar for you and get the covered part sorted out rather than handing you a phone number. The base warranty covers parts, so ask us about service and labor options when you call.
Returns
A hybrid platform lift cannot be returned. It is fitted to your vehicle, wired into it and in many installations drilled into it, so once that work is done the unit is matched to one car and it has no second life on the shelf. This is exactly why the steps beside this panel exist. They settle the mounting, the adapter and the plate riser before you order.
A unit that arrives damaged or faulty is a different matter and is covered above. Contact us before anyone begins the installation.
See our return policy for complete details.
Coverage at a glance
Common questions
The lift, the wired two button pendant remote and four cam buckle straps for holding the device. Unlike Harmar's hoist and truck lifts there is no docking device to buy, because the platform carries the chair rather than gripping it.
Harmar builds it for crossovers, minivans, SUVs and vans, and the two measurements that decide it are 32" of headroom and 44" of depth in the cargo area. Take a tape to both before you order, because a vehicle lift is fitted to the vehicle and cannot be sent back. Tell us your vehicle in the step headed Your vehicle and your equipment and we check it against Harmar's own list before anything ships.
28.5" x 38". Fitting the 7" scooter wheel cradle, which is listed under Accessories, takes it to 28.5" x 45".
Most vehicles need no drilling. Where a vehicle needs a particular mounting, they build base adapters for a folding seat, Stow-n-Go seating, a sloped floor and the Honda CR-V, and those are listed in the step headed Base adapter.
Yes. The AL600 is built to leave the second row seating in service.
Four cam buckle straps, and they come with the lift. If you would rather have self tensioning retractors, Harmar's Q'Straint upgrade is listed under Accessories.
179 lbs. installed. That weight sits in the cargo area permanently, so it is worth counting against what you already carry.
No. A vehicle lift is bolted into your vehicle and wired into it, so it is fitted rather than unpacked and it cannot be sent back. That is why we check the vehicle and the equipment you give us against Harmar's published capacities before anything ships.
Resources
The base adapter is the plate the lift bolts to inside your vehicle. A universal one comes in the box at no charge and it suits most vehicles. Some vehicles need the adapter built for them instead, and where yours does, the part below replaces the universal one rather than adding to it. If you are not sure, leave it on the included part and we confirm it against the vehicle you give us before your order ships.
1 · Base adapter
This answer decides how much you have to work out yourself. A hybrid platform lift is wired into the vehicle and bolted to a base inside it, so it is fitted rather than unpacked.
These fit this model. Choose any you want and they are added to your order with the lift.
3 · Accessories
Last thing, and it is the one we act on rather than you. Tell us the vehicle and the scooter or power chair, and we check what you tell us against Harmar's published capacities before your order ships. All of it is optional.
4 · Your vehicle and your equipment
One step could not be settled from your measurements.
Send those three figures to a specialist and they will confirm the part for your vehicle. Call 1-855-HIELINE if you would rather talk it through.
