What comes in the box
This updates as you add options to your order.
- Harmar AL690
- Manual securement straps

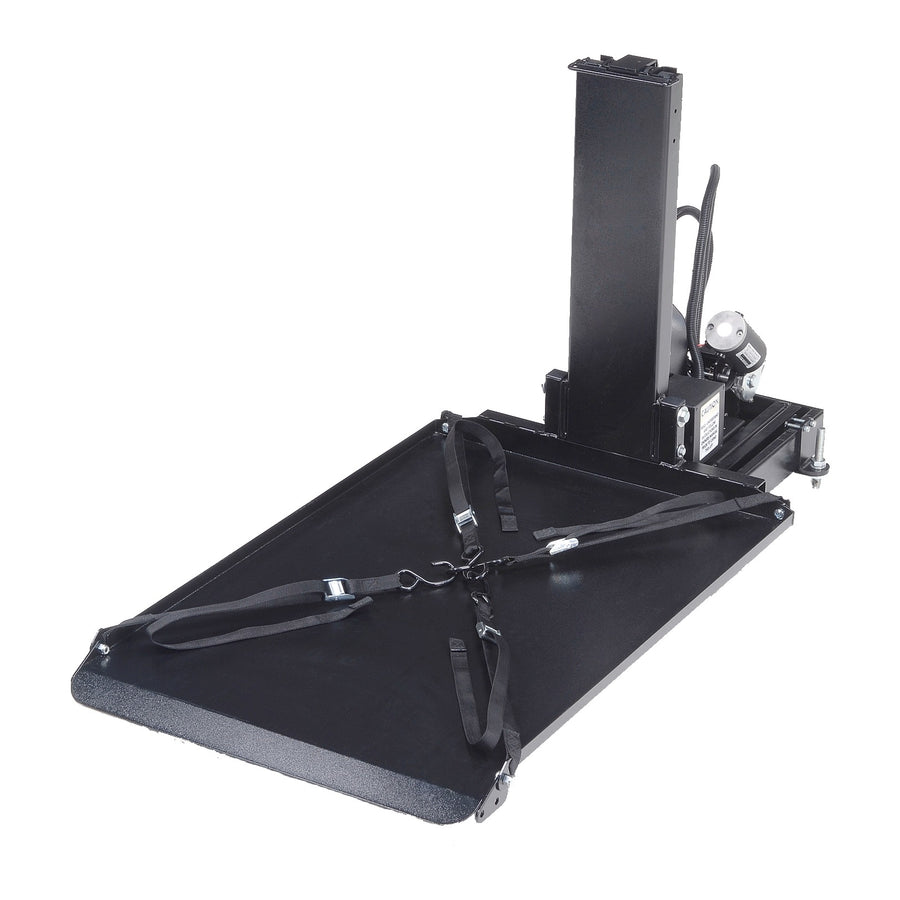

Harmar AL690
The AL690 is the side door member of Harmar's hybrid platform family. Where the AL600 works at the back of the vehicle, this one loads through the side door, which is what you need when the rear is not the practical opening or the cargo area is already spoken for. The platform comes all the way to the ground, so the chair is driven or pushed on rather than hooked and swung, and it adjusts from 21.5" to 29" wide to suit the device. It carries up to 275 lbs., the vertical reach is 35", and it weighs 186 lbs. installed. Securement is manual straps.
A powered platform that loads through the side door
The AL690 carries a manual wheelchair, a power wheelchair or a small scooter weighing up to 275 lbs. on a platform that comes down to the ground at the side door. The device is loaded at curb level and rides inside the vehicle. The platform is 40" long and adjusts from 21.5" to 29" wide, the vertical reach is 35", and the lift weighs 186 lbs. installed.
Built for real life
What stands out
It loads at the side door
The platform comes down to the ground beside the vehicle, so the chair or scooter is driven or pushed straight on at curb level. That matters when the rear of the vehicle is not the practical opening.
Takes up to 275 lbs. inside the vehicle
It carries a manual wheelchair, a power wheelchair or a small scooter, and the device travels inside rather than out in the weather behind the vehicle.
The platform adjusts to the device
It is 40" long and the width adjusts from 21.5" to 29", so one platform suits a narrow manual chair or a wider power chair.
Securement straps come with it
Harmar secures the device with manual straps and they are included, so unlike a hoist lift there is no docking device to choose or pay for.
Measure the door opening before you order
You need 32" of headroom and 55" of depth. Those two numbers decide whether it fits, and a vehicle lift cannot be returned once it is fitted, so take the tape to it first.
The AL690 exists for the vehicle where the back is not the answer. Plenty of vans and minivans have a side door that is the natural way in, or a rear that is already full, and every other lift we carry assumes you are loading at the tailgate or on a hitch. This one does not.
It is a platform lift, so the chair rolls on at ground level rather than being hooked and swung, and the platform adjusts from 21.5" to 29" wide to suit what is going on it. The 275 lbs. rating covers a good many power chairs and stops short of the heaviest.
The number that decides it is the 55" of depth you need at that door, which is more than the AL600 needs at the rear. Measure it before you commit, because this is fitted to the vehicle and cannot be sent back. And note the lift itself puts 186 lbs. permanently into the vehicle.
Look at the AL600 Classic instead if you can load at the rear, because it takes 350 lbs. and needs less depth. Look at the hitch mounted lifts if you would rather keep the inside of the vehicle completely free.
Straight talk
Is it right for you?
A good fit if you
- The side door is the practical opening on your vehicle rather than the rear
- Your equipment weighs 275 lbs. or less
- You want the platform to come to ground level so the chair is driven or pushed on rather than hooked and swung
- Your device is between 21.5" and 29" wide and no longer than 40"
- You have 32" of headroom and 55" of depth at that door
Look elsewhere if you
- Your equipment weighs more than 275 lbs., where the AL600 takes 350 lbs. at the rear
- You would rather load at the back of the vehicle, which is what the AL600 is for
- You drive a pickup, where the truck lifts are the right family
- You have less than 55" of depth at the side door
Specifications
Specifications are the manufacturer's own published figures for this model.
Fitting it to your vehicle
A hybrid platform lift is installed on the vehicle rather than unpacked and used. This is what that involves.
The lift is fitted at the side door and bolts to the vehicle floor. You need 32" of headroom and 55" of depth, so measure both before you order. If you would rather not have the floor drilled, Harmar's no-drill adapter is listed in the step headed Base adapter. Securement is manual straps and they come with the lift, so there is no docking device to choose.
Before you order
Work through the steps beside this panel. They settle how the lift mounts, which hitch adapter your vehicle takes and whether your state requires a plate riser, so the parts that arrive are the parts your vehicle takes.
Getting it here
Every order ships from the manufacturer to the address you give us. The carrier arranges a delivery window with you in advance. Installation is arranged separately, and we will point you at what your vehicle needs before you order rather than after.
Warranty and returns
The Harmar AL690 is covered by Harmar's own limited warranty, published by Harmar as follows.
| What is covered | How long |
|---|---|
| Vehicle lift | 3 years |
What is not covered
The three year term runs from the date of installation and from the date of retail purchase. Harmar states that the warranty is transferable only where the application is approved by Harmar's Compatibility Calculator, so a lift fitted to a vehicle that was never checked may not carry a transferable warranty.
If something goes wrong
Call us first at 1-855-HIELINE. We file the claim with Harmar for you and get the covered part sorted out rather than handing you a phone number. The base warranty covers parts, so ask us about service and labor options when you call.
Returns
A hybrid platform lift cannot be returned. It is fitted to your vehicle, wired into it and in many installations drilled into it, so once that work is done the unit is matched to one car and it has no second life on the shelf. This is exactly why the steps beside this panel exist. They settle the mounting, the adapter and the plate riser before you order.
A unit that arrives damaged or faulty is a different matter and is covered above. Contact us before anyone begins the installation.
See our return policy for complete details.
Coverage at a glance
Common questions
The lift and the manual straps that hold your device. Unlike Harmar's hoist and truck lifts there is no docking device to buy, because the platform carries the chair rather than gripping it.
You need 32" of headroom and 55" of depth at the side door. Take a tape to both before you order, because a vehicle lift is fitted to the vehicle and cannot be sent back. Tell us your vehicle in the step headed Your vehicle and your equipment and we check it against Harmar's own list before anything ships.
It is 40" long and the width adjusts from 21.5" to 29", so it suits a narrow manual chair or a wider power chair.
Where it loads. The AL690 works at the side door and the AL600 Classic works at the rear. The AL600 also takes more, 350 lbs. against 275 lbs., and needs less depth, 44" against 55". If you can load at the back, the AL600 is usually the easier fit.
Harmar builds an adapter that removes the need to drill and it is listed in the step headed Base adapter. Leave the step on standard mounting and nothing is added to your order.
Manual straps, and they come with the lift.
186 lbs. installed. That weight sits in the vehicle permanently, so it is worth counting against what you already carry.
No. A vehicle lift is bolted into your vehicle and wired into it, so it is fitted rather than unpacked and it cannot be sent back. That is why we check the vehicle and the equipment you give us against Harmar's published capacities before anything ships.
Resources
The base adapter is the plate the lift bolts to inside your vehicle. A universal one comes in the box at no charge and it suits most vehicles. Some vehicles need the adapter built for them instead, and where yours does, the part below replaces the universal one rather than adding to it. If you are not sure, leave it on the included part and we confirm it against the vehicle you give us before your order ships.
1 · Base adapter
This answer decides how much you have to work out yourself. A hybrid platform lift is wired into the vehicle and bolted to a base inside it, so it is fitted rather than unpacked.
These fit this model. Choose any you want and they are added to your order with the lift.
3 · Accessories
Last thing, and it is the one we act on rather than you. Tell us the vehicle and the scooter or power chair, and we check what you tell us against Harmar's published capacities before your order ships. All of it is optional.
4 · Your vehicle and your equipment
One step could not be settled from your measurements.
Send those three figures to a specialist and they will confirm the part for your vehicle. Call 1-855-HIELINE if you would rather talk it through.
