What comes in the box
This updates as you add options to your order.
- Harmar AL815CC Crew Cab
- Base line adapter, driver side or passenger side
- Removable hand control
- In-cab remote extension

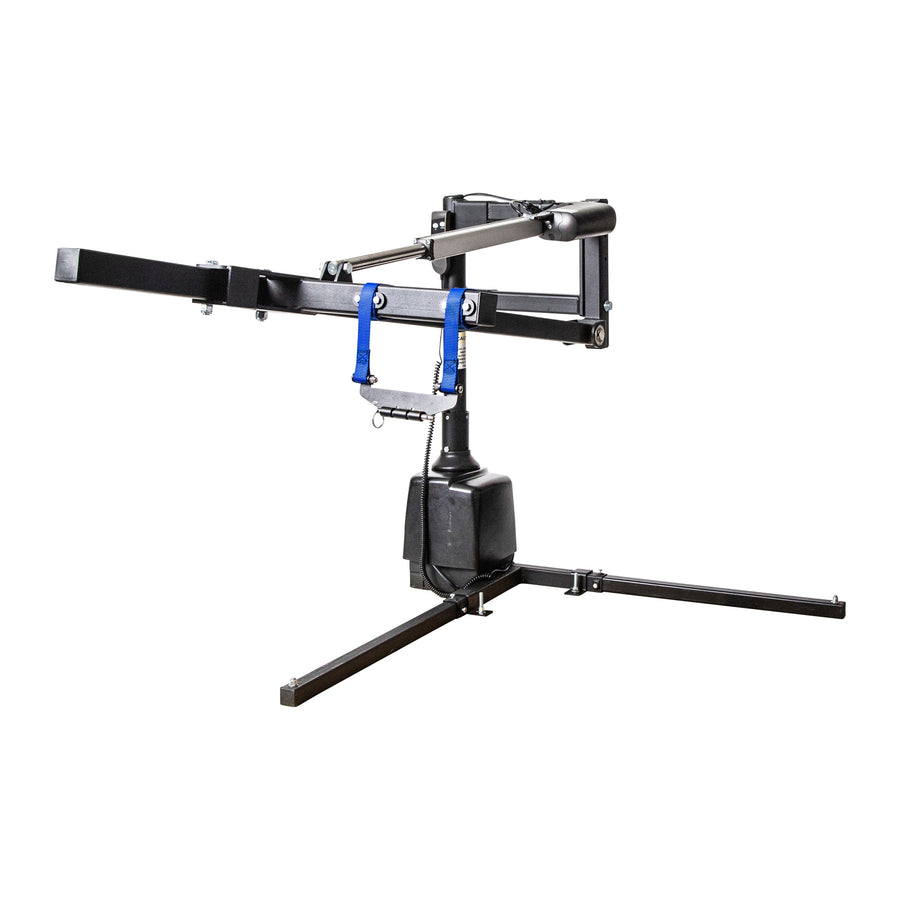

Harmar AL815CC Crew Cab
The AL815CC is the crew cab version of Harmar's Pickup lift, and the difference is reach. Its arm adjusts from 49.25" to 67" where the standard cab lifts stop at 46.5", so it clears the longer cab and still puts the device down beside the door. The boom lifts and rotates under power from a removable hand control, and Harmar puts an in-cab remote extension in the box so it can be worked from the seat. It takes up to 135 lbs. and weighs 121 lbs. installed. Harmar builds it for driver side or passenger side mounting, and you choose the side on this page.
A crew cab truck lift with the reach a back seat needs
The AL815CC raises a manual wheelchair, a small power wheelchair or a scooter weighing up to 135 lbs. into a pickup bed. The arm adjusts from 49.25" to 67" in length, which is what a crew cab needs, and from 34" to 41" in height. The boom lifts and rotates under power and sets the device down close to the driver or passenger side door. A base line adapter for the side you choose, a removable hand control and an in-cab remote extension come in the box.
Built for real life
What stands out
An arm built for a crew cab
The arm adjusts from 49.25" to 67" in length, where Harmar's standard cab lifts stop at 46.5". That extra reach is the whole reason this model exists, and it is what clears a four door cab.
Takes up to 135 lbs. into the truck bed
It lifts a manual wheelchair, a small power wheelchair or a scooter and places it in the bed. If your equipment is heavier, the AL825CC is the same crew cab lift rated to 225 lbs.
Power lifting and power rotation
The boom lifts and turns from a removable hand control, and the offset base sets the device down close to the driver or passenger side door instead of at the tailgate.
Driver side or passenger side, and the base comes with the lift
Harmar builds a base line adapter for each side and one comes with the lift. Choose your side in the step headed Base adapter and nothing is added to your order. If your truck needs one of the named vehicle adapters as well, they are listed under Accessories at list price.
A docking device holds your equipment, and it is sold separately
Harmar does not include one, because the right part depends on your chair or scooter. Choose the one that matches your equipment in the step headed Your docking device, or tell us what you have and we match it for you before your order ships.
The AL815CC exists for one reason and it is a good one. A crew cab puts the bed further back, and a standard Pickup lift with a 46.5" arm cannot reach past it cleanly. This one adjusts from 49.25" to 67" and it can. If you drive a four door pickup, this is the family to be looking at rather than the AL825.
The honest caveat is capacity. At 135 lbs. this is the lightest rating Harmar puts on a truck lift, and it suits a scooter or a folding manual chair rather than a power wheelchair. The AL825CC is the identical lift rated to 225 lbs. at the same price we list, so unless you know your equipment is light, that is the one to take. We would rather say that plainly than sell you the wrong rating.
The other thing worth knowing is that Harmar publishes no product page of their own for either crew cab model. Everything on this page comes from their dealer ordering system, their pricebook and the sell sheet they publish for the pair, and the sell sheet is linked in the documents below so you can read it yourself.
Look at the AL825 or the AL835 instead if you drive a standard or extended cab, because they cost less and the shorter arm suits the shorter bed.
Straight talk
Is it right for you?
A good fit if you
- You drive a crew cab pickup and the standard arm does not reach
- Your equipment weighs 135 lbs. or less, which covers most scooters and manual folding wheelchairs
- You want the device set down close to the driver or passenger side door rather than at the tailgate
- You want to work the lift from inside the cab, which the in-cab remote extension is for
Look elsewhere if you
- Your equipment weighs more than 135 lbs., where the AL825CC is the same crew cab lift rated to 225 lbs.
- You drive a standard or extended cab, where the AL825 and AL835 cost less and fit better
- You want the device carried outside on a platform behind the vehicle
- You drive a van or an SUV rather than a pickup
Specifications
Specifications are the manufacturer's own published figures for this model.
Fitting it to your vehicle
A truck lift is installed on the vehicle rather than unpacked and used. This is what that involves.
The lift mounts in the truck bed on a base line adapter, and Harmar builds that adapter for the driver side or the passenger side. You choose the side in the step headed Base adapter and nothing is added to your order either way, because the adapter comes with the lift. Tell us the side before you order, because a vehicle lift is fitted to the truck and cannot be sent back. The arm height adjusts from 34" to 41" and the length adjusts from 49.25" to 67", which is the range built for a crew cab. The docking device that holds your equipment is not included, because the right part depends on the chair or scooter it has to lift.
Before you order
Work through the steps beside this panel. They settle how the lift mounts, which hitch adapter your vehicle takes and whether your state requires a plate riser, so the parts that arrive are the parts your vehicle takes.
Getting it here
Every order ships from the manufacturer to the address you give us. The carrier arranges a delivery window with you in advance. Installation is arranged separately, and we will point you at what your vehicle needs before you order rather than after.
Warranty and returns
The Harmar AL815CC Crew Cab is covered by Harmar's own limited warranty, published by Harmar as follows.
| What is covered | How long |
|---|---|
| Vehicle lift | 3 years |
What is not covered
The three year term runs from the date of installation and from the date of retail purchase. Harmar states that the warranty is transferable only where the application is approved by Harmar's Compatibility Calculator, so a lift fitted to a vehicle that was never checked may not carry a transferable warranty.
If something goes wrong
Call us first at 1-855-HIELINE. We file the claim with Harmar for you and get the covered part sorted out rather than handing you a phone number. The base warranty covers parts, so ask us about service and labor options when you call.
Returns
A truck lift cannot be returned. It is fitted to your vehicle, wired into it and in many installations drilled into it, so once that work is done the unit is matched to one car and it has no second life on the shelf. This is exactly why the steps beside this panel exist. They settle the mounting, the adapter and the plate riser before you order.
A unit that arrives damaged or faulty is a different matter and is covered above. Contact us before anyone begins the installation.
See our return policy for complete details.
Coverage at a glance
Common questions
The lift, the base line adapter for the side you choose, a removable hand control and an in-cab remote extension. The docking device that holds your wheelchair or scooter is not in the box, because the right part depends on the equipment it has to lift. You choose that in the step headed Your docking device.
Crew cab. Harmar's own ordering system names this model Crew Cab 150 Speed. The arm adjusts from 49.25" to 67" so it clears a four door cab, where the standard Pickup lifts stop at 46.5".
135 lbs. That is Harmar's figure on the sell sheet they publish for the AL815CC and AL825CC together, and it matches their current pricebook. It suits a scooter or a folding manual wheelchair. If your equipment is heavier, the AL825CC is the same crew cab lift rated to 225 lbs.
Yes. Harmar builds a base line adapter for the driver side and one for the passenger side, and you pick the side in the step headed Base adapter. Neither one costs extra, because the adapter comes with the lift. Tell us the side before you order, because a vehicle lift is fitted to your truck and cannot be sent back.
Because the lift cannot hold your equipment without one, and Harmar does not put one in the box. If you are replacing an older lift and keeping the device you already have, choose I already have a docking device and nothing is added to your order. If you do not know which one you need, choose I am not sure which one I need, tell us your wheelchair or scooter in the step headed Your vehicle and your equipment, and we match the part for you before your order ships.
You can run it from its own battery instead by adding the battery pack in the step headed Accessories. It comes with a charger, and use it where a hybrid or electric vehicle has no 12 volt battery able to power a mobility lift.
No. A vehicle lift is bolted into your vehicle and wired into it, so it is fitted rather than unpacked and it cannot be sent back. That is why we check the vehicle and the equipment you give us against Harmar's published capacities before anything ships.
Resources
The base adapter is the plate the lift bolts to inside your vehicle. A universal one comes in the box at no charge and it suits most vehicles. Some vehicles need the adapter built for them instead, and where yours does, the part below replaces the universal one rather than adding to it. If you are not sure, leave it on the included part and we confirm it against the vehicle you give us before your order ships.
1 · Base adapter
The docking device is the fitting that grips your wheelchair or scooter so the lift can raise it. The manufacturer does not put one in the box, because the right one depends on your equipment, and the lift cannot carry anything without it. Most chairs and scooters lift either by the centre seat post or by the four post seat frame. Choose the one that matches yours and we confirm the exact part with you before your order ships.
2 · Your docking device
This answer decides how much you have to work out yourself. A truck lift is wired into the vehicle and bolted to a base inside it, so it is fitted rather than unpacked.
These fit this model. Choose any you want and they are added to your order with the lift.
4 · Accessories
Last thing, and it is the one we act on rather than you. Tell us the vehicle and the scooter or power chair, and we check what you tell us against Harmar's published capacities before your order ships. All of it is optional.
5 · Your vehicle and your equipment
One step could not be settled from your measurements.
Send those three figures to a specialist and they will confirm the part for your vehicle. Call 1-855-HIELINE if you would rather talk it through.
