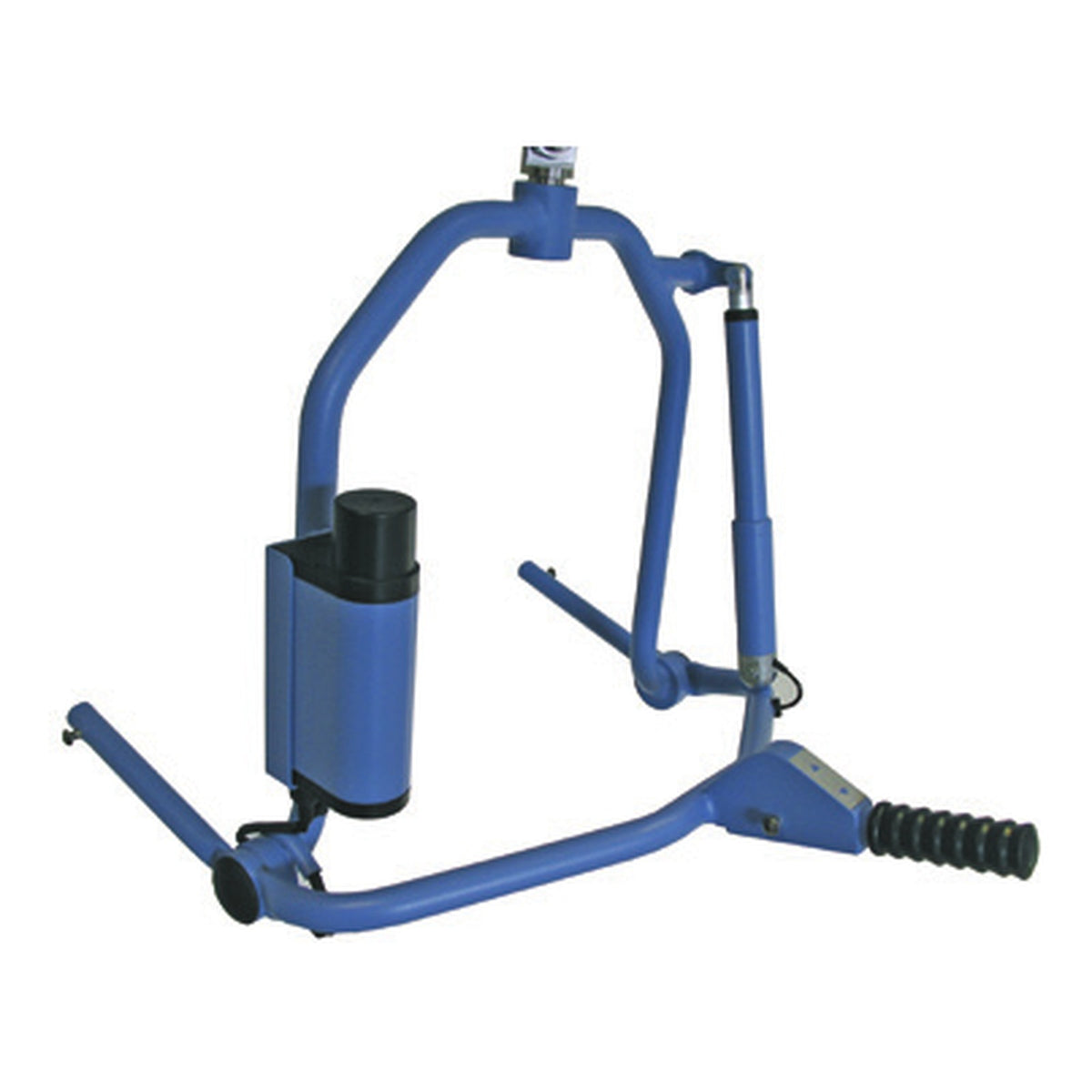

Hoyer Adaptive Power Cradle
ManufacturerJoerns Healthcare
ModelHOY-4PT-APC-W
$3,179.00MSRP $3,613.00
Most items ship in 3 to 7 business days.
The Hoyer Adaptive Power Cradle fits the Presence and Stature lifts. Buttons in its handle move the person from reclined to upright. It carries 500 lbs. and ships with two batteries and a charger.
A powered 4-point cradle for the Hoyer Presence and Stature. Buttons in the cradle handle move the person between reclined and upright.
Built for real life
What stands out
●
Powered positioning
Buttons in the cradle handle move the person toward a reclined or an upright position, in small steps or in one motion.
●
Carries 500 lbs.
The safe working load is 500 lbs., and the cradle rotates 360 degrees.
●
Two batteries and a charger
One battery works while the other charges. A full charge takes about 6 hours.
●
Retrofits in minutes
Joerns says the cradle goes onto a lift already in service in under five minutes with no special tools.
The Hieline Take
The Adaptive Power Cradle replaces the spreader bar or cradle on a Presence or Stature and does the repositioning for the caregiver. Buttons in the cradle handle move the person toward a reclined or an upright position, in small steps or in one motion, so the caregiver does not push the person into posture by hand. It carries 500 lbs., rotates 360 degrees and takes Hoyer Comfort slings with Securi3 clips. It runs on its own 24V battery, which a magnet holds in the control box on the cradle. Two batteries, the charger, two boom caps and the manual come with it, and a battery charges in about 6 hours. Joerns says it retrofits in under five minutes with no special tools. It weighs 20.9 lbs. with a battery. Loop slings do not fit it, and Joerns names it only for the Presence and the Stature. Joerns asks that it is used indoors in a clean, dry room.
Straight talk
Is it right for you?
A good fit if you
own a Hoyer Presence or Stature
reposition people in the sling many times a day
want the posture changed at the press of a button
Look elsewhere if you
own a different lift, which this cradle does not fit
use loop slings, which need the 6-point spreader bar
need the cradle in a wet room, since the charger has no water rating
Specifications
ManufacturerJoerns Healthcare
Part numberHOY-4PT-APC-W
FitsHoyer Presence and Hoyer Stature
Safe working load500 lbs.
MovementPowered, between reclined and upright, from buttons in the cradle handle
Rotation360 degrees
Sling attachmentHoyer Comfort slings with Securi3 safety clips
Weight20.9 lbs. with a battery
Battery24V NiMH, sealed, 1400mAh, 1.1 lbs.
ChargerInput 100V to 240V AC, output 28.4V DC maximum
Charge timeAbout 6 hours
Duty cycle2 minutes on, 18 minutes off
Water protectionActuator IP66, hand switch IP67, control box and battery IP50. The charger has no rating and stays out of wet rooms
Sound51.5 dB(A)
In the boxThe cradle, 2 rechargeable batteries, 1 battery charger, 2 black caps for the Stature and Presence boom, and the manual
The Hoyer Adaptive Power Cradle is covered by Joerns Healthcare's own limited warranty. The coverage we have on record is below.
Mechanical and electrical components2 years from the date of delivery
Batteries90 days
SourceThe warranty printed in the manual of the cradle, which is the HoyerPro lift warranty
Not coveredDamage from unsuitable conditions or from skipped maintenance. A repair or change Joerns did not authorize voids the warranty
The owner's manual is the full warranty
The owner's manual for this product has its own warranty section, and that section is the complete statement of what Joerns Healthcare covers, for how long, and what falls outside the coverage. Read it before you file a claim. If anything on this page differs from the manual, go by the manual.
Patient lift parts cannot be returned. If it arrives damaged or defective, tell us within 48 hours of delivery and we will get it repaired or replaced at no cost to you.
If something goes wrong
Call us first at 1-855-HIELINE. We file the claim with Joerns Healthcare for you and get the covered part sorted out rather than handing you a phone number.
The Hoyer Presence and the Hoyer Stature. Joerns states that the cradle is only compatible with those two lifts. Two boom caps come with it, one for each lift.
Which slings does it take?
Hoyer Comfort slings, which attach with Securi3 safety clips. Loop slings do not fit it.
What comes in the box?
The cradle, two rechargeable batteries, one battery charger, two black caps for the boom and the manual.
How is the battery charged?
Pull the battery straight out of the control box on the cradle and set it in the charger. A magnet holds it in both places. A green light flashes while it charges and stays on when it is full, which takes about 6 hours.
How does it attach?
Remove the spreader bar or cradle by its quick-release pin, with the bar supported on a table. Raise the power cradle to the boom, fit the pin sleeve through the boom, the black cap and the cradle king pin, and push the quick-release pin in until it clicks.
What is the warranty?
The warranty printed in the manual of the cradle covers mechanical and electrical components for 2 years from delivery and batteries for 90 days.
Can I return it?
No. Patient lift parts cannot be returned. If it arrives damaged or defective, tell us within 48 hours of delivery and we will get it repaired or replaced at no cost to you.
