Hoyer Elevate
ManufacturerJoerns Healthcare
ModelHOY-ELEVATE-S
$6,112.00MSRP $6,946.00
Most items ship in 3 to 7 business days.

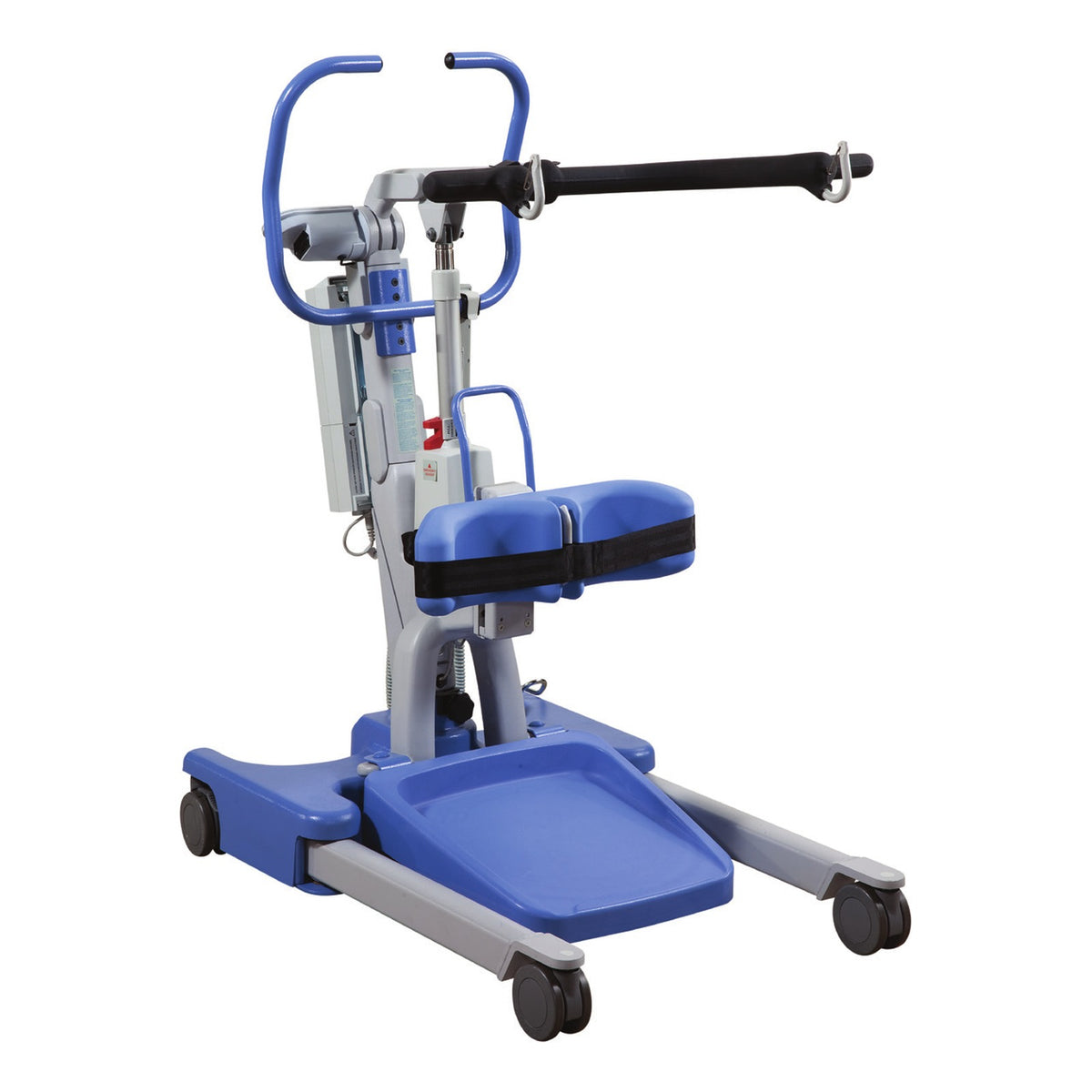

The Hoyer Elevate is an electric stand aid for a person who can bear some weight but needs help to stand. It carries 440 lbs., and its base legs open from the hand control. It ships without a sling.
An electric stand aid with a powered base that raises a seated person to standing. It carries 440 lbs., and the foot tray lifts off for walking practice.
Watch it in action
Hoyer Elevate training video, part 1
Built for real life
What stands out
●
Carries 440 lbs.
The safe working load is 440 lbs., which is 100 lbs. more than the Hoyer Journey.
●
Legs open from the hand control
The powered base opens to 34.3" inside and closes to 20.0", with no pedal to reach.
●
One-hand knee pad
A spring lever moves the contoured knee pad up or down with one hand, to suit the person's height.
●
Foot tray lifts off
With the angled foot tray removed the person can stand on the floor and walk with the stand aid under close supervision.
The Hieline Take
The Elevate is the heavier of the two Hoyer powered stand aids, for a larger person or for many transfers a day. It raises a seated person to standing with a motor and a standing sling. The person puts their feet on the angled foot tray and their shins on the knee pad, the sling goes around their back, and the hand control raises the boom. It carries 440 lbs., which is 100 lbs. more than the Hoyer Journey. The base legs open and close from the hand control, and the knee pad moves up and down with one hand on a spring lever. Lift the foot tray off and the person can stand on the floor and walk with it under close supervision. The Smart Monitor counts lifts, stops the lift on an overload and shows when service is due. The trade is size. The Elevate weighs about 136 lbs. and does not fold, where the Journey weighs 88.6 lbs. and folds. It is only for a person who can sit and bear some weight, and it ships without a sling.
Straight talk
Is it right for you?
A good fit if you
can bear some weight but cannot stand up alone
weigh up to 440 lbs.
need help with toileting and transfers between seats
want base legs that open from the hand control
Look elsewhere if you
cannot bear any weight, where a sling lift such as the Hoyer Presence fits
need a stand aid that folds, where the Hoyer Journey fits
weigh more than 440 lbs.
cannot sit upright on the edge of a bed or chair
Specifications
ManufacturerJoerns Healthcare
Model numberHOY-ELEVATE-S
Weight capacity440 lbs.
PowerElectric lift and electric leg opening from a hand control, on a removable 24V battery pack
Height to the sling attachment point39.2" to 64.7"
Overall height48.4" to 65.5"
Overall length41.0" to 43.3"
Base width, legs open39.1" outside, 34.3" inside
Base width, legs closed24.8" outside, 20.0" inside
Width between the support handles29.0"
Height of the legs4.7"
Ground clearance1.4"
Turning radius48.2"
Weight135.6 lbs.
Weight in piecesMast and boom 65 lbs., base 40.8 lbs., foot tray 23.1 lbs., battery pack 6.6 lbs.
Casters4" twin front, 4" rear with brakes
Battery24V sealed lead acid, 3.2 Ah, removable
ChargerDesk top charging stand, included
Smart MonitorCounts lift cycles, stops an overload and reminds you when service is due
Duty cycle2 minutes on, 18 minutes off
StandardTested to EN ISO 10535
The Hoyer Elevate is covered by Joerns Healthcare's own limited warranty. The coverage we have on record is below.
Mechanical and electrical components2 years from the date of delivery
Aluminum structure and weldsThe lifetime of the lift, which Joerns defines as 15 years from delivery
Hand control1 year
Batteries, hydraulic pumps and casters90 days
Not coveredDamage from unsuitable conditions or from skipped maintenance. A repair or change Joerns did not authorize voids the warranty
The owner's manual is the full warranty
The owner's manual for this product has its own warranty section, and that section is the complete statement of what Joerns Healthcare covers, for how long, and what falls outside the coverage. Read it before you file a claim. If anything on this page differs from the manual, go by the manual.
Patient lifts cannot be returned. If it arrives damaged or defective, tell us within 48 hours of delivery and we will get it repaired or replaced at no cost to you.
If something goes wrong
Call us first at 1-855-HIELINE. We file the claim with Joerns Healthcare for you and get the covered part sorted out rather than handing you a phone number.
A person who can sit up and bear some of their own weight, and who needs help to stand. A person who cannot bear weight needs a sling lift instead.
Does it come with a sling?
No. It ships without a sling and it needs one to raise a person. Its manual names the Hoyer Standing sling and the Hoyer Transport sling.
How much weight does it lift?
440 lbs.
Does it have a scale?
No. This is the Elevate without a scale, model HOY-ELEVATE-S. Joerns also makes it with a built-in digital scale. Contact us if you need that version and we will quote it.
What comes in the box?
The stand aid, the hand control, the battery pack, the desk top charging stand, the charging cord and the documents.
Can it be used as a walking aid?
Yes, with the foot tray removed, after a careful assessment of the person and with someone supervising closely.
What happens if the hand control or the power fails?
The control box has backup buttons under the emergency stop button. If the power fails completely, a red mechanical release on the actuator lowers the person slowly.
What is the warranty?
Joerns covers the mechanical and electrical components for 2 years from delivery and the aluminum structure and welds for 15 years. Batteries and casters are covered for 90 days and the hand control for 1 year. That is the HoyerPro warranty dated 2025, which is on this page. The user manual prints an older term of 5 years on the structure.
Can I return it?
No. Patient lifts cannot be returned. If the lift arrives damaged or defective, tell us within 48 hours of delivery and we will get it repaired or replaced at no cost to you.
