Hoyer HPL700
ManufacturerJoerns Healthcare
ModelHPL700-S2
$5,068.00MSRP $5,759.00
Most items ship in 3 to 7 business days.

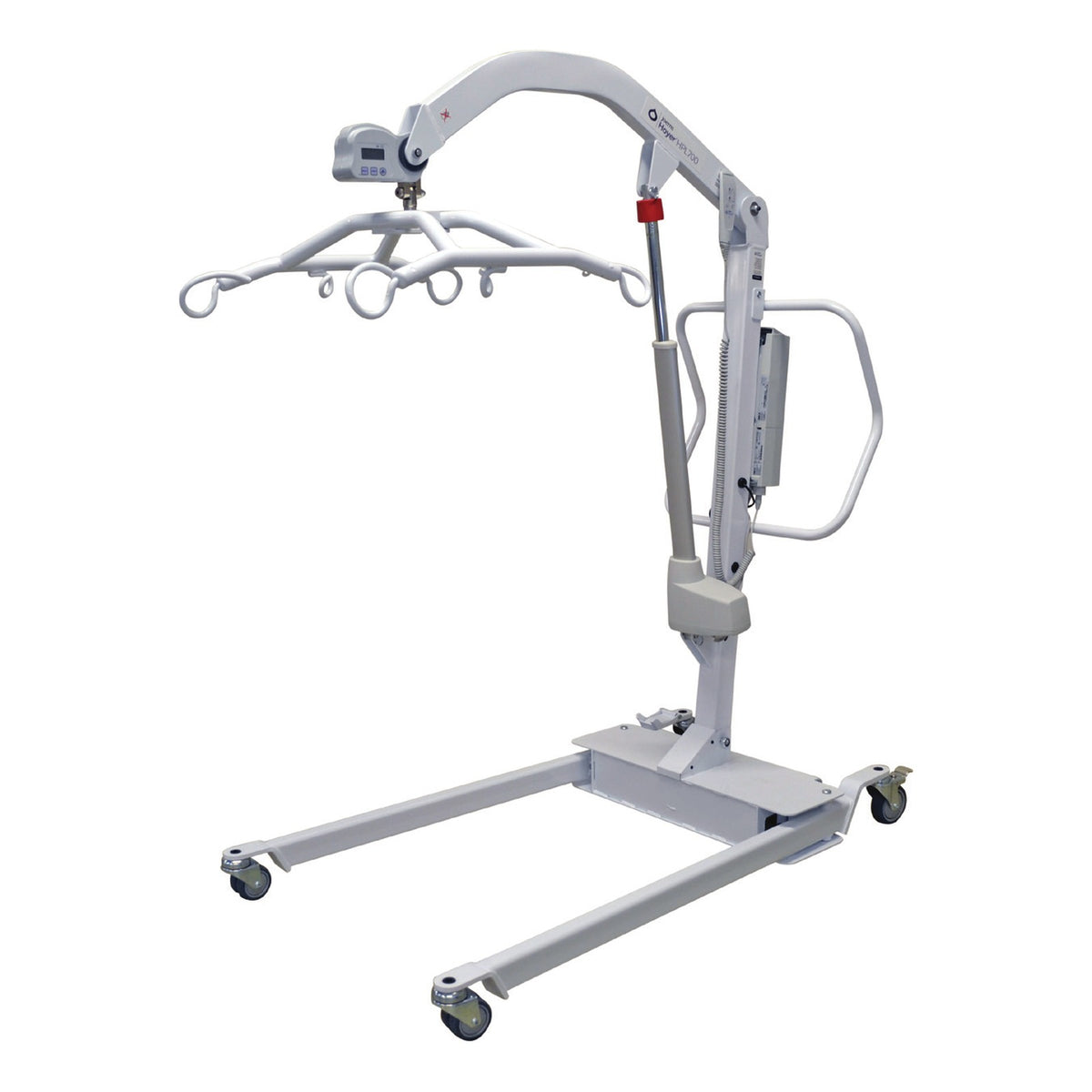

The Hoyer HPL700 is an electric sling lift that carries 700 lbs. The base legs open from the hand control, and it ships with a wide 6-point spreader bar and two battery packs, and without a sling.
An electric sling lift for a person up to 700 lbs. The base opens from the hand control, the wide spreader bar takes bariatric loop slings, and two battery packs come with it.
Watch it in action
Hoyer HPL700 training video
Built for real life
What stands out
●
Carries 700 lbs.
The safe working load is 700 lbs., with a wide 6-point loop spreader bar for bariatric slings.
●
Legs open from the hand control
The powered base opens to 42.25" inside to go around a bariatric wheelchair or chair, with no pedal to reach.
●
Two battery packs
Two packs and a charging stand come in the box, so one pack charges while the other runs the lift.
●
Smart Monitor
The control box counts lifts, stops the lift on an overload and shows when service is due.
The Hieline Take
The HPL700 is the Hoyer lift for a person the other lifts cannot carry. Its safe working load is 700 lbs., and everything about it is sized for that. The lift weighs 150 lbs., the base alone weighs 83 lbs., and the base legs open from 23.5" to 42.25" inside from the hand control. It ships with the wide 6-point loop spreader bar, which travels from 23.25" to 69" and takes the Hoyer bariatric slings. Two battery packs and a charging stand come in the box, so one pack charges while the other works. The Smart Monitor on the control box counts lifts, stops the lift on an overload and shows when service is due. Check the room before you order. The base is 27.5" wide with the legs closed, the lift needs a 62" turning radius, and the ground clearance is 0.625", so it is for hard, level floors. If the person weighs under 500 lbs., the Hoyer Presence is 62 lbs. lighter to push. The HPL700 ships without a sling.
Straight talk
Is it right for you?
A good fit if you
cannot stand and need a sling lift
weigh between 500 lbs. and 700 lbs.
want base legs that open from the hand control
have hard, level floors and wide doorways
Look elsewhere if you
weigh under 500 lbs., where the Hoyer Presence is 62 lbs. lighter to push
weigh more than 700 lbs.
have thick carpet or doorways under 28" wide
can bear some weight and want a stand aid
Specifications
ManufacturerJoerns Healthcare
Model numberHPL700-S2
Weight capacity700 lbs.
PowerElectric lift and electric leg opening from a hand control, on removable battery packs
Spreader bar6-point bariatric loop spreader bar, included
Spreader bar height23.25" to 69"
Overall height57.75" to 81"
Overall length55" to 56"
Base width, legs open46.25" outside, 42.25" inside
Base width, legs closed27.5" outside, 23.5" inside
Height of the legs4.5"
Ground clearance0.625"
Maximum reach37.75", from the front of the mast to the center of the spreader bar
Turning radius62"
Lift weight150 lbs. with a battery pack
Weight in piecesBase 83 lbs., mast and boom 40.4 lbs., spreader bar 20 lbs., battery pack 6.6 lbs.
Casters3" twin front, 4" rear with brakes
Battery24V pack of two 12V sealed lead acid batteries, 2.9 Ah. Two packs included
ChargerDesk top charging stand, included
Smart MonitorCounts lift cycles, stops an overload and reminds you when service is due
Duty cycle2 minutes on, 18 minutes off
Water protectionControl box, actuator and hand control IPX4, battery IPX5
StandardTested to EN ISO 10535
The Hoyer HPL700 is covered by Joerns Healthcare's own limited warranty. The coverage we have on record is below.
Mechanical and electrical components2 years from the date of delivery
Structural components5 years from the date of delivery
Batteries and casters90 days
Not coveredDamage from unsuitable conditions or from skipped maintenance. A repair or change Joerns did not authorize voids the warranty
The owner's manual is the full warranty
The owner's manual for this product has its own warranty section, and that section is the complete statement of what Joerns Healthcare covers, for how long, and what falls outside the coverage. Read it before you file a claim. If anything on this page differs from the manual, go by the manual.
Patient lifts cannot be returned. If it arrives damaged or defective, tell us within 48 hours of delivery and we will get it repaired or replaced at no cost to you.
If something goes wrong
Call us first at 1-855-HIELINE. We file the claim with Joerns Healthcare for you and get the covered part sorted out rather than handing you a phone number.
Does it come with a sling?
No. It ships with its 6-point bariatric loop spreader bar and without a sling, and it needs one to lift a person. Its manual names the Hoyer bariatric Full Back, Quickfit and Hammock slings.
Does it have a scale?
No. This is the HPL700 without a scale, model HPL700-S2. Joerns also makes it with a built-in digital scale. Contact us if you need that version and we will quote it.
How much weight does it lift?
700 lbs., which is 318 kg. The manual and the Joerns page print 700 lbs. beside 227 kg, and 227 kg is a misprint for 500 lbs.
Will it fit through a doorway?
The base is 27.5" wide outside with the legs closed. Measure the narrowest doorway on the route before you order.
What floors does it need?
Hard, level floors. The ground clearance is 0.625", and the manual rules out thick pile carpet with a person in the sling.
What comes in the box?
The lift, the 6-point bariatric loop spreader bar, the hand control, two battery packs, the desk top charging stand, the charging cord and the documents.
What happens if the hand control or the power fails?
The control box has backup buttons for raising, lowering and the base under the emergency stop button. If the power fails completely, a red mechanical release on the actuator lowers the person slowly.
What is the warranty?
Joerns covers the mechanical and electrical components for 2 years from delivery and the structural components for 5 years. Batteries and casters are covered for 90 days. Those are the terms in the HPL700 user manual, which is on this page.
Can I return it?
No. Patient lifts cannot be returned. If the lift arrives damaged or defective, tell us within 48 hours of delivery and we will get it repaired or replaced at no cost to you.
