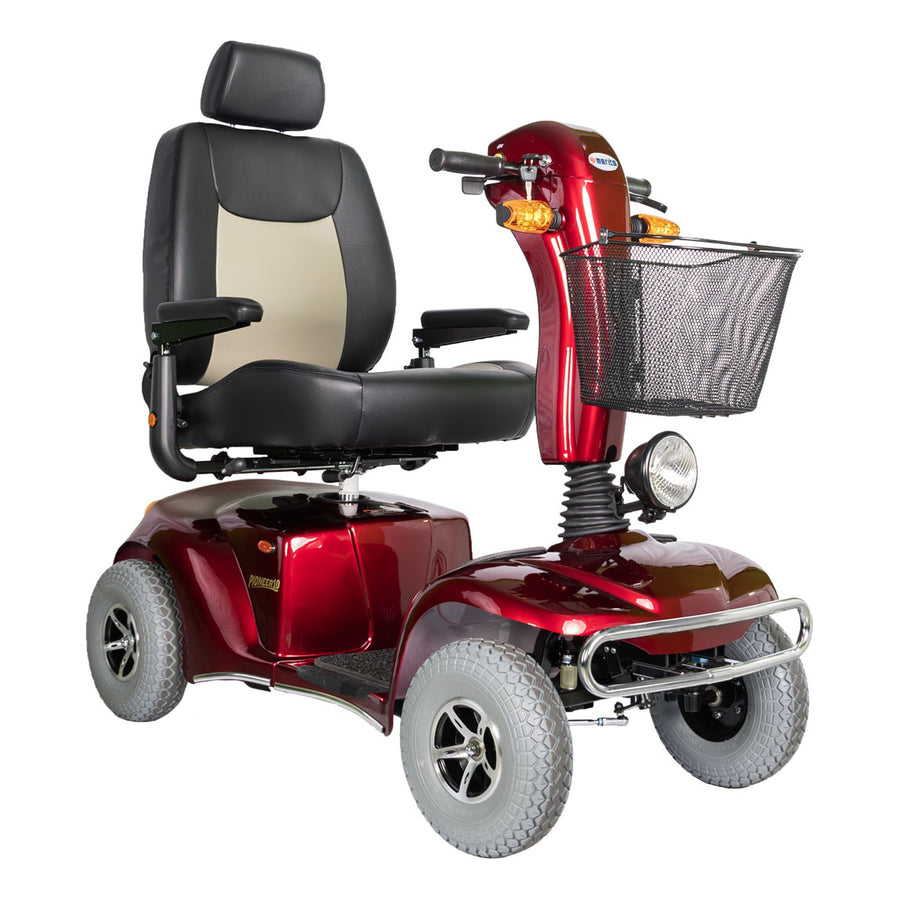

Merits Pioneer 10 DLX
The Pioneer 10 carries up to 500 lbs. on a one-piece frame with a suspension system. Two 12V Group 24 batteries come with it and give a range of up to 32 miles between charges. The sliding captain seat is 22" wide and 20" deep with a 22" backrest, and the fourth wheel trades a tighter turn for a steadier ride.
Carries up to 500 lbs. and travels 32 miles on a charge
The four-wheel version of the Pioneer 9, with the same 22" sliding captain seat, the same suspension and the same two Group 24 batteries in the box.
Built for real life
What stands out
Four wheels, flat-free
Four 12.5" flat-free wheels and a suspension system at both ends. There is nothing to inflate and nothing to puncture.
Two Group 24 batteries included
Two 12V Group 24 batteries and a 6A off-board charger come with the scooter and carry it up to 32 miles between charges.
22" sliding captain seat
The captain seat is 22" wide and 20" deep with a 22" backrest and a headrest, and it slides on its mount to set your distance from the tiller.
Hydraulic adjustable tiller
The tiller angle adjusts on a hydraulic strut, so you can set it where your arms are comfortable instead of leaning forward to reach it.
500 lbs. of capacity
The frame is rated for 500 lbs., which is the highest capacity in the Merits scooter range that we carry.
Suspension and 4" of ground clearance
The frame carries a suspension system and sits on a 4" ground clearance, so a driveway lip or a rough sidewalk does not stop it.
The Pioneer 10 is the Pioneer 9 with a second front wheel, and the comparison is the whole decision. Both carry 500 lbs., both run 32 miles on two Group 24 batteries, both use the same 22" sliding captain seat and the same hydraulic tiller. What changes is the turning radius, which goes from 50" to 62", and the weight, which goes from 249 lbs. to 269 lbs. So if you drive mostly outdoors and want the steadier platform, take the four wheels. If you have to get through a doorway or down a shop aisle, the three-wheel Pioneer 9 turns a foot tighter and costs less. Neither is a travel scooter, and the heaviest piece here is 121 lbs.
Straight talk
Is it right for you?
A good fit if you
- need a scooter rated at 500 lbs.
- want four wheels for the steadiest ride
- drive mostly outdoors and want range
- want tires that cannot go flat
- have a garage or a ground-floor room to keep it in
Look elsewhere if you
- need to turn in tighter than 62", where the three-wheel Pioneer 9 is the answer
- need to lift it into a car, because the heaviest piece is 121 lbs.
- want a color other than red
- need a scooter that comes apart for travel
Specifications
What to expect after you order
After you place your order, we place it with Merits Health and track it to your door. The carrier schedules the delivery window with you in advance, so you are never left guessing when it will arrive.
This mobility scooter ships one way. Here is what that includes.
This option works best if you have help on hand and want the lowest delivery cost.
We schedule with you
The carrier calls ahead to set a delivery appointment that works for you.
Your scooter arrives boxed
It comes on the delivery truck in its protective packaging.
Dropped at your curb
The driver brings it to your curb, driveway, or garage entrance.
You take it from there
Moving it inside and unboxing it is up to you or someone helping you.
Warranty and returns
The Merits Pioneer 10 DLX is covered by Merits Health's own limited warranty, published by Merits Health as follows.
| What is covered | How long |
|---|---|
| Base frame | 5 years |
| Controller and power module | 13 months |
| Motor, gearbox and brake assembly | 13 months |
| Transaxle | 13 months |
| Circuit boards and electrical harnesses | 13 months |
| Charger | 13 months |
| Batteries | 13 months |
| Metal seat frame, seat post and seat mount | 13 months |
| Swivel seat mechanism | 13 months |
What is not covered
Wear items are not covered. Those are tires and tubes, fuses and bulbs, battery cases, plastic and rubber parts, motor brushes, brake pads, upholstery including seat and arm pads, and painted surfaces including shrouds and fenders. Accidents, acts of nature, and loss or theft are not covered either.
If something goes wrong
Call us first at 1-855-HIELINE. We file the claim with Merits Health for you and get the covered part sorted out rather than handing you a phone number. The base warranty covers parts, so ask us about service and labor options when you call.
Returns
This mobility scooter may be returned within 30 days of delivery if it is unused and in the original packaging. Contact us before starting a return. A mobility scooter that has been used or is missing original packaging is not eligible for return. See our return policy for complete details.
This mobility scooter has a 20% restocking fee.
Coverage at a glance
Common questions
Yes. Two 12V Group 24 batteries and a 6A off-board charger come with the scooter at no extra charge.
The Pioneer 10 is the four-wheel version of the same scooter. Same 500 lbs. capacity, same 32-mile range, same 22" seat. The four-wheel turns in 62" against the three-wheel's 50", and it weighs 269 lbs. against 249 lbs.
Red. That is the only finish this model is built in.
No. It weighs 269 lbs. in total and its heaviest piece is 121 lbs. If you need to move it between addresses, a vehicle lift is the practical way to do it.
Resources
Documents
Videos
See how this mobility scooter compares
Pick any other mobility scooter we carry and see a clear, side by side look at the specs that matter.
Free curbside delivery is included.What does this mean?
This section is how your order reaches you and how far into your home it comes.
Curbside is the free option. The mobility scooter ships from the manufacturer straight to your address. Allow about two to three days for the order to be processed and shipped, then about five more in transit depending on where you live. No carrier in this trade quotes an exact date, so treat both figures as estimates rather than promises. It arrives boxed at the curb, and getting it inside is yours to arrange.
Included with every scooter at no extra charge.What does this mean?
This section covers what the manufacturer warrants and for how long.
There is nothing to buy here. The full terms are in the Warranty tab further up this page.
