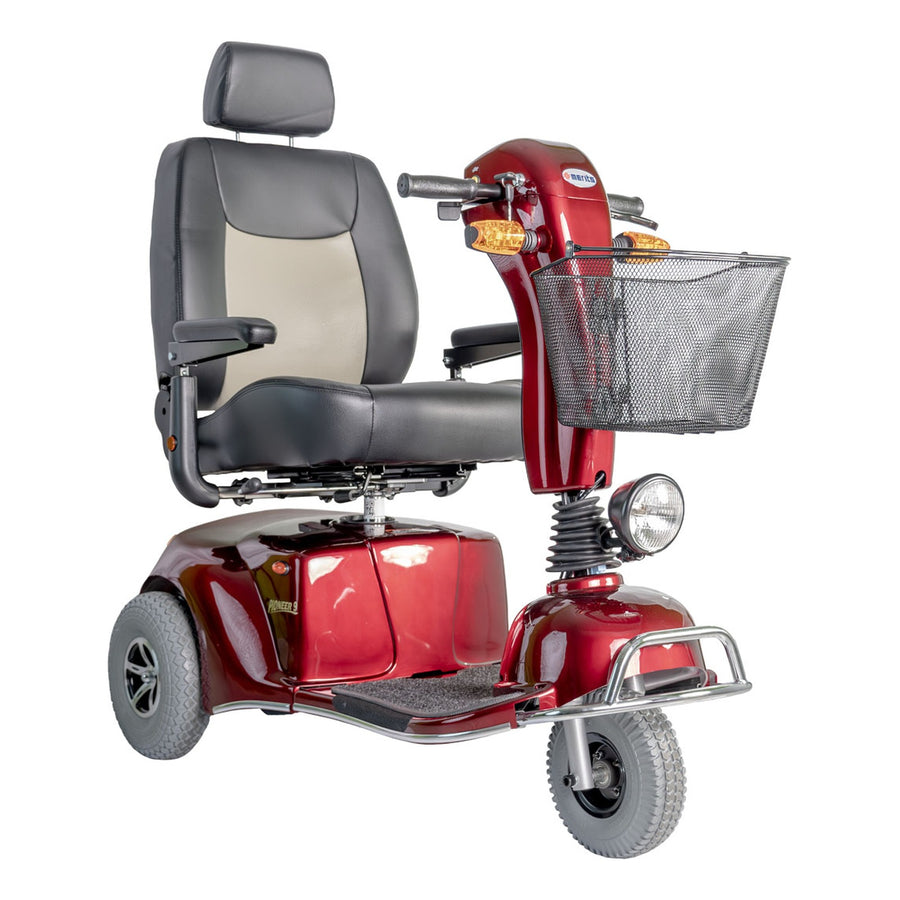

Merits Pioneer 9
The Pioneer 9 carries up to 500 lbs. on a one-piece frame with a suspension system. Two 12V Group 24 batteries come with it and give a range of up to 32 miles between charges. Running on three wheels rather than four brings the turning radius down to 50", which is what makes a scooter at this capacity workable indoors, and the sliding captain seat is 22" wide and 20" deep with a 22" backrest.
Carries up to 500 lbs. and travels 32 miles on a charge
Three wheels, rear-wheel drive and a suspension system, with two Group 24 batteries in the box. The sliding captain seat is 22" wide and the scooter turns inside 50".
Built for real life
What stands out
Turns inside 50"
Three wheels instead of four bring the turning radius down to 50", which is what makes a scooter at this capacity workable in a hallway or a shop aisle.
Two Group 24 batteries included
Two 12V Group 24 batteries and a 6A off-board charger come with the scooter. They carry it up to 32 miles between charges.
22" sliding captain seat
The captain seat is 22" wide and 20" deep with a 22" backrest and a headrest, and it slides on its mount to set your distance from the tiller.
Flat-free tires front and rear
A 10" flat-free wheel at the front and 12.5" flat-free drive wheels at the back. There is nothing to inflate and nothing to puncture.
Hydraulic adjustable tiller
The tiller angle adjusts on a hydraulic strut, so you can set it where your arms are comfortable instead of leaning forward to reach it.
Suspension and 4" of ground clearance
The frame carries a suspension system and sits on a 4" ground clearance, so a driveway lip or a rough sidewalk does not stop it.
The Pioneer 9 answers a narrow question well. Most scooters rated at 500 lbs. run on four wheels, and a fourth wheel widens the turning circle, which is what makes a large scooter awkward indoors. This one keeps the capacity and turns inside 50" because it runs on three, and the half-speed inhibit switch is the control that manages what you give up in a tight turn. The two Group 24 batteries are the other half of the picture, because they are the reason the range reaches 32 miles and also the reason the scooter weighs 249 lbs. with a heaviest piece of 101 lbs. Nobody is lifting this into a trunk, so plan on it living at one address and travelling on a vehicle lift if it needs to travel at all.
Straight talk
Is it right for you?
A good fit if you
- need a scooter rated well above 300 lbs.
- want a tighter turn than a four-wheel scooter of the same capacity gives you
- drive mostly outdoors and want range rather than portability
- have a garage, a shed or a ground-floor room to keep it in
- want tires that cannot go flat
Look elsewhere if you
- need to lift it into a car, because the heaviest piece is 101 lbs.
- want four wheels for the steadiest ride at speed
- want a color other than red
- need a scooter that comes apart for travel
Specifications
What to expect after you order
After you place your order, we place it with Merits Health and track it to your door. The carrier schedules the delivery window with you in advance, so you are never left guessing when it will arrive.
This mobility scooter ships one way. Here is what that includes.
This option works best if you have help on hand and want the lowest delivery cost.
We schedule with you
The carrier calls ahead to set a delivery appointment that works for you.
Your scooter arrives boxed
It comes on the delivery truck in its protective packaging.
Dropped at your curb
The driver brings it to your curb, driveway, or garage entrance.
You take it from there
Moving it inside and unboxing it is up to you or someone helping you.
Warranty and returns
The Merits Pioneer 9 is covered by Merits Health's own limited warranty, published by Merits Health as follows.
| What is covered | How long |
|---|---|
| Base frame | 5 years |
| Controller and power module | 13 months |
| Motor, gearbox and brake assembly | 13 months |
| Transaxle | 13 months |
| Circuit boards and electrical harnesses | 13 months |
| Charger | 13 months |
| Batteries | 13 months |
| Metal seat frame, seat post and seat mount | 13 months |
| Swivel seat mechanism | 13 months |
| Caster forks | 13 months |
What is not covered
Wear items are not covered. Those are tires and tubes, fuses and bulbs, battery cases, plastic and rubber parts, motor brushes, brake pads, upholstery including seat and arm pads, and painted surfaces including shrouds and fenders. Accidents, acts of nature, and loss or theft are not covered either.
Gradual loss of battery performance through poor battery care or overuse is not a warranty claim.
If something goes wrong
Call us first at 1-855-HIELINE. We file the claim with Merits Health for you and get the covered part sorted out rather than handing you a phone number. The base warranty covers parts, so ask us about service and labor options when you call.
Returns
This mobility scooter may be returned within 30 days of delivery if it is unused and in the original packaging. Contact us before starting a return. A mobility scooter that has been used or is missing original packaging is not eligible for return. See our return policy for complete details.
This mobility scooter has a 20% restocking fee.
Coverage at a glance
Common questions
Yes. Two 12V Group 24 batteries and a 6A off-board charger come with the scooter at no extra charge.
No. The Pioneer 9 weighs 249 lbs. in total and its heaviest piece is 101 lbs. This is not a travel scooter. If you need to move it between addresses, a vehicle lift is the practical way to do it.
Red. That is the only finish this model is built in.
It is 27" wide overall, so a standard 32" interior door has room for it.
Merits Health publishes two sets of figures for this scooter. The U.S. flyer and the U.S. specification sheet give 6 mph, a 54" overall length and a total weight of 249 lbs. Their international page gives 7.5 mph, 49" and 271 lbs. We publish the U.S. figures, because those are the documents this scooter is ordered and shipped against.
The scooter ships in the configuration described on this page. Merits Health sells holders, baskets and covers for it that we do not list yet, so call or email us before you order if you need one and we will tell you what is available.
