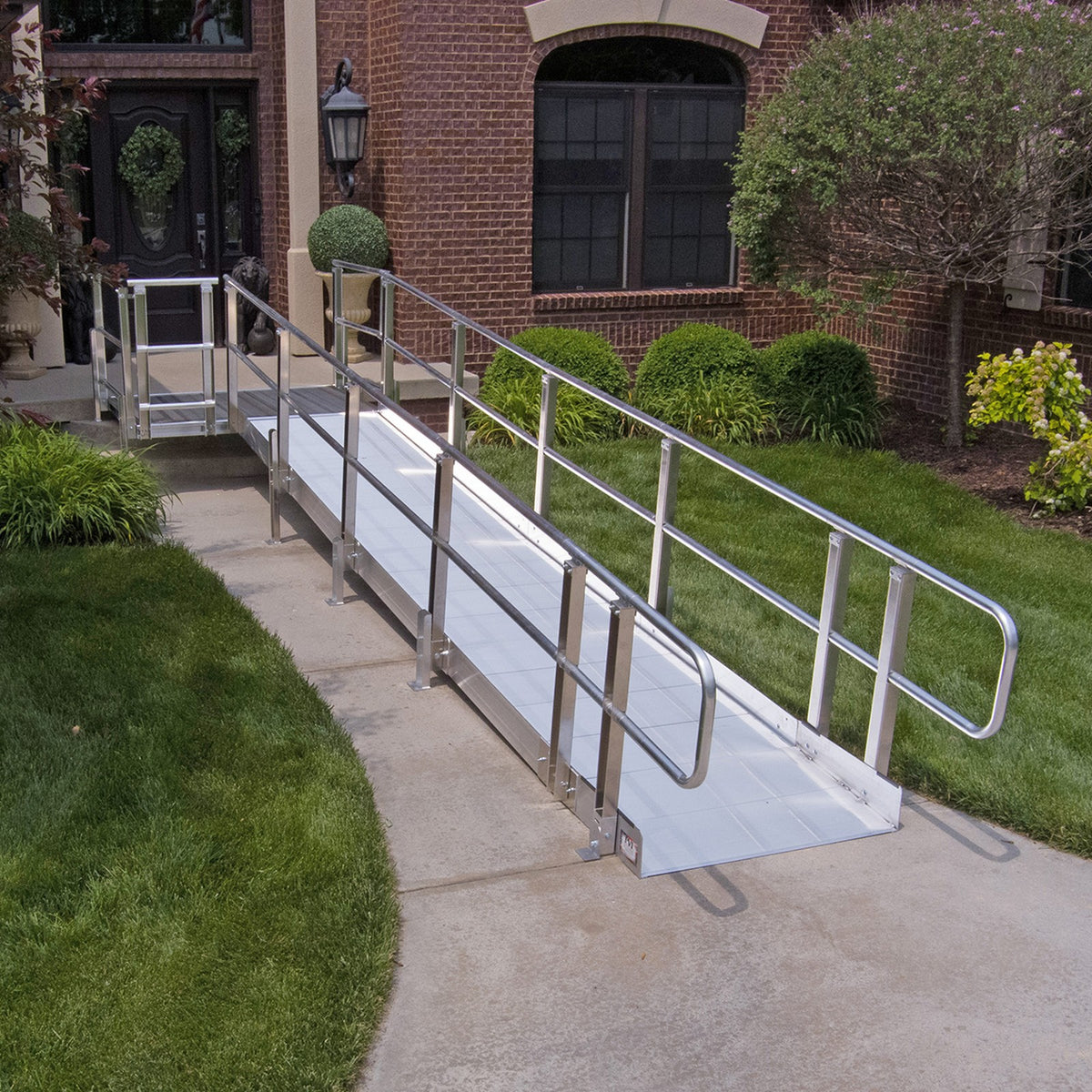

PVI Modular XP Ramp with Handrails
ManufacturerPVI
ModelMXP4.0
$669.99
Starting price
Most items ship in 3 to 7 business days.
One straight run of PVI's Modular XP aluminum ramp with handrails on both sides, from 4' to 15'. Add Modular XP platforms for landings and turns. It assembles on site with hand tools.
One straight run of PVI's Modular XP ramp with handrails, 36" usable width, in 4' to 15'. Add platforms for landings and turns. Assembled on site with hand tools.
Built for real life
What stands out
●
Handrails and curb built in
Every run carries double bar handrails on both sides and a 4" curb, as the ADA asks for above a 6" rise.
●
Freestanding
It stands on its own adjustable legs and does not attach to the house, which PVI says often avoids a permit.
●
Reconfigure or move it
Unbolt the sections to add length, change the layout or take the ramp to a new home.
●
No painting
All aluminum construction resists salt and weather and needs little or no maintenance.
The Hieline Take
The Modular XP is the step up from a portable ramp to a ramp that stays. Each run comes with handrails on both sides and a 4" curb, it stands on its own legs without being fixed to the house, and it bolts together with hand tools, so a local installer or a handy family member can build it. Plan the whole ramp before you order: the rise sets the total length at 1' per inch, a long run needs landings, and a turn needs a platform. When the need changes, it unbolts and moves.
Straight talk
Is it right for you?
A good fit if you
need a ramp longer than a portable ramp reaches
want handrails and a curb on a ramp that stays in place
may move, extend or resell the ramp later
Look elsewhere if you
need a ramp you can fold and carry
want the ramp installed for you by Hieline (we do not install; a local installer or handy helper assembles it)
need a turn or landing without buying platforms
Specifications
ManufacturerPVI
TypeModular aluminum ramp run with handrails
Model numbersMXP4.0 to MXP15.0, one per foot of length
Usable width36" (42" overall)
SectionsWelded in 2', 3', 4' and 5' sections, joined to make each length
Load capacity100 lbs. per square foot
SlopeAdjustable; 1:12 recommended, up to 2:12
SurfaceSlip resistant grooved aluminum
Edge protection4" curb
HandrailsDouble 1-1/2" bar, 34" to 38" high
System riseUp to 60" with platforms
StructureFreestanding with adjustable legs; anchored at the top and bottom of each run
AssemblyAbout one person hour per 20' of ramp, with common hand tools
Sold separatelyPlatforms, stairs, gates, long leg supports and ADA handrail extensions
Made inUSA
WarrantyPVI limited lifetime
Selected option
Manufacturer modelMXP4.0
Size and fit
Every size is listed here for reference. Choose your size in Ready to Buy above.
Length
Model
Price
4'
MXP4.0
$669.99
5'
MXP5.0
$839.99
6'
MXP6.0
$1,029.99
7'
MXP7.0
$1,139.99
8'
MXP8.0
$1,259.99
9'
MXP9.0
$1,529.99
10'
MXP10.0
$1,629.99
11'
MXP11.0
$1,709.99
12'
MXP12.0
$1,869.99
13'
MXP13.0
$2,069.99
14'
MXP14.0
$2,209.99
15'
MXP15.0
$2,409.99
The PVI Modular XP Ramp with Handrails is covered by PVI's own limited warranty. The coverage we have on record is below.
WarrantyPVI limited lifetime warranty against defects in material and workmanship, for the original end purchaser. Residents of California get a five year warranty on the same terms.
What PVI doesRepairs or replaces the defective product at its option, with no charge for parts or labor. PVI may refund the purchase price instead.
Not coveredMisuse, neglect, alteration, accidents, improper installation, rental use, repairs by anyone other than PVI, and normal wear and weathering
Warranty claimsThe product goes back to PVI at the owner's cost, with proof of purchase and a description of the defect
Damaged or defective on arrivalTell us within 48 hours of delivery and we will get it repaired or replaced at no cost to you
The owner's manual is the full warranty
The owner's manual for this product has its own warranty section, and that section is the complete statement of what PVI covers, for how long, and what falls outside the coverage. Read it before you file a claim. If anything on this page differs from the manual, go by the manual.
Ramps cannot be returned. Measure the rise and check the length or height on this page against it before you order. If it arrives damaged or defective, tell us within 48 hours of delivery and we will get it repaired or replaced at no cost to you.
If something goes wrong
Call us first at 1-855-HIELINE. We file the claim with PVI for you and get the covered part sorted out rather than handing you a phone number.
How long a ramp do I need?
Measure the total rise from the ground to the door threshold. At the ADA's 1:12 slope you need 1' of ramp for every 1" of rise, and the ADA calls for a landing at least every 30" of rise. PVI's system allows up to 2:12 where space is short, but check the chair or scooter manual first.
What comes in a run?
Each run includes the ramp sections and handrails for the length you choose. Platforms, stairs, gates, long leg supports and ADA handrail extensions are separate parts.
Who installs it?
Hieline does not install ramps. PVI designs the system to be assembled with common hand tools, at about one person hour per 20' of ramp, and a local ramp installer or a handy helper can put it together. Site preparation and anchoring are extra time.
Do I need a permit?
PVI says the freestanding design often removes the need for one. Check with your city or county before you build.
How do I plan a layout with landings or turns?
Add the platforms you need from the PVI Modular XP Platform page. PVI shows four common layouts in the product sheet: a straight run, a double switchback, a double platform 90 degree turn and a single platform top bridge.
