PVI Multifold Ramp
ManufacturerPVI
ModelWCR530
$394.99
Starting price
Most items ship in 3 to 7 business days.

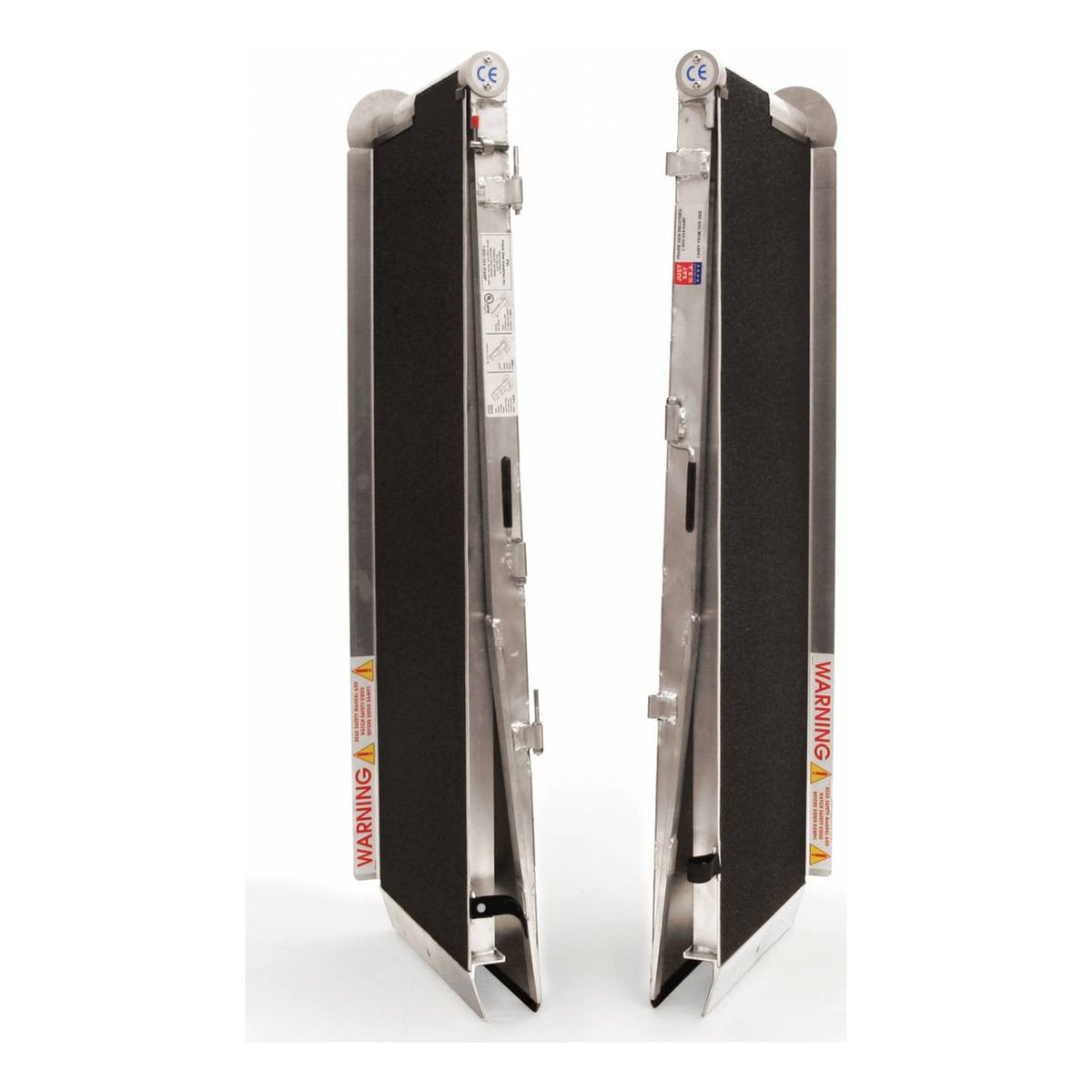

A portable PVI ramp that folds like a suitcase and splits into two pieces for carrying. Full 30" platform, 800 lbs. capacity and a safety slope guide, in 5', 6', 7' and 8' lengths.
Welded aluminum ramp that folds and separates into two pieces. Full 30" platform, 800 lbs. capacity, safety slope guide, in 5' to 8' lengths.
Built for real life
What stands out
●
Splits into two pieces
Turn the pin and the ramp comes apart, so an 8' ramp is two pieces of about 26 lbs. to lift.
●
Safety slope guide
A label at the top shows whether the ramp is sitting at a safe slope for the rise.
●
Full 30" platform
One solid surface from side to side suits scooters and chairs with any wheel spacing.
●
No pinch hinge
PVI's patented center hinge closes without a pinch point and adds strength.
The Hieline Take
The Multifold is the PVI ramp to look at when a singlefold is too short and a single long ramp is too heavy to handle. It folds into a suitcase shape and splits into two pieces with a turn of a pin, so even the 8' is two pieces of about 26 lbs. The label at the top tells you whether the slope is safe before anyone rolls up. It is 30" wide, so check your chair or scooter width against it, and look at the Bariatric Multifold if you need 36".
Straight talk
Is it right for you?
A good fit if you
need 5' to 8' of ramp for a taller step or a vehicle
want a long ramp one person can still carry in two pieces
use a chair or scooter up to 800 lbs. with its rider
Look elsewhere if you
need handrails
need a ramp wider than 30" (see the PVI Bariatric Multifold)
need to clear a rear bumper (see the PVI Multifold Reach)
Specifications
ManufacturerPVI
TypePortable multifold ramp, separates in two
Model numbersWCR530 (5'), WCR630 (6'), WCR730 (7'), WCR830 (8')
Weight capacity800 lbs. on two axles, 400 lbs. on one axle
HingePatented center hinge with no pinch point
LockingTurning a pin locks or unlocks the two sides without tools
SurfaceAnti-slip high traction surface on welded aluminum
In the boxSteel security pins and a safety DVD
TestingPVI tests the ramp at a 3X safety factor
Made inUSA
WarrantyPVI limited lifetime
Selected option
Manufacturer modelWCR530
Size and fit
Every size is listed here for reference. Choose your size in Ready to Buy above.
Length
Model
Price
5'
WCR530
$394.99
6'
WCR630
$464.99
7'
WCR730
$524.99
8'
WCR830
$634.99
The PVI Multifold Ramp is covered by PVI's own limited warranty. The coverage we have on record is below.
WarrantyPVI limited lifetime warranty against defects in material and workmanship, for the original end purchaser. Residents of California get a five year warranty on the same terms.
What PVI doesRepairs or replaces the defective product at its option, with no charge for parts or labor. PVI may refund the purchase price instead.
Not coveredMisuse, neglect, alteration, accidents, improper installation, rental use, repairs by anyone other than PVI, and normal wear and weathering
Warranty claimsThe product goes back to PVI at the owner's cost, with proof of purchase and a description of the defect
Damaged or defective on arrivalTell us within 48 hours of delivery and we will get it repaired or replaced at no cost to you
The owner's manual is the full warranty
The owner's manual for this product has its own warranty section, and that section is the complete statement of what PVI covers, for how long, and what falls outside the coverage. Read it before you file a claim. If anything on this page differs from the manual, go by the manual.
Ramps cannot be returned. Measure the rise and check the length or height on this page against it before you order. If it arrives damaged or defective, tell us within 48 hours of delivery and we will get it repaired or replaced at no cost to you.
If something goes wrong
Call us first at 1-855-HIELINE. We file the claim with PVI for you and get the covered part sorted out rather than handing you a phone number.
Which length do I need?
Measure the rise from the ground to the top of the step or landing. The ADA's 1:12 slope needs 1' of ramp for every 1" of rise. PVI rates its portable ramps for up to 2" of rise per 1' of ramp with an occupied chair or scooter and a helper, and up to 3" per 1' only when loading an empty chair or scooter. Your chair or scooter manual may set a lower limit, and that limit comes first.
How do the two halves come apart?
Turn the locking pin and the two sides separate. No tools are needed, and they lock back together the same way.
Can I use it to load a van or SUV?
Yes, where the rise and the slope allow it. If the bumper sits behind the load floor, the PVI Multifold Reach has an extended top hook to clear it.
What does the safety guide do?
It is a label near the top of the ramp that shows whether the ramp is resting at a safe slope for the rise you have.
