PVI OnTrac Ramp with Handrails
ManufacturerPVI
ModelXPS336
$799.99
Starting price
Most items ship in 3 to 7 business days.

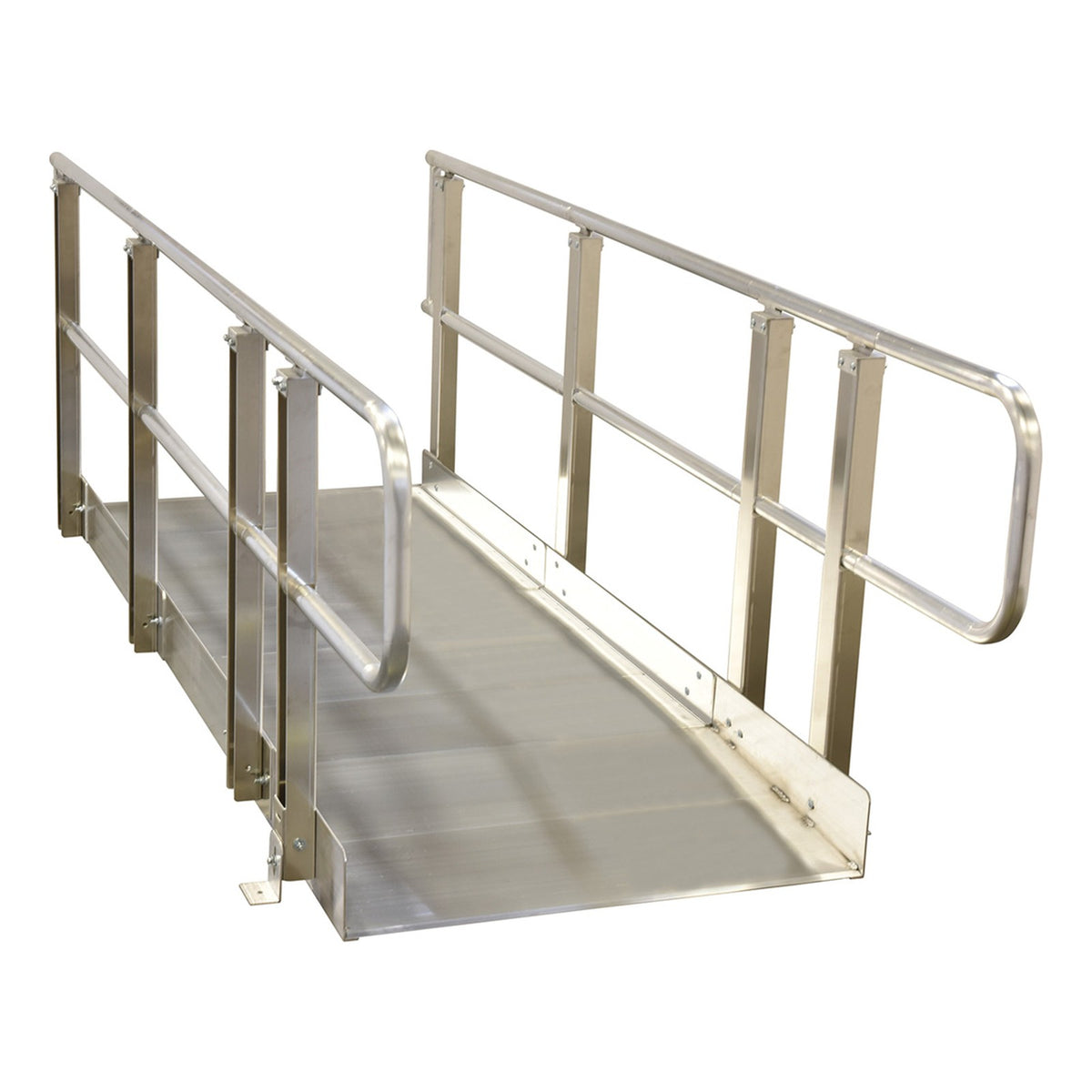

A PVI ramp with handrails on both sides for an entry that needs something to hold. 36" wide, slip resistant grooved aluminum, 850 lbs. capacity, in 3', 4' and 5' lengths. PVI says it installs in minutes.
All aluminum 36" ramp with handrails on both sides, grooved slip resistant surface and 850 lbs. capacity. Installs in minutes, in 3', 4' and 5' lengths.
Built for real life
What stands out
●
Handrails both sides
They give a walker user, a person who stands to transfer or a helper on the ramp something to hold.
●
Grooved aluminum surface
The grooves run across the ramp for grip, and the aluminum will not rot or rust.
●
Installs in minutes
It sets in place on its bolted hook with no concrete work.
●
Weather resistant
All aluminum construction needs little or no maintenance outdoors.
The Hieline Take
The OnTrac is a short ramp with the handrails a portable ramp lacks. That makes it the PVI choice for someone who walks up with a walker or cane, stands to transfer, or wants a rail to steady a helper, and for any rise over 6", where the ADA calls for rails on both sides. It is 36" wide, holds 850 lbs. and sits on a bolted hook with no concrete work. Past 5' of ramp, or where you need a landing, move up to the Modular XP.
Straight talk
Is it right for you?
A good fit if you
need handrails on a short rise
want a ramp that stays in place at an entry
use a chair or scooter up to 850 lbs. with its rider
Look elsewhere if you
need to fold the ramp and carry it
need more than 5' of ramp (see the PVI Modular XP)
need a landing or a turn
Specifications
ManufacturerPVI
TypeSolid ramp with handrails
Model numbersXPS336 (3'), XPS436 (4'), XPS536 (5')
Width36"
Weight49 lbs. (3'), 59 lbs. (4'), 69 lbs. (5')
Weight capacity850 lbs. on two axles, 425 lbs. on one axle
SurfaceSlip resistant grooved aluminum
TopHeavy duty bolted hook
ConstructionAll aluminum, welded in 3' and 4' sections
OptionsADA extended handrail on request
Made inUSA
WarrantyPVI limited lifetime
Selected option
Manufacturer modelXPS336
Size and fit
Every size is listed here for reference. Choose your size in Ready to Buy above.
Length
Model
Price
3'
XPS336
$799.99
4'
XPS436
$829.99
5'
XPS536
$899.99
The PVI OnTrac Ramp with Handrails is covered by PVI's own limited warranty. The coverage we have on record is below.
WarrantyPVI limited lifetime warranty against defects in material and workmanship, for the original end purchaser. Residents of California get a five year warranty on the same terms.
What PVI doesRepairs or replaces the defective product at its option, with no charge for parts or labor. PVI may refund the purchase price instead.
Not coveredMisuse, neglect, alteration, accidents, improper installation, rental use, repairs by anyone other than PVI, and normal wear and weathering
Warranty claimsThe product goes back to PVI at the owner's cost, with proof of purchase and a description of the defect
Damaged or defective on arrivalTell us within 48 hours of delivery and we will get it repaired or replaced at no cost to you
This product cannot be returned
Ramps cannot be returned. Measure the rise and check the length or height on this page against it before you order. If it arrives damaged or defective, tell us within 48 hours of delivery and we will get it repaired or replaced at no cost to you.
If something goes wrong
Call us first at 1-855-HIELINE. We file the claim with PVI for you and get the covered part sorted out rather than handing you a phone number.
Which length do I need?
Measure the rise from the ground to the top of the step or landing. The ADA's 1:12 slope needs 1' of ramp for every 1" of rise. PVI rates its portable ramps for up to 2" of rise per 1' of ramp with an occupied chair or scooter and a helper, and up to 3" per 1' only when loading an empty chair or scooter. Your chair or scooter manual may set a lower limit, and that limit comes first.
Does it need a contractor?
PVI says the OnTrac installs in minutes. It hooks to the top step or landing with its bolted hook and needs no concrete work.
Can I get the ADA extended handrail?
PVI offers it on request. It is not part of the price on this page.
Why is there nothing longer than 5' on this page?
We list the 3', 4' and 5' lengths. For a longer run with landings, see the PVI Modular XP Ramp.
